Model LG 47508L BD Writer External – Common Parts & Diagrams

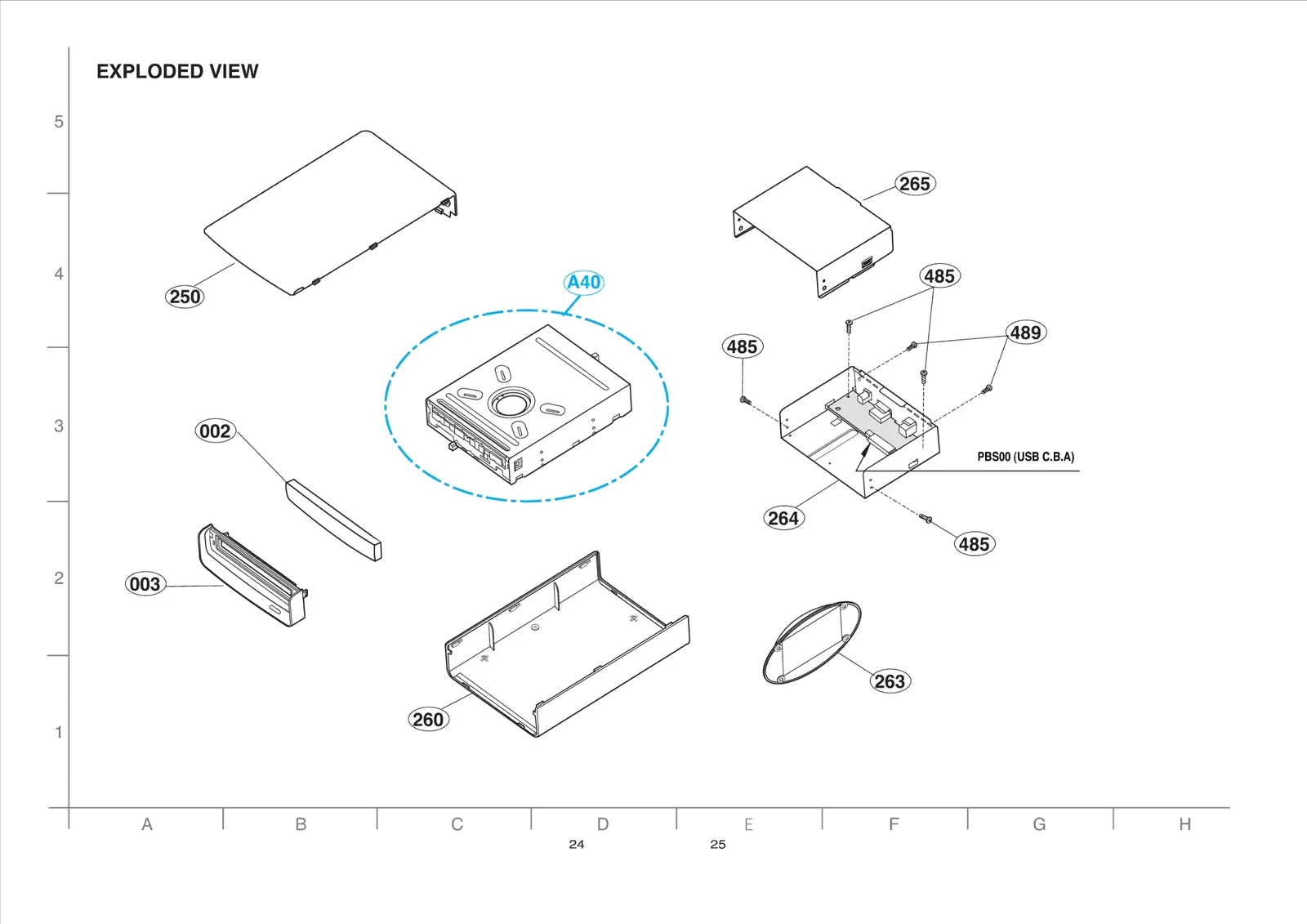

Diagram 0
Diagram 1
Common parts from model LG 47508L BD Writer External
001
Case Assembly LGE ABQ54092601 Contact Us For Availability
002
Cover Assembly LGE ACQ36197501 Contact Us For Availability
003
Cover Assembly LGE ACQ34571901 Contact Us For Availability
004
Case LGE MBN37010701 Contact Us For Availability
005
Clamp Assembly LGE ACA33509501 Contact Us For Availability
006
Case Assembly LGE ABQ65676501 Contact Us For Availability
007
Tray LGE 3390H-T015D Contact Us For Availability
008
Belt LGE 4400H-1012B Contact Us For Availability
009
PULLEY LGE 4560H-1005A Contact Us For Availability
010
GEAR LGE 4470H-1115A Contact Us For Availability
011
Spring LGE 4970H-1087A Contact Us For Availability
012
Lever LGE 4510H-1059A Contact Us For Availability
013
Motor,DC LGE 4680HP2010A Contact Us For Availability
015
Base LGE 3040H-1132B Contact Us For Availability
016
Guide LGE 4974H-T042A Contact Us For Availability
020
Damper LGE 5040H-T020A Contact Us For Availability
025
Pick Up,BD LGE EAZ43227502 Contact Us For Availability
026
Guide LGE MEA36773901 Contact Us For Availability
027
Spring LGE 4970H-1136A Contact Us For Availability
028
Shaft LGE MHJ61849201 Contact Us For Availability
030
Motor,DC LGE EAU44266901 Contact Us For Availability
030
Motor,DC LGE EAU48900501 Contact Us For Availability
032
Motor, DC Stepping LGE EAU37739805 Contact Us For Availability
032
Motor, DC Stepping LGE EAU48840201 Contact Us For Availability
033
Spring LGE 4970H-1194A Contact Us For Availability
034
Bracket LGE MAZ36781101 Contact Us For Availability
035
COVER LGE 3550H-1072A Contact Us For Availability
036
Holder LGE MEG36789401 Contact Us For Availability
037
Spring LGE MHY37934401 Contact Us For Availability
039
Holder LGE MEG36781501 Contact Us For Availability
040
Damper LGE MCQ37127502 Contact Us For Availability
041
Holder LGE MEG36781201 Contact Us For Availability
042
Damper LGE MCQ39941201 Contact Us For Availability
043
Holder LGE MEG36783301 Contact Us For Availability
044
Spring LGE 4970H-1223A Contact Us For Availability
050
Chassis LGE MBS36773301 Contact Us For Availability
250
Cover LGE MCK60869601 Contact Us For Availability
260
Cover Assembly LGE ACQ36320901 Contact Us For Availability
263
Cover Assembly LGE ACQ36320801 Contact Us For Availability
264
Housing LGE MEK39518501 Contact Us For Availability
265
Housing LGE MEK39518401 Contact Us For Availability
430
Screw,Customzied LGE 1SZZH-1003F Contact Us For Availability
432
Screw,Customized LGE 1SZZH-1005M Contact Us For Availability
448
Screw,Customized LGE 1SZZH-1072J Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZH-1072D Contact Us For Availability
453
SCREW,DRAWING LGE 1SZZH-1072E Contact Us For Availability
484
SCREW,DRAWING LGE 1SZZH-1214A Contact Us For Availability
485
Screw,Customized LGE 1SZZH-1215A Contact Us For Availability
489
SCREW,DRAWING LGE 1SZZH-1219A Contact Us For Availability
500
Screw,Customized LGE FAB30056301 Contact Us For Availability
502
Screw,Customized LGE FAB30117002 Contact Us For Availability
801
Manual,Owners LGE 3828HM1055R Contact Us For Availability
802
Manual,Installation LGE 3828HN1013U Contact Us For Availability
803
CARD,REGISTRATION LGE 3840HR1010A Contact Us For Availability
804
Card,Warranty LGE 3840HW1023B Contact Us For Availability
805
Card,Information LGE 3840HF1035X Contact Us For Availability
808
Packing LGE MFZ61873201 Contact Us For Availability
812
Cable,Assembly LGE EAD34033801 Contact Us For Availability
815
Adapters LGE EAY43986501 Contact Us For Availability
A01
Mechanism Assembly LGE AFP72184803 Contact Us For Availability
A02
Base Assembly LGE AAN59993304 Contact Us For Availability
A03
Base Assembly LGE AAN32712003 Contact Us For Availability
A40
BD Drive Assembly LGE EAZ42578320 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH4010K012 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CK472BH56A Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE 0CK561BK56A Contact Us For Availability
C119
Capacitor,Ceramic,Chip LGE 0CK225CCG7A Contact Us For Availability
C120
Capacitor,Ceramic,Chip LGE 0CK682BH5CA Contact Us For Availability
C124
Capacitor,Ceramic,Chip LGE 0CK104BDG7A Contact Us For Availability
C129
Capacitor,Ceramic,Chip LGE 0CK153BF56A Contact Us For Availability
C133
Capacitor,Ceramic,Chip LGE 0CK333BD56A Contact Us For Availability
C134
Capacitor,Ceramic,Chip LGE 0CK334CCG1A Contact Us For Availability
C136
Capacitor,Ceramic,Chip LGE 0CK222BK56A Contact Us For Availability
C138
Capacitor,Ceramic,Chip LGE 0CK474CC5CA Contact Us For Availability
C143
Capacitor,Ceramic,Chip LGE 0CK683BF5CA Contact Us For Availability
C153
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C157
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C179
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C183
Capacitor,Ceramic,Chip LGE 0CK223BF56A Contact Us For Availability
C232
Capacitor,Ceramic,Chip LGE 0CC151BKF1A Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CK152BK5CA Contact Us For Availability
C326
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C327
Capacitor,Ceramic,Chip LGE 0CC470BK41A Contact Us For Availability
C328
Capacitor,Ceramic,Chip LGE 0CC101BK41A Contact Us For Availability
C372
Capacitor,Ceramic,Chip LGE 0CK104BF94A Contact Us For Availability
C379
Capacitor,Ceramic,Chip LGE 0CC100BK41A Contact Us For Availability
C389
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C396
Capacitor,Ceramic,Chip LGE 0CK105CC5CA Contact Us For Availability
C398
Capacitor,Ceramic,Ch LGE 0CZZB00068A Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH4300K412 Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C523
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C554
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C555
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C556
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C558
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C601
Capacitor,Ceramic,Chip LGE 0CK106FF94A Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CK182BK56A Contact Us For Availability
C722
Capacitor,AL,Chip LGE DCH8107F621 Contact Us For Availability
C722
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C735
Capacitor,Ceramic,Chip LGE 0CK106DC66A Contact Us For Availability
C803
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
D201
Diode,Switching LGE 0DSRM00048A Contact Us For Availability
D501
DIODE,SWITCHING LGE 0DSAU00168A Contact Us For Availability
D706
Diode,Schottky LGE 0DR491009AA Contact Us For Availability
D706
Diode,Schottky LGE 0DSKE00128A Contact Us For Availability
IC101
IC,Data Controller LGE EAN30331001 Contact Us For Availability
IC101
IC,Line Driver LGE EAN36138502 Contact Us For Availability
IC200
Sensor LGE 6500HLD001T Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRJR018A Contact Us For Availability
IC204
IC,CMOS LGE 0ILNR00273A Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN37005402 Contact Us For Availability
IC501
IC,Data Controller LGE EAN42942102 Contact Us For Availability
IC502
IC,Serial Flash Memory LGE EAN42433101 Contact Us For Availability
IC502
IC,Serial Flash Memory LGE EAN42668301 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN42433602 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN37012501 Contact Us For Availability
IC505
IC,Analog Switch LGE EAN42666301 Contact Us For Availability
IC601
IC,Motor Driver LGE EAN36134702 Contact Us For Availability
IC701
IC,LDO Voltage Regul LGE EAN39118901 Contact Us For Availability
IC702
IC,LDO Voltage Regulator LGE 0ILNRRH032A Contact Us For Availability
IC703
IC,DC,DC Converter LGE EAN35662904 Contact Us For Availability
IC781
IC,Analog Switch LGE EAN36675501 Contact Us For Availability
IC783
IC,LDO Voltage Regulator LGE EAN41406802 Contact Us For Availability
L501
INDUCTOR,CHIP LGE 0LCTD00041A Contact Us For Availability
L501
INDUCTOR,CHIP LGE 0LCSH00014A Contact Us For Availability
L502
Filter,Bead LGE 6200JB8010M Contact Us For Availability
L701
Inductor,Wire Wound, LGE EAP30417701 Contact Us For Availability
L703
Inductor,Wire Wound, LGE 0LCTA00009A Contact Us For Availability
LED1
LED,DIP LGE EAV57635501 Contact Us For Availability
LED1
LED,DIP LGE EAV38364901 Contact Us For Availability
PBF00
PCB Assembly,Front LGE EBR58946601 Contact Us For Availability
PBM00
PCB Assembly,Main LGE EBR58942501 Contact Us For Availability
PBS00
PCB Assembly,Main LGE EBR58734201 Contact Us For Availability
PBT00
PCB Assembly,Main LGE EBR58898101 Contact Us For Availability
Q201
TR,Bipolar LGE 0TRRH80085A Contact Us For Availability
Q301
TR,Bipolar LGE 0TRRH80087A Contact Us For Availability
Q651
TR,Array LGE 0TRAU80020A Contact Us For Availability
Q651
TR,Array LGE 0TRRH80017A Contact Us For Availability
R101
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R102
Resistor,Chip LGE 0RH5603C622 Contact Us For Availability
R103
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R114
RESISTOR,METAL GLAZE LGE 0RJ6803C678 Contact Us For Availability
R121
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R150
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R202
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R214
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R230
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R231
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R316
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R325
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R336
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R349
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R353
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R359
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R386
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R505
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R506
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R515
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R518
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R523
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R528
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R535
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R602
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R651
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R721
RESISTOR,METAL GLAZE LGE 0RJ1001C478 Contact Us For Availability
RA101
Resistor,Array LGE 0RR0822Q62A Contact Us For Availability
RA102
Resistor,Array LGE 0RR0332Q62A Contact Us For Availability
RA502
Filter,Bead LGE 6200J000179 Contact Us For Availability
SW201
Switch,Detector LGE 6600HXF102A Contact Us For Availability
SW201
Switch,Detector LGE 6600HXF105B Contact Us For Availability
SW704
RESISTOR,METAL GLAZE LGE 0RJ0000H680 Contact Us For Availability
T001
Thermistor,NTC LGE 6322A00003B Contact Us For Availability
X301
Crystal LGE EAW36588601 Contact Us For Availability
X501
Crystal LGE 6212AB2876A Contact Us For Availability
× ![]()
Login and Registration Form
