Model GE 4680012 – Common Parts & Diagrams

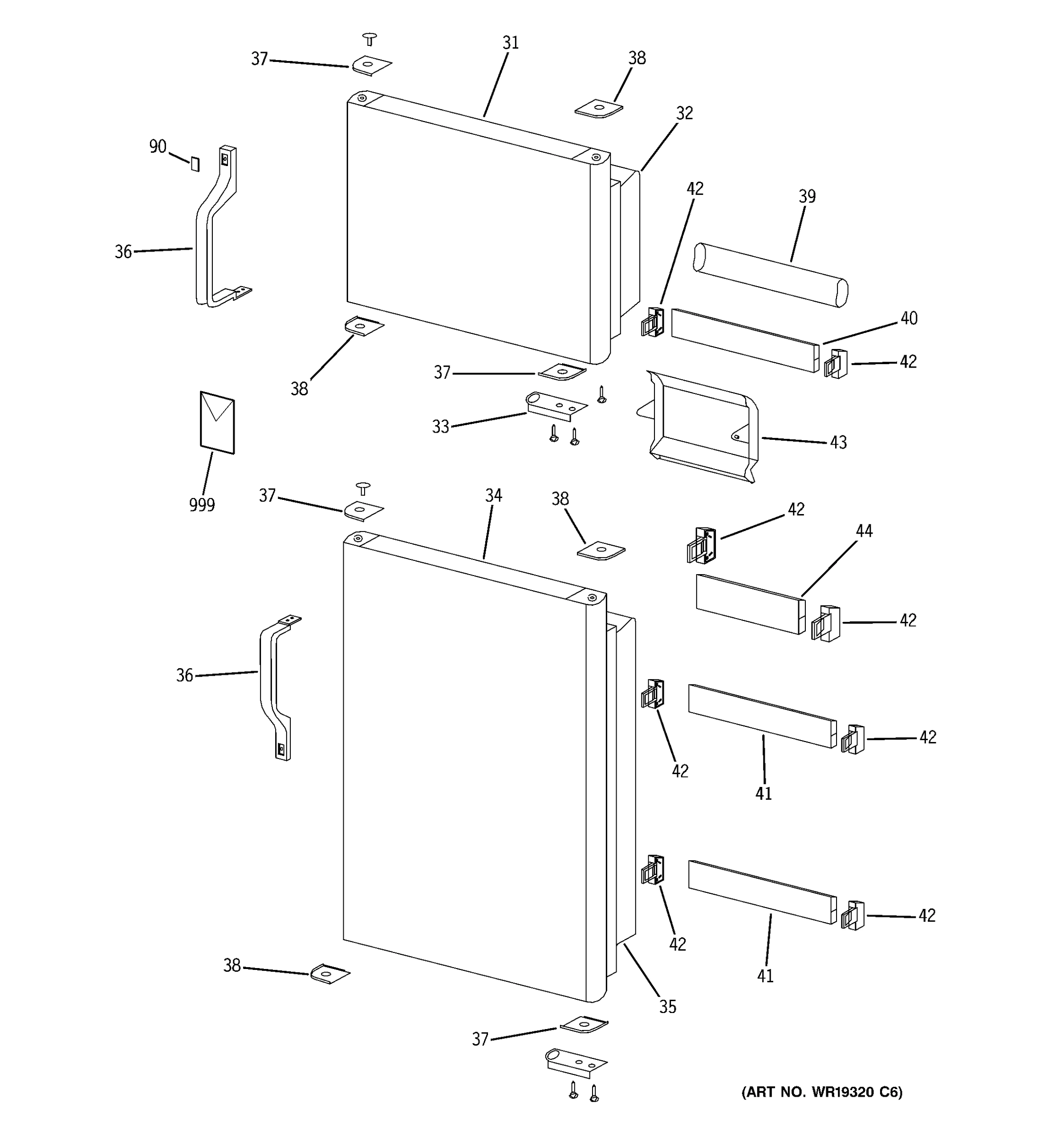

DOORS

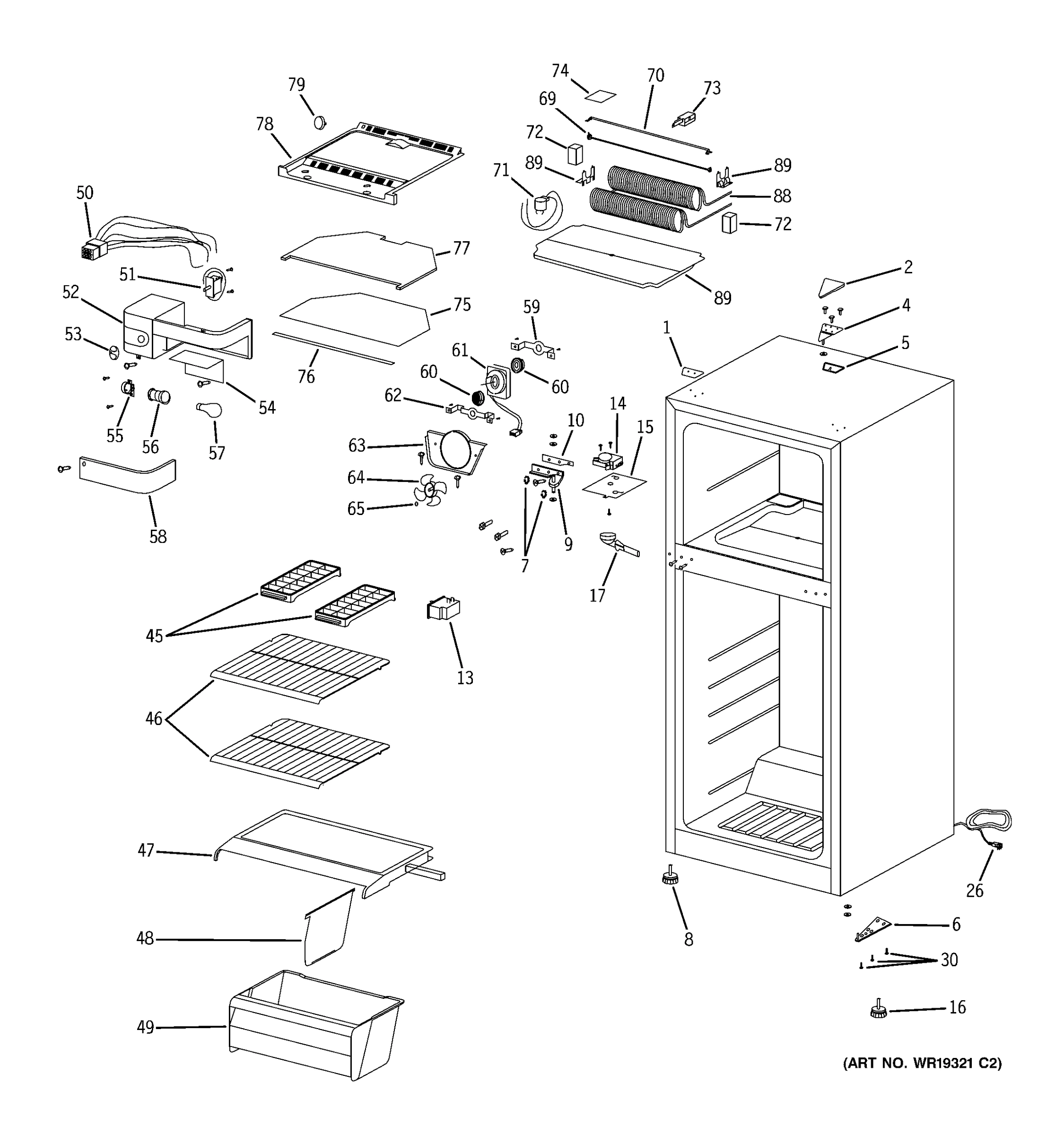

CABINET
UNIT PARTS
Common parts from model GE 4680012
1
COVER HINGE TOP SCREW GEN WR02X11519 Contact Us For Availability
2
COVER HINGE TOP GEN WR02X11492 Contact Us For Availability
4
HINGE TOP ASSY GEN WR13X10291 Contact Us For Availability
5
SPACER TOP HINGE GEN WR01X10390 Contact Us For Availability
6
HINGE BOTTOM ASSY GEN WR13X10292 Contact Us For Availability
7
WASHER MIDDLE HINGE GEN WR01X10391 Contact Us For Availability
8
LEG ASSY LEFT ADJ GEN WR02X11493 Contact Us For Availability
9
HINGE MIDDLE LH GEN WR13X10298 Contact Us For Availability
10
SPACER HINGE MIDDLE GEN WR01X10392 Contact Us For Availability
15
COVER TIMER DEFROST GEN WR02X11494 Contact Us For Availability
16
LEG ASSY RH ADJ GEN WR02X11495 Contact Us For Availability
17
DRAIN CONNECTOR GEN WR02X11550 Contact Us For Availability
18
DRAIN TUBE CONNECTOR GEN WR02X11553 Contact Us For Availability
19
TUBE DRAIN GEN WR02X11498 Contact Us For Availability
20
TRIM CONDENSER GEN WR38X10303 Contact Us For Availability
21
CONDENSER GEN WR62X10036 Contact Us For Availability
22
BRACKET CONDENSER GEN WR02X11499 Contact Us For Availability
23
STOPPER CONDENSER GEN WR02X11500 Contact Us For Availability
25
DRYER FIXTURE TRAP GEN WR02X11501 Contact Us For Availability
28
COVER ELECTRIC BOX GEN WR02X11502 Contact Us For Availability
29
ELECTRIC BOX GEN WR02X11503 Contact Us For Availability
30
SCREW HINGE BTM GEN WR01X10393 Contact Us For Availability
36
HANDLE GEN WR02X11558 Contact Us For Availability
37
DOOR END CAP LH GEN WR02X11559 Contact Us For Availability
38
DOOR END CAP RH GEN WR02X11560 Contact Us For Availability
39
FZ SHELF FRT(BIG) GEN WR17X11474 Contact Us For Availability
40
FZ SHELF FRONT(LITTLE) GEN WR17X11473 Contact Us For Availability
41
RACK SHELF FRT (BIG) GEN WR17X11504 Contact Us For Availability
42
DOOR END CAP OF DR SHLF GEN WR02X11521 Contact Us For Availability
43
DAIRY DOOR GEN WR22X10044 Contact Us For Availability
44
RACK SHELF FRT (LITTLE) GEN WR17X11472 Contact Us For Availability
46
WIRE SHELF FF GEN WR71X10497 Contact Us For Availability
47
COVER VEG PAN GEN WR32X10445 Contact Us For Availability
48
DIVIDER VEG BIN GEN WR17X11464 Contact Us For Availability
49
VEGETABLE BIN GEN WR32X10431 Contact Us For Availability
50
WIRE HARNESS GEN WR23X10332 Contact Us For Availability
51
THERMOSTAT GEN WR09X10097 Contact Us For Availability
52
HOUSING CONTROL GEN WR17X11465 Contact Us For Availability
53
KNOB THERMOSTAT GEN WR02X11507 Contact Us For Availability
54
SHIELD LIGHT GEN WR17X11466 Contact Us For Availability
55
LIGHT HOLDER FIXTURE GEN WR02X11551 Contact Us For Availability
56
SOCKET LIGHT GEN WR02X11509 Contact Us For Availability
58
COVER LAMP GEN WR02X11510 Contact Us For Availability
59
BRKT REAR EVAP FAN GEN WR02X11511 Contact Us For Availability
60
BUSHING - RUBBER GEN WR02X11512 Contact Us For Availability
61
MOTOR EVAP FAN GEN WR60X10126 Contact Us For Availability
62
BRKT FRONT EVAP FAN GEN WR02X11513 Contact Us For Availability
63
MOTOR FIXTURE BRKT GEN WR02X11514 Contact Us For Availability
64
BLADE FAN GEN WR60X10127 Contact Us For Availability
65
SPRING FAN RETAINING GEN WR01X10415 Contact Us For Availability
69
DEFROST HEATER GEN WR51X10075 Contact Us For Availability
70
STOPPER DEFROST HEATER GEN WR02X11515 Contact Us For Availability
71
DEFROST THERMOSTAT GEN WR50X10041 Contact Us For Availability
72
FOAM BLOCK GEN WR14X10157 Contact Us For Availability
73
INSULATION EVAPORATOR GEN WR82X10089 Contact Us For Availability
74
SHIELD WIRE CAP GEN WR17X11469 Contact Us For Availability
75
REFLECTOR METAL EVAP GEN WR38X10306 Contact Us For Availability
76
STRIP INS TOP EVAP GEN WR82X10090 Contact Us For Availability
77
INSULATION TOP EVAP GEN WR82X10091 Contact Us For Availability
78
FLOOR EVAPORATOR GEN WR17X11470 Contact Us For Availability
79
CAP ICE MAKER GEN WR02X11552 Contact Us For Availability
82
PAN BASE GEN WR17X11467 Contact Us For Availability
85
OVERLOAD PROTECTOR GEN WR08X10054 Contact Us For Availability
86
PROTECTOR CAP GEN WR02X11557 Contact Us For Availability
87
CAPACITOR GEN WR62X10037 Contact Us For Availability
88
EVAPORATOR ASSY GEN WR85X10056 Contact Us For Availability
89
DRAIN PAN ASSY GEN WR17X11468 Contact Us For Availability
90
NAME PLATE GEN WR04X10131 Contact Us For Availability
999
SEARS KENMORE TOP FRZ U& GEN SR6200 Contact Us For Availability
× ![]()
