Model Electrolux 46-2817-23-05 WASHER – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS
03 - TOP PARTS

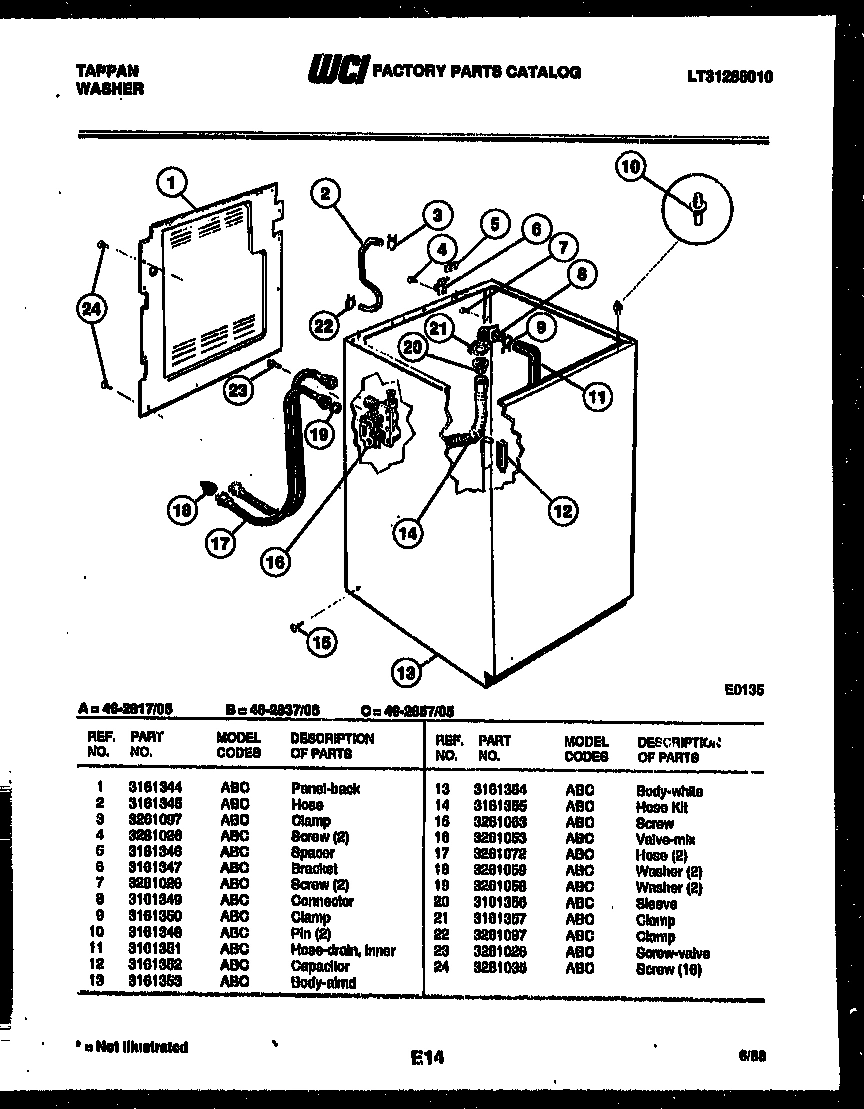

04 - CABINET PARTS

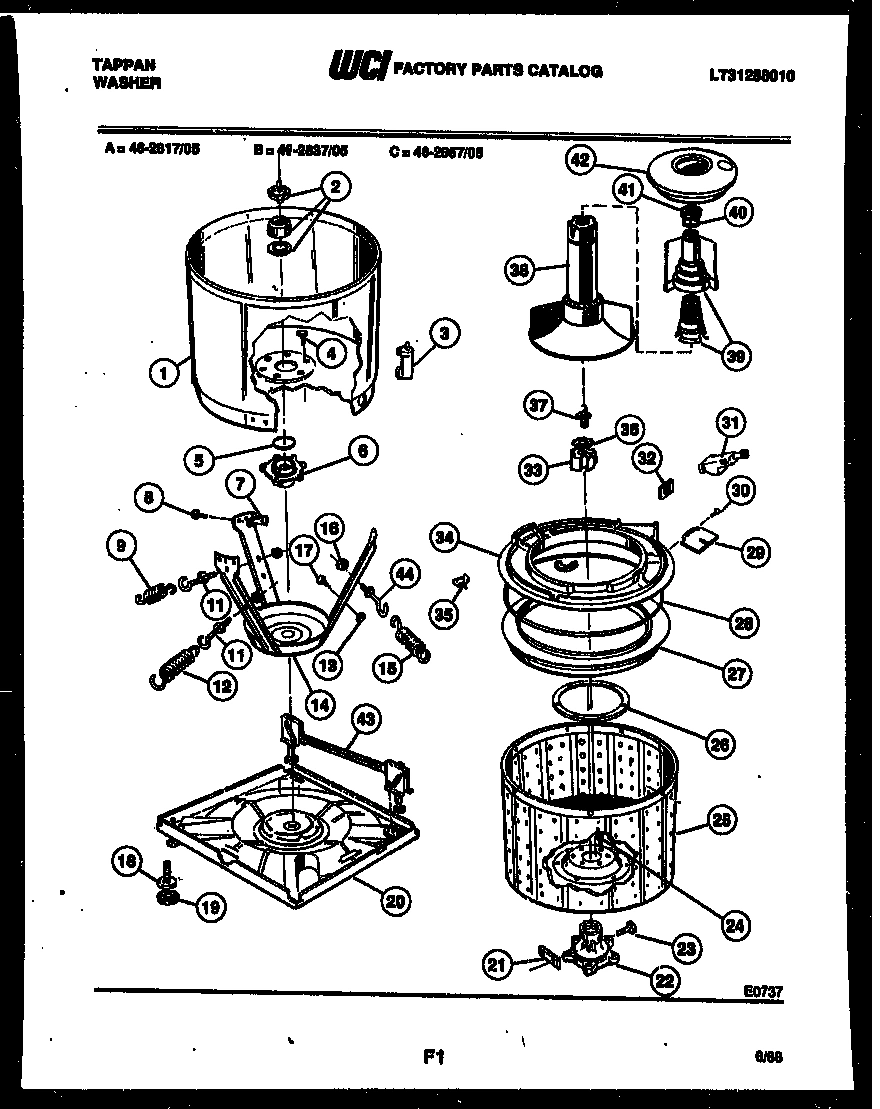

05 - TUB DETAIL

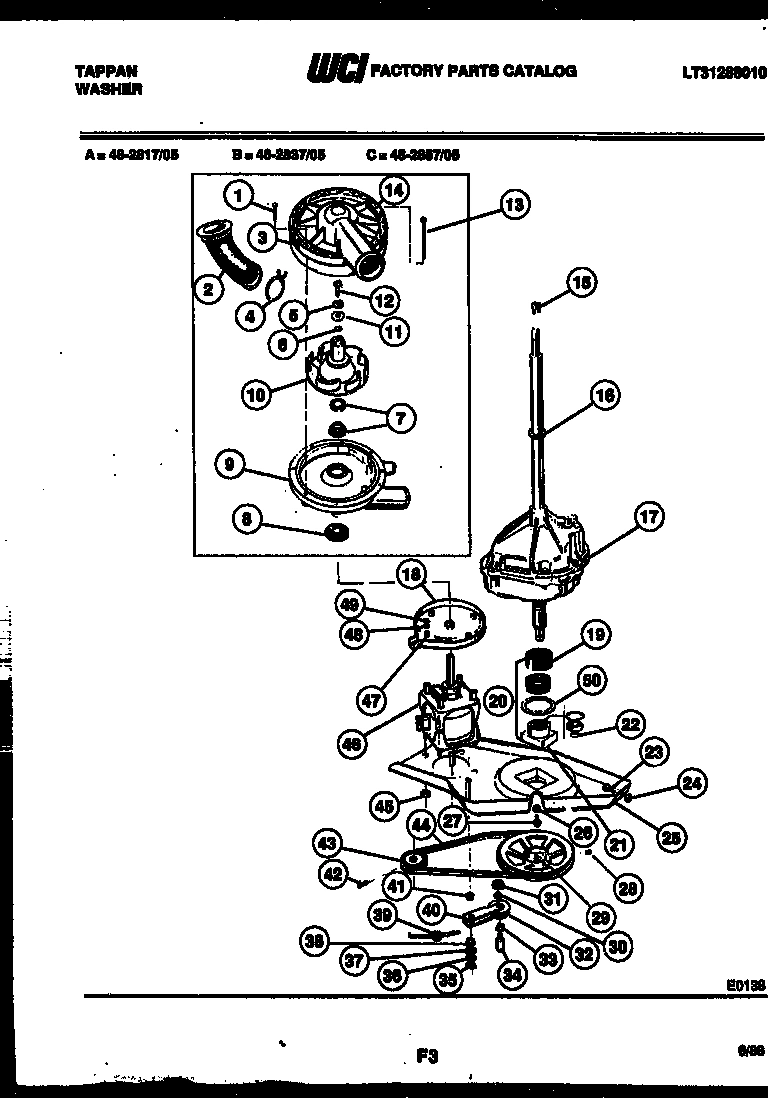

06 - WASHER DRIVE SYSTEM AND PUMP

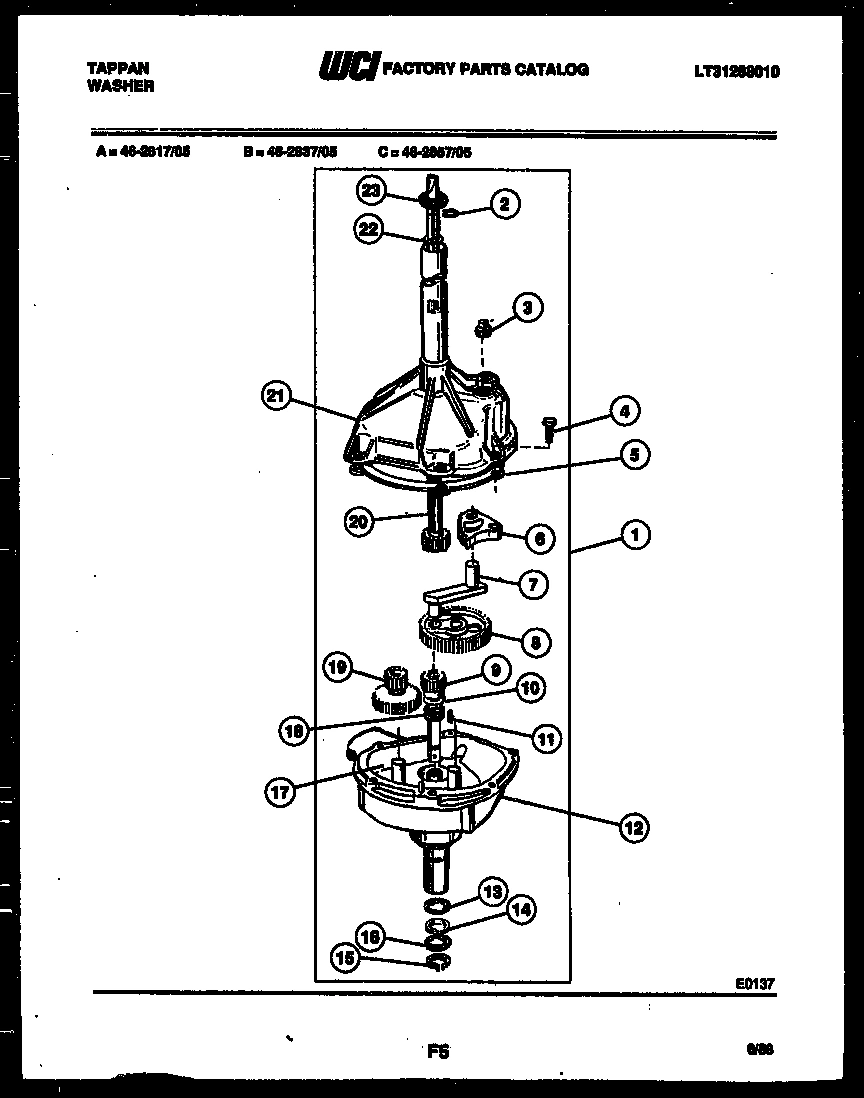

07 - TRANSMISSION PARTS

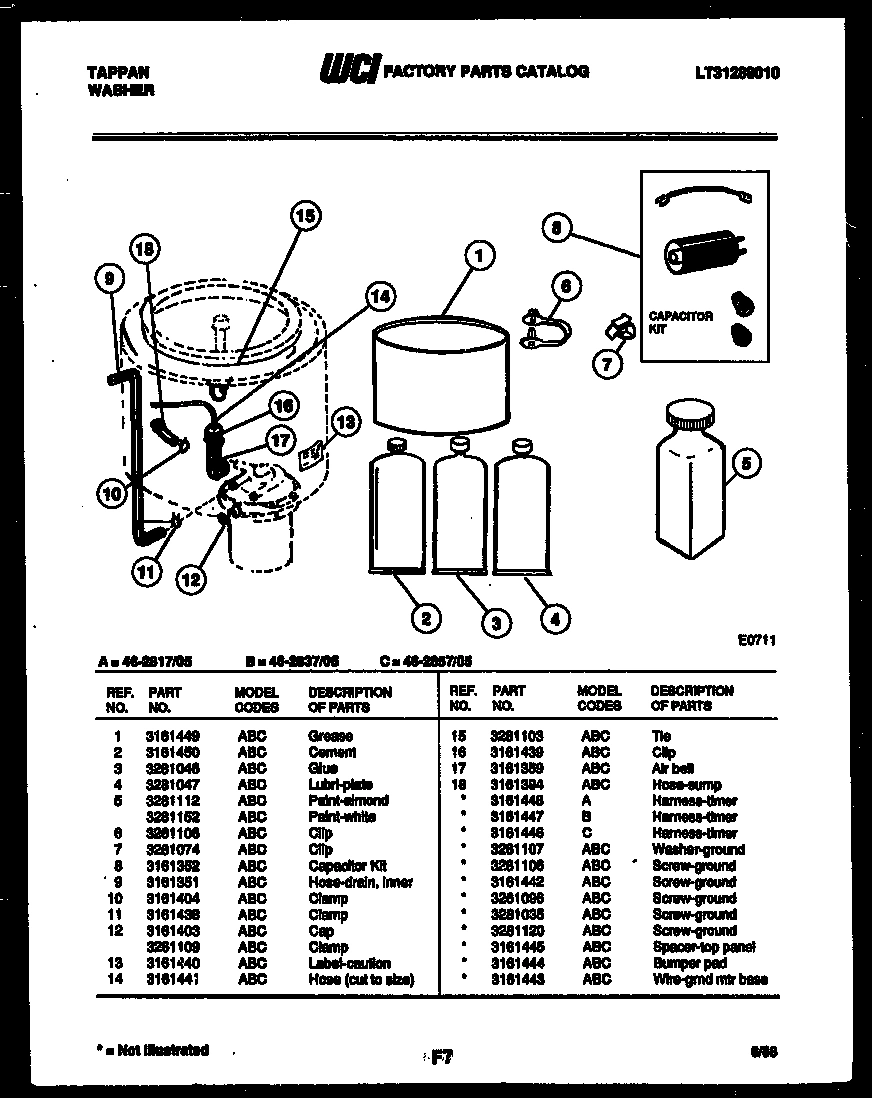

08 - DRAIN HOSE AND MISCELLANEOUS
Common parts from model Electrolux 46-2817-23-05 WASHER
*12750
WCI 3161448 WCI 3161448 Contact Us For Availability
*12750
WCI 3281107 WCI 3281107 Contact Us For Availability
*12751
SCREW, GROUND WCI 3281035 Contact Us For Availability
*12751
WCI 3161442 WCI 3161442 Contact Us For Availability
*12751
WIRE, GRND, MTR BASE WCI 3161443 Contact Us For Availability
*12751
WCI 3161444 WCI 3161444 Contact Us For Availability
*12751
SPACER-TOP PANEL WCI 3161445 Contact Us For Availability
*12751
SCREW, GROUND WCI 3261096 Contact Us For Availability
*12751
WCI 3281120 WCI 3281120 Contact Us For Availability
1
WCI 3161344 WCI 3161344 Contact Us For Availability
1
WCI 3161360 WCI 3161360 Contact Us For Availability
1
SCREW-BODY WCI 3261205 Contact Us For Availability
1
WCI 3161449 WCI 3161449 Contact Us For Availability
2
WCI 3281199 WCI 3281199 Contact Us For Availability
2
WCI 3161328 WCI 3161328 Contact Us For Availability
2
WCI 3161345 WCI 3161345 Contact Us For Availability
2
WCI 3161358 WCI 3161358 Contact Us For Availability
3
WCI 3281200 WCI 3281200 Contact Us For Availability
3
WCI 3016990 WCI 3016990 Contact Us For Availability
3
WCI 3016991 WCI 3016991 Contact Us For Availability
3
GASKET (INCLUDED IN IMPELLER KIT NUMBER 31613 WCI 3161409 Contact Us For Availability
3
PLUG WCI 3161224 Contact Us For Availability
4
WCI 3261038 WCI 3261038 Contact Us For Availability
4
WCI 3161370 WCI 3161370 Contact Us For Availability
4
WCI 3161225 WCI 3161225 Contact Us For Availability
4
WCI 3281047 WCI 3281047 Contact Us For Availability
5
WCI 3161335 WCI 3161335 Contact Us For Availability
5
WCI 3161346 WCI 3161346 Contact Us For Availability
5
WCI 3161369 WCI 3161369 Contact Us For Availability
5
WCI 3161402 WCI 3161402 Contact Us For Availability
5
WCI 3161308 WCI 3161308 Contact Us For Availability
5
WCI 3281112 WCI 3281112 Contact Us For Availability
6
WCI 3261064 WCI 3261064 Contact Us For Availability
6
WCI 3161347 WCI 3161347 Contact Us For Availability
6
WCI 3161368 WCI 3161368 Contact Us For Availability
6
O-RING (INCLUDED IN IMPELLER KIT NUMBER 31613 WCI 3161405 Contact Us For Availability
6
WCI 3161168 WCI 3161168 Contact Us For Availability
7
WCI 3161343 WCI 3161343 Contact Us For Availability
7
WCI 3161361 WCI 3161361 Contact Us For Availability
7
SEAL KIT (INCLUDED IN IMPELLER KIT NUMBER 316 WCI 3161406 Contact Us For Availability
7
CONNECTING ROD WCI 3161169 Contact Us For Availability
7
WCI 3261074 WCI 3261074 Contact Us For Availability
8
WCI 3281186 WCI 3281186 Contact Us For Availability
8
WCI 3281192 WCI 3281192 Contact Us For Availability
8
WCI 3161349 WCI 3161349 Contact Us For Availability
8
CAPACITOR KIT WCI 3161352 Contact Us For Availability
8
WCI 3161362 WCI 3161362 Contact Us For Availability
8
WCI 3161408 WCI 3161408 Contact Us For Availability
8
WCI 3161170 WCI 3161170 Contact Us For Availability
9
WCI 3161350 WCI 3161350 Contact Us For Availability
9
WCI 3161351 WCI 3161351 Contact Us For Availability
9
WCI 3161363 WCI 3161363 Contact Us For Availability
9
BODY WCI 3161407 Contact Us For Availability
9
SHAFT-LOWER WCI 3161178 Contact Us For Availability
10
WCI 3161318 WCI 3161318 Contact Us For Availability
10
CORD WCI 3261065 Contact Us For Availability
10
WCI 3161348 WCI 3161348 Contact Us For Availability
10
IMPELLER (INCLUDED IN IMPELLER KIT NUMBER 316 WCI 3161401 Contact Us For Availability
11
WCI 3161338 WCI 3161338 Contact Us For Availability
11
BOLT-HOOK (2) WCI 3161366 Contact Us For Availability
11
WCI 3161400 WCI 3161400 Contact Us For Availability
11
PIN-DOWELL WCI 3161227 Contact Us For Availability
11
WCI 3161438 WCI 3161438 Contact Us For Availability
12
WCI 3161321 WCI 3161321 Contact Us For Availability
12
WCI 3281170 WCI 3281170 Contact Us For Availability
12
SPRING (BLACK) WCI 3161364 Contact Us For Availability
12
SCREW-IMPELLER WCI 3161399 Contact Us For Availability
12
HOUSING-LOWER WCI 3161171 Contact Us For Availability
12
WCI 3161403 WCI 3161403 Contact Us For Availability
12A
WCI 3261109 WCI 3261109 Contact Us For Availability
13
WCI 3281201 WCI 3281201 Contact Us For Availability
13
WCI 3161341 WCI 3161341 Contact Us For Availability
13
WCI 3161353 WCI 3161353 Contact Us For Availability
13
WCI 3161354 WCI 3161354 Contact Us For Availability
13
SCREW-CVR/MTR WCI 3161398 Contact Us For Availability
13
WCI 3161440 WCI 3161440 Contact Us For Availability
14
WCI 3281202 WCI 3281202 Contact Us For Availability
14
WCI 3161342 WCI 3161342 Contact Us For Availability
14
WCI 3161355 WCI 3161355 Contact Us For Availability
14
WCI 3161365 WCI 3161365 Contact Us For Availability
14
COVER WCI 3161395 Contact Us For Availability
14
WASHER, SPACER WCI 3161226 Contact Us For Availability
15
SCREW WCI 3261063 Contact Us For Availability
15
WCI 3016986 WCI 3016986 Contact Us For Availability
15
WCI 3161397 WCI 3161397 Contact Us For Availability
15
SNAP RING WCI 3161223 Contact Us For Availability
16
SCREW WCI 3261062 Contact Us For Availability
16
WCI 3161323 WCI 3161323 Contact Us For Availability
16
WCI 3161457 WCI 3161457 Contact Us For Availability
16
WASHER, THRUST WCI 3161229 Contact Us For Availability
16
WCI 3161439 WCI 3161439 Contact Us For Availability
17
WCI 3281191 WCI 3281191 Contact Us For Availability
17
WCI 3161359 WCI 3161359 Contact Us For Availability
17
OIL (1 QT) WCI 3161180 Contact Us For Availability
18
WCI 3281203 WCI 3281203 Contact Us For Availability
18
WCI 3161394 WCI 3161394 Contact Us For Availability
18
WCI 3161413 WCI 3161413 Contact Us For Availability
18
SPRING (SMALL) LGS WCI 3161174 Contact Us For Availability
19
WCI 3161314 WCI 3161314 Contact Us For Availability
19
HINGE-ALMD WCI 3161326 Contact Us For Availability
19
CUP WCI 3261081 Contact Us For Availability
19
SLEEVE WCI 3161182 Contact Us For Availability
19
WCI 3161175 WCI 3161175 Contact Us For Availability
20
WCI 3161313 WCI 3161313 Contact Us For Availability
20
SCREW (2) WCI 3161325 Contact Us For Availability
20
WCI 3161356 WCI 3161356 Contact Us For Availability
20
WCI 3016987 WCI 3016987 Contact Us For Availability
20
BEARING HSG ASSY WCI 3161172 Contact Us For Availability
20
WCI 3161437 WCI 3161437 Contact Us For Availability
21
WCI 3161312 WCI 3161312 Contact Us For Availability
21
SPACER WCI 3161324 Contact Us For Availability
21
WCI 3161357 WCI 3161357 Contact Us For Availability
21
WCI 3161414 WCI 3161414 Contact Us For Availability
21
HOUSING-UPPER WCI 3161436 Contact Us For Availability
22
WCI 3261097 WCI 3261097 Contact Us For Availability
22
WCI 3161385 WCI 3161385 Contact Us For Availability
22
SNAP RING WCI 3161309 Contact Us For Availability
22
WCI 3161232 WCI 3161232 Contact Us For Availability
23
KNOB-W.L.C. SWITCH WCI 3281198 Contact Us For Availability
23
SCREW-VALVE WCI 3281026 Contact Us For Availability
23
WCI 3161367 WCI 3161367 Contact Us For Availability
24
LOCKNUT WCI 3261113 Contact Us For Availability
24
WCI 8001903 WCI 8001903 Contact Us For Availability
25
WCI 3161383 WCI 3161383 Contact Us For Availability
25
WCI 3161426 WCI 3161426 Contact Us For Availability
26
WCI 3161381 WCI 3161381 Contact Us For Availability
26
WCI 3161411 WCI 3161411 Contact Us For Availability
27
WCI 3161470 WCI 3161470 Contact Us For Availability
27
WCI 3161412 WCI 3161412 Contact Us For Availability
28
WCI 3161379 WCI 3161379 Contact Us For Availability
29
WCI 3161378 WCI 3161378 Contact Us For Availability
29
PULLEY-TRANSMISSION WCI 3161428 Contact Us For Availability
30
WCI 3161377 WCI 3161377 Contact Us For Availability
31
WCI 3161376 WCI 3161376 Contact Us For Availability
31
WCI 3161429 WCI 3161429 Contact Us For Availability
32
WCI 3161393 WCI 3161393 Contact Us For Availability
33
WCI 3161392 WCI 3161392 Contact Us For Availability
34
WCI 3161389 WCI 3161389 Contact Us For Availability
34
WCI 3161432 WCI 3161432 Contact Us For Availability
35
WCI 3161388 WCI 3161388 Contact Us For Availability
36
WCI 3161390 WCI 3161390 Contact Us For Availability
36
WCI 3261031 WCI 3261031 Contact Us For Availability
37
WCI 3161391 WCI 3161391 Contact Us For Availability
38
WCI 3161371 WCI 3161371 Contact Us For Availability
39
WCI 3161374 WCI 3161374 Contact Us For Availability
39
WCI 3161434 WCI 3161434 Contact Us For Availability
40
WCI 3161373 WCI 3161373 Contact Us For Availability
40
WCI 3161435 WCI 3161435 Contact Us For Availability
41
WCI 3161372 WCI 3161372 Contact Us For Availability
41
WCI 3161431 WCI 3161431 Contact Us For Availability
42
WCI 3161375 WCI 3161375 Contact Us For Availability
42
WCI 3161425 WCI 3161425 Contact Us For Availability
43
WCI 3016988 WCI 3016988 Contact Us For Availability
43
WCI 3161424 WCI 3161424 Contact Us For Availability
44
WCI 3016989 WCI 3016989 Contact Us For Availability
44
BELT-V WCI 3161423 Contact Us For Availability
46
WCI 3161421 WCI 3161421 Contact Us For Availability
47
WCI 3161419 WCI 3161419 Contact Us For Availability
49
WCI 3161415 WCI 3161415 Contact Us For Availability
50
WCI 3161311 WCI 3161311 Contact Us For Availability
× ![]()
