Model Electrolux 44-2409-00-01 LAUNDRY CENTER – Common Parts & Diagrams

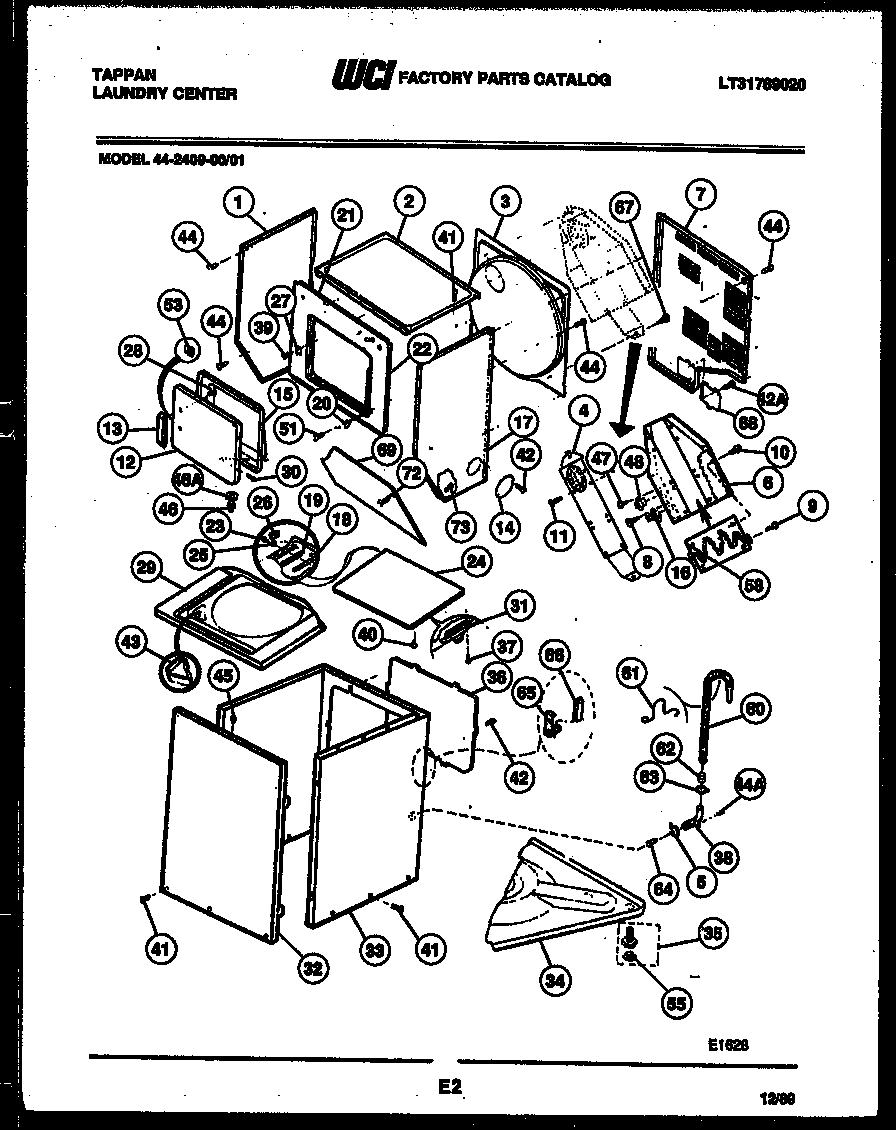

02 - CABINET PARTS AND HEATER

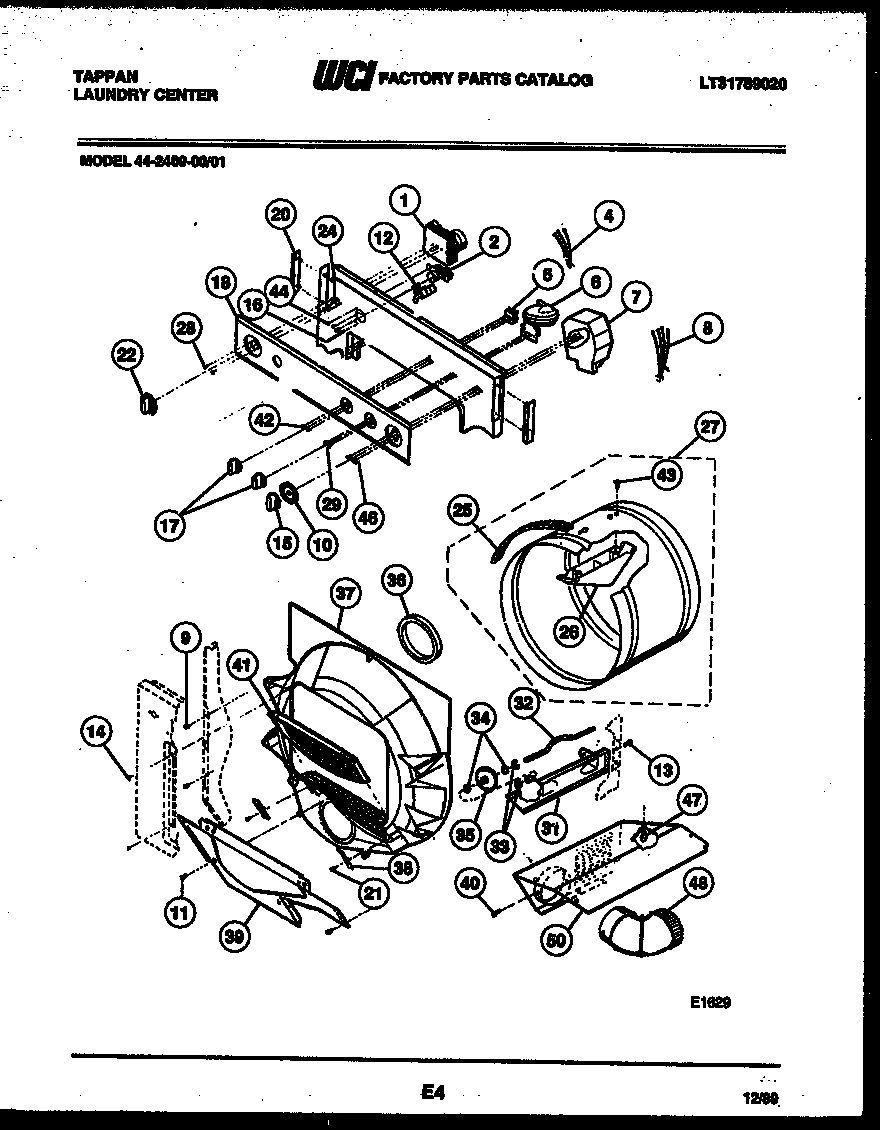

03 - CONSOLE, CONTROL AND DRUM
04 - MOTOR, BLOWER AND IDLER ARM ASSEMBL
05 - TUB, WATER VALVE AND LID SWITCH
06 - WASHER DRIVE SYSTEM AND PUMP
07 - TRANSMISSION PARTS
Common parts from model Electrolux 44-2409-00-01 LAUNDRY CENTER
*35105
WCI 3181110 WCI 3181110 Contact Us For Availability
*35106
WCI F065111-001 WCI F065111-001 Contact Us For Availability
*35110
WCI F133077-000 WCI F133077-000 Contact Us For Availability
*35115
WCI 08006576 WCI 08006576 Contact Us For Availability
*35115
WCI 08014892 WCI 08014892 Contact Us For Availability
*35115
CLIP-PRESSURE TUBE (LONG) WCI 3161299 Contact Us For Availability
*35121
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
*35121
SLEEVE-CLUTCH COIL WCI 3161182 Contact Us For Availability
1
WCI 3205944 WCI 3205944 Contact Us For Availability
1
WCI 3016461 WCI 3016461 Contact Us For Availability
1
WCI 3205029 WCI 3205029 Contact Us For Availability
1
WCI 3161221 WCI 3161221 Contact Us For Availability
2
WCI F135006-100 WCI F135006-100 Contact Us For Availability
2
SPRING CLIP WCI 3161263 Contact Us For Availability
2
WCI 08027515 WCI 08027515 Contact Us For Availability
2
WCI F077009-100 WCI F077009-100 Contact Us For Availability
2
WCI 08014904 WCI 08014904 Contact Us For Availability
3
WCI 08015787 WCI 08015787 Contact Us For Availability
3
WCI 3161211 WCI 3161211 Contact Us For Availability
4
WCI 3205945 WCI 3205945 Contact Us For Availability
4
WCI 00639342 WCI 00639342 Contact Us For Availability
4
SEAL WCI 3161121 Contact Us For Availability
4
WCI 3161212 WCI 3161212 Contact Us For Availability
4
WCI 3161222 WCI 3161222 Contact Us For Availability
5
WCI 3017895 WCI 3017895 Contact Us For Availability
5
WCI 08015796 WCI 08015796 Contact Us For Availability
5
CLIP WCI 3161199 Contact Us For Availability
5
WCI 3205951 WCI 3205951 Contact Us For Availability
5
WCI 08011273 WCI 08011273 Contact Us For Availability
6
WCI 3205946 WCI 3205946 Contact Us For Availability
6
WCI 08027520 WCI 08027520 Contact Us For Availability
6
RETAINING RING (2) WCI 3161223 Contact Us For Availability
7
WCI 3016426 WCI 3016426 Contact Us For Availability
7
TIMER-WASHER WCI 3017897 Contact Us For Availability
7
BELT WCI 3161099 Contact Us For Availability
8
WCI 3204998 WCI 3204998 Contact Us For Availability
8
WCI 3205019 WCI 3205019 Contact Us For Availability
8
AGITATOR CAP (INCLUDES 9) WCI 3161122 Contact Us For Availability
8
WCI 08027535 WCI 08027535 Contact Us For Availability
9
WCI 3161234 WCI 3161234 Contact Us For Availability
9
WCI 3161240 WCI 3161240 Contact Us For Availability
9
WCI F073565-000 WCI F073565-000 Contact Us For Availability
9
WCI F141127-000 WCI F141127-000 Contact Us For Availability
10
WCI 3204999 WCI 3204999 Contact Us For Availability
10
MOTOR-DRYER WCI 3203091 Contact Us For Availability
10
WCI 08027519 WCI 08027519 Contact Us For Availability
10
WCI 08004052 WCI 08004052 Contact Us For Availability
10
WCI 08950197 WCI 08950197 Contact Us For Availability
11
WCI 3161485 WCI 3161485 Contact Us For Availability
11
PIPE PLUG WCI 3161224 Contact Us For Availability
12
WCI 3016427 WCI 3016427 Contact Us For Availability
12
WCI 3205000 WCI 3205000 Contact Us For Availability
12
WCI 08014914 WCI 08014914 Contact Us For Availability
12
SCREW WCI 08002804 Contact Us For Availability
13
WCI F141994-000 WCI F141994-000 Contact Us For Availability
13
WCI 5303206879 WCI 5303206879 Contact Us For Availability
13
WCI 3161486 WCI 3161486 Contact Us For Availability
13
WCI 08002390 WCI 08002390 Contact Us For Availability
13
WCI 08015778 WCI 08015778 Contact Us For Availability
14
WCI 3204952 WCI 3204952 Contact Us For Availability
14
SCREW WCI 08006549 Contact Us For Availability
14
WCI 08001557 WCI 08001557 Contact Us For Availability
14
WCI 08011268 WCI 08011268 Contact Us For Availability
15
WCI 3205947 WCI 3205947 Contact Us For Availability
15
WCI 3016433 WCI 3016433 Contact Us For Availability
15
CLIP WCI 3161190 Contact Us For Availability
15
WCI 08014908 WCI 08014908 Contact Us For Availability
15
WCI 3161169 WCI 3161169 Contact Us For Availability
16
WCI 08015856 WCI 08015856 Contact Us For Availability
16
IDLER ARM & WHEEL ASSY WCI 3161103 Contact Us For Availability
16
SPLASH TUB WCI 3161127 Contact Us For Availability
16
WCI 3937013 WCI 3937013 Contact Us For Availability
16
WCI 08015496 WCI 08015496 Contact Us For Availability
17
WCI 3205948 WCI 3205948 Contact Us For Availability
17
WCI 3204954 WCI 3204954 Contact Us For Availability
17
WCI 08027536 WCI 08027536 Contact Us For Availability
17
WCI 08014905 WCI 08014905 Contact Us For Availability
18
HINGE BAR-LH WCI 3205942 Contact Us For Availability
18
TRIMPLATE WCI 5303207352 Contact Us For Availability
18
WCI F079171-000 WCI F079171-000 Contact Us For Availability
18
WCI 3161283 WCI 3161283 Contact Us For Availability
18A
WCI 3205943 WCI 3205943 Contact Us For Availability
19
WCI 3204957 WCI 3204957 Contact Us For Availability
19
WCI 3205021 WCI 3205021 Contact Us For Availability
19
DOWEL PIN WCI 3161227 Contact Us For Availability
20
HINGE-DOOR WCI 3204959 Contact Us For Availability
20
WCI 3205006 WCI 3205006 Contact Us For Availability
20
WCI 08006564 WCI 08006564 Contact Us For Availability
20
WCI 3161217 WCI 3161217 Contact Us For Availability
21
WCI 3204961 WCI 3204961 Contact Us For Availability
21
WCI 3016464 WCI 3016464 Contact Us For Availability
21
WCI 08002385 WCI 08002385 Contact Us For Availability
21
WCI F140586-000 WCI F140586-000 Contact Us For Availability
22
WCI 3204964 WCI 3204964 Contact Us For Availability
22
KNOB & DIAL ASSY WCI 3205950 Contact Us For Availability
22
BODY ASSY-STRAIN RELIEF WCI 3016472 Contact Us For Availability
22
WCI 3161284 WCI 3161284 Contact Us For Availability
22
WCI 08950058 WCI 08950058 Contact Us For Availability
23
WCI 3204359 WCI 3204359 Contact Us For Availability
23
NUT WCI 3016473 Contact Us For Availability
23
BLOCK-SHIPPING WCI 3161202 Contact Us For Availability
23
SPACER WCI 3161303 Contact Us For Availability
24
WCI 3204965 WCI 3204965 Contact Us For Availability
24
WCI 3205008 WCI 3205008 Contact Us For Availability
24
WCI 3161203 WCI 3161203 Contact Us For Availability
24
WCI 08002456 WCI 08002456 Contact Us For Availability
25
WCI 08002408 WCI 08002408 Contact Us For Availability
25
WCI 3205009 WCI 3205009 Contact Us For Availability
25
WCI 3016474 WCI 3016474 Contact Us For Availability
25
SPRING-VERT-SHORT WCI 3161131 Contact Us For Availability
25
IDLER ARM ASSY. WCI 3937001 Contact Us For Availability
25
WCI 08015536 WCI 08015536 Contact Us For Availability
26
WCI 3204362 WCI 3204362 Contact Us For Availability
26
WCI 3161076 WCI 3161076 Contact Us For Availability
26
SPRING WCI 3161106 Contact Us For Availability
26
WCI 08027582 WCI 08027582 Contact Us For Availability
26
WCI 3161132 WCI 3161132 Contact Us For Availability
27
WCI 3016439 WCI 3016439 Contact Us For Availability
27
WCI 3205010 WCI 3205010 Contact Us For Availability
27
WCI 08015824 WCI 08015824 Contact Us For Availability
27
WCI 3161204 WCI 3161204 Contact Us For Availability
27
WCI 5303206869 WCI 5303206869 Contact Us For Availability
28
CRADLE-MOTOR ASSY WCI 3016466 Contact Us For Availability
28
SCREW (6) WCI 3161205 Contact Us For Availability
28
WCI 08006686 WCI 08006686 Contact Us For Availability
28
WCI 08002467 WCI 08002467 Contact Us For Availability
29
WCI 5303207099 WCI 5303207099 Contact Us For Availability
29
WCI 08015847 WCI 08015847 Contact Us For Availability
29
SPRING (LONG 2) WCI 3161133 Contact Us For Availability
30
WCI 3161187 WCI 3161187 Contact Us For Availability
30
WCI 3205023 WCI 3205023 Contact Us For Availability
30
PLATE WCI 3161134 Contact Us For Availability
30
WCI F079494-300 WCI F079494-300 Contact Us For Availability
30
WCI 3351064 WCI 3351064 Contact Us For Availability
31
BRACKET-DRUM ROLLER RH WCI 3161080 Contact Us For Availability
31
WCI 08004087 WCI 08004087 Contact Us For Availability
31
WCI 08008997 WCI 08008997 Contact Us For Availability
31
WCI 08015502 WCI 08015502 Contact Us For Availability
31
THRUST WASHER WCI 3161226 Contact Us For Availability
31A
BRACKET-DRUM ROLLER LH WCI 3161081 Contact Us For Availability
32
WCI 3204973 WCI 3204973 Contact Us For Availability
32
WCI 08004076 WCI 08004076 Contact Us For Availability
32
WCI 3161285 WCI 3161285 Contact Us For Availability
32
WCI 08014888 WCI 08014888 Contact Us For Availability
33
WCI 3204978 WCI 3204978 Contact Us For Availability
33
WCI 3161255 WCI 3161255 Contact Us For Availability
33
WCI F077276-000 WCI F077276-000 Contact Us For Availability
33
WCI 5303206864 WCI 5303206864 Contact Us For Availability
33
SPRING (SMALL) LGS WCI 3161174 Contact Us For Availability
34
WCI 3161044 WCI 3161044 Contact Us For Availability
34
WCI 3161256 WCI 3161256 Contact Us For Availability
34
BASE-DRYER WCI 3205024 Contact Us For Availability
34
WCI 3161286 WCI 3161286 Contact Us For Availability
34
WCI 3161175 WCI 3161175 Contact Us For Availability
35
WCI 3937004 WCI 3937004 Contact Us For Availability
35
WCI 08004077 WCI 08004077 Contact Us For Availability
35
WCI 08002468 WCI 08002468 Contact Us For Availability
36
PANEL-REAR ACCESS WCI 3204980 Contact Us For Availability
36
WCI 3205011 WCI 3205011 Contact Us For Availability
36
WCI 08004096 WCI 08004096 Contact Us For Availability
36
WCI F140588-000 WCI F140588-000 Contact Us For Availability
37
WCI 3205012 WCI 3205012 Contact Us For Availability
37
WCI 3205025 WCI 3205025 Contact Us For Availability
37
WCI 3161288 WCI 3161288 Contact Us For Availability
38
COUPLER - DRAIN HOSE WCI 3161452 Contact Us For Availability
38
GUIDE (2) WCI 3205013 Contact Us For Availability
38
WCI 08001572 WCI 08001572 Contact Us For Availability
38
WCI 3205032 WCI 3205032 Contact Us For Availability
38
WCI 08002396 WCI 08002396 Contact Us For Availability
38
WCI 3161231 WCI 3161231 Contact Us For Availability
39
WCI 3161237 WCI 3161237 Contact Us For Availability
39
COVER-LINT HSG WCI 3205014 Contact Us For Availability
39
WCI 3205020 WCI 3205020 Contact Us For Availability
39
WCI F079428-000 WCI F079428-000 Contact Us For Availability
40
WCI 3204981 WCI 3204981 Contact Us For Availability
40
WCI 3161489 WCI 3161489 Contact Us For Availability
40
THRUST WASHER WCI 3161232 Contact Us For Availability
41
WCI 3205015 WCI 3205015 Contact Us For Availability
41
SCREW (21) WCI 08001578 Contact Us For Availability
41
WCI 3161268 WCI 3161268 Contact Us For Availability
41
WCI F077352-000 WCI F077352-000 Contact Us For Availability
41
WCI 08057579 WCI 08057579 Contact Us For Availability
42
WCI 3205033 WCI 3205033 Contact Us For Availability
42
WCI 3161259 WCI 3161259 Contact Us For Availability
42
SEAL KIT (CONSISTS OF SEAL ASSEMBLY & GASKET. WCI 3161165 Contact Us For Availability
42
WCI 08057430 WCI 08057430 Contact Us For Availability
43
WCI 3204983 WCI 3204983 Contact Us For Availability
44
SCREW WCI 08010804 Contact Us For Availability
44
WCI 3205034 WCI 3205034 Contact Us For Availability
44A
WCI F144005-000 WCI F144005-000 Contact Us For Availability
45
WCI 3204373 WCI 3204373 Contact Us For Availability
45
WCI 08006557 WCI 08006557 Contact Us For Availability
46
WCI 3016440 WCI 3016440 Contact Us For Availability
46
WCI 08001544 WCI 08001544 Contact Us For Availability
46
BRACKET WCI 3205035 Contact Us For Availability
46A
WASHER WCI 3016441 Contact Us For Availability
47
WCI 08011280 WCI 08011280 Contact Us For Availability
47
WCI 3204269 WCI 3204269 Contact Us For Availability
47
WCI 3205016 WCI 3205016 Contact Us For Availability
48
WCI 3204986 WCI 3204986 Contact Us For Availability
48
WCI 3205017 WCI 3205017 Contact Us For Availability
48
BRACE WCI 3016468 Contact Us For Availability
48
WCI 3010202 WCI 3010202 Contact Us For Availability
49
WCI 08006559 WCI 08006559 Contact Us For Availability
50
WCI 3205018 WCI 3205018 Contact Us For Availability
50
WCI 3016469 WCI 3016469 Contact Us For Availability
52
WCI F064154-013 WCI F064154-013 Contact Us For Availability
53
PLATE-STRIKE WCI 3016442 Contact Us For Availability
53
WCI 3161207 WCI 3161207 Contact Us For Availability
54
WCI 08002367 WCI 08002367 Contact Us For Availability
55
WCI 3004083 WCI 3004083 Contact Us For Availability
55
WCI 08014913 WCI 08014913 Contact Us For Availability
56
WCI 3161274 WCI 3161274 Contact Us For Availability
57
SCREW WCI 3161185 Contact Us For Availability
57
CLIP WCI 3161287 Contact Us For Availability
58
WCI 3161050 WCI 3161050 Contact Us For Availability
58
WCI 08006573 WCI 08006573 Contact Us For Availability
60
WCI 3205936 WCI 3205936 Contact Us For Availability
61
WCI 3204987 WCI 3204987 Contact Us For Availability
62
WCI 5303206866 WCI 5303206866 Contact Us For Availability
63A
TIE-CABLE (NON-ILLUSTRATED) WCI 3161250 Contact Us For Availability
64
WCI 08014555 WCI 08014555 Contact Us For Availability
65
BRACKET-CAPACITOR WCI 3161252 Contact Us For Availability
65
WCI 08011275 WCI 08011275 Contact Us For Availability
66
WCI 08014903 WCI 08014903 Contact Us For Availability
68
WCI 08015822 WCI 08015822 Contact Us For Availability
69
WCI 3204991 WCI 3204991 Contact Us For Availability
72
WCI 08011318 WCI 08011318 Contact Us For Availability
× ![]()
