Model Electrolux 44-2408-23-01 LAUNDRY CENTER – Common Parts & Diagrams

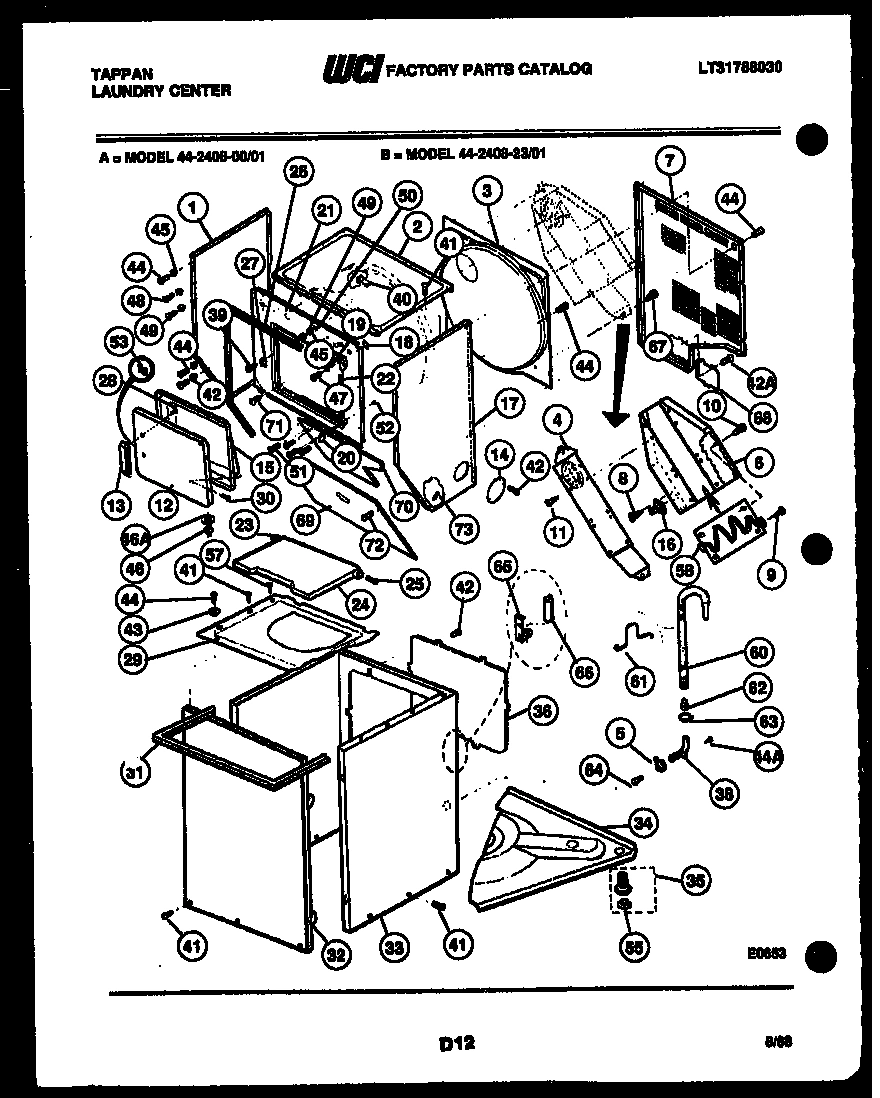

02 - CABINET PARTS AND HEATER

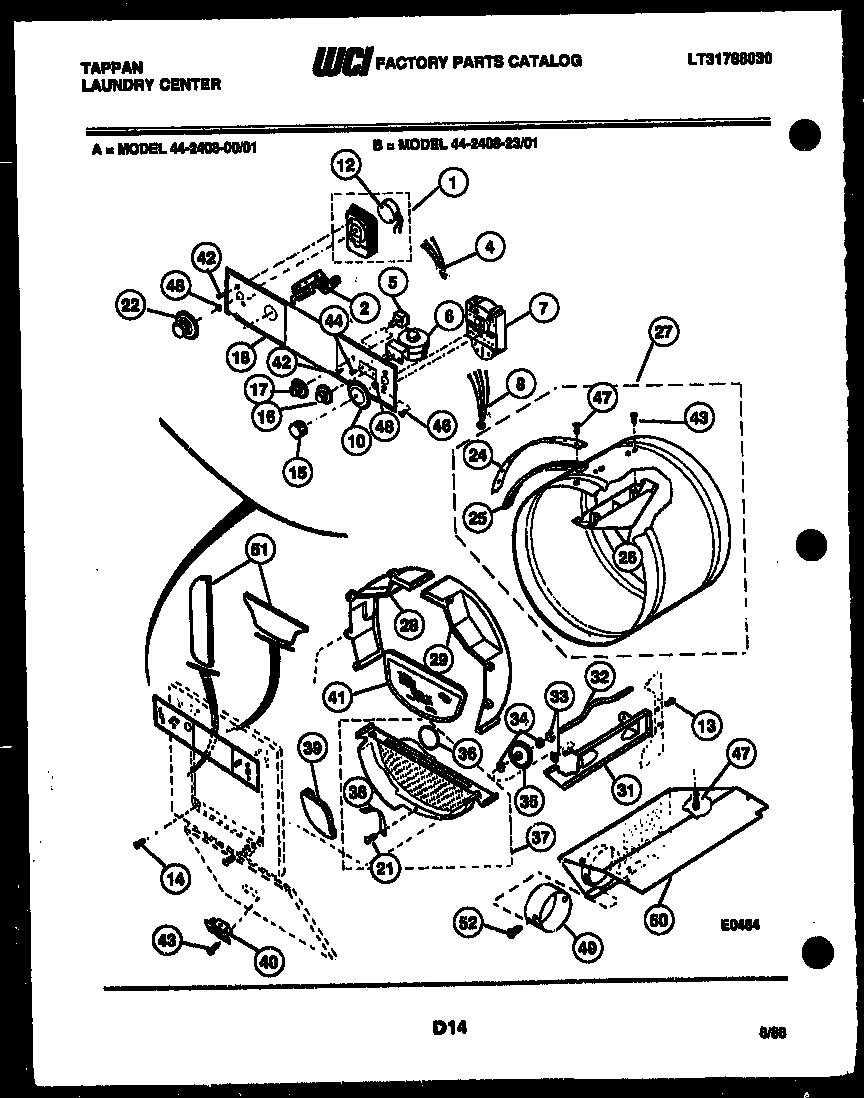

03 - CONSOLE, CONTROL AND DRUM
04 - DRYER MOTOR, BLOWER AND BELT
05 - TUBS, WATER VALVE AND LID SWITCH
06 - WASHER DRIVE SYSTEM AND PUMP
07 - TRANSMISSION PARTS
Common parts from model Electrolux 44-2408-23-01 LAUNDRY CENTER
*15834
PNT-6 OZ. (ALMOND) WCI 3161012 Contact Us For Availability
*15838
SHIELD-DRYER & WASHER TIMERS WCI 3161092 Contact Us For Availability
*15838
RESISTOR-DRYER TIMER (4.4K OHMS) WCI 3161093 Contact Us For Availability
*15838
RESISTOR-SEL. SW. (3.9K OHMS) WCI 3161094 Contact Us For Availability
*15842
NYLUBE LUBRICANT-USE ON IDLER WHEEL SHAFT WCI 3161117 Contact Us For Availability
*15847
ADHESIVE FOR GROMMET-SPLASH TUB WCI 3161147 Contact Us For Availability
*15847
CLIP-PRESSURE-TUBE-SHORT WCI 3161298 Contact Us For Availability
*15847
CLIP-PRESSURE TUBE (LONG) WCI 3161299 Contact Us For Availability
*15851
TRANSMISSION OIL (1 QT.) WCI 3161180 Contact Us For Availability
*15851
WCI 3161181 WCI 3161181 Contact Us For Availability
*15851
SLEEVE-CLUTCH COIL WCI 3161182 Contact Us For Availability
1
PNL-L.H.-DRYER (ALMOND) WCI 3161014 Contact Us For Availability
1
WCI 3017936 WCI 3017936 Contact Us For Availability
1
WCI 3016461 WCI 3016461 Contact Us For Availability
1
WCI 3161493 WCI 3161493 Contact Us For Availability
1
WCI 3161221 WCI 3161221 Contact Us For Availability
2
PNL-TOP-DRYER (ALMOND) WCI 3161016 Contact Us For Availability
2
WCI 3017893 WCI 3017893 Contact Us For Availability
2
SPRING CLIP WCI 3161263 Contact Us For Availability
2
WCI 3161146 WCI 3161146 Contact Us For Availability
2
CUSHION (RUBBER) WCI 3161150 Contact Us For Availability
3
WCI 3017111 WCI 3017111 Contact Us For Availability
3
WCI 3161096 WCI 3161096 Contact Us For Availability
3
WCI 3161211 WCI 3161211 Contact Us For Availability
4
WCI 3161018 WCI 3161018 Contact Us For Availability
4
WCI 3017937 WCI 3017937 Contact Us For Availability
4
PLATE-BLOWER HOUSING WCI 3161097 Contact Us For Availability
4
SEAL-TUB COVER WCI 3161121 Contact Us For Availability
4
WCI 3161212 WCI 3161212 Contact Us For Availability
4
WCI 3161166 WCI 3161166 Contact Us For Availability
5
CLAMP WCI 3161183 Contact Us For Availability
5
SWITCH-WATER TEMP WCI 3017895 Contact Us For Availability
5
PULLEY-MOTOR WCI 3161098 Contact Us For Availability
5
WCI 3161199 WCI 3161199 Contact Us For Availability
5
PULLEY-TRANSMISSION WCI 3161151 Contact Us For Availability
6
WCI 3161019 WCI 3161019 Contact Us For Availability
6
WCI 3017896 WCI 3017896 Contact Us For Availability
6
WCI 3161264 WCI 3161264 Contact Us For Availability
6
RETAINING RING (2) WCI 3161223 Contact Us For Availability
7
WCI 3016426 WCI 3016426 Contact Us For Availability
7
WCI 3017897 WCI 3017897 Contact Us For Availability
7
WCI 3161099 WCI 3161099 Contact Us For Availability
8
WCI 3016452 WCI 3016452 Contact Us For Availability
8
WCI 3016462 WCI 3016462 Contact Us For Availability
8
AGITATOR CAP (INCLUDES REF. 9) WCI 3161122 Contact Us For Availability
8
WCI 3161463 WCI 3161463 Contact Us For Availability
9
SCREW (2) WCI 3161234 Contact Us For Availability
9
SCREW-GROUND-TIMER/BASE WCI 3161240 Contact Us For Availability
9
WASHER-CAP WCI 3161200 Contact Us For Availability
9
HOSE-PUMP/DRAIN COUPLING WCI 3161153 Contact Us For Availability
10
DIAL-INDICATOR WCI 3017950 Contact Us For Availability
10
MOTOR & SWITCH DRYER WCI 3161101 Contact Us For Availability
10
WCI 3161484 WCI 3161484 Contact Us For Availability
10
CLAMP (2) WCI 3161301 Contact Us For Availability
10
WCI 3161167 WCI 3161167 Contact Us For Availability
11
SWITCH-MOTOR (GE) WCI 3161102 Contact Us For Availability
11
WCI 3161485 WCI 3161485 Contact Us For Availability
11
PIPE PLUG WCI 3161224 Contact Us For Availability
12
WCI 3161473 WCI 3161473 Contact Us For Availability
12
MOTOR-TIMER-DRYER WCI 3161067 Contact Us For Availability
12
WCI 3161302 WCI 3161302 Contact Us For Availability
12
WCI 3161225 WCI 3161225 Contact Us For Availability
13
WCI 3161474 WCI 3161474 Contact Us For Availability
13
WCI 3161486 WCI 3161486 Contact Us For Availability
13
WCI 3161216 WCI 3161216 Contact Us For Availability
13
WCI 3161308 WCI 3161308 Contact Us For Availability
14
COVER-EXHAUST (ALMOND) WCI 3161022 Contact Us For Availability
14
WCI 3161187 WCI 3161187 Contact Us For Availability
14
WCI 3161168 WCI 3161168 Contact Us For Availability
15
WCI 3161492 WCI 3161492 Contact Us For Availability
15
KNOB-WASHER TIMER WCI 3017951 Contact Us For Availability
15
CLIP-MOTOR (2) WCI 3161190 Contact Us For Availability
15
WCI 3161126 WCI 3161126 Contact Us For Availability
15
WCI 3161169 WCI 3161169 Contact Us For Availability
16
THERMOSTAT, SAFETY WCI 3161023 Contact Us For Availability
16
KNOB-PRESSURE SWITCH WCI 3161069 Contact Us For Availability
16
IDLER ARM & WHEEL ASSY WCI 3161103 Contact Us For Availability
16
SPLASH TUB WCI 3161127 Contact Us For Availability
16
WCI 3161488 WCI 3161488 Contact Us For Availability
16
WCI 3161170 WCI 3161170 Contact Us For Availability
17
PANEL-R.H.-DRYER (ALMOND) WCI 3161025 Contact Us For Availability
17
KNOB-WATER TEMP SWITCH WCI 3161070 Contact Us For Availability
17
BEARING HOUSING ASSY. WCI 3161464 Contact Us For Availability
17
SHAFT ASSY-LOWER WCI 3161178 Contact Us For Availability
18
WCI 3161235 WCI 3161235 Contact Us For Availability
18
WCI 3017952 WCI 3017952 Contact Us For Availability
18
WCI 3161283 WCI 3161283 Contact Us For Availability
19
HINGE-DOOR-TOP WCI 3161026 Contact Us For Availability
19
DOWEL PIN (2) WCI 3161227 Contact Us For Availability
20
HINGE-DOOR-LOWER WCI 3161027 Contact Us For Availability
20
SPRING-HORIZONTAL-LONG WCI 3161129 Contact Us For Availability
20
WCI 3161217 WCI 3161217 Contact Us For Availability
21
PNL - FRONT DRYER (ALMOND) WCI 3016438 Contact Us For Availability
21
BRACKET - THERMO MOUNTING WCI 3016464 Contact Us For Availability
21
WCI 3161130 WCI 3161130 Contact Us For Availability
21
HAG. ASSY. (INCLUDES REF. 13) WCI 3161171 Contact Us For Availability
22
WCI 3161030 WCI 3161030 Contact Us For Availability
22
KNOB & DIAL ASSY WCI 3161072 Contact Us For Availability
22
WCI 3161284 WCI 3161284 Contact Us For Availability
22
BEARING-HOUSING/LGS SPRING PKG WCI 3161172 Contact Us For Availability
23
WCI 3161104 WCI 3161104 Contact Us For Availability
23
BLOCK-SHIPPING WCI 3161202 Contact Us For Availability
23
SPACER (4) WCI 3161303 Contact Us For Availability
24
WCI 3200869 WCI 3200869 Contact Us For Availability
24
BAND-FRONT & REAR (2) WCI 3161073 Contact Us For Availability
24
NUT-EXPANSION WCI 3161203 Contact Us For Availability
24
WCI 3161156 WCI 3161156 Contact Us For Availability
25
WCI 3161236 WCI 3161236 Contact Us For Availability
25
DRUM SEAL-FRONT WCI 3161074 Contact Us For Availability
25
WCI 3016465 WCI 3016465 Contact Us For Availability
25
SPRING-VERTICAL-SHORT WCI 3161131 Contact Us For Availability
25
IDLER ARM ASSY. WCI 3937001 Contact Us For Availability
25
RETAINING RING WCI 3161309 Contact Us For Availability
25A
DRUM SEAL-REAR WCI 3161075 Contact Us For Availability
26
TRIM STRIP-DRYER WCI 3161475 Contact Us For Availability
26
BAFFLE-DRUM (3) WCI 3161076 Contact Us For Availability
26
SPRING-IDLER ARM WCI 3161106 Contact Us For Availability
26
WCI 3161132 WCI 3161132 Contact Us For Availability
26
WCI 3161490 WCI 3161490 Contact Us For Availability
27
WCI 3161476 WCI 3161476 Contact Us For Availability
27
WCI 3004200 WCI 3004200 Contact Us For Availability
27
WCI 3161269 WCI 3161269 Contact Us For Availability
27
WCI 3161204 WCI 3161204 Contact Us For Availability
27
SET SCREW WCI 3161304 Contact Us For Availability
28
WCI 3161078 WCI 3161078 Contact Us For Availability
28
WCI 3016466 WCI 3016466 Contact Us For Availability
28
SCREW (6) WCI 3161205 Contact Us For Availability
28
WCI 3161158 WCI 3161158 Contact Us For Availability
28
WCI 3161228 WCI 3161228 Contact Us For Availability
29
WCI 3017114 WCI 3017114 Contact Us For Availability
29
WCI 3161079 WCI 3161079 Contact Us For Availability
29
THERMOSTAT-CONTROL WCI 3161108 Contact Us For Availability
29
SPRING-VERTICAL (LONG 2) WCI 3161133 Contact Us For Availability
29A
EXT HEATER-THERMO WCI 3161109 Contact Us For Availability
30
WCI 3161270 WCI 3161270 Contact Us For Availability
30
WCI 3161134 WCI 3161134 Contact Us For Availability
30
SUPPORT PLATE & BOLTS WCI 3161218 Contact Us For Availability
30
WCI 3161229 WCI 3161229 Contact Us For Availability
31
TRIM STRIP-WASHER WCI 3161477 Contact Us For Availability
31
WCI 3017901 WCI 3017901 Contact Us For Availability
31
WCI 3161271 WCI 3161271 Contact Us For Availability
31
HOSE-PUMP/TRAP WCI 3161135 Contact Us For Availability
31
WCI 3161160 WCI 3161160 Contact Us For Availability
31
THRUST WASHER WCI 3161226 Contact Us For Availability
31A
WCI 3017902 WCI 3017902 Contact Us For Availability
32
PNL-FRONT-WASHER (ALMOND) WCI 3161041 Contact Us For Availability
32
SHAFT-ROLLER (2) WCI 3161082 Contact Us For Availability
32
NUT (SILVER) (2) WCI 3161191 Contact Us For Availability
32
WCI 3161285 WCI 3161285 Contact Us For Availability
32
SWITCH-MOTOR (GE) WCI 3161161 Contact Us For Availability
33
CABINET-WASHER (ALMOND) WCI 3161043 Contact Us For Availability
33
SNAP RING (4) WCI 3161255 Contact Us For Availability
33
SCREW-GROUND WCI 3161279 Contact Us For Availability
33
WCI 3161136 WCI 3161136 Contact Us For Availability
33
LGS SPRING-SMALL WCI 3161174 Contact Us For Availability
34
WCI 3161044 WCI 3161044 Contact Us For Availability
34
WASHER-SHAFT (4) WCI 3161256 Contact Us For Availability
34
WCI 3161110 WCI 3161110 Contact Us For Availability
34
WCI 3161286 WCI 3161286 Contact Us For Availability
34
WCI 3161175 WCI 3161175 Contact Us For Availability
35
SHAFT ASSY-AGITATOR WCI 134736400 No Longer Available
35
LEVELING LEG ASSY. (4) WCI 3161045 Contact Us For Availability
35
ROLLER & WHEEL ASSY. (4) WCI 3161257 Contact Us For Availability
35
WCI 3161192 WCI 3161192 Contact Us For Availability
35A
LOCKWASHER (NON-ILLUSTRATED) WCI 3161193 Contact Us For Availability
36
PNL-REAR ACCESS WASHER WCI 3161046 Contact Us For Availability
36
SEAL-LINT HOUSING WCI 3161083 Contact Us For Availability
36
WCI 3161305 WCI 3161305 Contact Us For Availability
36
HOUSING ASSY.-(WITH GASKET) WCI 3161177 Contact Us For Availability
37
HOUSING ASSY-LINT WCI 3161084 Contact Us For Availability
37
BRACKET-TERMINAL BLOCK WCI 3161273 Contact Us For Availability
37A
WCI 3016467 WCI 3016467 Contact Us For Availability
38
COUPLER - DRAIN HOSE WCI 3161452 Contact Us For Availability
38
CLIP-LINT SCREEN WCI 3161258 Contact Us For Availability
38
WCI 3161194 WCI 3161194 Contact Us For Availability
38
WCI 3017109 WCI 3017109 Contact Us For Availability
38
WCI 3161220 WCI 3161220 Contact Us For Availability
38
WCI 3161231 WCI 3161231 Contact Us For Availability
39
RIVET (2) WCI 3161237 Contact Us For Availability
39
WCI 3161085 WCI 3161085 Contact Us For Availability
39
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI 3161162 Contact Us For Availability
40
WCI 3161048 WCI 3161048 Contact Us For Availability
40
MAGNET ASSY. (ALMOND) WCI 3016458 Contact Us For Availability
40
WCI 3161489 WCI 3161489 Contact Us For Availability
40
THRUST WASHER WCI 3161232 Contact Us For Availability
41
SCREEN-LINT WCI 3161088 Contact Us For Availability
41
WCI 3161164 WCI 3161164 Contact Us For Availability
41
TRANSMISSION COMPLETE WCI 3161179 Contact Us For Availability
42
SCREW TEMP SW/PANEL WCI 3161259 Contact Us For Availability
42
WCI 3017110 WCI 3017110 Contact Us For Availability
42
SEAL KIT (CONSISTS OF SEAL ASSEMBLY & GASKET. WCI 3161165 Contact Us For Availability
42
WASHER-CLUTCH COIL WCI 3161311 Contact Us For Availability
42A
SCREW (4) WCI 3161268 Contact Us For Availability
43
SCREW-MAGN/PNL (2) WCI 3161260 Contact Us For Availability
44
HOSE WCI 3161142 Contact Us For Availability
44A
WCI 3161453 WCI 3161453 Contact Us For Availability
45
RETAINER-TRIM (14) WCI 3161241 Contact Us For Availability
45
WCI 3161276 WCI 3161276 Contact Us For Availability
46
WCI 3161478 WCI 3161478 Contact Us For Availability
46
SCREW (2) WCI 3161188 Contact Us For Availability
46
SCREW (4) WCI 3161272 Contact Us For Availability
46
BRACKET-LID LOCK WCI 3161143 Contact Us For Availability
46A
WCI 3016441 WCI 3016441 Contact Us For Availability
47
SCREW (2) WCI 3161242 Contact Us For Availability
48
WCI 8015493 WCI 8015493 Contact Us For Availability
48
BRACE (2) WCI 3016468 Contact Us For Availability
48
WCI 3161290 WCI 3161290 Contact Us For Availability
49
WCI 3016459 WCI 3016459 Contact Us For Availability
49
CONNECTOR-PRESSURE TUBE WCI 3161114 Contact Us For Availability
50
SPACER (OPTIONAL) (2) WCI 3161245 Contact Us For Availability
50
WCI 3016460 WCI 3016460 Contact Us For Availability
50
PLATE (2) WCI 3016469 Contact Us For Availability
51
SCREW-HINGE/FRONT PANEL WCI 3161246 Contact Us For Availability
51
INSULATION FRONT PANEL TOP WCI 3161090 Contact Us For Availability
51
WCI 3116470 WCI 3116470 Contact Us For Availability
51A
SCREW-HINGE/LINT HSG WCI 3161243 Contact Us For Availability
51A
WCI 3161091 WCI 3161091 Contact Us For Availability
52
ACORN NUT WCI 3161247 Contact Us For Availability
52
WCI 3161278 WCI 3161278 Contact Us For Availability
52
WCI 3161206 WCI 3161206 Contact Us For Availability
53
WCI 3161479 WCI 3161479 Contact Us For Availability
53
WCI 3161207 WCI 3161207 Contact Us For Availability
54
WCI 3161208 WCI 3161208 Contact Us For Availability
55
PAD-LEVELING LEG (4) WCI 3161049 Contact Us For Availability
55
WCI 3161293 WCI 3161293 Contact Us For Availability
56
WCI 3161198 WCI 3161198 Contact Us For Availability
56
SCREW (2) WCI 3161274 Contact Us For Availability
57
WCI 3161185 WCI 3161185 Contact Us For Availability
57
WCI 3016471 WCI 3016471 Contact Us For Availability
57
CLIP WCI 3161287 Contact Us For Availability
58
HEATER ASSEMBLY WCI 3161050 Contact Us For Availability
58
STRAIN RELIEF WCI 3016472 Contact Us For Availability
58
SPRING-HORIZONTAL SHORT (2) WCI 3161209 Contact Us For Availability
59
SCREW (2) WCI 3161238 Contact Us For Availability
59
WCI 3016473 WCI 3016473 Contact Us For Availability
60
HOSE-DRAIN WCI 3161454 Contact Us For Availability
60
SCREW-STRAIN RELIEF WCI 3016474 Contact Us For Availability
61
RETAINER-DRAIN HOSE WCI 3161248 Contact Us For Availability
62
BUSHING-DRAIN HOSE WCI 3161249 Contact Us For Availability
63
WCI 3161186 WCI 3161186 Contact Us For Availability
63A
CABLE TIE-DRAIN HOSE (NON-ILLUSTRATED) WCI 3161250 Contact Us For Availability
64
WCI 3161251 WCI 3161251 Contact Us For Availability
65
BRACKET-CAPACITOR WCI 3161252 Contact Us For Availability
65
SHIELD-MOTOR (PLASTIC MOTOR SHIELD & TAPE-FAB WCI 3161295 Contact Us For Availability
66
WCI 3161052 WCI 3161052 Contact Us For Availability
68
WCI 3161053 WCI 3161053 Contact Us For Availability
69
PNL-ACCESS-DRYER (ALMOND) WCI 3161055 Contact Us For Availability
70
WCI 3016443 WCI 3016443 Contact Us For Availability
72
WCI 3161253 WCI 3161253 Contact Us For Availability
× ![]()
