Model Electrolux 44-2407-00-03 LAUNDRY CENTER – Common Parts & Diagrams

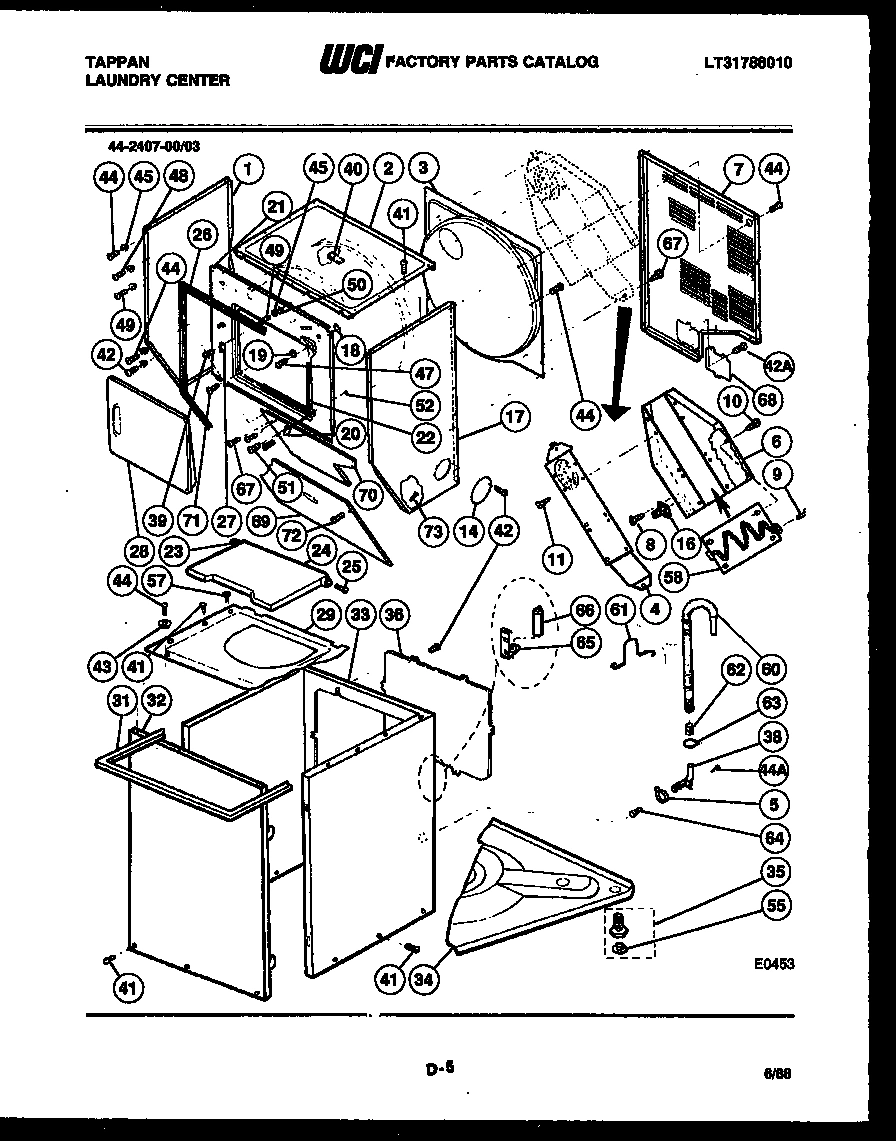

02 - CABINET PARTS AND HEATER

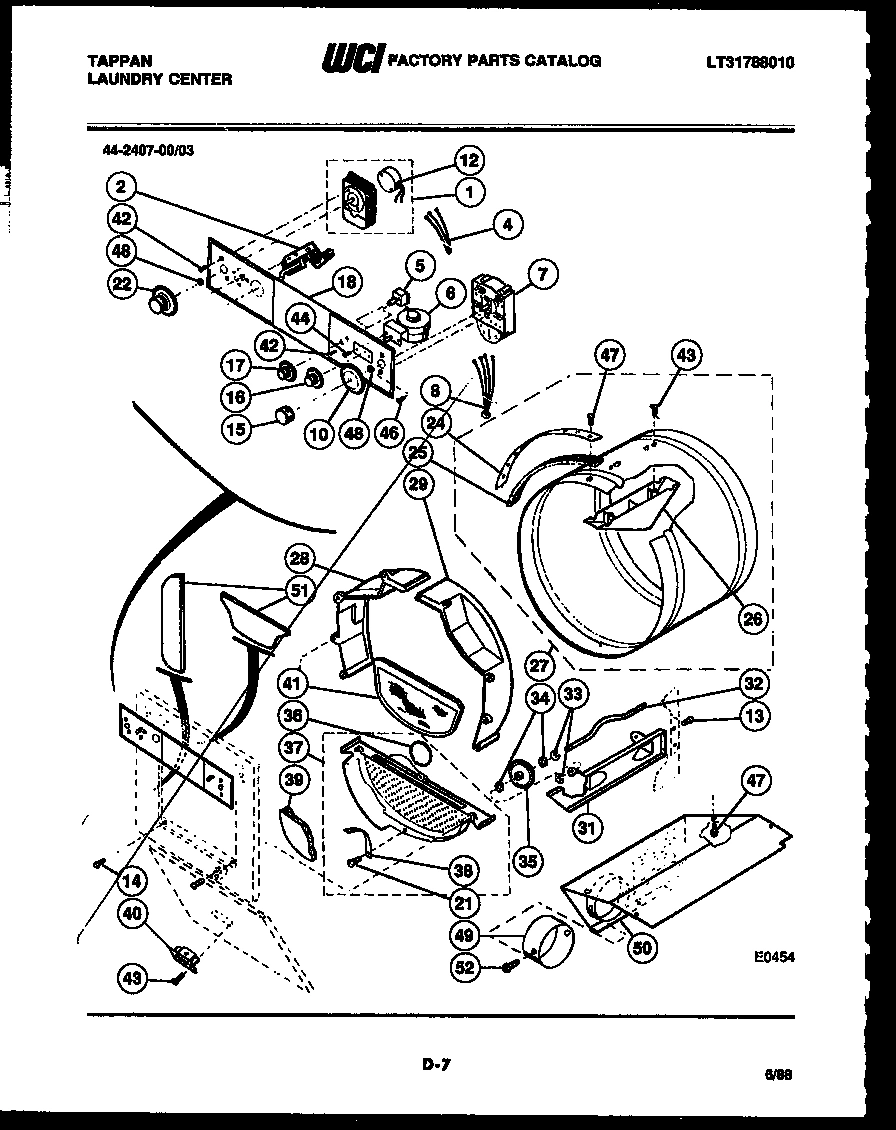

03 - CONSOLE, CONTROL AND DRUM
04 - DRYER MOTOR, BLOWER AND BELT
05 - TUBS, WATER VALVE AND LID SWITCH
06 - WASHER DRIVE SYSTEM AND PUMP
07 - TRANSMISSION PARTS
Common parts from model Electrolux 44-2407-00-03 LAUNDRY CENTER
*14204
WCI 3161011 WCI 3161011 Contact Us For Availability
*14204
WCI 3161012 WCI 3161012 Contact Us For Availability
*14207
SHIELD-TIMER-WASHER WCI 3161092 Contact Us For Availability
*14207
RESISTOR-TIMER-DRYER (4.4 K OHMS) WCI 3161093 Contact Us For Availability
*14207
RESISTOR-SELECTOR SWITCH (3.9 K OHMS) WCI 3161094 Contact Us For Availability
*14211
NYLUBE LUBRICANT WCI 3161117 Contact Us For Availability
*14215
WCI 3004924 WCI 3004924 Contact Us For Availability
*14215
WCI 3161147 WCI 3161147 Contact Us For Availability
*14215
WCI 3161149 WCI 3161149 Contact Us For Availability
*14215
CLIP-PRESSURE-TUBE-SHORT WCI 3161298 Contact Us For Availability
*14215
CLIP-PRESSURE TUBE (LONG) WCI 3161299 Contact Us For Availability
*14219
OIL-TRANSMISSION-1 QUART WCI 3161180 Contact Us For Availability
*14219
WCI 3161181 WCI 3161181 Contact Us For Availability
*14219
SLEEVE-CLUTCH COIL WCI 3161182 Contact Us For Availability
1
PANEL-LH-DRYER-WHT WCI 3161013 Contact Us For Availability
1
PANEL-LH-DRYER-ALMD WCI 3161014 Contact Us For Availability
1
WCI 3017936 WCI 3017936 Contact Us For Availability
1
HOUSING-LINT FILTER WCI 3161118 Contact Us For Availability
1
WCI 3161221 WCI 3161221 Contact Us For Availability
2
PNL-TOP-DRYER-WHITE WCI 3161015 Contact Us For Availability
2
PNL-TOP-DRYER-ALMD WCI 3161016 Contact Us For Availability
2
WCI 3017893 WCI 3017893 Contact Us For Availability
2
SPRING CLIP WCI 3161263 Contact Us For Availability
2
FILTER-LINT WCI 3161119 Contact Us For Availability
2
WCI 3161150 WCI 3161150 Contact Us For Availability
2
WCI 3161166 WCI 3161166 Contact Us For Availability
3
WCI 3017111 WCI 3017111 Contact Us For Availability
3
WCI 3161096 WCI 3161096 Contact Us For Availability
3
TUB COVER WCI 3161120 Contact Us For Availability
3
WCI 3161211 WCI 3161211 Contact Us For Availability
4
WCI 3161018 WCI 3161018 Contact Us For Availability
4
WCI 3017937 WCI 3017937 Contact Us For Availability
4
PLATE-BLOWER HOUSING WCI 3161097 Contact Us For Availability
4
SEAL-TUB COVER WCI 3161121 Contact Us For Availability
4
WCI 3161212 WCI 3161212 Contact Us For Availability
4
WCI 3161222 WCI 3161222 Contact Us For Availability
5
CLAMP-HOSE/COUPLER WCI 3161183 Contact Us For Availability
5
WCI 3017895 WCI 3017895 Contact Us For Availability
5
PULLEY-MOTOR WCI 3161098 Contact Us For Availability
5
WCI 3161199 WCI 3161199 Contact Us For Availability
5
WCI 3161151 WCI 3161151 Contact Us For Availability
6
WCI 3161019 WCI 3161019 Contact Us For Availability
6
WCI 3017896 WCI 3017896 Contact Us For Availability
6
WCI 3161264 WCI 3161264 Contact Us For Availability
6
WCI 3161280 WCI 3161280 Contact Us For Availability
6
WCI 3161223 WCI 3161223 Contact Us For Availability
7
PANEL-VENT WCI 3016426 Contact Us For Availability
7
WCI 3017897 WCI 3017897 Contact Us For Availability
7
WCI 3161099 WCI 3161099 Contact Us For Availability
7
WCI 3161281 WCI 3161281 Contact Us For Availability
8
HARNESS-UPPER-WASHER-MOTOR WCI 3161064 Contact Us For Availability
8
WCI 3016462 WCI 3016462 Contact Us For Availability
8
CAP-AGITATOR (INCL 9) WCI 3161122 Contact Us For Availability
8
WCI 3161463 WCI 3161463 Contact Us For Availability
9
SCREW (2) WCI 3161234 Contact Us For Availability
9
WCI 3161200 WCI 3161200 Contact Us For Availability
9
HOSE-PUMP/DRAIN COUPLING WCI 3161153 Contact Us For Availability
9A
SCREW-GROUND-TIMER/BASE WCI 3161240 Contact Us For Availability
10
WCI 3017950 WCI 3017950 Contact Us For Availability
10
WCI 3161167 WCI 3161167 Contact Us For Availability
10
DRYER MOTOR & SWITCH ASSEMBLY WCI 3161101 Contact Us For Availability
10
WCI 3161201 WCI 3161201 Contact Us For Availability
10
WCI 3161301 WCI 3161301 Contact Us For Availability
11
SWITCH-MOTOR (GE) WCI 3161102 Contact Us For Availability
11
WCI 3161123 WCI 3161123 Contact Us For Availability
11
PIPE PLUG WCI 3161224 Contact Us For Availability
12
MOTOR-TIMER-DRYER WCI 3161067 Contact Us For Availability
12
WCI 3004826 WCI 3004826 Contact Us For Availability
12
WCI 3161225 WCI 3161225 Contact Us For Availability
13
WCI 3161124 WCI 3161124 Contact Us For Availability
13
WCI 3161216 WCI 3161216 Contact Us For Availability
13
WCI 3161308 WCI 3161308 Contact Us For Availability
14
COVER-EXHAUST-WHITE WCI 3161021 Contact Us For Availability
14
COVER-EXHAUST-ALMD WCI 3161022 Contact Us For Availability
14
WCI 3161187 WCI 3161187 Contact Us For Availability
14
WCI 3161282 WCI 3161282 Contact Us For Availability
14
SECTOR GEAR WCI 3161168 Contact Us For Availability
15
WCI 3017951 WCI 3017951 Contact Us For Availability
15
WCI 3161190 WCI 3161190 Contact Us For Availability
15
WCI 3161126 WCI 3161126 Contact Us For Availability
15
WCI 3161154 WCI 3161154 Contact Us For Availability
15
WCI 3161169 WCI 3161169 Contact Us For Availability
16
WCI 3161023 WCI 3161023 Contact Us For Availability
16
KNOB-SWITCH-PRESSURE WCI 3161069 Contact Us For Availability
16
IDLER ARM & WHEEL ASSEMBLY WCI 3161103 Contact Us For Availability
16
WCI 3161127 WCI 3161127 Contact Us For Availability
16
PUMP ASSEMBLY COMPLETE WCI 3161155 Contact Us For Availability
16
WCI 3161170 WCI 3161170 Contact Us For Availability
17
PNL-RH-DRYER-WHITE WCI 3161024 Contact Us For Availability
17
PNL-RH-DRYER-ALMD WCI 3161025 Contact Us For Availability
17
KNOB-TEMPERATURE SWITCH WCI 3161070 Contact Us For Availability
17
WCI 3161464 WCI 3161464 Contact Us For Availability
17
WCI 3161178 WCI 3161178 Contact Us For Availability
18
WCI 3161235 WCI 3161235 Contact Us For Availability
18
WCI 3017952 WCI 3017952 Contact Us For Availability
18
WCI 3161283 WCI 3161283 Contact Us For Availability
19
HINGE-DOOR-TOP WCI 3161026 Contact Us For Availability
19
DOWEL PIN WCI 3161227 Contact Us For Availability
20
HINGE-DOOR-LOWER WCI 3161027 Contact Us For Availability
20
SPRING-HORIZONTAL-LONG WCI 3161129 Contact Us For Availability
20
WCI 3161217 WCI 3161217 Contact Us For Availability
21
WCI 3016436 WCI 3016436 Contact Us For Availability
21
WCI 3016438 WCI 3016438 Contact Us For Availability
21
WCI 3016464 WCI 3016464 Contact Us For Availability
21
SNUBBER RING ASSEMBLY WCI 3161130 Contact Us For Availability
21
LOWER HOUSING ASSEMBLY (INC 13) WCI 3161171 Contact Us For Availability
22
DOOR SEAL WCI 3161030 Contact Us For Availability
22
WCI 3017953 WCI 3017953 Contact Us For Availability
22
WCI 3161284 WCI 3161284 Contact Us For Availability
22
BEARING-HOUSING/LGS SPRING PKG WCI 3161172 Contact Us For Availability
23
WCI 3161104 WCI 3161104 Contact Us For Availability
23
BLOCK-SHIPPING WCI 3161202 Contact Us For Availability
23
WCI 3161303 WCI 3161303 Contact Us For Availability
24
LID-WASHER-WHITE WCI 3161031 Contact Us For Availability
24
LID-WASHER-ALMOND WCI 3161032 Contact Us For Availability
24
BAND WCI 3161073 Contact Us For Availability
24
NUT-EXPANSION WCI 3161203 Contact Us For Availability
24
WCI 3161156 WCI 3161156 Contact Us For Availability
25
WCI 3161236 WCI 3161236 Contact Us For Availability
25
SEAL-DRUM-FRONT WCI 3161074 Contact Us For Availability
25
WCI 3016465 WCI 3016465 Contact Us For Availability
25
SPRING-VERTICAL-SHORT WCI 3161131 Contact Us For Availability
25
WCI 3937001 WCI 3937001 Contact Us For Availability
25
WCI 3161309 WCI 3161309 Contact Us For Availability
25A
WCI 3161075 WCI 3161075 Contact Us For Availability
26
WCI 3161475 WCI 3161475 Contact Us For Availability
26
BAFFLE-DRUM (3) WCI 3161076 Contact Us For Availability
26
SPRING-IDLER ARM WCI 3161106 Contact Us For Availability
26
LEG & DOME WCI 3161132 Contact Us For Availability
26
WCI 3161490 WCI 3161490 Contact Us For Availability
27
WCI 3161034 WCI 3161034 Contact Us For Availability
27
WCI 3161077 WCI 3161077 Contact Us For Availability
27
WCI 3161269 WCI 3161269 Contact Us For Availability
27
WCI 3161204 WCI 3161204 Contact Us For Availability
27
SET SCREW WCI 3161304 Contact Us For Availability
28
DOOR-DRYER-WHITE WCI 3161035 Contact Us For Availability
28
DOOR-DRYER-ALMOND WCI 3161036 Contact Us For Availability
28
WCI 3161078 WCI 3161078 Contact Us For Availability
28
CRADLE MOTOR WCI 3016466 Contact Us For Availability
28
SCREW (6) WCI 3161205 Contact Us For Availability
28
WCI 3161158 WCI 3161158 Contact Us For Availability
28
WCI 3161228 WCI 3161228 Contact Us For Availability
29
PNL-TOP-WSHR-WHITE WCI 3161037 Contact Us For Availability
29
PNL-TOP-WSHR-ALMD WCI 3161038 Contact Us For Availability
29
WCI 3161079 WCI 3161079 Contact Us For Availability
29
THERMOSTAT-CONTROL WCI 3161108 Contact Us For Availability
29
SPRING-VERTICAL-LONG WCI 3161133 Contact Us For Availability
29A
HEATER-THERMOSTAT WCI 3161109 Contact Us For Availability
30
WCI 3161270 WCI 3161270 Contact Us For Availability
30
WCI 3161134 WCI 3161134 Contact Us For Availability
30
PLATE-SUPPORT & BOLTS WCI 3161218 Contact Us For Availability
30
WASHER-SPACER WCI 3161229 Contact Us For Availability
31
WCI 3161477 WCI 3161477 Contact Us For Availability
31
WCI 3017901 WCI 3017901 Contact Us For Availability
31
WCI 3161271 WCI 3161271 Contact Us For Availability
31
HOSE-PUMP/TRAP WCI 3161135 Contact Us For Availability
31
WCI 3161160 WCI 3161160 Contact Us For Availability
31
THRUST WASHER WCI 3161226 Contact Us For Availability
32
PANEL-FRNT-WSHR-WHT WCI 3161040 Contact Us For Availability
32
PANEL-FRNT-WSHR-ALMD WCI 3161041 Contact Us For Availability
32
WCI 3017902 WCI 3017902 Contact Us For Availability
32
SHAFT-DRUM ROLLER (2) WCI 3161082 Contact Us For Availability
32
WCI 3161285 WCI 3161285 Contact Us For Availability
32
SWITCH-MOTOR (GE) WCI 3161161 Contact Us For Availability
33
CABINET-WSHR-WHITE WCI 3161042 Contact Us For Availability
33
CABINET-WSHR-ALMD WCI 3161043 Contact Us For Availability
33
SNAP RING (4) WCI 3161255 Contact Us For Availability
33
SCREW-GROUND WCI 3161279 Contact Us For Availability
33
WCI 3161136 WCI 3161136 Contact Us For Availability
33
LGS SPRING-SMALL WCI 3161174 Contact Us For Availability
34
WCI 3161044 WCI 3161044 Contact Us For Availability
34
WCI 3161256 WCI 3161256 Contact Us For Availability
34
DRYER BASE WCI 3161110 Contact Us For Availability
34
WCI 3161286 WCI 3161286 Contact Us For Availability
34
WCI 3161175 WCI 3161175 Contact Us For Availability
35
LEG-LEVELING ASSY (4) WCI 3161045 Contact Us For Availability
35
ROLLER & WHEEL ASSEMBLY (4) WCI 3161257 Contact Us For Availability
35
WCI 3161192 WCI 3161192 Contact Us For Availability
35
WCI 3161219 WCI 3161219 Contact Us For Availability
35A
WCI 3161193 WCI 3161193 Contact Us For Availability
36
WCI 3161046 WCI 3161046 Contact Us For Availability
36
SEAL-LINT HOUSING WCI 3161083 Contact Us For Availability
36
WCI 3005492 WCI 3005492 Contact Us For Availability
36
UPPER HOUSING ASSEMBLY-W/ GASKET WCI 3161177 Contact Us For Availability
37
HOUSING ASSEMBLY-LINT WCI 3161084 Contact Us For Availability
37
WCI 3161273 WCI 3161273 Contact Us For Availability
37
CLIP (2) WCI 3161288 Contact Us For Availability
38
COUPLER - DRAIN HOSE WCI 3161452 Contact Us For Availability
38
WCI 3161258 WCI 3161258 Contact Us For Availability
38
WCI 3161194 WCI 3161194 Contact Us For Availability
38
WCI 3016475 WCI 3016475 Contact Us For Availability
38
WCI 3161220 WCI 3161220 Contact Us For Availability
38
WCI 3161231 WCI 3161231 Contact Us For Availability
39
WCI 3161237 WCI 3161237 Contact Us For Availability
39
WCI 3161085 WCI 3161085 Contact Us For Availability
39
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI 3161162 Contact Us For Availability
40
WCI 3161048 WCI 3161048 Contact Us For Availability
40
WCI 3016456 WCI 3016456 Contact Us For Availability
40
WCI 3016458 WCI 3016458 Contact Us For Availability
40
WATER INLET ASSEMBLY WCI 3161139 Contact Us For Availability
40
WCI 3161489 WCI 3161489 Contact Us For Availability
40
THRUST WASHER WCI 3161232 Contact Us For Availability
41
SCREEN-LINT WCI 3161088 Contact Us For Availability
41
WCI 3161164 WCI 3161164 Contact Us For Availability
41
TRANSMISSION COMPLETE WCI 3161179 Contact Us For Availability
42
SCREW (2) WCI 3161259 Contact Us For Availability
42
WCI 3161141 WCI 3161141 Contact Us For Availability
42
SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKE WCI 3161165 Contact Us For Availability
42
WCI 3161311 WCI 3161311 Contact Us For Availability
42A
SCREW (4) WCI 3161268 Contact Us For Availability
43A
SCREW-MAGNET/PANEL (2) WCI 3161260 Contact Us For Availability
44
WCI 3161142 WCI 3161142 Contact Us For Availability
44A
WCI 3161453 WCI 3161453 Contact Us For Availability
45
RETAINER-TRIM WCI 3161241 Contact Us For Availability
45
WCI 3161276 WCI 3161276 Contact Us For Availability
46
SCREW (2) WCI 3161188 Contact Us For Availability
46
SCREW (4) WCI 3161272 Contact Us For Availability
46
WCI 3161143 WCI 3161143 Contact Us For Availability
47
SCREW (2) WCI 3161242 Contact Us For Availability
48
WCI 3005538 WCI 3005538 Contact Us For Availability
48
BRACE WCI 3016468 Contact Us For Availability
48
WCI 3161290 WCI 3161290 Contact Us For Availability
49
WCI 3016459 WCI 3016459 Contact Us For Availability
49
CONNECTER WCI 3161114 Contact Us For Availability
49
WCI 3161291 WCI 3161291 Contact Us For Availability
50
SPACER (OPTIONAL) (2) WCI 3161245 Contact Us For Availability
50
WCI 3016460 WCI 3016460 Contact Us For Availability
50
WCI 3016469 WCI 3016469 Contact Us For Availability
51
SCREW-HNG/FRONT PNL WCI 3161246 Contact Us For Availability
51
INSULATION FRONT PANEL TOP WCI 3161090 Contact Us For Availability
51A
SCREW-HINGE/LINT HSG WCI 3161243 Contact Us For Availability
51A
INSULATION FRONT PANEL LH WCI 3161091 Contact Us For Availability
52
WCI 3161247 WCI 3161247 Contact Us For Availability
52
WCI 3161278 WCI 3161278 Contact Us For Availability
52
WCI 3161206 WCI 3161206 Contact Us For Availability
53
WCI 3161207 WCI 3161207 Contact Us For Availability
54
WCI 3161208 WCI 3161208 Contact Us For Availability
55
PAD-LEVELING LEG (4) WCI 3161049 Contact Us For Availability
55
WCI 3161293 WCI 3161293 Contact Us For Availability
56
WCI 3161198 WCI 3161198 Contact Us For Availability
56
WCI 3161274 WCI 3161274 Contact Us For Availability
57
WCI 3161185 WCI 3161185 Contact Us For Availability
57
WCI 3016471 WCI 3016471 Contact Us For Availability
57
CLIP-HARNESS WCI 3161287 Contact Us For Availability
58
HEATER ASSEMBLY WCI 3161050 Contact Us For Availability
58
STRAIN RELIEF WCI 3016472 Contact Us For Availability
58
SPRING-HORIZONTAL-SHORT WCI 3161209 Contact Us For Availability
59
SCREW (2) WCI 3161238 Contact Us For Availability
59
WCI 3016473 WCI 3016473 Contact Us For Availability
60
WCI 3161454 WCI 3161454 Contact Us For Availability
60
SCREW-STRAIN RELIEF WCI 3016474 Contact Us For Availability
61
RETAINER-DRAIN HOSE WCI 3161248 Contact Us For Availability
62
BUSHING-DRAIN HOSE WCI 3161249 Contact Us For Availability
63
WCI 3161186 WCI 3161186 Contact Us For Availability
63
WCI 3161294 WCI 3161294 Contact Us For Availability
63A
WCI 3161250 WCI 3161250 Contact Us For Availability
64
WCI 3161251 WCI 3161251 Contact Us For Availability
65
BRACKET-CAPACITOR WCI 3161252 Contact Us For Availability
65
SHIELD-MOTOR (PLASTIC MOTOR SHIELD AND TAPE - WCI 3161295 Contact Us For Availability
66
WCI 3161052 WCI 3161052 Contact Us For Availability
67
WCI 3161297 WCI 3161297 Contact Us For Availability
68
COVER-TERMINAL WCI 3161053 Contact Us For Availability
68
WCI 3161146 WCI 3161146 Contact Us For Availability
69
PANEL-ACCESS-WHITE WCI 3161054 Contact Us For Availability
69
PANEL-ACCESS-ALMD WCI 3161055 Contact Us For Availability
70
WCI 3016443 WCI 3016443 Contact Us For Availability
72
WCI 3161253 WCI 3161253 Contact Us For Availability
× ![]()
