Model LG 43UH6500 – Common Parts & Diagrams

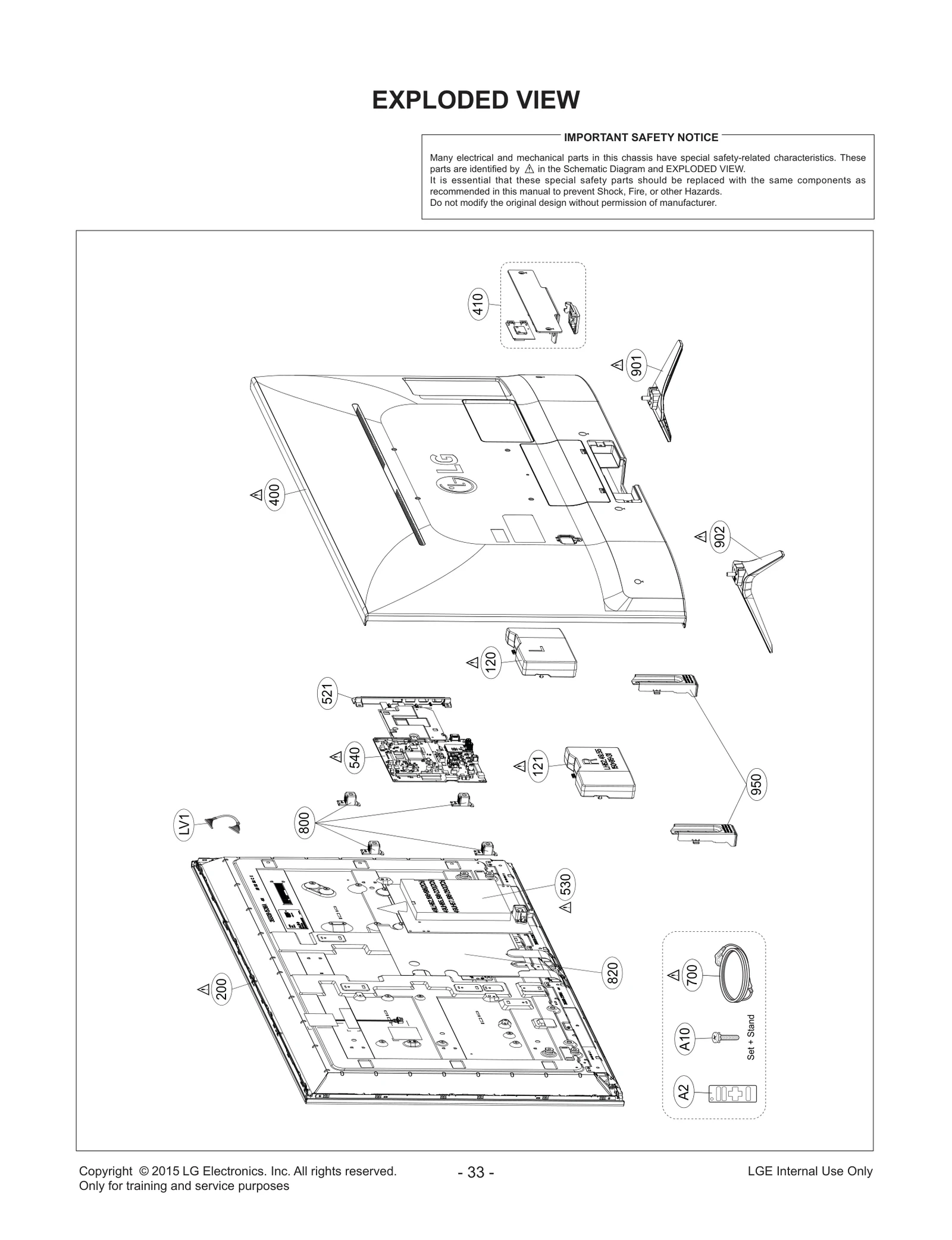

Diagram 0
Diagram 1
Common parts from model LG 43UH6500
200
LCD,Module-TFT LGE EAJ63709201 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF79046901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88543919 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ88479520 Contact Us For Availability
530
Power Supply Assembly LGE EAY64269501 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU63551312 Contact Us For Availability
820
Insulator LGE MEV65711501 Contact Us For Availability
901
Base Assembly LGE AAN75669715 Contact Us For Availability
902
Base Assembly LGE AAN75669722 Contact Us For Availability
902
Base Assembly LGE AAN75669716 Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C641
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C5321
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C8045
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C8104
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C8118
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C9900
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
D8001
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
LV2
Cable,FFC LGE EAD63525719 Contact Us For Availability
Q1000
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q7702
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R3400
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R8047
Resistor,Chip LGE 0RH5101D422 Contact Us For Availability
× ![]()
