Model LG 43UH6100 – Common Parts & Diagrams

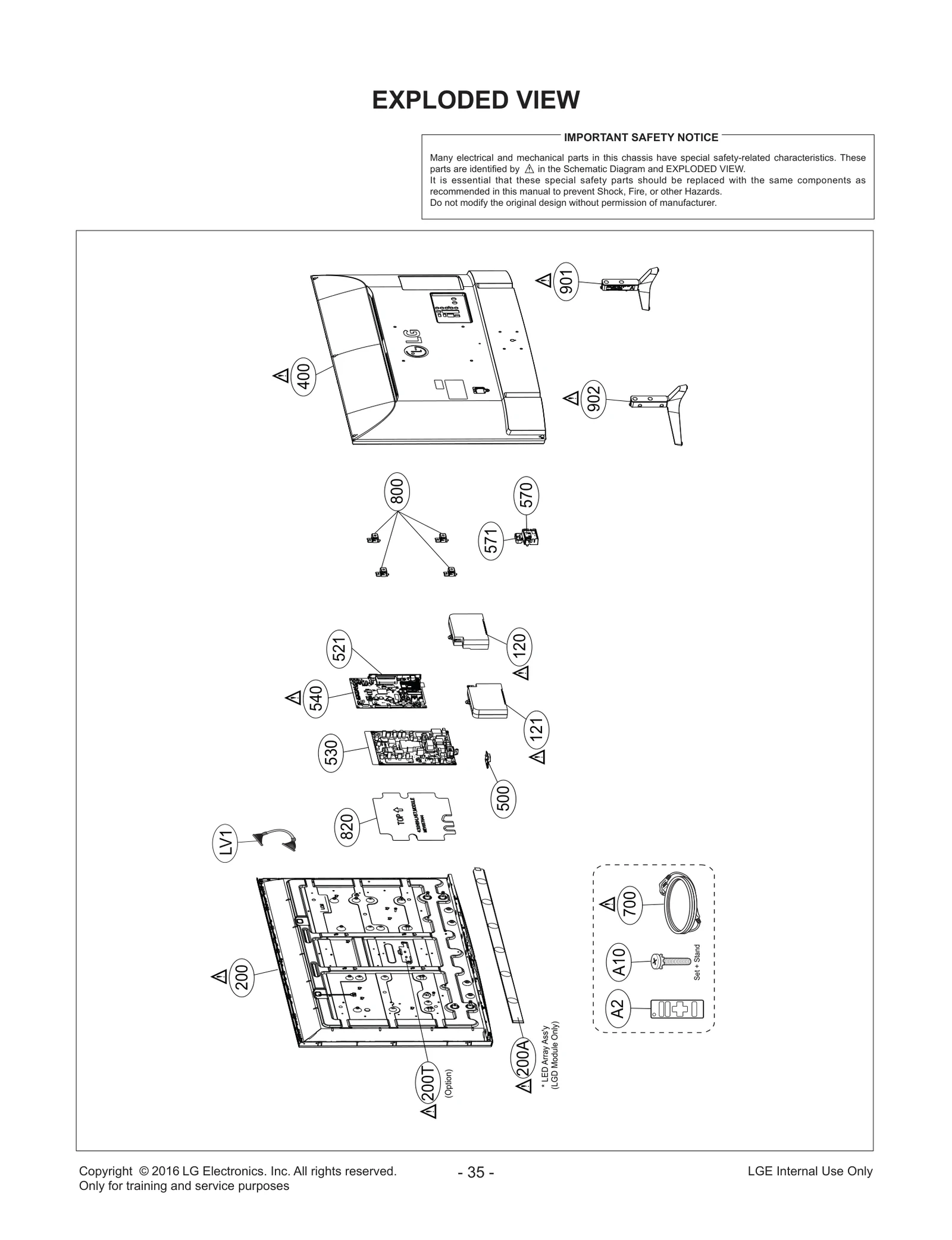

Diagram 0
Diagram 1
Common parts from model LG 43UH6100
1
Screw,Taptite LGE FAB32938601 Contact Us For Availability
2
Screw,Machine LGE FAB31843211 Contact Us For Availability
3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63774001 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF79044601 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ63889201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88777931 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR80772103 Contact Us For Availability
521
Bracket LGE MAZ65266320 Contact Us For Availability
530
Power Supply Assembly LGE EAY64388801 Contact Us For Availability
540
Chassis Assembly LGE EBT64256002 Contact Us For Availability
571
Bracket LGE MAZ64570904 Contact Us For Availability
800
Supporter,VESA LGE MJH64354002 Contact Us For Availability
820
Insulator LGE MEV65794401 Contact Us For Availability
902
Base Assembly LGE AAN75710232 Contact Us For Availability
AR3303
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR3306
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR5800
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR8100
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR8105
Resistor,Array LGE EBC62582704 Contact Us For Availability
C107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C441
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C632
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C2305
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C2313
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C2342
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C2355
Capacitor,Ceramic,Chip LGE EAE60672901 Contact Us For Availability
C2363
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C2502
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2516
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C3002
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3800
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3815
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C5800
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C5804
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5816
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5820
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5822
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C7116
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C8103
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C8104
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
CA1
Harness,Multi LGE EAD63727304 Contact Us For Availability
CA2
Harness,Single LGE EAD63726902 Contact Us For Availability
D3000
Diode,Schottky LGE EAH62792701 Contact Us For Availability
D3309
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4100
Diode,TVS LGE EAH62735601 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN64092104 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN64092102 Contact Us For Availability
IC200
IC,LDO Voltage Regulator LGE EAN62869101 Contact Us For Availability
IC401
IC,DDR3 SDRAM LGE EAN64028101 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN63492001 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN64108901 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN62870501 Contact Us For Availability
IC2304
IC,Voltage Detector LGE EAN61829903 Contact Us For Availability
IC2305
IC,DC,DC Converter LGE EAN62774701 Contact Us For Availability
IC2306
IC,DC,DC Converter LGE EAN63810801 Contact Us For Availability
IC4100
IC,Analog Switch LGE EAN64148901 Contact Us For Availability
IC4400
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC5800
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
JK4400
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781010 Contact Us For Availability
L2303
Inductor,Wire Wound,Chip LGE EAP63606701 Contact Us For Availability
L2304
Filter,Bead LGE EAM61130602 Contact Us For Availability
L2307
Inductor,Wire Wound,Chip LGE EAP63606801 Contact Us For Availability
L2309
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L2312
Inductor,Wire Wound,Chip LGE EAP62506418 Contact Us For Availability
L2501
Inductor,Wire Wound,Chip LGE EAP62506412 Contact Us For Availability
L2504
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5802
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L7100
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD63787305 Contact Us For Availability
M700
Gasket LGE MDS62110222 Contact Us For Availability
M706
Gasket LGE MDS62110213 Contact Us For Availability
P1
Connector,Wafer LGE 6602T12004J Contact Us For Availability
P2502
Connector,Wafer LGE EAG63590906 Contact Us For Availability
Q200
FET LGE EBK63231701 Contact Us For Availability
Q204
FET LGE EBK61913702 Contact Us For Availability
Q2500
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q3001
FET LGE EBK63231501 Contact Us For Availability
Q3300
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q7100
FET LGE EBK63231801 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R409
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R420
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R2301
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R2304
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2305
Resistor,Chip LGE ERHY0000124 Contact Us For Availability
R2309
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R2310
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2315
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R2317
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2321
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R2323
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2325
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R2329
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2331
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R2332
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R2334
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R2337
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2345
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
R2347
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R2348
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R2504
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R2505
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R2510
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R2520
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R3009
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R3033
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3300
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3306
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3314
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3323
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R3332
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R3334
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R3801
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3808
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R3813
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R3815
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R3816
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R4101
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R4102
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R4109
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R4111
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R4113
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R5806
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R5808
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R7111
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R7114
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6700
Tuner,Analog/Digital LGE EBL61740501 Contact Us For Availability
VA3300
Varistor LGE EAF61530102 Contact Us For Availability
VA3310
Varistor LGE EAF61630102 Contact Us For Availability
VA3801
Varistor LGE EAF61530101 Contact Us For Availability
VA5001
Varistor LGE EAF61530201 Contact Us For Availability
X101
Crystal LGE EAW62583501 Contact Us For Availability
X3000
Crystal LGE EAW30067102 Contact Us For Availability
ZD2300
Diode,TVS LGE EAH63274601 Contact Us For Availability
ZD2303
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
