Model LG 43UA7000PUB – Common Parts & Diagrams

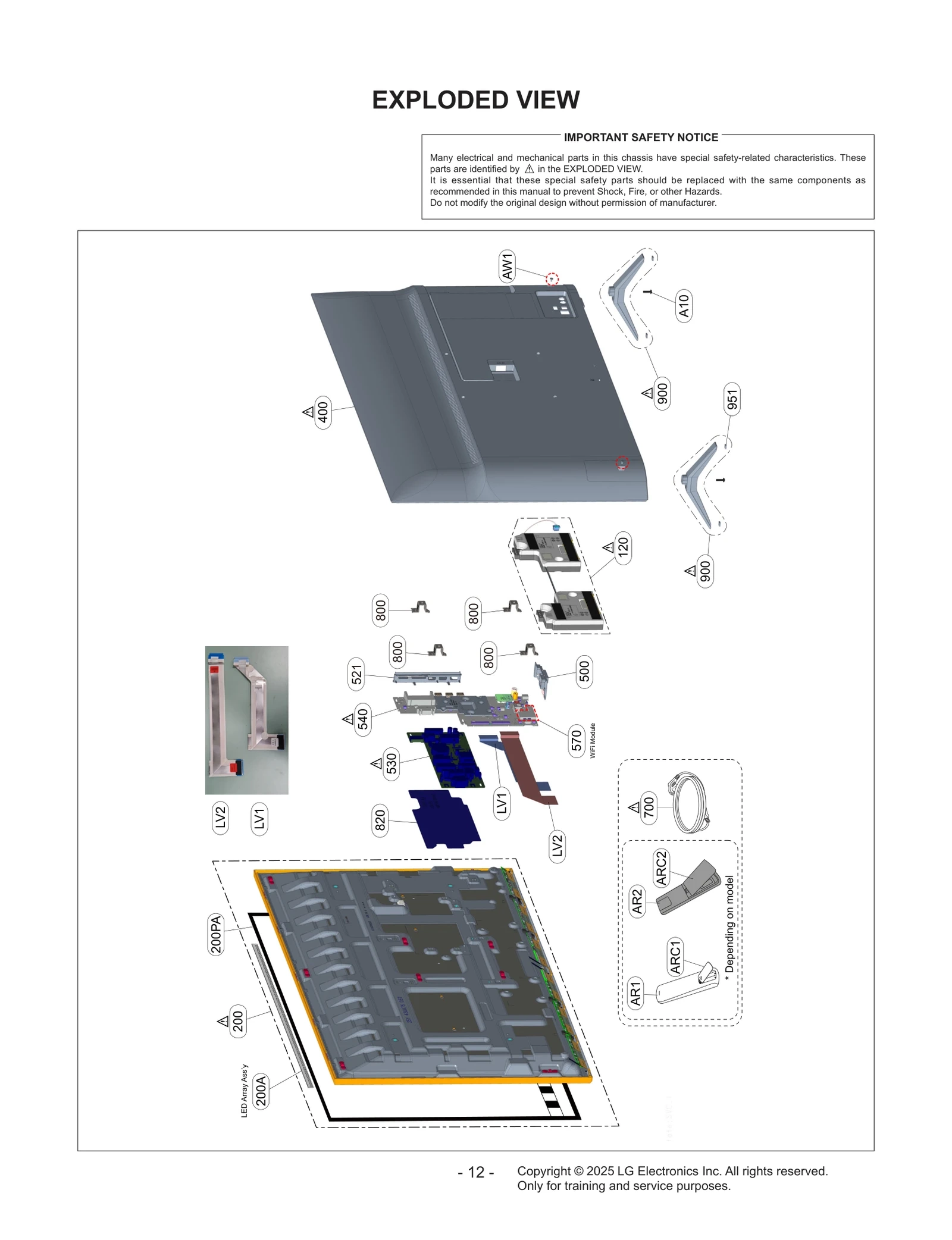

Diagram 0
Common parts from model LG 43UA7000PUB
200
LCD,Module-TFT LGE EAJ65964203 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF04080601 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ30034101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30744844 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30744818 Contact Us For Availability
500
Cover Assembly,LED LGE ACQ30745803 Contact Us For Availability
521
Bracket LGE MAZ67874307 Contact Us For Availability
530
Power Supply Assembly LGE EAY65920751 Contact Us For Availability
540
Mainboard,ORP Total Assembly,SVC LGE EBU30180208 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65235201 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65235202 Contact Us For Availability
800
Supporter,VESA LGE MJH64333101 Contact Us For Availability
800
Supporter,VESA LGE MJH64333102 Contact Us For Availability
820
Insulator LGE MEV67818501 Contact Us For Availability
900
Base Assembly LGE AAN30078243 Contact Us For Availability
951
Damper LGE MCQ68894002 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB30085202 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
LV1
Cable,FFC LGE EAD66038319 Contact Us For Availability
LV2
Cable,FFC LGE EAD66038320 Contact Us For Availability
× ![]()
