  • LG 43TA3E-B Parts List

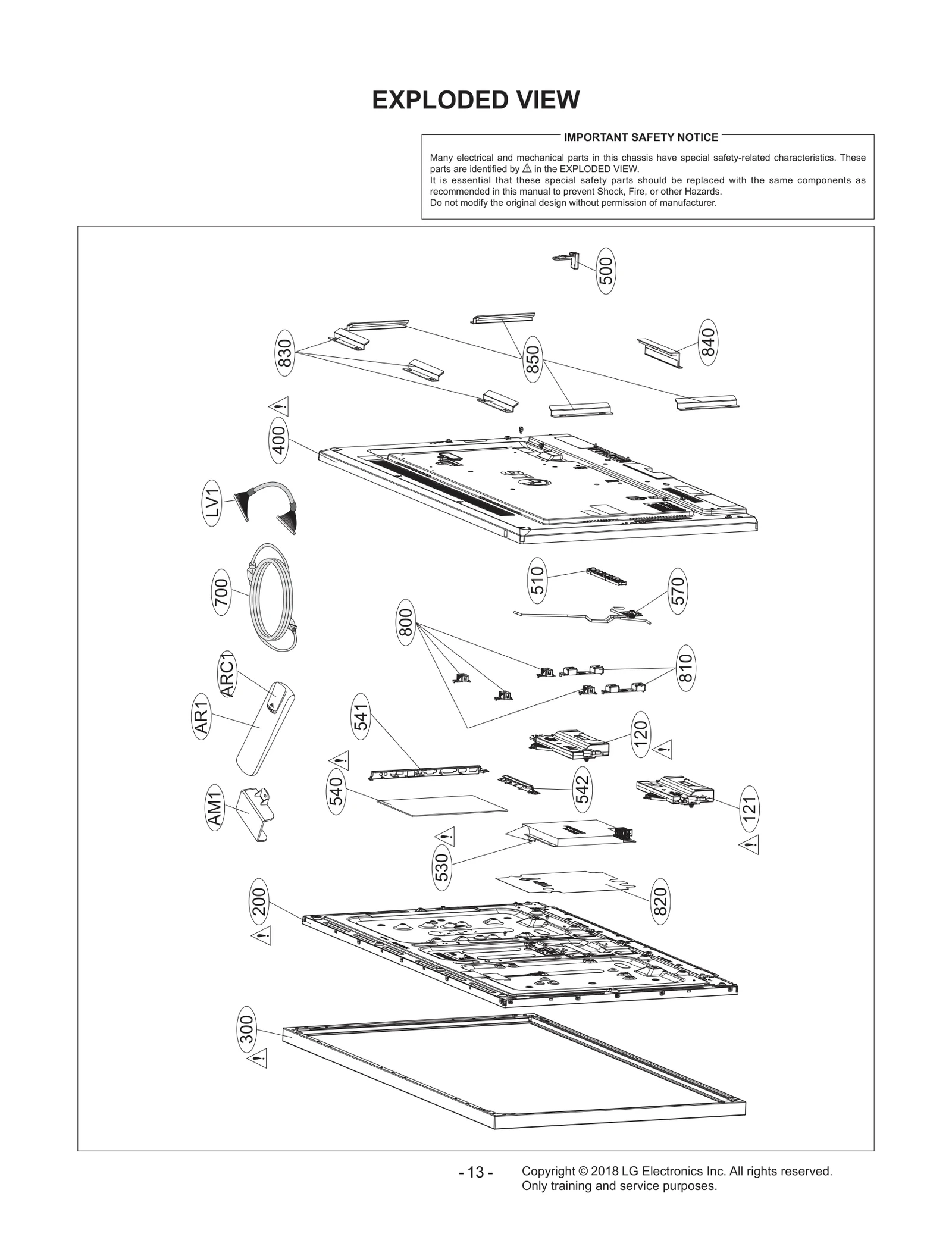

Model LG 43TA3E-B – Common Parts & Diagrams

120
Speaker,Full Range
Speaker,Full Range LGE EAB63928403 Contact Us For Availability
View on Model
300
Touch Panel
Touch Panel LGE EBD63645313 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ87879699 Contact Us For Availability
View on Model
500
Chassis Assembly
Chassis Assembly LGE EBT65201502 Contact Us For Availability
View on Model
510
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT64589001 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY63630707 Contact Us For Availability
View on Model
541
Cover
Cover LGE MCK68550905 Contact Us For Availability
View on Model
570
Module,Wifi Bluetooth Module
Module,Wifi Bluetooth Module LGE EAT62093304 Contact Us For Availability
View on Model
800
Supporter,VESA
Supporter,VESA LGE MJH64334001 Contact Us For Availability
View on Model
810
Supporter
Supporter LGE MJH63794101 Contact Us For Availability
View on Model
830
Supporter Assembly
Supporter Assembly LGE AJJ75838301 Contact Us For Availability
View on Model
840
Supporter Assembly
Supporter Assembly LGE AJJ75838401 Contact Us For Availability
View on Model
A4
Cable,Assembly
Cable,Assembly LGE EAD62707902 Contact Us For Availability
View on Model
A5
Cable,Assembly
Cable,Assembly LGE EAD57734003 Contact Us For Availability
View on Model
A6
Screw,Taptite
Screw,Taptite LGE FAB30013219 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB75095363 Contact Us For Availability
View on Model
ARC1
Cover
Cover LGE MCK67552801 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63265801 Contact Us For Availability
View on Model
S3
Harness,Single
Harness,Single LGE EAD63245302 Contact Us For Availability
View on Model
S4
Harness,Multi
Harness,Multi LGE EAD64168702 Contact Us For Availability
View on Model
