Model LG 43SQ700S-W – Common Parts & Diagrams

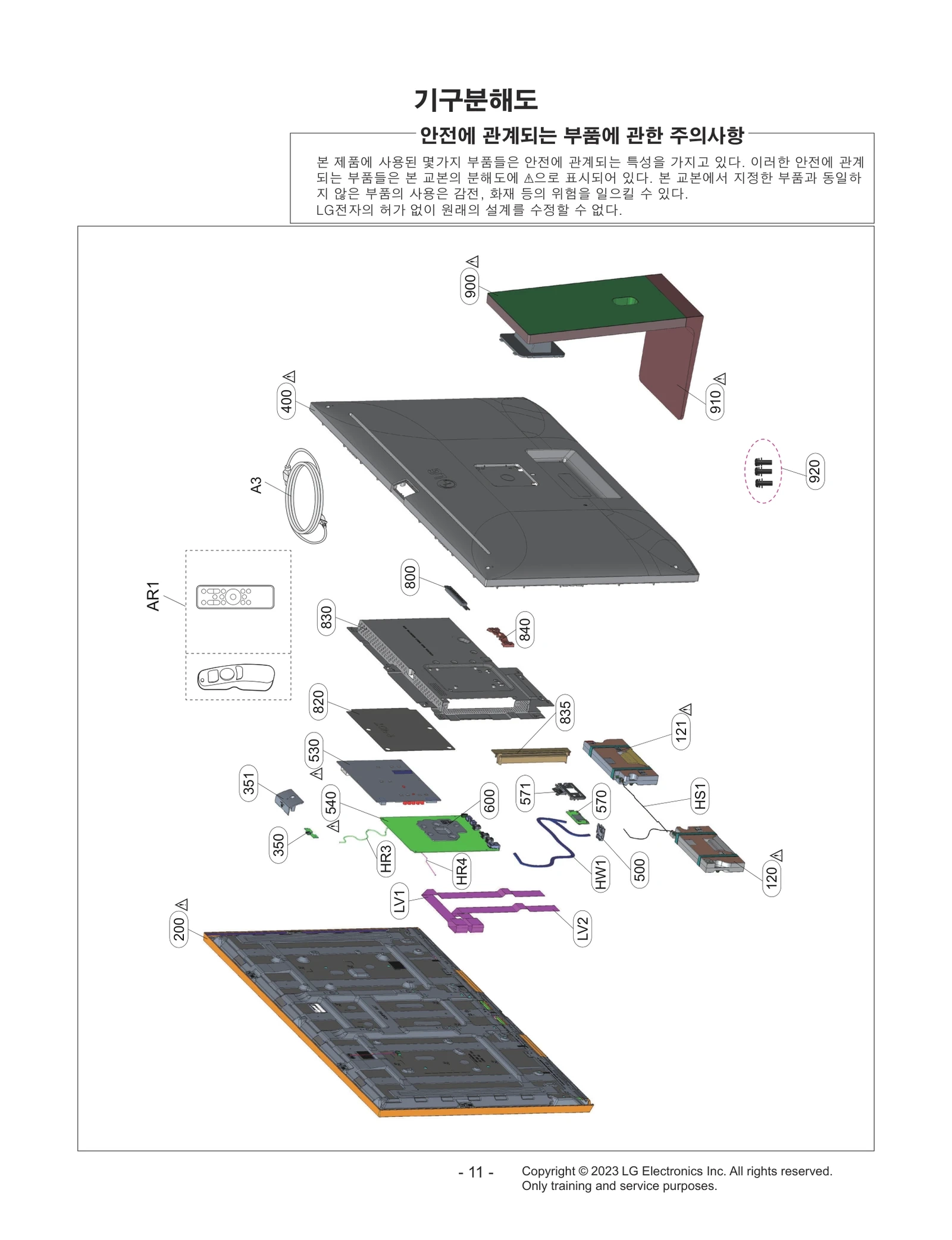

Diagram 0
Diagram 1
Common parts from model LG 43SQ700S-W
350
PCB Assembly,Sub LGE EBR40549601 Contact Us For Availability
351
Cover LGE MCK71707101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30562601 Contact Us For Availability
530
Power Supply Assembly LGE EAY65898901 Contact Us For Availability
540
BPR Total Assembly LGE EBU67406703 Contact Us For Availability
571
Bracket LGE MAZ67455517 Contact Us For Availability
600
Plate LGE MGJ67481101 Contact Us For Availability
800
Plate,Metal LGE MGJ67481301 Contact Us For Availability
820
Insulator LGE MEV67780301 Contact Us For Availability
830
Frame Assembly LGE ADV30080001 Contact Us For Availability
835
Cover,Rear LGE MCK71707001 Contact Us For Availability
840
Cover LGE MCK69445702 Contact Us For Availability
900
Base Assembly LGE AAN30083401 Contact Us For Availability
920
Package Assembly LGE AGF76702691 Contact Us For Availability
A1
Manual Assembly LGE AFN30117721 Contact Us For Availability
A3
Power Cord,Detach LGE EAD64005902 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A8
Cable,Assembly LGE EAD65185202 Contact Us For Availability
A9
Card LGE MBM67507701 Contact Us For Availability
A10
Card LGE MBM67537202 Contact Us For Availability
A15
Cable,Assembly LGE EAD63932603 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB76043623 Contact Us For Availability
HR3
Harness,Single LGE EAD58345823 Contact Us For Availability
HS1
Harness,Multi LGE EAD63266924 Contact Us For Availability
LV1
Cable,FFC LGE EAD65893707 Contact Us For Availability
LV2
Cable,FFC LGE EAD65893708 Contact Us For Availability
× ![]()
