Model LG 43LV570M – Common Parts & Diagrams

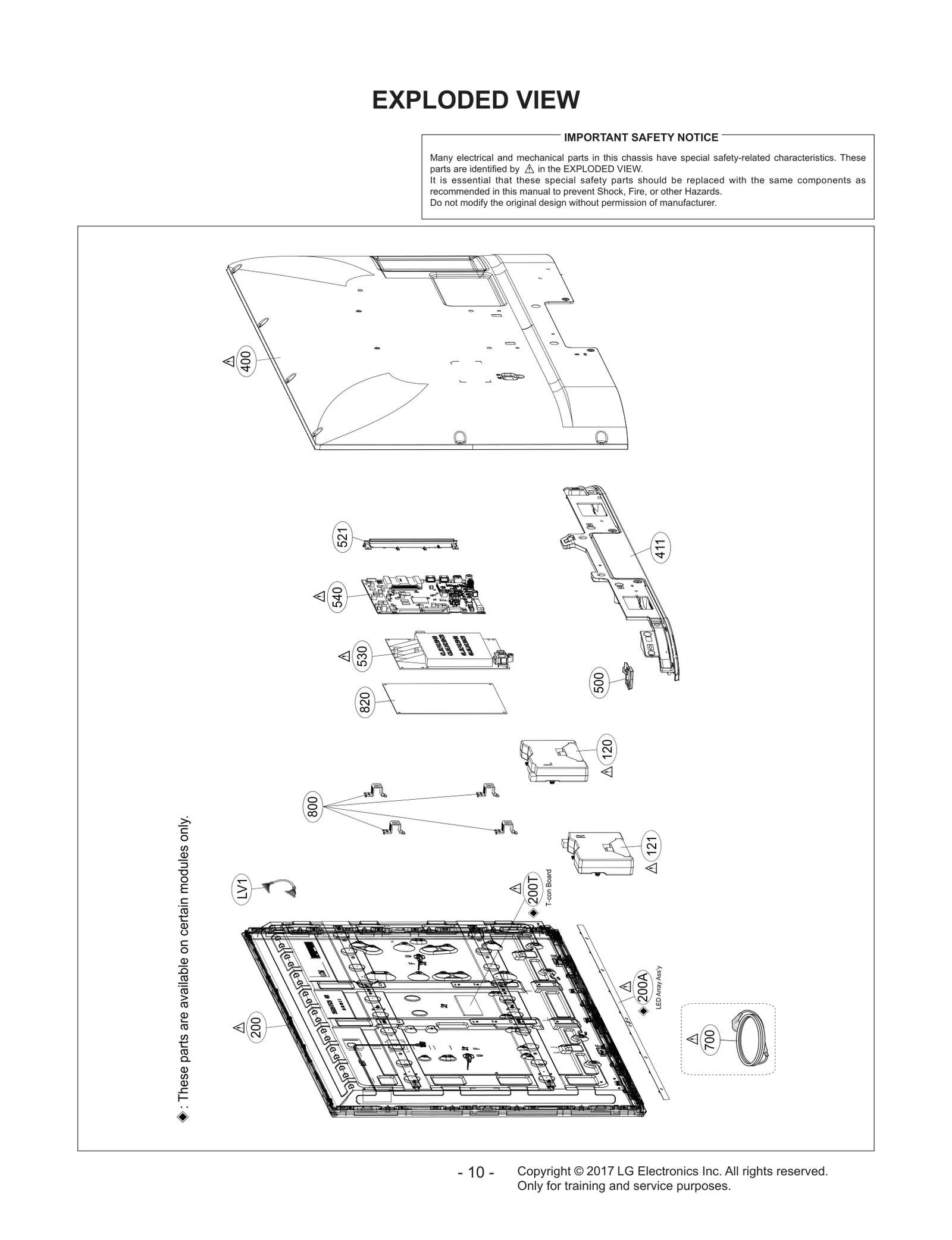

Diagram 0
Diagram 1
Common parts from model LG 43LV570M
200
LCD,Module-TFT LGE EAJ63929701 Contact Us For Availability
200A
LED Array,Parts Assembly,SVC LGE AGM76409701 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78666701 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ64667601 Contact Us For Availability
200PC
COF,Local Sourcing Parts LGE CLS31242501 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31261901 Contact Us For Availability
200PPR
Polarizer,Local Sourcing Parts LGE CLS31262001 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31203501 Contact Us For Availability
200SR1
Source PCB,Local Sourcing Parts LGE CLS31203502 Contact Us For Availability
200T
Time Control LGE EAT63633501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89180891 Contact Us For Availability
411
Cover Assembly LGE ACQ89142504 Contact Us For Availability
411
Cover Assembly LGE ACQ89142511 Contact Us For Availability
521
Bracket LGE MAZ65396428 Contact Us For Availability
530
Power Supply Assembly LGE EAY64529806 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU64182302 Contact Us For Availability
800
Supporter,VESA LGE MJH64333101 Contact Us For Availability
LV1
Cable,FFC LGE EAD63990507 Contact Us For Availability
Q5023
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
× ![]()
