Model LG 43LH6000 – Common Parts & Diagrams

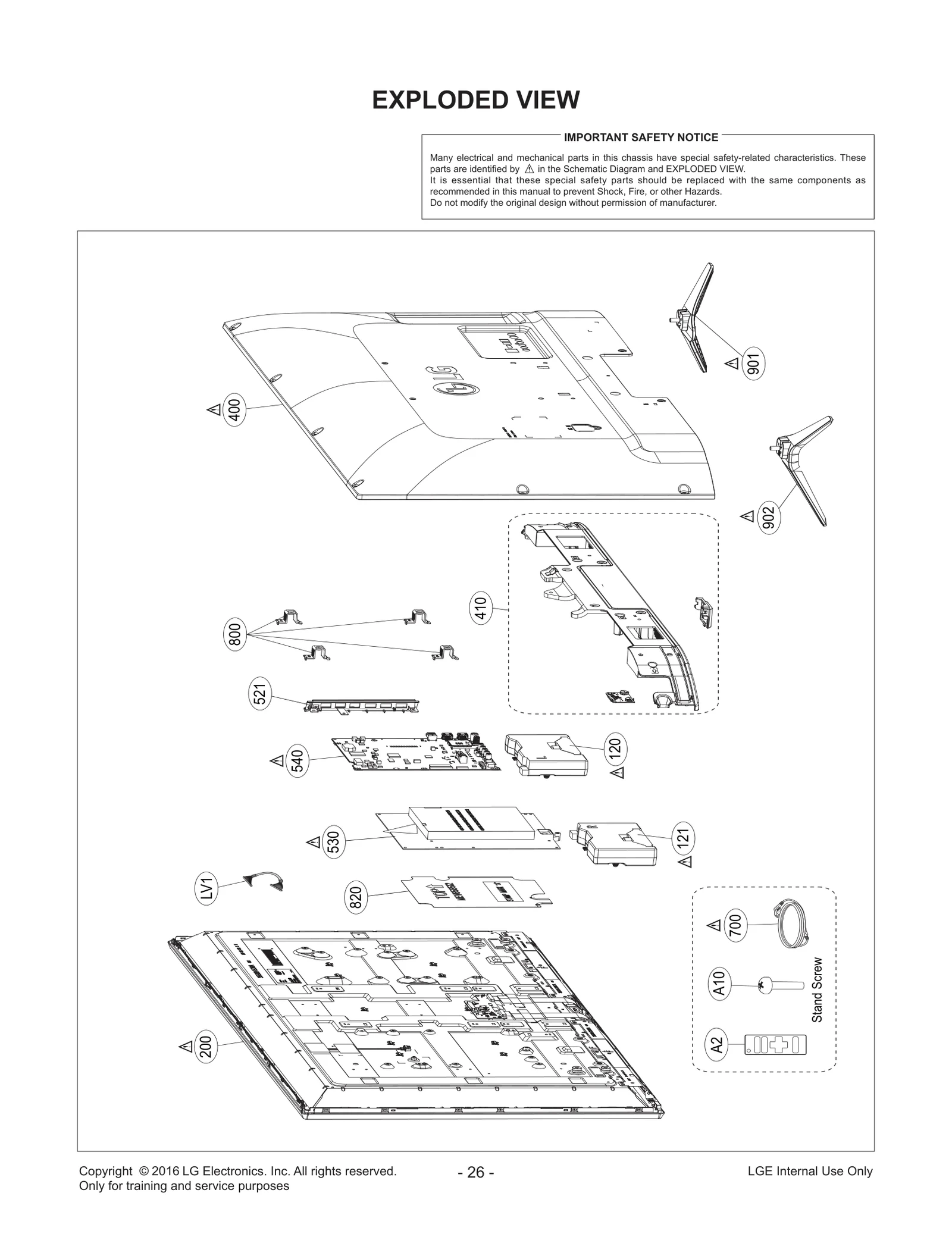

Diagram 0
Diagram 1
Common parts from model LG 43LH6000
200
LCD,Module-TFT LGE EAJ63728101 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF79047101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88416631 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ88452938 Contact Us For Availability
530
Power Supply Assembly LGE EAY64229501 Contact Us For Availability
540
Chassis Assembly LGE EBT64186305 Contact Us For Availability
800
Supporter,VESA LGE MJH64333102 Contact Us For Availability
820
Insulator LGE MEV65851201 Contact Us For Availability
901
Base Assembly LGE AAN75669733 Contact Us For Availability
901
Base Assembly LGE AAN75669713 Contact Us For Availability
902
Base Assembly LGE AAN75669734 Contact Us For Availability
902
Base Assembly LGE AAN75669714 Contact Us For Availability
AR101
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR103
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR3204
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR3231
Resistor,Array LGE EBC62582707 Contact Us For Availability
AR3232
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR8100
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8103
Resistor,Array LGE EBC32260401 Contact Us For Availability
B1
Box LGE MAY67476601 Contact Us For Availability
C101
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C122
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C124
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C322
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C336
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C338
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C370
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C2313
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C2319
Capacitor,Ceramic,Chip LGE EAE60672901 Contact Us For Availability
C2322
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C2325
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2337
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C2338
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C2343
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C2353
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C2354
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3005
Capacitor,Ceramic,Chip LGE EAE62962301 Contact Us For Availability
C3401
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3404
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C4010
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5612
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5618
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C6506
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
CA1
Harness,Multi LGE EAD63566302 Contact Us For Availability
CA2
Harness,Single LGE EAD63647302 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3201
Diode,Switching LGE EAH61714301 Contact Us For Availability
D5001
Varistor LGE EAF61530201 Contact Us For Availability
IC100
IC,EEPROM LGE EAN62389502 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN64207702 Contact Us For Availability
IC2300
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC2301
IC,DC,DC Converter LGE EAN64110901 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN62870501 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN63810801 Contact Us For Availability
IC2306
IC,Voltage Detector LGE EAN61829903 Contact Us For Availability
IC4001
IC,Analog Switch LGE EAN64148901 Contact Us For Availability
IC4301
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
JK3401
Jack,RCA LGE EAG60968213 Contact Us For Availability
JK4300
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781010 Contact Us For Availability
L2300
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2309
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L2310
Inductor,Wire Wound,Chip LGE EAP62506401 Contact Us For Availability
L2315
Inductor,Wire Wound,Chip LGE EAP62506412 Contact Us For Availability
L5602
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD63265803 Contact Us For Availability
P2300
Connector,Wafer LGE EAG63590906 Contact Us For Availability
Q2304
FET LGE EBK61913702 Contact Us For Availability
Q2307
FET LGE EBK63231801 Contact Us For Availability
Q3000
FET LGE EBK63231501 Contact Us For Availability
Q6501
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R337
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R2307
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2309
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R2310
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2319
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2325
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R2326
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R2327
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R2328
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R2329
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R2335
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2336
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R2339
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2340
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2342
Resistor,Chip LGE 0RJ8203D677 Contact Us For Availability
R2343
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R2344
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2347
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R2349
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R3013
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R3015
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3016
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3023
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R3028
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R3203
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R3224
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3418
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3421
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R3428
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R4017
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R4303
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R5606
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R6503
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R6517
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R6523
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6700
Tuner,Analog/Digital LGE EBL61740501 Contact Us For Availability
VA3201
Varistor LGE EAF61530301 Contact Us For Availability
VA3202
Varistor LGE EAF61530102 Contact Us For Availability
VA3410
Varistor LGE EAF61530101 Contact Us For Availability
VA3413
Varistor LGE EAF61630101 Contact Us For Availability
X100
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW30067102 Contact Us For Availability
ZD2304
Diode,TVS LGE EAH63274601 Contact Us For Availability
× ![]()
