Model LG 43LH5700 – Common Parts & Diagrams

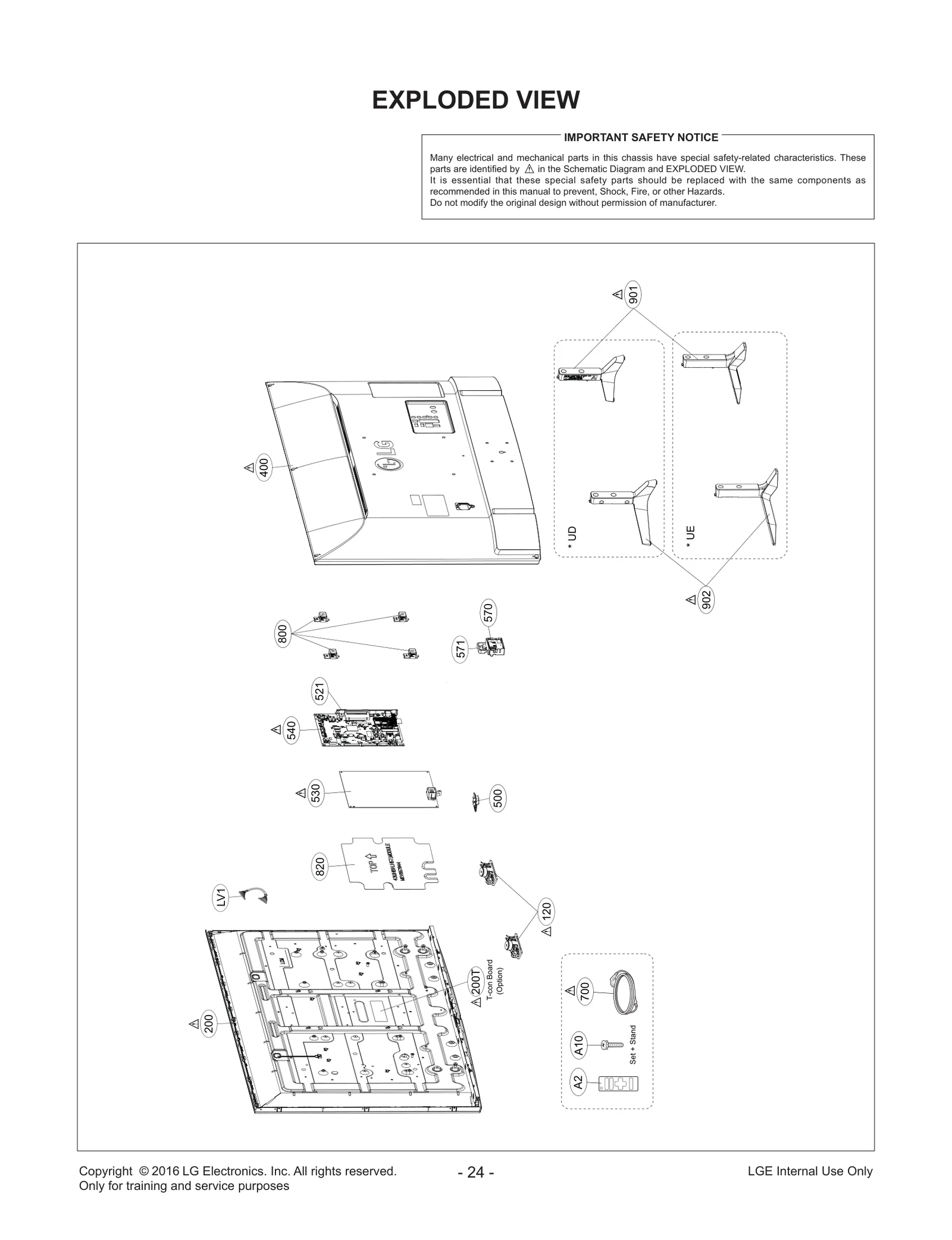

Diagram 0
Diagram 1
Common parts from model LG 43LH5700
200
LCD,Module-TFT LGE EAJ63847901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63892401 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ63751601 Contact Us For Availability
200PC
COF,Local Sourcing Parts LGE CLS31200601 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31201201 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31200401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88685345 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR80772103 Contact Us For Availability
521
Bracket LGE MAZ65266302 Contact Us For Availability
530
Power Supply Assembly LGE EAY64310501 Contact Us For Availability
540
Chassis Assembly LGE EBT64296618 Contact Us For Availability
571
Bracket LGE MAZ64570908 Contact Us For Availability
800
Supporter,VESA LGE MJH64354002 Contact Us For Availability
820
Insulator LGE MEV65970701 Contact Us For Availability
902
Base Assembly LGE AAN75710230 Contact Us For Availability
B1
Box LGE MAY67530901 Contact Us For Availability
CA1
Harness,Single LGE EAD63807202 Contact Us For Availability
CA1
Harness,Multi LGE EAD63566307 Contact Us For Availability
CA2
Harness,Single LGE EAD63647302 Contact Us For Availability
LV1
Cable,FFC LGE EAD63265803 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787305 Contact Us For Availability
× ![]()
