  • LG 43LF6300 Parts List

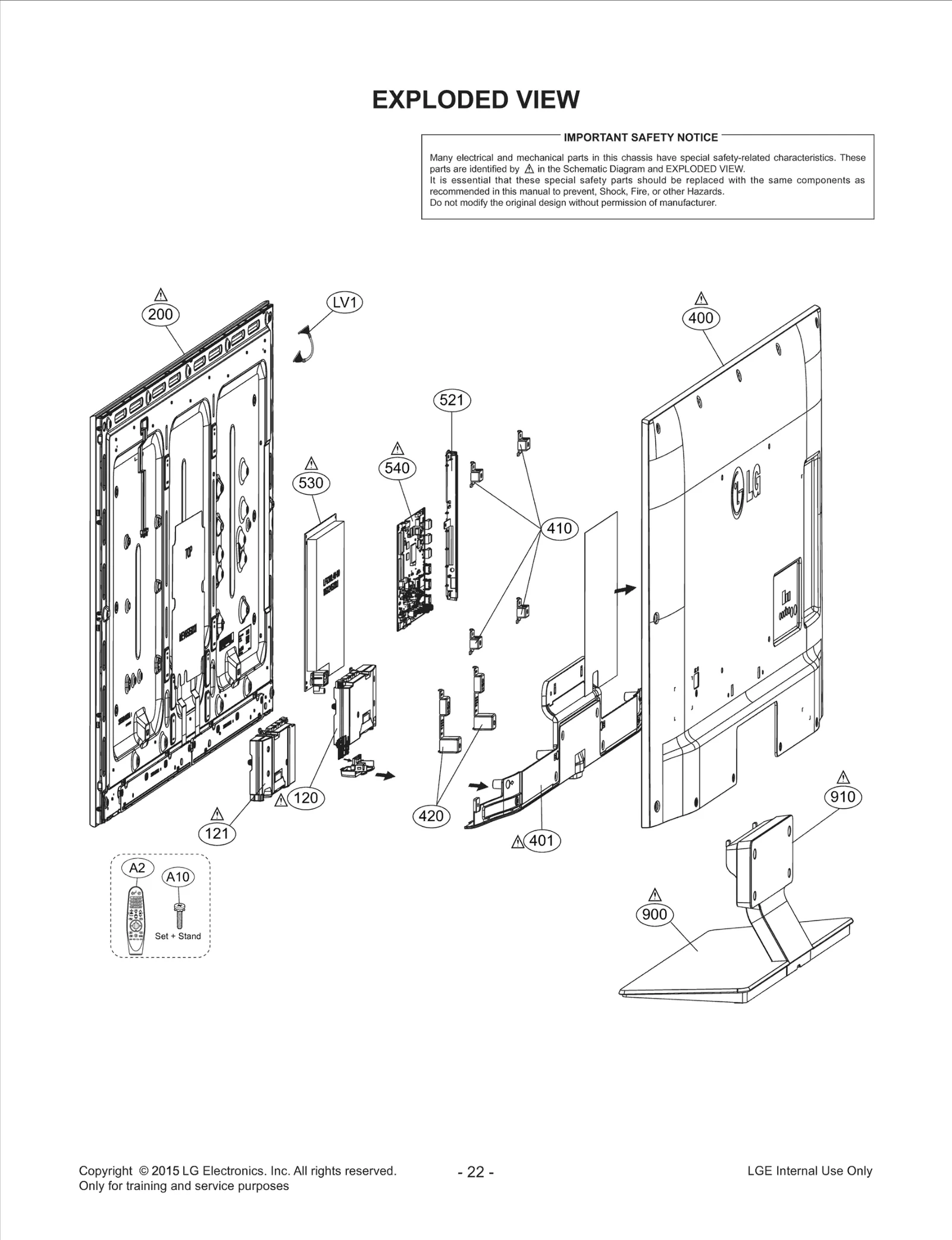

Model LG 43LF6300 – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ63407601 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ63167601 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ87616721 Contact Us For Availability
View on Model
401
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ87616616 Contact Us For Availability
View on Model
410
Supporter
Supporter LGE MJH63133501 Contact Us For Availability
View on Model
420
Supporter
Supporter LGE MJH63693201 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ64427850 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY63709101 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU63403601 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN75089708 Contact Us For Availability
View on Model
910
Bracket Assembly
Bracket Assembly LGE ABA75209708 Contact Us For Availability
View on Model
C524
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
View on Model
C619
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
View on Model
C2318
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
View on Model
C5620
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63265811 Contact Us For Availability
View on Model
Q3202
TRANSISTOR,FETS
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
View on Model
R314
Resistor,Chip
Resistor,Chip LGE EBC01890805 Contact Us For Availability
View on Model
R6402
RESISTOR CHIP 22 1/10W 5 D.R/
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
View on Model
