Model LG 43LF5900 – Common Parts & Diagrams

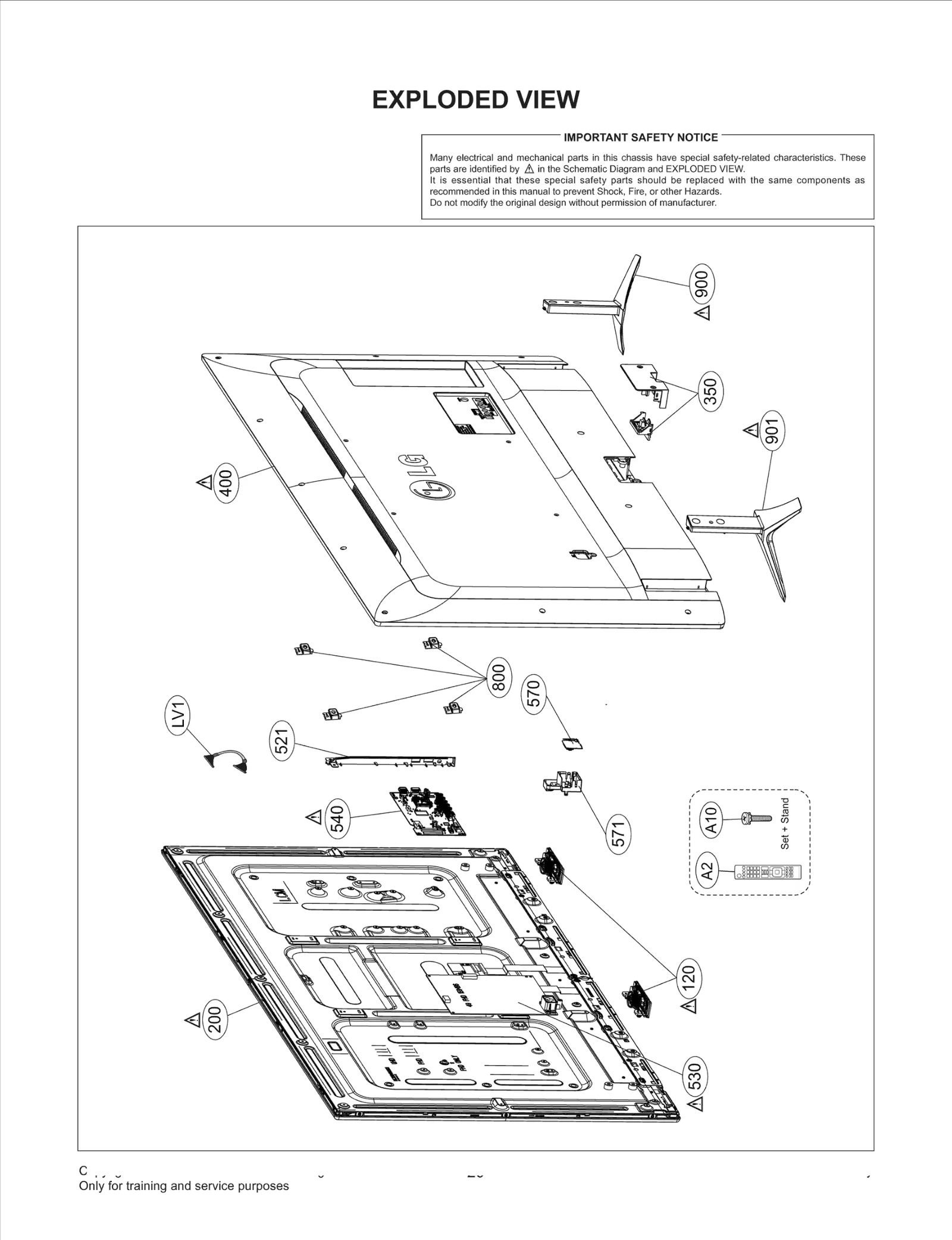

Diagram 0
Diagram 1
Common parts from model LG 43LF5900
200
LCD,Module-TFT LGE EAJ63207701 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ63751601 Contact Us For Availability
200PC
COF,Local Sourcing Parts LGE CLS31200601 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31201201 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31200401 Contact Us For Availability
350
Cover Assembly LGE ACQ87699910 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88341422 Contact Us For Availability
521
Bracket LGE MAZ64570767 Contact Us For Availability
540
Chassis Assembly LGE EBT63838406 Contact Us For Availability
570
Module,WLAN LGE EAT61813801 Contact Us For Availability
571
Bracket LGE MAZ64570902 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
AM
Manual Assembly LGE AFN76772402 Contact Us For Availability
AM1
Manual,Owners LGE MFL68680202 Contact Us For Availability
AR3000
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR3204
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR3206
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR8102
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
B1
Box LGE MAY67270901 Contact Us For Availability
C103
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C308
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C323
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C337
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C341
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C2303
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C2316
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C2319
Capacitor,Ceramic,Chip LGE EAE60672901 Contact Us For Availability
C2326
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2337
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2338
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2343
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C2347
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2349
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3003
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C4002
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5604
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5615
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5617
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C5618
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C6410
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C6500
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C6501
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C6507
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C6707
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
CA1
Harness,Multi LGE EAD63266916 Contact Us For Availability
CA2
Harness,Multi LGE EAD63646202 Contact Us For Availability
CA2
Harness,Single LGE EAD63245304 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3200
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4303
Diode,TVS LGE EAH61515101 Contact Us For Availability
D5003
Varistor LGE EAF61530201 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62651402 Contact Us For Availability
IC501
IC,DDR3 SDRAM LGE EAN63053202 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN63648701 Contact Us For Availability
IC2300
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN63492001 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN63810801 Contact Us For Availability
IC2304
IC,DC,DC Converter LGE EAN62911301 Contact Us For Availability
IC2306
IC,Voltage Detector LGE EAN61829902 Contact Us For Availability
IC4001
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
JK4300
Connector,USB LGE EAG62571101 Contact Us For Availability
L2300
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2305
Inductor,Wire Wound,Chip LGE EAP62506402 Contact Us For Availability
L2312
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L5603
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD63265811 Contact Us For Availability
Q2302
FET LGE EBK61913601 Contact Us For Availability
Q2304
FET LGE EBK61913702 Contact Us For Availability
Q3204
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q6500
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R126
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R308
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R564
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R2309
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R2310
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2311
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R2317
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2319
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2322
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2324
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R2326
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R2327
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R2335
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2336
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2337
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2339
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3004
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R3005
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3015
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3016
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3217
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R3409
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4004
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R4014
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R4301
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R5607
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5610
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6402
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R6511
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
VA3206
Varistor LGE EAF61530301 Contact Us For Availability
VA3405
Varistor LGE EAF61630101 Contact Us For Availability
VA3406
Varistor LGE EAF61530101 Contact Us For Availability
X100
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
× ![]()
