Model LG 42WS50BS-B – Common Parts & Diagrams

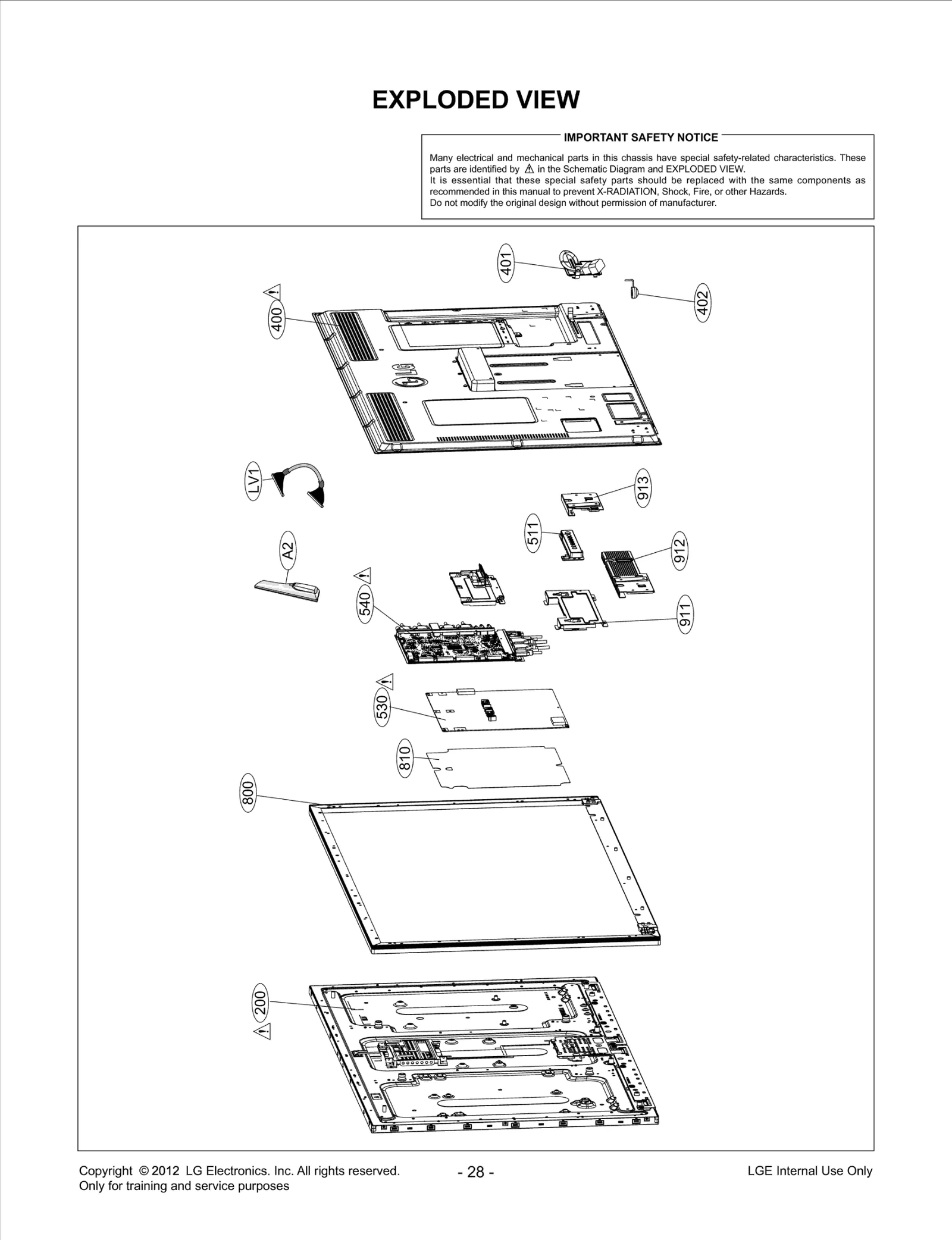

Diagram 0
Diagram 1
Common parts from model LG 42WS50BS-B
200
LCD,Module-TFT LGE EAJ62351501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85982402 Contact Us For Availability
401
Cover LGE MCK67169302 Contact Us For Availability
511
Cover LGE MCK67189502 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169602 Contact Us For Availability
540
DMS Chassis Assembly LGE EBT62659507 Contact Us For Availability
800
Cabinet Assembly LGE ABJ73751502 Contact Us For Availability
810
Plate Assembly LGE AGU74028101 Contact Us For Availability
911
Plate,Metal LGE MGJ63333002 Contact Us For Availability
912
Plate,Metal LGE MGJ63332602 Contact Us For Availability
913
Plate,Metal LGE MGJ63332702 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915294 Contact Us For Availability
C214
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C215
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C926
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
IC609
IC,Serial Flash Memory LGE EAN60915401 Contact Us For Availability
LV1
Cable,FFC LGE EAD61652540 Contact Us For Availability
N/A
EDID Check Sum Data LGE ECC30082602 Contact Us For Availability
N/A1
Label LGE 3850VK0001U Contact Us For Availability
N/A9
Label LGE 3850VK0001C Contact Us For Availability
N/A10
Auto SMT PCB Assembly,Sub LGE EBR75419001 Contact Us For Availability
N/A11
FLUX LGE 7245TZZ009A Contact Us For Availability
N/A12
Package Assembly LGE 3911TKK404H Contact Us For Availability
N/A14
Package Assembly LGE 3911TKK404A Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q820
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
R101
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ7502D677 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R460
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R841
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R866
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R933
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
SW104
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW104
Switch,Tact LGE EBF55334201 Contact Us For Availability
× ![]()
