Model LG 42VX30MS-B – Common Parts & Diagrams

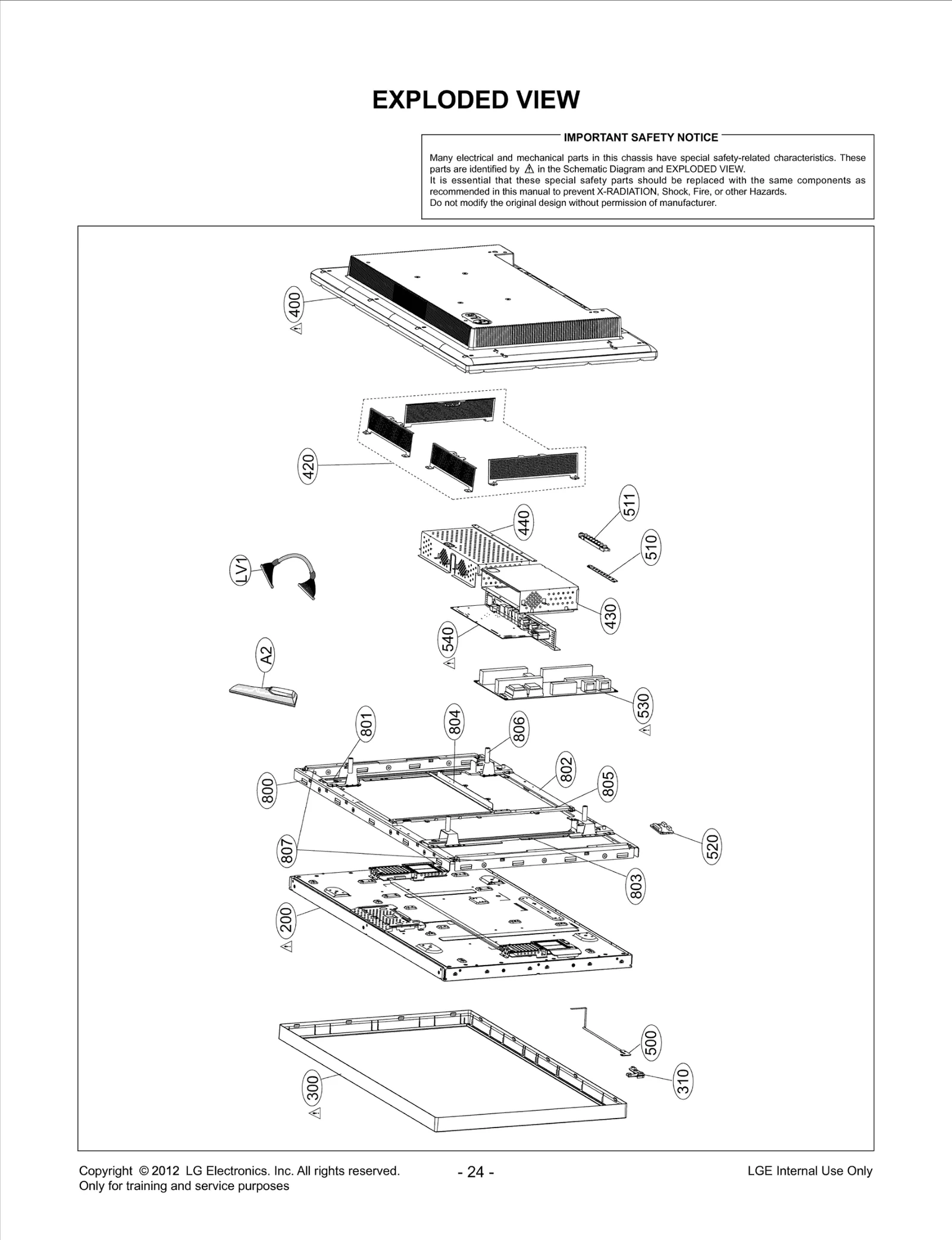

Diagram 0
Diagram 1
Common parts from model LG 42VX30MS-B
200
LCD,Module-TFT LGE EAJ61349301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ69872316 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ69872422 Contact Us For Availability
430
Plate,Shield LGE MGJ37884901 Contact Us For Availability
440
Plate,Shield LGE MGJ37885003 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR56323001 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR56322701 Contact Us For Availability
511
Knob LGE MEY53379901 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR56323404 Contact Us For Availability
540
PCB Assembly,Main LGE EBR73965106 Contact Us For Availability
801
Plate,Metal LGE MGJ53393301 Contact Us For Availability
802
Plate,Metal LGE MGJ53393001 Contact Us For Availability
803
Plate,Metal LGE MGJ53393201 Contact Us For Availability
804
Plate,Metal LGE MGJ53393501 Contact Us For Availability
805
Plate,Metal LGE MGJ53393401 Contact Us For Availability
806
Plate,Metal LGE MGJ53393701 Contact Us For Availability
807
Plate,Metal LGE MGJ53393103 Contact Us For Availability
A1
Title LGE SAC33111323 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915219 Contact Us For Availability
A4
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR402
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR431
Resistor,Array LGE EBC32260404 Contact Us For Availability
C1
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C407
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C412
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C415
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C439
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C451
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C492
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C547
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C580
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C587
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C588
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C600
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C618
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C633
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C646
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C658
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C670
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C674
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C688
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C718
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C733
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C735
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C742
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C751
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C775
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C816
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C817
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C826
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1404
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
D402
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D403
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D412
Diode,TVS LGE EAH61515101 Contact Us For Availability
D432
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D806
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC1
Receiver Module LGE EAV37989901 Contact Us For Availability
IC402
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC404
S/W,Firmware LGE SAA35745051 Contact Us For Availability
IC404
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC405
Display SOC,Digital TV LGE EAN61855301 Contact Us For Availability
IC406
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC407
IC,Microcontrollers LGE EAN36171502 Contact Us For Availability
IC409
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC410
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC412
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC413
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC414
IC,DC,DC Converter LGE EAN61013901 Contact Us For Availability
IC415
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC417
IC,Reset LGE EAN60670101 Contact Us For Availability
IC418
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC419
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC420
IC,Timer LGE EAN54696201 Contact Us For Availability
IC421
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC422
IC,Audio Amplifier LGE EAN62449901 Contact Us For Availability
IC422
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227501 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC431
IC LGE 0IPH741400E Contact Us For Availability
IC433
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC438
IC,Tx/Rx LGE EAN62193401 Contact Us For Availability
IC439
S/W,Firmware LGE SAA35724204 Contact Us For Availability
IC441
IC,DDR3 SDRAM LGE EAN61570701 Contact Us For Availability
IC1001
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC1402
IC,Ethernet LGE EAN62219202 Contact Us For Availability
JK401
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK402
Connector,Terminal LGE 385-173B Contact Us For Availability
JK403
Jack,DIN LGE EAG39323103 Contact Us For Availability
JK404
Connector,I/O LGE EAG60823003 Contact Us For Availability
JK407
Jack,Modular LGE EAG38645702 Contact Us For Availability
L2
Filter,Bead LGE EAM30764101 Contact Us For Availability
L4
Filter,Bead LGE EAM38769507 Contact Us For Availability
L436
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L438
Filter,Bead LGE EAM58113401 Contact Us For Availability
L445
Filter,Bead LGE EAM54407902 Contact Us For Availability
L470
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L477
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L496
Filter,Bead LGE EAM32500903 Contact Us For Availability
LD1
LED,Chip LGE EAV34876201 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858718 Contact Us For Availability
P2
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P4
Connector,FFC/FPC/PIC LGE EAG58469801 Contact Us For Availability
P5
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P402
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P406
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P408
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P409
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P410
Connector,DSUB LGE 6630G00004C Contact Us For Availability
P411
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P905
Connector,USB LGE EAG62571101 Contact Us For Availability
P1001
Connector,Wafer LGE EAG58732906 Contact Us For Availability
Q405
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q410
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q424
FET LGE EBK60752501 Contact Us For Availability
Q436
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q804
FET LGE EBK42767801 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R521
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R582
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R594
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R624
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R690
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R708
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R724
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R727
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R732
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R745
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R752
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R764
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R765
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R774
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R777
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R790
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R796
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R830
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R839
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R841
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R873
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R909
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R913
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R920
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R929
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R934
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R951
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R952
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R956
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R959
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R975
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R988
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R992
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R1010
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R1051
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1056
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1081
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1419
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
S1
Harness,Single LGE EAD60820504 Contact Us For Availability
S2
Cable,FFC LGE EAD58469901 Contact Us For Availability
S3
Harness,Single LGE EAD60673304 Contact Us For Availability
S4
Cover LGE MCK53380001 Contact Us For Availability
S5
Harness,Single LGE EAD61511101 Contact Us For Availability
S7
CONNECTOR ASSEMBLY LGE 6631T20037D Contact Us For Availability
S8
Harness,Single LGE EAD52821205 Contact Us For Availability
SW106
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW106
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X402
Crystal LGE 6202TST001P Contact Us For Availability
X403
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD2
Diode,Zener LGE EAH60270608 Contact Us For Availability
ZD4
Diode,TVS LGE EAH39491701 Contact Us For Availability
ZD401
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
