Model LG 42PX2DH – Common Parts & Diagrams
Diagram 0

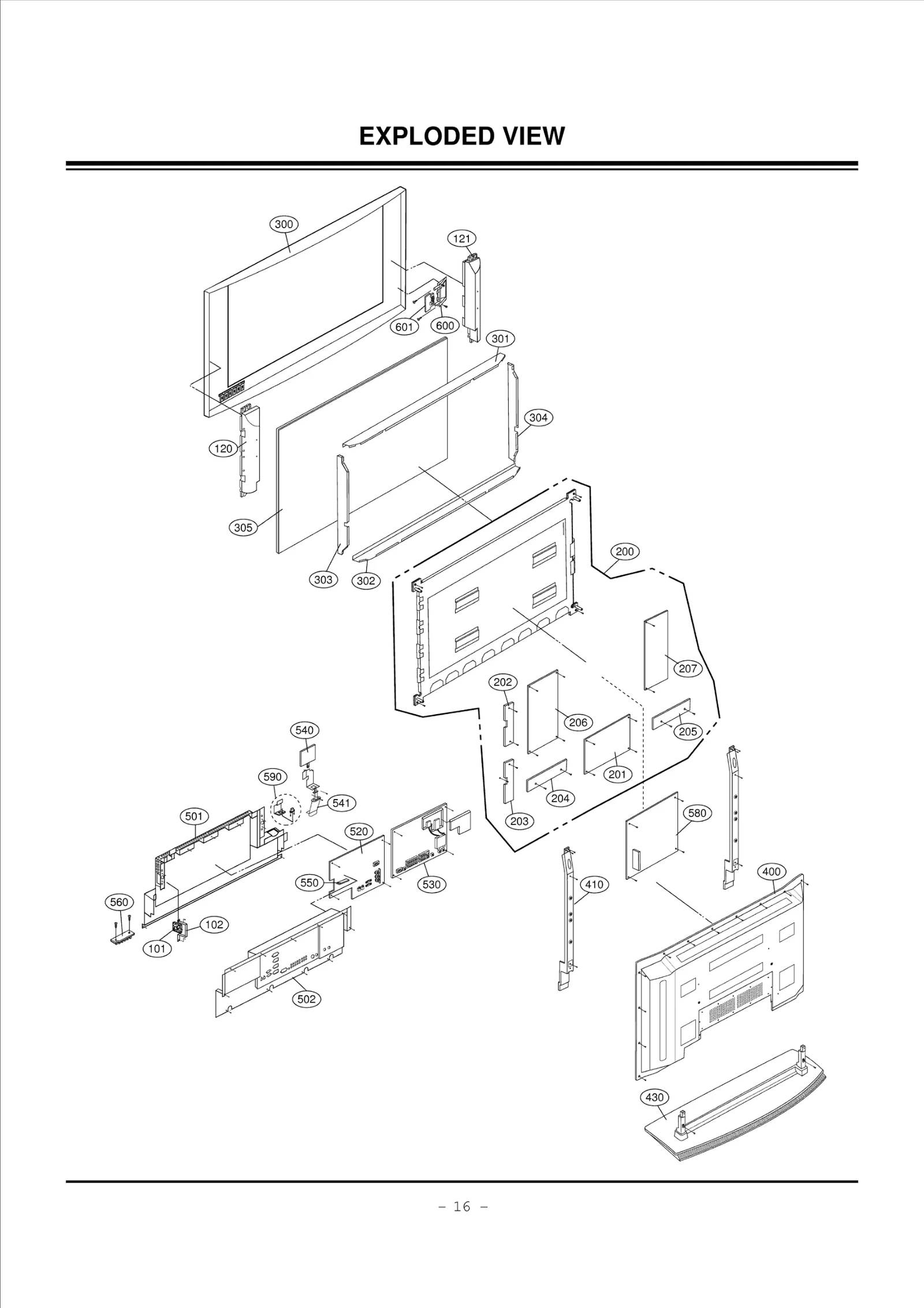

Diagram 1
Common parts from model LG 42PX2DH
000
Heat Sink Assembly LGE 4921QP1036A Contact Us For Availability
101
FAN,DC LGE 5900V04010A Contact Us For Availability
102
SUPPORTER LGE 4980V00D89B Contact Us For Availability
120
SPEAKER ASSEMBLY LGE 6401VD0013N Contact Us For Availability
121
SPEAKER ASSEMBLY LGE 6401VD0013P Contact Us For Availability
200
PLASMA DISPLAY PANEL NO FILTER LGE 6348Q-E093N Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QCH053A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QDH085A Contact Us For Availability
204
PWB(PCB) ASSEMBLY,DI LGE 6871QLH047A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QRH055A Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QYH036A Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QZH041A Contact Us For Availability
300
CABINET ASSEMBLY LGE 3091V00645H Contact Us For Availability
301
LGE 4980V01067D LGE 4980V01067D Contact Us For Availability
302
SUPPORTER LGE 4980V01068D Contact Us For Availability
303
SUPPORTER LGE 4980V01069D Contact Us For Availability
304
SUPPORTER LGE 4980V01070D Contact Us For Availability
305
FILTER(MECH) LGE 3790V00709C Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00605C Contact Us For Availability
410
SUPPORTER LGE 4980V01071A Contact Us For Availability
430
BOARD ASSEMBLY LGE 3501V00171G Contact Us For Availability
501
PLATE ASSEMBLY LGE 3301V00083B Contact Us For Availability
502
PLATE ASSEMBLY LGE 3301V00082A Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 6871VMMZM2A Contact Us For Availability
530
PWB(PCB) ASSEMBLY,SU LGE 6871VSMR66A Contact Us For Availability
541
BUTTON LGE 5020V00915D Contact Us For Availability
550
PWB(PCB) ASSEMBLY,SU LGE 6871VSMQ67A Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMR88A Contact Us For Availability
580
POWER SUPPLY ASSEMBL LGE 6709V00003A Contact Us For Availability
590
CHASSIS ASSEMBLY LGE 3141VSN932D Contact Us For Availability
600
PWB(PCB) ASSEMBLY,SU LGE 6871VSMT96A Contact Us For Availability
601
BRACKET ASSEMBLY LGE 4811V00118K Contact Us For Availability
A1
MANUAL,OWNERS LGE 3828VA0528D Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00141M Contact Us For Availability
A3
POWER CORD LGE 6410VUH005C Contact Us For Availability
A4
CABLE ASSEMBLY LGE 6851V00019A Contact Us For Availability
A7
FIXER LGE 4972V00178A Contact Us For Availability
ANT1
JACK,RCA LGE 6612J00042G Contact Us For Availability
AR111
Resistor,Array LGE 0RRZVTA001C Contact Us For Availability
AR6604
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
B803
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
C1
CABLE,DVI LGE 6850J00005C Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631V00020F Contact Us For Availability
C4
CONNECTOR ASSY LGE 387-G04Q Contact Us For Availability
C6
CONNECTOR ASSEMBLY LGE 387-J12M Contact Us For Availability
C7
CONNECTOR ASSEMBLY LGE 6631V00045D Contact Us For Availability
C8
CONNECTOR ASSEMBLY LGE 6631V10004A Contact Us For Availability
C9
CONNECTOR ASSEMBLY LGE 6631V10004Z Contact Us For Availability
C10
CONNECTOR ASSEMBLY LGE 6631V25032E Contact Us For Availability
C11
CONNECTOR ASSEMBLY LGE 6631V25083E Contact Us For Availability
C12
CONNECTOR ASSEMBLY LGE 6631V25084C Contact Us For Availability
C13
Socket,Card LGE 6630CE00168 Contact Us For Availability
C14
CONNECTOR ASSEMBLY LGE 387-G03J Contact Us For Availability
C15
CONNECTOR ASSEMBLY LGE 6631V39021H Contact Us For Availability
C16
CONNECTOR ASSEMBLY LGE 6631V39013N Contact Us For Availability
C17
CONNECTOR ASSEMBLY LGE 6631V39022D Contact Us For Availability
C18
CONNECTOR ASSEMBLY LGE 6631V39023C Contact Us For Availability
C19
CONNECTOR (CIRC),WAF LGE 366-036B Contact Us For Availability
C20
CONNECTOR ASSEMBLY LGE 6631Q20003C Contact Us For Availability
C100
Capacitor,TA,Niobium LGE 0CS335EFKDC Contact Us For Availability
C102
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C158
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C163
Capacitor,AL,Chip LGE 0CE225VK6DC Contact Us For Availability
C175
CAPACITOR 1000UF STD 35V M FL LGE 0CE108DJ618 Contact Us For Availability
C190
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
C202
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
C245
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C280
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C370
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C375
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C444
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C504
Capacitor,AL,Chip LGE 0CE476VK6DC Contact Us For Availability
C539
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C550
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C619
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C634
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C822
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C843
CAPACITOR,FIXED CERA LGE 0CK823CF56A Contact Us For Availability
C849
LGE 0CK822CK46A LGE 0CK822CK46A Contact Us For Availability
C863
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C898
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C906
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C926
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C926
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1363
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1620
CAPACITOR,FIXED CERA LGE 0CC100CK11A Contact Us For Availability
C6634
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C6634
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C8009
Capacitor,Ceramic,Chip LGE 0CC180CKH1A Contact Us For Availability
C8073
CAPACITOR,FIXED ELEC LGE 0CE336SD6DC Contact Us For Availability
CN901
Connector,Wafer LGE 366-921E Contact Us For Availability
CN1000
CONNECTOR (CIRC),WAF LGE 6630VE01268 Contact Us For Availability
CN1300
Connector,Wafer LGE 6602T12007D Contact Us For Availability
CN1700
Connector,Wafer LGE 366-921L Contact Us For Availability
D204
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
F801
FUSE,SLOW BLOW LGE 0FS1002B53K Contact Us For Availability
IC101
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC200
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC200
IC,MICRO CONTROLLER LGE 0IMCRMN027D Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNR00015A Contact Us For Availability
IC201
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC202
IC,MICRO CONTROLLER LGE 0IMCRFA013A Contact Us For Availability
IC203
IC,FPGA LGE 0IMCRXL004A Contact Us For Availability
IC205
IC,Buffer LGE 0IMCRCY002A Contact Us For Availability
IC206
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC300
IC,MICRO CONTROLLER LGE 0IMCRSO025A Contact Us For Availability
IC301
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC302
IC,MEMORIES LGE 0IMMRHY038E Contact Us For Availability
IC302
IC,TOKO LGE 0ITK118100B Contact Us For Availability
IC305
SOFT WARE LGE 6927V1243AL Contact Us For Availability
IC305
IC,PERIPHERALS LGE 0IPRP00538A Contact Us For Availability
IC306
SOFT WARE LGE 6927V1244AL Contact Us For Availability
IC400
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC401
IC,CUSTOMIZED LGE 0ICTMLG009C Contact Us For Availability
IC402
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC404
SOFT WARE LGE 6927V1211AQ Contact Us For Availability
IC405
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC408
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRSS041F Contact Us For Availability
IC502
Filter,Saw LGE 6200QL3002E Contact Us For Availability
IC504
IC,MICRO CONTROLLER LGE 0IMCRCY001A Contact Us For Availability
IC504
IC,Video Amplifier LGE 0IMCRTI035A Contact Us For Availability
IC505
IC,CUSTOMIZED LGE 0ICTMLG013A Contact Us For Availability
IC506
IC,MICRO CONTROLLER LGE 0IMCRFA004A Contact Us For Availability
IC601
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC602
IC,MEMORIES LGE 0ISS416162D Contact Us For Availability
IC602
IC,OP Amplifier LGE 0IMO330780B Contact Us For Availability
IC603
IC,Multiplexer LGE 0ITO741570C Contact Us For Availability
IC604
IC,CRYSTAL SEMICONDU LGE 0ICB841500B Contact Us For Availability
IC606
IC,POWER MANAGEMENT LGE 0IPMGSG018C Contact Us For Availability
IC608
IC,PERIPHERALS LGE 0IPRPFA015A Contact Us For Availability
IC800
IC,PERIPHERALS LGE 0IPRPS5006A Contact Us For Availability
IC801
IC,A/D Converter LGE 0IPRPAD008B Contact Us For Availability
IC805
IC,PERIPHERALS LGE 0IPRPFA016A Contact Us For Availability
IC808
IC,MEMORIES LGE 0IMMRAL014B Contact Us For Availability
IC900
IC,MICRO CONTROLLER LGE 0IMCRXL003B Contact Us For Availability
IC902
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC1000
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
IC1001
IC,Transceiver LGE 0ICTMLG017A Contact Us For Availability
IC1003
IC,Analog Switch LGE 0IMCRLT002A Contact Us For Availability
IC1302
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC1305
IC,CUSTOMIZED LGE 0ICTMLG018B Contact Us For Availability
IC1700
IC,MITSUBISHI LGE 0IMI623200B Contact Us For Availability
IC1701
IC,PERIPHERALS LGE 0IPRPNS054A Contact Us For Availability
IC1705
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
JK101
JACK ASSEMBLY LGE 6613V00026A Contact Us For Availability
JK300
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
JK407
JACK,RCA LGE 6612J00040B Contact Us For Availability
JK410
JACK,PHONE LGE 6612F00087A Contact Us For Availability
JOPT101
JACK,DIN LGE 6612BBBHN4D Contact Us For Availability
JOPT103
JACK,DIN LGE 6612BBBHN4E Contact Us For Availability
L116
Filter,Bead LGE 6210VC0005A Contact Us For Availability
L130
COIL,CHOKE LGE 6140VB0032A Contact Us For Availability
L510
Filter,Bead LGE 6210VC0006A Contact Us For Availability
L801
LGE 6200J000025 LGE 6200J000025 Contact Us For Availability
LD201
LED LGE 0DL200000CA Contact Us For Availability
LED302
LED LGE 0DL233309AC Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 366-922L Contact Us For Availability
P201
LGE 366-922G LGE 366-922G Contact Us For Availability
P202
Connector,Wafer LGE 366-922C Contact Us For Availability
P401
CONNECTOR (CIRC),WAF LGE 366-932G Contact Us For Availability
P409
LGE 366-921C LGE 366-921C Contact Us For Availability
P801
LGE 6630VM01604 LGE 6630VM01604 Contact Us For Availability
P802
CONNECTOR (CIRC),WAF LGE 6630VM01702 Contact Us For Availability
P803
Connector,Wafer LGE 366-932B Contact Us For Availability
Q207
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q503
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q800
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R802
Resistor,Metal Film LGE 0RKZVTA001L Contact Us For Availability
R1754
Resistor,Carbon Film LGE 0RD0332H609 Contact Us For Availability
S1
SWITCH,PUSH LGE 6600VM2006C Contact Us For Availability
SW203
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
SW301
ADAPTER,RF LGE 6634D00010B Contact Us For Availability
TU301
TUNER LGE 6700AN0002C Contact Us For Availability
TU500
TUNER LGE 6700NC0001B Contact Us For Availability
VX500
OSCILLATOR LGE 6204B60001B Contact Us For Availability
X103
RESONATOR,CRYSTAL LGE 6212AB3004D Contact Us For Availability
X104
Crystal LGE 6212AB2015A Contact Us For Availability
X200
Oscillator,Crystal LGE 6204B47985L Contact Us For Availability
X200
Crystal LGE 6202VDT002H Contact Us For Availability
X801
RESONATOR,CRYSTAL LGE 6212AB2845A Contact Us For Availability
X1000
Crystal LGE 6212AC2001D Contact Us For Availability
X6602
RESONATOR,CRYSTAL LGE 6212AB2806A Contact Us For Availability
× ![]()
Login and Registration Form
