Model LG 42PM3MV – Common Parts & Diagrams

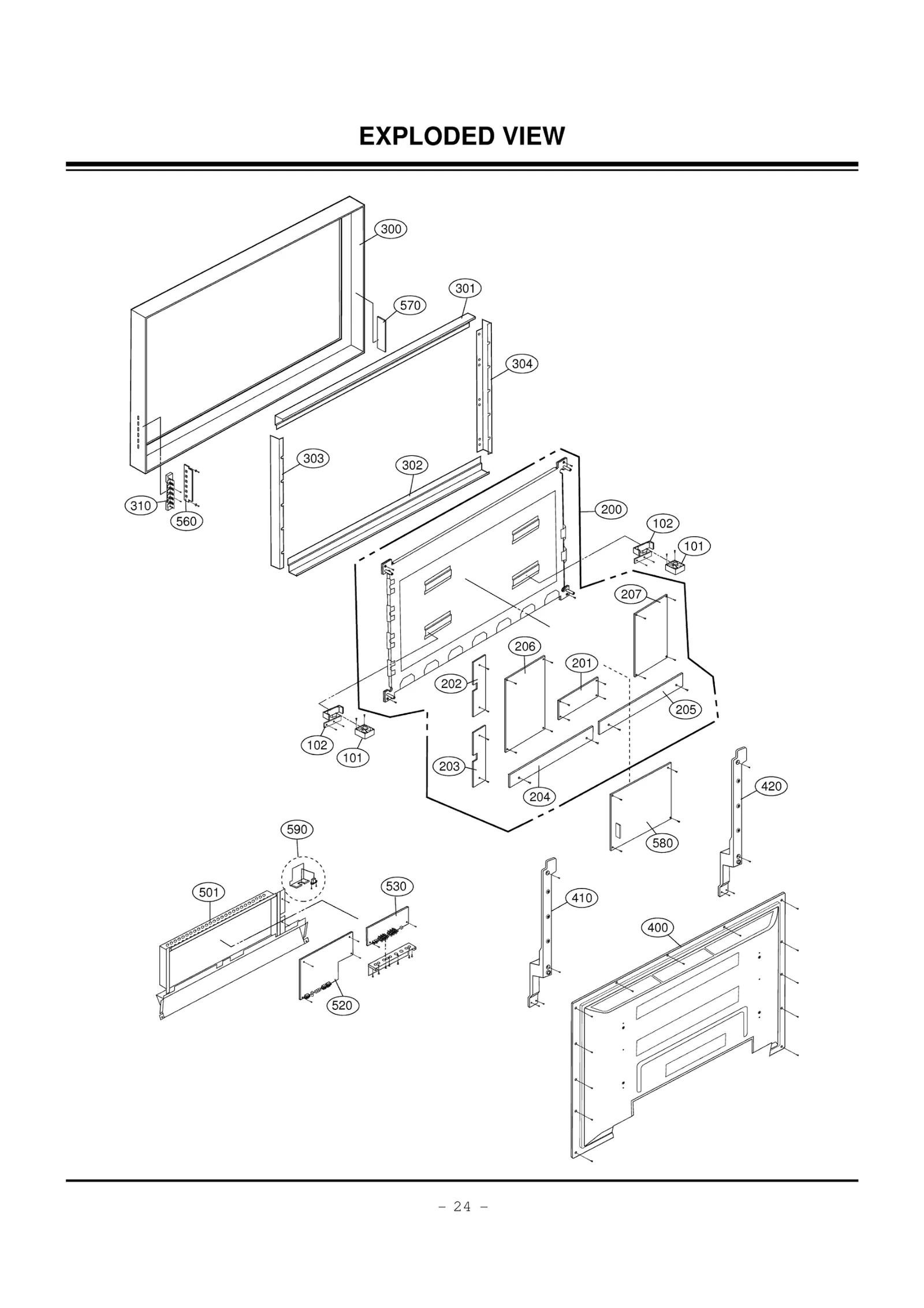

Diagram 0
Diagram 1
Common parts from model LG 42PM3MV
PDP,Module-VGA LGE EAJ30934602 Contact Us For Availability
LGE EAJ30934618 LGE EAJ30934618 Contact Us For Availability
000
Heat Sink Assembly LGE 4921QP1036A Contact Us For Availability
101
FAN,DC LGE 5900V04010A Contact Us For Availability
102
SUPPORTER LGE 4980V00E73A Contact Us For Availability
200
PDP FILTER INCLUDED LGE 6348Q-E115G Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QCH053A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QDH085A Contact Us For Availability
204
PWB(PCB) ASSEMBLY,DI LGE 6871QLH047A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QRH055A Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QYH036A Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QZH041A Contact Us For Availability
300
CABINET ASSEMBLY LGE 3091V00804D Contact Us For Availability
301
SUPPORTER LGE 4980V00E51A Contact Us For Availability
302
SUPPORTER LGE 4980V00E52A Contact Us For Availability
303
SUPPORTER LGE 4980V00E53A Contact Us For Availability
304
SUPPORTER LGE 4980V00E53B Contact Us For Availability
310
BUTTON LGE 5020V01084A Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00576K Contact Us For Availability
410
SUPPORTER LGE 4980V00E50A Contact Us For Availability
420
SUPPORTER LGE 4980V00E50B Contact Us For Availability
501
PLATE ASSEMBLY LGE 3301V00095A Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 6871VMMF54B Contact Us For Availability
530
PWB(PCB) ASSEMBLY,SU LGE 68719SMH30A Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMS55A Contact Us For Availability
570
PWB(PCB) ASSEMBLY,SU LGE 6871VSMS56B Contact Us For Availability
580
POWER SUPPLY ASSEMBL LGE 6709V00003A Contact Us For Availability
590
CHASSIS ASSEMBLY LGE 3141VSN422B Contact Us For Availability
A1
MANUAL LGE 38289U0514A Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00138T Contact Us For Availability
A3
POWER CORD LGE 6410VUH005E Contact Us For Availability
AR1204
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
C1
CABLE,DVI LGE 6850J00005C Contact Us For Availability
C4
CONNECTOR ASSEMBLY LGE 387-J04H Contact Us For Availability
C5
CONNECTOR ASSEMBLY LGE 6631V00045K Contact Us For Availability
C6
CONNECTOR ASSEMBLY LGE 6631V12042N Contact Us For Availability
C7
CONNECTOR ASSEMBLY LGE 6631V25032J Contact Us For Availability
C7
CONNECTOR ASSEMBLY LGE 6631V00020J Contact Us For Availability
C8
CONNECTOR ASSEMBLY LGE 6631V25083G Contact Us For Availability
C9
CONNECTOR ASSEMBLY LGE 6631V39013N Contact Us For Availability
C10
CONNECTOR ASSEMBLY LGE 6631V39022D Contact Us For Availability
C12
CONNECTOR (CIRC),WAF LGE 366-036B Contact Us For Availability
C108
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C337
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C368
CAPACITOR,FIXED CERA LGE 0CK225DFK4A Contact Us For Availability
C457
Capacitor,AL,Chip LGE 0CE335VK6DC Contact Us For Availability
C480
CAPACITOR 1000UF STD 35V M FL LGE 0CE108DJ618 Contact Us For Availability
C483
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
C555
LGE 0CE477VF6DC LGE 0CE477VF6DC Contact Us For Availability
C884
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C1120
CAPACITOR,FIXED ELEC LGE 0CE227VF6DC Contact Us For Availability
C1160
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C1231
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C1245
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C1312
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
D600
DIODE EU1ZV, TP (52MM), SANKE LGE 0DD100009AM Contact Us For Availability
D1012
Diode,Rectifier LGE 0DD200009AF Contact Us For Availability
D1101
LED LGE 0DL233309AC Contact Us For Availability
D1500
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
IC300
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC301
IC,Video Processors LGE 0ISA721700C Contact Us For Availability
IC400
IC,MICRO CONTROLLER LGE 0IMCRMN027D Contact Us For Availability
IC401
IC,LINEAR LGE 0ILNR00015A Contact Us For Availability
IC402
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC404
FILTER(CIRC),EMC LGE 6200VJS001B Contact Us For Availability
IC406
FILTER(CIRC),EMI LGE 6200VJS001A Contact Us For Availability
IC502
IC LGE 0IPH741400E Contact Us For Availability
IC504
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
IC509
IC,Buffer LGE 0IPRPBB005A Contact Us For Availability
IC600
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC603
IC,PERIPHERALS LGE 0IPRPNS054A Contact Us For Availability
IC604
IC,SHARP LGE 0ISH122100B Contact Us For Availability
IC802
IC,MICRO CHIP TECHNO LGE 0IMP242560A Contact Us For Availability
IC900
SOFT WARE LGE 692791011AD Contact Us For Availability
IC901
IC,MEMORIES LGE 0IMMR00002A Contact Us For Availability
IC1002
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC1003
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC1005
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC1101
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC1103
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC1200
IC,PERIPHERALS LGE 0IPRPS5005A Contact Us For Availability
IC1201
IC,MEMORIES LGE 0IMMRAL014B Contact Us For Availability
JK101
JACK,RCA LGE 6612VJH020C Contact Us For Availability
JK102
LGE 6612VJH019C LGE 6612VJH019C Contact Us For Availability
JK103
JACK,RCA LGE 6612VJH020B Contact Us For Availability
JK400
JACK,RCA LGE 6612JH003CA Contact Us For Availability
JK401
Connector,Terminal LGE 385-173B Contact Us For Availability
JK503
CONNECTOR (CIRC),D-S LGE 6630G70021A Contact Us For Availability
JK601
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
JK1200
JACK,DIN LGE 6612B00015A Contact Us For Availability
L112
Filter,Bead LGE 6210VC0005A Contact Us For Availability
L411
COIL,CHOKE LGE 6140VB0032A Contact Us For Availability
LD101
LED LGE 0DL200000CA Contact Us For Availability
P100A
LGE 6630VL01280 LGE 6630VL01280 Contact Us For Availability
P100B
CONNECTOR (CIRC),WAF LGE 6630VL01380 Contact Us For Availability
P101
Connector,Wafer LGE 366-922C Contact Us For Availability
P101
Connector,Wafer LGE 6602T12002M Contact Us For Availability
P400
Connector,Wafer LGE 366-932C Contact Us For Availability
P800
CONNECTOR (CIRC),WAF LGE 6602T12006M Contact Us For Availability
P803
Connector,Wafer LGE 6602T12007D Contact Us For Availability
P1103
Connector,Wafer LGE 366-932B Contact Us For Availability
Q305
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q405
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
R618
LGE 0RD0152H609 LGE 0RD0152H609 Contact Us For Availability
R1112
LGE 0RX0472K607 LGE 0RX0472K607 Contact Us For Availability
SW101
SWITCH TACT LGE 140-313B Contact Us For Availability
X300
Resonator,Ceramic LGE 166-E02F Contact Us For Availability
X400
CRYSTAL LGE 156-A02M Contact Us For Availability
X800
RESONATOR,CRYSTAL LGE 6212AB2844A Contact Us For Availability
X1200
RESONATOR,CRYSTAL LGE 6212AB2845A Contact Us For Availability
ZD400
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
× ![]()
