Model LG 42PM1M-UC – Common Parts & Diagrams

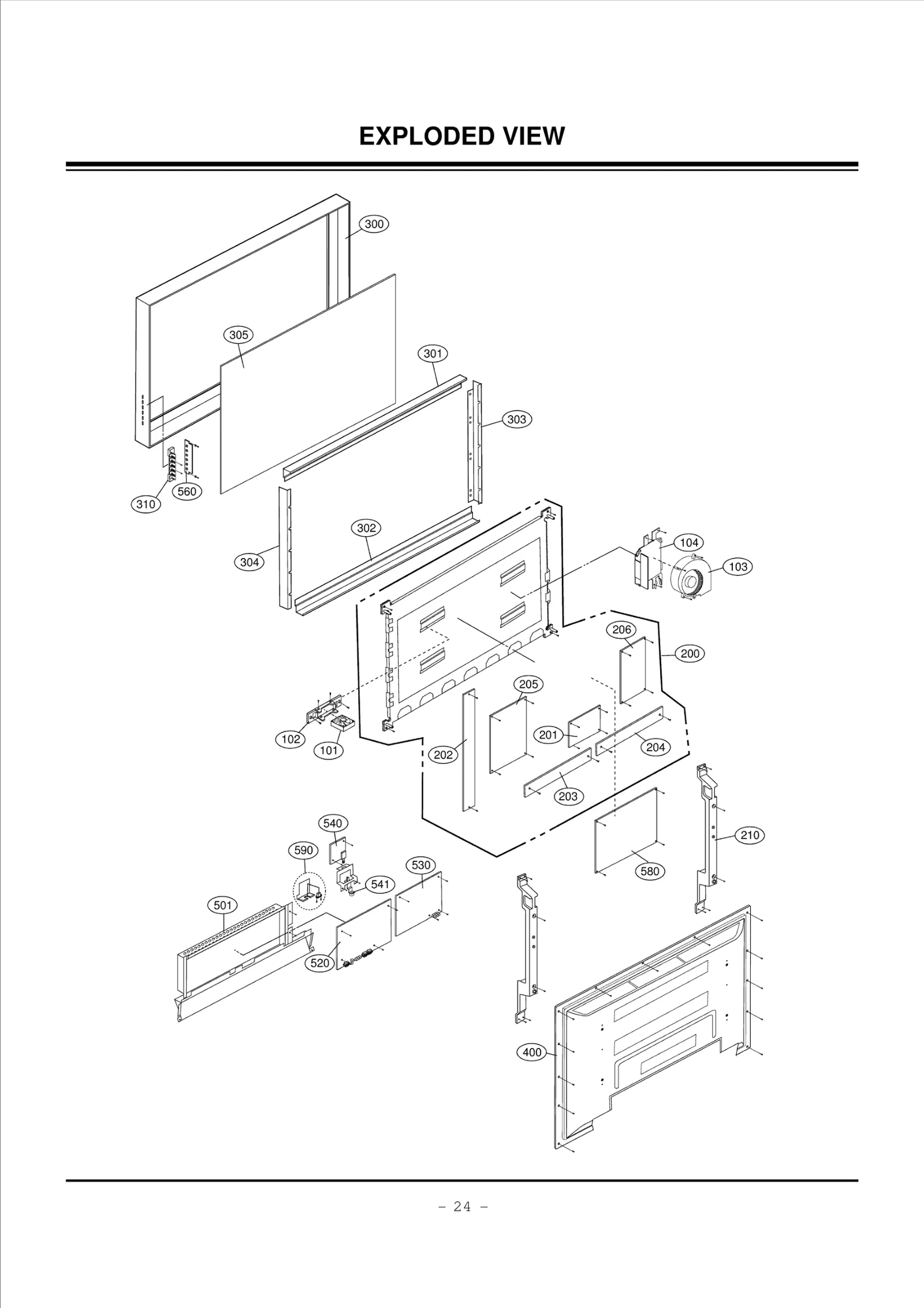

Diagram 0
Diagram 1
Common parts from model LG 42PM1M-UC
000
Heat Sink Assembly LGE 4921QP1043C Contact Us For Availability
000
Heat Sink Assembly LGE AEF32339501 Contact Us For Availability
000
Heat Sink Assembly LGE 4921QP1041C Contact Us For Availability
000
Heat Sink Assembly LGE AEF32343301 Contact Us For Availability
101
Supporter LGE 4980V00E57B Contact Us For Availability
102
Supporter LGE 4980V00D44D Contact Us For Availability
103
FAN LGE 5900V12006C Contact Us For Availability
104
SUPPORTER LGE 4980V00E47A Contact Us For Availability
200
PDP,Module-XGA LGE EAJ35511108 Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QDH117A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QLH059A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QYH053B Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QZH056B Contact Us For Availability
210
Supporter LGE 4980V00C62G Contact Us For Availability
300
CABINET ASSEMBLY LGE 30919E0045B Contact Us For Availability
301
SUPPORTER LGE 4980V00C59H Contact Us For Availability
302
SUPPORTER LGE 4980V00C59F Contact Us For Availability
303
SUPPORTER LGE 4980V00C61L Contact Us For Availability
304
SUPPORTER LGE 4980V00C61J Contact Us For Availability
305
Filter LGE 5230V00019B Contact Us For Availability
310
BUTTON LGE 5020V01004B Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00504B Contact Us For Availability
520
CHASSIS ASSEMBLY LGE 31419MF980A Contact Us For Availability
540
CHASSIS ASSEMBLY LGE 31419SF269A Contact Us For Availability
541
BUTTON LGE 5020V01009D Contact Us For Availability
560
CHASSIS ASSEMBLY LGE 31419SF267A Contact Us For Availability
580
POWER SUPPLY ASSEMBL LGE 6709V00003A Contact Us For Availability
590
CHASSIS ASSEMBLY LGE 31419SF268A Contact Us For Availability
A
INDICATOR LGE 3520V00447A Contact Us For Availability
A
Hand Insert PCB Assembly LGE EBR36631101 Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631V00045K Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631V25083E Contact Us For Availability
A
Hand Insert PCB Assembly LGE EBR36630901 Contact Us For Availability
A
Hand Insert PCB Assembly LGE EBR36630401 Contact Us For Availability
A
Hand Insert PCB Assembly LGE EBR36631001 Contact Us For Availability
A
Hand Insert PCB Assembly LGE EBR36630601 Contact Us For Availability
A
Hand Insert PCB Assembly LGE EBR36630701 Contact Us For Availability
A1
Manual LGE 3828VD0224S Contact Us For Availability
A1
MANUAL LGE 38289U0514A Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00138T Contact Us For Availability
A3
POWER CORD LGE 6410VUH005E Contact Us For Availability
× ![]()
