Model LG 42PC5D-UC – Common Parts & Diagrams

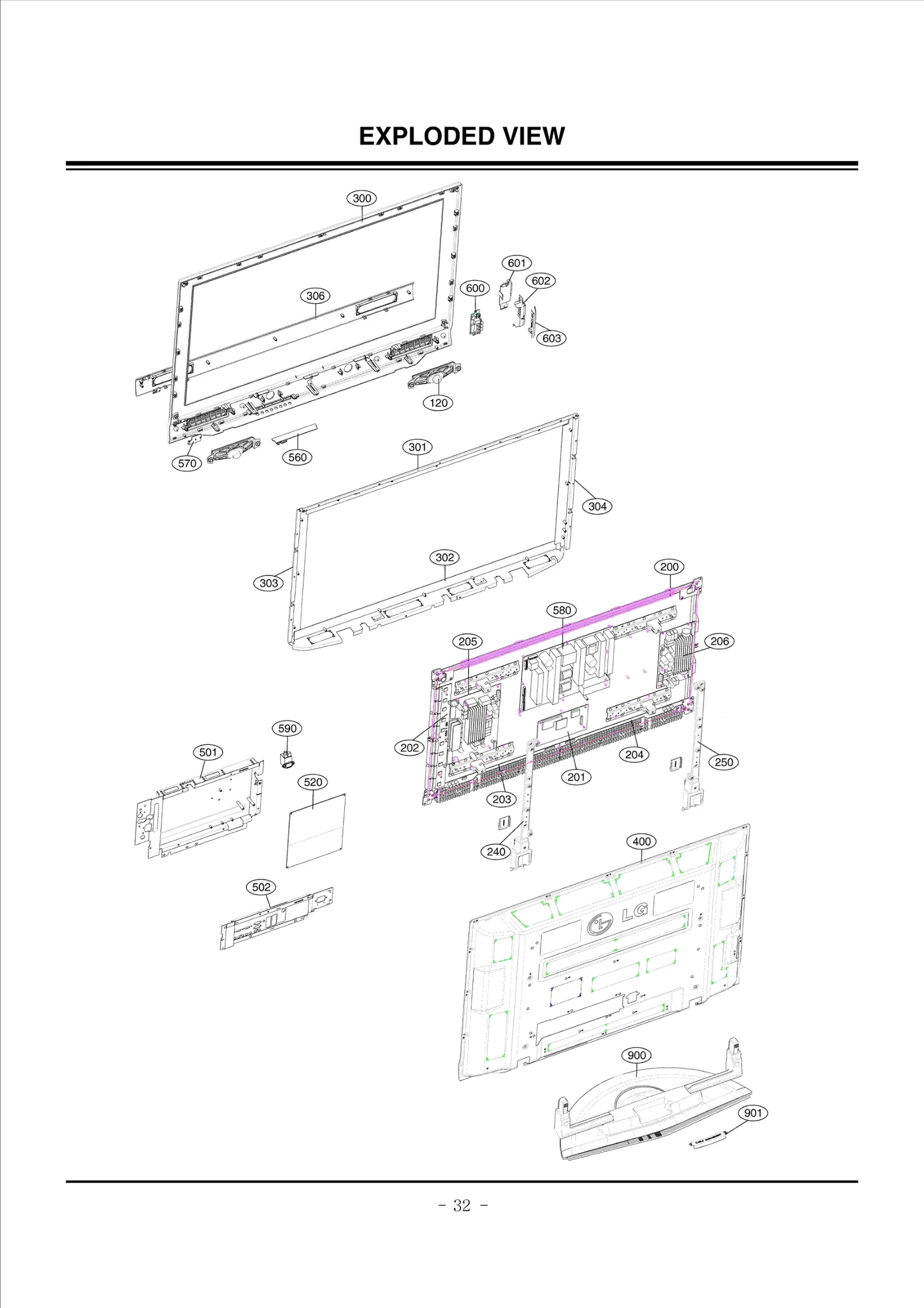

Diagram 0
Diagram 1
Common parts from model LG 42PC5D-UC
000
Heat Sink Assembly LGE 4921QP1043C Contact Us For Availability
000
Heat Sink Assembly LGE AEF32343301 Contact Us For Availability
000
Heat Sink Assembly LGE AEF32339501 Contact Us For Availability
2
Screw,Machine LGE FAB30017502 Contact Us For Availability
120
Speaker,Full Range LGE EAB33775101 Contact Us For Availability
200
PDP,Module-XGA FILTER INCLUDED LGE EAJ36483201 Contact Us For Availability
201
Hand Insert PCB Asse LGE 6871QCH089A Contact Us For Availability
202
Hand Insert PCB Asse LGE 6871QDH127A Contact Us For Availability
203
Hand Insert PCB Asse LGE 6871QLH072A Contact Us For Availability
204
Hand Insert PCB Asse LGE 6871QRH082A Contact Us For Availability
205
Hand Insert PCB Asse LGE 6871QYH063A Contact Us For Availability
206
Hand Insert PCB Asse LGE 6871QZH067A Contact Us For Availability
240
Supporter Assembly LGE AJJ31584103 Contact Us For Availability
250
Supporter Assembly LGE AJJ31584104 Contact Us For Availability
300
Cabinet Assembly LGE ABJ31583108 Contact Us For Availability
301
Supporter Assembly LGE AJJ31583602 Contact Us For Availability
302
Supporter Assembly LGE AJJ31583702 Contact Us For Availability
304
Supporter Assembly LGE AJJ31583902 Contact Us For Availability
306
Bracket Assembly LGE ABA31820104 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ31583503 Contact Us For Availability
501
Plate Assembly LGE AGU31680918 Contact Us For Availability
502
Plate Assembly LGE AGU31681112 Contact Us For Availability
520
Chassis Assembly LGE EBT35260103 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR35256003 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR35255803 Contact Us For Availability
580
SMPS LGE EAY32927901 Contact Us For Availability
590
Filter,AC Line LGE EAM35012703 Contact Us For Availability
600
Chassis Assembly LGE EBT35254903 Contact Us For Availability
601
Bracket Assembly LGE ABA31583302 Contact Us For Availability
601
Bracket LGE MAZ32370301 Contact Us For Availability
603
Plate,Shield LGE MGJ32369301 Contact Us For Availability
900
Base Assembly LGE AAN31626703 Contact Us For Availability
A1
Manual,Owners LGE MFL34797005 Contact Us For Availability
A2
Remote Controller LGE MKJ39927801 Contact Us For Availability
AR2016
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR2202
Resistor,Array LGE EBC32260405 Contact Us For Availability
AR3021
Resistor,Array LGE 0RJ1001C687 Contact Us For Availability
C100
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C102
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH5330K416 Contact Us For Availability
C1056
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1060
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C2003
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C2008
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C3040
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3054
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C3057
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C4001
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C4011
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C4015
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C4058
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C4063
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C4083
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C4085
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C4100
Capacitor,Ceramic,Chip LGE 0CK153CK51A Contact Us For Availability
C4101
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C4102
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C4113
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C4143
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C5031
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C5033
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C5056
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C5071
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C5108
Capacitor,Ceramic,Chip LGE 0CH2474F566 Contact Us For Availability
C7019
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C7021
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C7032
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C7038
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C7044
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C7045
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C7056
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C7091
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C7099
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C7154
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C7158
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
CA2
Harness,Single LGE 6631900012C Contact Us For Availability
CA3
Harness,Single LGE 6631900018H Contact Us For Availability
CA5
Harness,Single LGE 6631900065B Contact Us For Availability
CA8
Harness,Single LGE 6631900108C Contact Us For Availability
CA9
CONNECTOR ASSEMBLY LGE 6631T20037L Contact Us For Availability
CA11
CONNECTOR ASSEMBLY LGE 6631T39004D Contact Us For Availability
CA13
CONNECTOR ASSEMBLY LGE 6631V39013N Contact Us For Availability
D100
LED LGE 0DL200000CA Contact Us For Availability
D4002
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D4006
LED LGE 0DL233309AC Contact Us For Availability
D4007
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D4008
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D5015
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
D7004
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
IC1001
IC,Data Controller LGE 0IPRP00702A Contact Us For Availability
IC2001
IC,NOR Flash Memory LGE EAN30399001 Contact Us For Availability
IC2003
IC,SDRAM LGE 0IMMRIH038B Contact Us For Availability
IC3001
IC,Analog Switch LGE EAN30267601 Contact Us For Availability
IC4001
IC,Tx/Rx LGE EAN39038801 Contact Us For Availability
IC4006
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
IC4007
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC4008
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC4010
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC4011
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC4012
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC4014
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC4015
IC,Microcontrollers LGE 0IMCR02227A Contact Us For Availability
IC4016
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC4017
IC,DC,DC Converter LGE EAN31513601 Contact Us For Availability
IC4018
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC5001
IC,Analog Switch LGE EAN30744301 Contact Us For Availability
IC5002
IC,Analog Switch LGE EAN30744401 Contact Us For Availability
IC5003
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC5004
IC,PERIPHERALS LGE 0IPRPCI016A Contact Us For Availability
IC6004
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC7001
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC7004
IC,A/D Converter LGE 0IPRP00696D Contact Us For Availability
IC7005
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC7010
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC7015
IC,Receiver LGE 0IPRP00623A Contact Us For Availability
IC7017
IC,Audio Amplifier LGE 0IPRP00700A Contact Us For Availability
J4002
Jack,Complex LGE 6612J10024A Contact Us For Availability
J4004
JACK,PHONE LGE 6612F00099A Contact Us For Availability
J5007
Jack,RCA LGE 6612J10006K Contact Us For Availability
JK100
JACK,RCA LGE 6612J10033A Contact Us For Availability
JK100
Jack,Fiber Optic LGE EAG32151101 Contact Us For Availability
L100
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L2001
Filter,Bead LGE EAM38769502 Contact Us For Availability
L3002
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L4007
FILTER(CIRC),EMC LGE 6200J000123 Contact Us For Availability
L4012
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L4019
Inductor,Multilayer,Chip LGE EAP43931504 Contact Us For Availability
L4021
Filter,Bead LGE EAM42641602 Contact Us For Availability
L4022
COIL,CHOKE LGE 6140TBZ047B Contact Us For Availability
L5003
Filter,Bead LGE EAM38769501 Contact Us For Availability
L7020
INDUCTOR,CHIP LGE 0LC2000005J Contact Us For Availability
L7030
COIL,ENERGY RECOVERY LGE 6140VR0008A Contact Us For Availability
L7044
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LV1
Harness,Single LGE EAD35682502 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P102
WAFER LGE 6602T20009E Contact Us For Availability
P4003
WAFER LGE 6602T25008J Contact Us For Availability
P4004
WAFER LGE 6602T25008M Contact Us For Availability
P4005
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
P4007
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P6001
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P7002
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P7004
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
P7008
Jack,DIN LGE EAG39789401 Contact Us For Availability
P7010
Connector,Wafer LGE 6602T25008B Contact Us For Availability
Q4005
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q7002
TRANSISTOR,BIPOLARS LGE 0TRIH80003A Contact Us For Availability
Q7014
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R101
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R102
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R102
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R1006
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R1008
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1016
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
R1021
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R1032
Resistor,Chip LGE 0RH1504D622 Contact Us For Availability
R1046
RESISTOR,METAL GLAZE LGE 0RJ4990D477 Contact Us For Availability
R1062
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1086
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R1137
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R1145
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1160
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R2104
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R2610
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R2611
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R3013
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R3016
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R4015
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R4016
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R4048
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R4137
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R4147
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R4164
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R4174
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R4193
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R5031
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5039
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R5042
Resistor,Chip LGE 0RJ7500D677 Contact Us For Availability
R5052
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R5055
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R5074
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R5086
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R5101
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R5121
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R5122
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5128
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R7022
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R7061
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R7062
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R7132
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R7215
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R7255
RESISTOR,METAL GLAZE LGE 0RJ5602D677 Contact Us For Availability
R7271
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
SW101
SWITCH TACT LGE 140-313B Contact Us For Availability
TU4001
Tuner,Analog/Digital LGE EBL32758001 Contact Us For Availability
VR7001
VARISTOR LGE 6102W5V016A Contact Us For Availability
X3001
Crystal LGE 6212AA2600B Contact Us For Availability
X3001
Crystal LGE 6212AA2600A Contact Us For Availability
X7001
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD1001
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
× ![]()
Login and Registration Form
