Model LG 42PC3D-UE – Common Parts & Diagrams

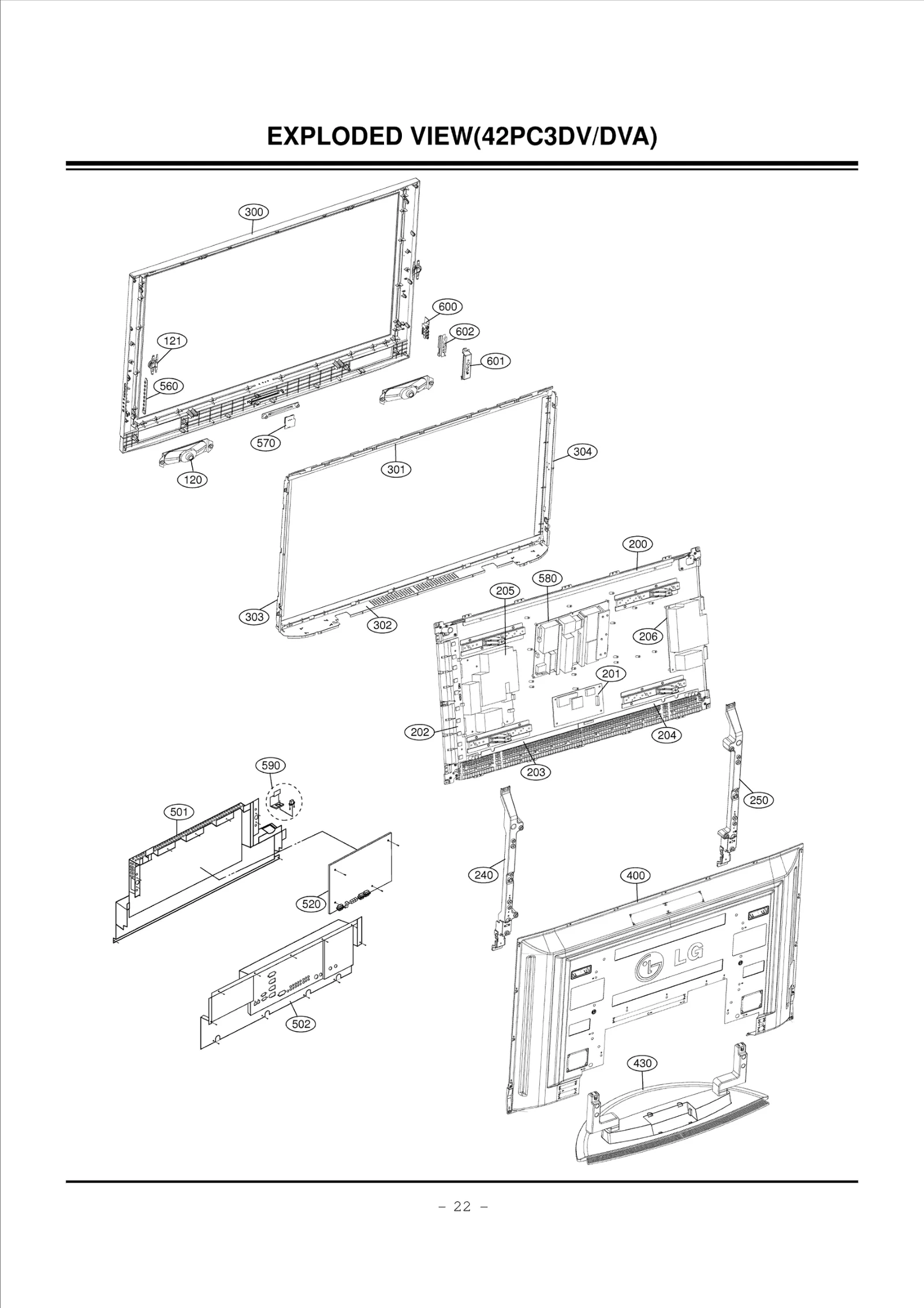

Diagram 0
Diagram 1
Common parts from model LG 42PC3D-UE
000
Heat Sink Assembly LGE 4921QP1043C Contact Us For Availability
000
Heat Sink Assembly LGE 4921QP1041C Contact Us For Availability
121
Speaker,Tweeter LGE EAB30826001 Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QDH117A Contact Us For Availability
204
Hand Insert PCB Assembly LGE 6871QRH077A Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR31872801 Contact Us For Availability
240
SUPPORTER LGE 4980900109C Contact Us For Availability
250
SUPPORTER LGE 4980900109D Contact Us For Availability
300
Cover Assembly LGE ACQ30249901 Contact Us For Availability
301
SUPPORTER LGE 4980900113B Contact Us For Availability
302
SUPPORTER LGE 4980900114B Contact Us For Availability
303
SUPPORTER LGE 4980900116B Contact Us For Availability
304
SUPPORTER LGE 4980900115B Contact Us For Availability
400
Cover Assembly LGE ACQ30342108 Contact Us For Availability
430
Base Assembly LGE 3501900014H Contact Us For Availability
501
Plate Assembly LGE 3301900095X Contact Us For Availability
502
Plate Assembly LGE 3301900094V Contact Us For Availability
520
PCB Assembly,Main LGE EBR32710201 Contact Us For Availability
560
Chassis Assembly LGE EBT33011301 Contact Us For Availability
570
Chassis Assembly LGE EBT33011201 Contact Us For Availability
580
PCB Assembly,Power LGE 68719PT299A Contact Us For Availability
590
Filter,AC Line LGE 6200J000115 Contact Us For Availability
600
Chassis Assembly LGE EBT32712302 Contact Us For Availability
601
BRACKET ASSEMBLY LGE 4811900021E Contact Us For Availability
602
SHIELD LGE 48149V0003A Contact Us For Availability
A
Chassis Assembly LGE EBT33010501 Contact Us For Availability
A1
Manual LGE 38289U0527L Contact Us For Availability
A2
Remote Controller LGE MKJ39927803 Contact Us For Availability
C105
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
L101
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
LV1
CABLE,DVI LGE 6850J00005G Contact Us For Availability
P100
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
SW106
SWITCH TACT LGE 140-313B Contact Us For Availability
× ![]()
