Model LG 42LY760H – Common Parts & Diagrams

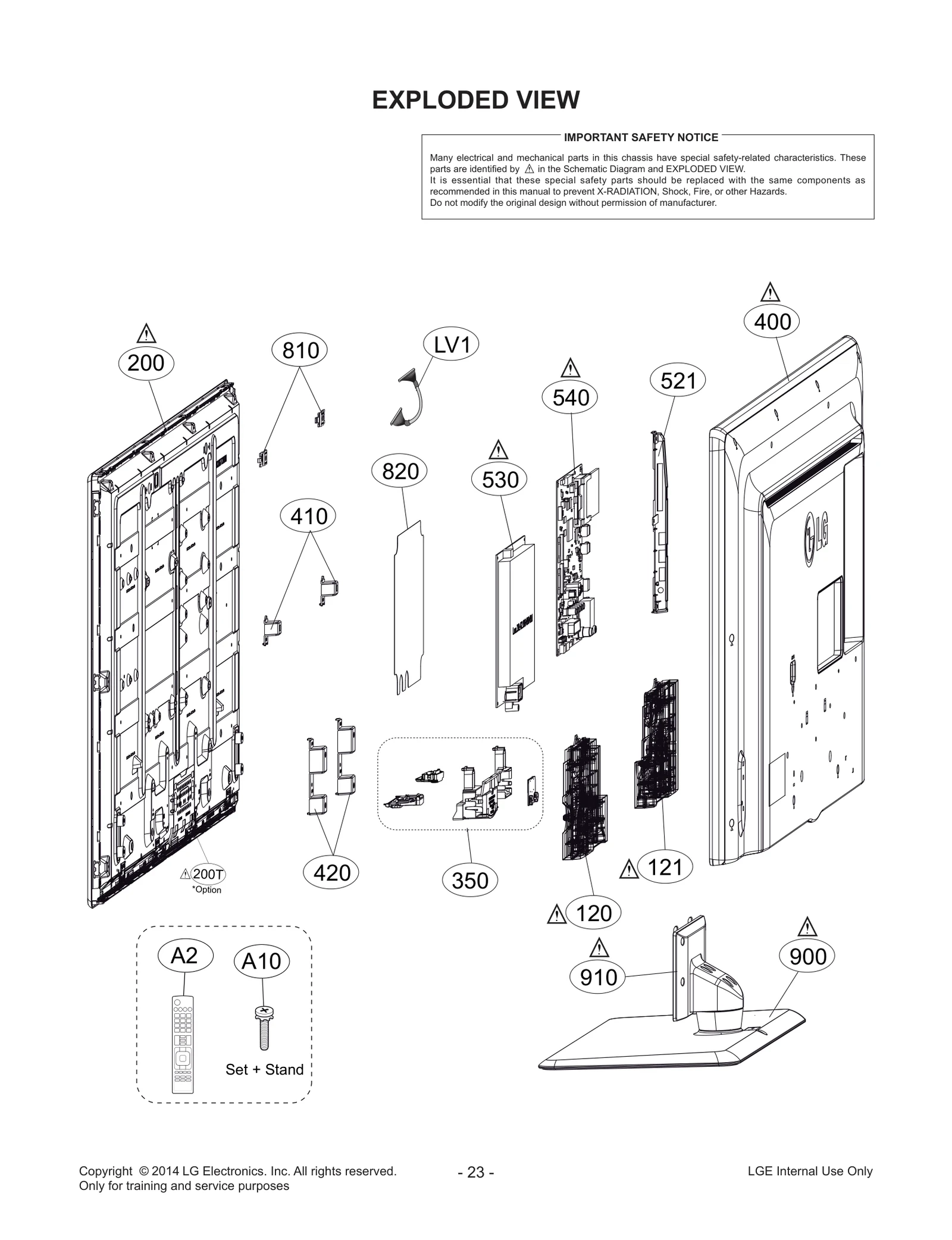

Diagram 0
Diagram 1
Common parts from model LG 42LY760H
200
LCD,Module-TFT LGE EAJ62567801 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87441717 Contact Us For Availability
420
Supporter LGE MJH63254402 Contact Us For Availability
521
Bracket LGE MAZ63925547 Contact Us For Availability
530
Power Supply Assembly LGE EAY63071904 Contact Us For Availability
530
Power Supply Assembly LGE EAY63071901 Contact Us For Availability
540
Chassis Assembly LGE EBT62914305 Contact Us For Availability
820
Insulator LGE MEV64570901 Contact Us For Availability
900
Base Assembly LGE AAN74669706 Contact Us For Availability
910
Bracket LGE MAZ64132102 Contact Us For Availability
A2
Package Assembly LGE AGF76692627 Contact Us For Availability
A2S
Remote Controller Assembly LGE AKB73756573 Contact Us For Availability
AM
Manual Assembly LGE AFN76212012 Contact Us For Availability
AM1
Manual,Owners LGE MFL68080312 Contact Us For Availability
AR3202
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR8100
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C343
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C540
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C605
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C2302
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2304
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C2316
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2322
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C2324
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C2330
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2337
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2343
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C3402
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C4322
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C5614
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C6402
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C6517
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C8106
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C8422
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C8430
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C8609
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C8615
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C8657
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C8659
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C8661
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C8702
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C8724
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C8800
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C8804
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C8810
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C9005
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C9026
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C9102
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C9108
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C9114
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C9408
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C9410
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C9425
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
CA1
Harness,Single LGE EAD62595401 Contact Us For Availability
CA2
Harness,Single LGE EAD61646293 Contact Us For Availability
D3206
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D3207
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3208
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3210
Diode,TVS LGE EAH62135001 Contact Us For Availability
D3803
Diode,Switching LGE EAH60666101 Contact Us For Availability
D4301
Diode,TVS LGE EAH62094301 Contact Us For Availability
D8804
Diode,TVS LGE EAH33945901 Contact Us For Availability
D8805
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D9005
Varistor LGE EAF61530201 Contact Us For Availability
D9100
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62869001 Contact Us For Availability
IC401
IC,DDR3 SDRAM LGE EAN63053202 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61829204 Contact Us For Availability
IC2300
IC,DC,DC Converter LGE EAN62870701 Contact Us For Availability
IC2301
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
IC2302
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN62870501 Contact Us For Availability
IC2304
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2306
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC3200
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC3203
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC3801
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62886101 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62886901 Contact Us For Availability
IC8601
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC8701
IC,Microcontrollers LGE EAN61015302 Contact Us For Availability
IC8702
IC,EEPROM LGE EAN60743402 Contact Us For Availability
IC8800
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC9000
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC9003
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC9102
IC,DC,DC Converter LGE EAN60993001 Contact Us For Availability
IC9400
IC,Voltage Detector LGE EAN60916901 Contact Us For Availability
IC9403
IC,Video Processors LGE EAN62096701 Contact Us For Availability
JK3401
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3402
Jack,RCA LGE EAG60968213 Contact Us For Availability
JK3803
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK8700
Jack,Modular LGE EAG61453603 Contact Us For Availability
JK8701
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK8800
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK9000
Jack,Modular LGE EAG35781010 Contact Us For Availability
L304
Filter,Bead LGE EAM54407902 Contact Us For Availability
L2305
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L2306
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2309
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L2311
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L5603
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L8603
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L8800
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L9402
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62572203 Contact Us For Availability
P4000
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7201
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q2302
FET LGE EBK61913601 Contact Us For Availability
Q3201
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q3202
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q3203
FET LGE EBK62091801 Contact Us For Availability
Q3801
TRANSISTOR,BIPOLARS LGE 0TRIH80003A Contact Us For Availability
Q3802
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R174
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R304
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R350
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R359
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R374
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R2302
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R2303
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R2306
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R2313
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R2315
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R2316
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R2317
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R2318
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R2319
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R2320
Resistor,Chip LGE EBC61496201 Contact Us For Availability
R2322
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R2324
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R2326
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2329
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2333
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2341
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2345
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2347
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R2350
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2358
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2359
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R3207
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3208
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R3210
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3212
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R3213
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3240
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R3400
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R4015
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5605
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5615
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R5616
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R8406
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R8409
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R8424
Resistor,Chip LGE 0RJ1691D477 Contact Us For Availability
R8435
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R8452
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R8458
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R8613
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R8760
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R8775
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R8806
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R8811
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R8812
Resistor,Chip LGE 0RH1602D622 Contact Us For Availability
R9011
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R9100
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R9107
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R9114
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R9118
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
VA3211
Varistor LGE EAF61530301 Contact Us For Availability
VA3403
Varistor LGE EAF61530101 Contact Us For Availability
VA3404
Varistor LGE EAF61630101 Contact Us For Availability
X101
Crystal LGE EAW61645502 Contact Us For Availability
X8400
Crystal LGE 6212AB2015C Contact Us For Availability
X8700
Crystal LGE EAW30067102 Contact Us For Availability
X9000
Crystal LGE 6212AB2872B Contact Us For Availability
× ![]()
Login and Registration Form
