Model LG 42LV555H – Common Parts & Diagrams

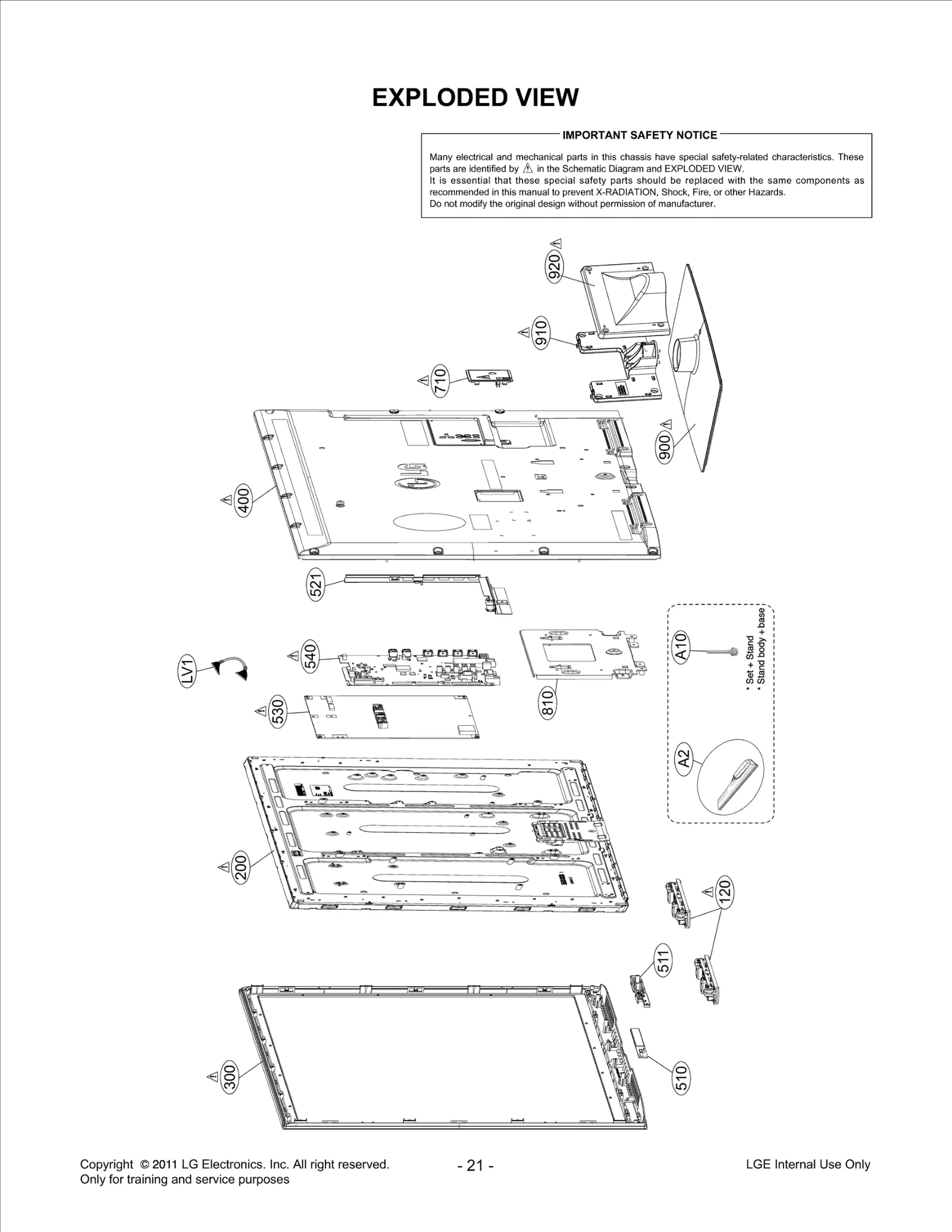

Diagram 0
Diagram 1
Common parts from model LG 42LV555H
200
LCD,Module-TFT LGE EAJ61751701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61948601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73288727 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83852553 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671003 Contact Us For Availability
511
Bracket LGE MAZ62829502 Contact Us For Availability
521
Plate,Metal LGE MGJ63061103 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169601 Contact Us For Availability
540
BPR Total Assembly LGE EBU61790701 Contact Us For Availability
700
Power Cord,Attach LGE EAD60817905 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
810
Supporter LGE MJH62198002 Contact Us For Availability
900
Base Assembly LGE AAN73211210 Contact Us For Availability
910
Bracket Assembly LGE ABA74048902 Contact Us For Availability
920
Bracket LGE MAZ63224502 Contact Us For Availability
A1
Manual,Owners LGE MFL62883102 Contact Us For Availability
A2
Remote Controller LGE MKJ40653832 Contact Us For Availability
A13
Plate LGE 49509K0178G Contact Us For Availability
A14
Plate LGE 49509K0179E Contact Us For Availability
ADWD
S/W,Firmware LGE SAA35649609 Contact Us For Availability
AR613
Resistor,Array LGE EBC37094001 Contact Us For Availability
AR1520
RESISTOR,METAL GLAZE LGE 0RJ0512C687 Contact Us For Availability
C145
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C317
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C320
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C324
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C334
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C338
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C426
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C470
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C485
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C507
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C633
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C649
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C697
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C812
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C901
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C906
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C1024
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C1036
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C1300
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C1340
Filter,LCR LGE EAM62070601 Contact Us For Availability
C1345
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1412
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1526
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C1633
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C1728
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1739
Capacitor,AL,Chip LGE 0CE476VF6DC Contact Us For Availability
C1802
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C1811
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
CA12
Harness,Single LGE EAD57675124 Contact Us For Availability
CA13
Harness,Single LGE EAD61646205 Contact Us For Availability
D201
Diode,TVS LGE EAH33945901 Contact Us For Availability
D401
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D1403
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1800
Diode,Schottky LGE 0DSKE00058A Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60345909 Contact Us For Availability
IC101
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC102
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC300
IC,Audio Amplifier LGE EAN62169301 Contact Us For Availability
IC302
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC505
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
IC603
IC,DDR2 SDRAM LGE EAN61129702 Contact Us For Availability
IC800
IC,Video Processors LGE EAN62096701 Contact Us For Availability
IC900
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC902
IC,NAND Flash Memory LGE EAN61009301 Contact Us For Availability
IC903
IC,Reset LGE EAN60670101 Contact Us For Availability
IC1300
IC,Protocol Controller LGE EAN61150101 Contact Us For Availability
IC1301
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC1501
IC,Video Decode LGE 0IPRP00630E Contact Us For Availability
IC1502
IC,Multiplexer LGE EAN61488101 Contact Us For Availability
IC1602
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC1605
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC1606
IC,DC,DC Converter LGE EAN60991601 Contact Us For Availability
IC1700
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC1701
IC,Inverter LGE 0IPH741400C Contact Us For Availability
JK200
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK500
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1400
Jack,Modular LGE EAG35781004 Contact Us For Availability
JK1401
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1402
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1701
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK1801
Jack,Modular LGE 6612E00008C Contact Us For Availability
L313
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L410
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61668652 Contact Us For Availability
M5
Gasket LGE MDS62110209 Contact Us For Availability
P300
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P701
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P703
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P1700
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
Q403
FET LGE EBK60752501 Contact Us For Availability
Q408
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q411
FET LGE EBK60706901 Contact Us For Availability
Q509
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q514
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1806
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R123
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R144
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R259
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R422
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R429
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R443
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R614
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R912
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1007
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R1011
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1014
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R1082
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1114
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R1124
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R1128
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R1153
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1332
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1433
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R1508
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1522
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1606
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1624
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R1626
Resistor,Chip LGE 0RJ9103C478 Contact Us For Availability
R1627
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R1700
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R1725
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1728
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1742
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R1774
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1871
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R5011
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R5012
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R5016
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R5078
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R5106
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R9116
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R9118
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
TU1800
Tuner,RF Modulator LGE EBL61020101 Contact Us For Availability
X500
Crystal LGE EAW30067102 Contact Us For Availability
X1001
Crystal LGE EAW58812611 Contact Us For Availability
X1300
Crystal LGE 6212AB2015C Contact Us For Availability
X1500
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD1500
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
× ![]()
