Model LG 42LV5400 – Common Parts & Diagrams

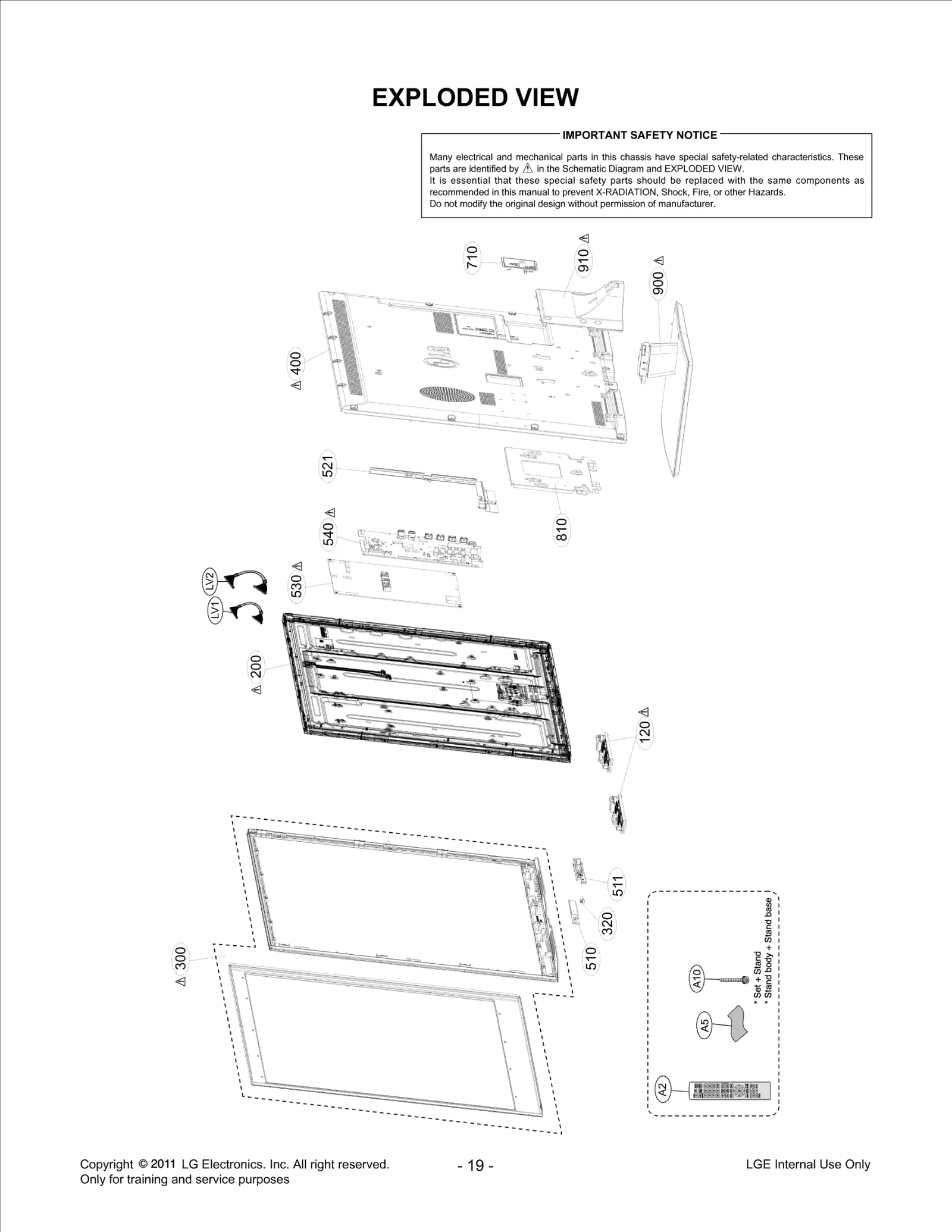

Diagram 0
Diagram 1
Common parts from model LG 42LV5400
200
LCD,Module-TFT LGE EAJ61749101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73288716 Contact Us For Availability
320
Indicator LGE MES62378302 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83852512 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671001 Contact Us For Availability
511
Bracket LGE MAZ62829502 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169801 Contact Us For Availability
540
PCB Assembly,Main LGE EBR73325201 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
810
Supporter LGE MJH62198002 Contact Us For Availability
900
Base Assembly LGE AAN73430406 Contact Us For Availability
A1
Manual,Owners LGE MFL62882756 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915240 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976001 Contact Us For Availability
A23
Module,WLAN LGE EAT60713301 Contact Us For Availability
A23
Module,WLAN LGE EAT60713304 Contact Us For Availability
A23
AN-WF100---Wi-Fi dongle LGE EAT60713302 Contact Us For Availability
AR406
Resistor,Array LGE EBC39283301 Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C206
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C231
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C233
Filter,LCR LGE EAM62070601 Contact Us For Availability
C296
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C325
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C407
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C417
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C455
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C516
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C527
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C528
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C538
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C555
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C557
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C568
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C710
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C809
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C1002
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1004
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C1110
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C1120
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1724
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C1740
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C1762
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C1773
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1778
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C2116
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C2151
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C2179
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2180
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
CA8
Harness,Single LGE EAD57675124 Contact Us For Availability
CA9
Harness,Single LGE EAD61646205 Contact Us For Availability
CA10
Harness,Single LGE EAD61653801 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273102 Contact Us For Availability
D707
Diode,Schottky LGE EAH61113201 Contact Us For Availability
D713
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D1111
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1204
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1402
Diode,TVS LGE EAH60667401 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61888701 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000102 Contact Us For Availability
IC103
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC402
IC,DDR3 SDRAM LGE EAN61848801 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61849201 Contact Us For Availability
IC503
IC,Reset LGE EAN60670101 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN60660601 Contact Us For Availability
IC507
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC508
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC602
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC701
IC,Analog Switch LGE EAN61859001 Contact Us For Availability
IC802
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC804
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC1203
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1702
IC,Audio Amplifier LGE EAN61850701 Contact Us For Availability
IC2103
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK704
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK802
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK803
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK804
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK805
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1001
Connector,I/O LGE EAG61008301 Contact Us For Availability
JK1102
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK1202
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1401
Jack,Modular LGE EAG62012402 Contact Us For Availability
L220
Inductor,Multilayer,Chip LGE ELCH0010109 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L515
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L805
Filter,Bead LGE EAM38769501 Contact Us For Availability
L806
Filter,Bead LGE EAM54407902 Contact Us For Availability
L1708
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L2106
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61652505 Contact Us For Availability
LV2
Cable,FFC LGE EAD61668689 Contact Us For Availability
M1
Gasket LGE MDS62110209 Contact Us For Availability
M22
Gasket LGE MDS62110213 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P102
Connector,Wafer LGE 6602T12004J Contact Us For Availability
P601
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P901
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P1302
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P1501
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P1502
Connector,Wafer LGE 6630V93270C Contact Us For Availability
P1601
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P1702
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q101
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q503
FET LGE EBK61492001 Contact Us For Availability
Q504
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q507
FET LGE EBK60752501 Contact Us For Availability
Q508
FET LGE EBK61491901 Contact Us For Availability
Q2104
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R185
Wire Pad LGE EBC40167001 Contact Us For Availability
R210
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R211
Resistor,Chip LGE EBC43209201 Contact Us For Availability
R213
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R317
Resistor,Chip LGE EBC60972201 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R427
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R517
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R545
Resistor,Chip LGE EBC32920101 Contact Us For Availability
R548
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R571
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R578
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R592
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R595
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R647
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R703
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R754
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R775
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R776
Resistor,Chip LGE EBC61495701 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R866
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R920
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R1117
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1118
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1717
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1721
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1737
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R2135
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2143
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU2101
Tuner,Analog/Digital LGE EBL60860104 Contact Us For Availability
X101
Crystal LGE EAW58812611 Contact Us For Availability
X602
Crystal LGE EAW58239602 Contact Us For Availability
ZD1116
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
