Model LG 42LV3700 – Common Parts & Diagrams

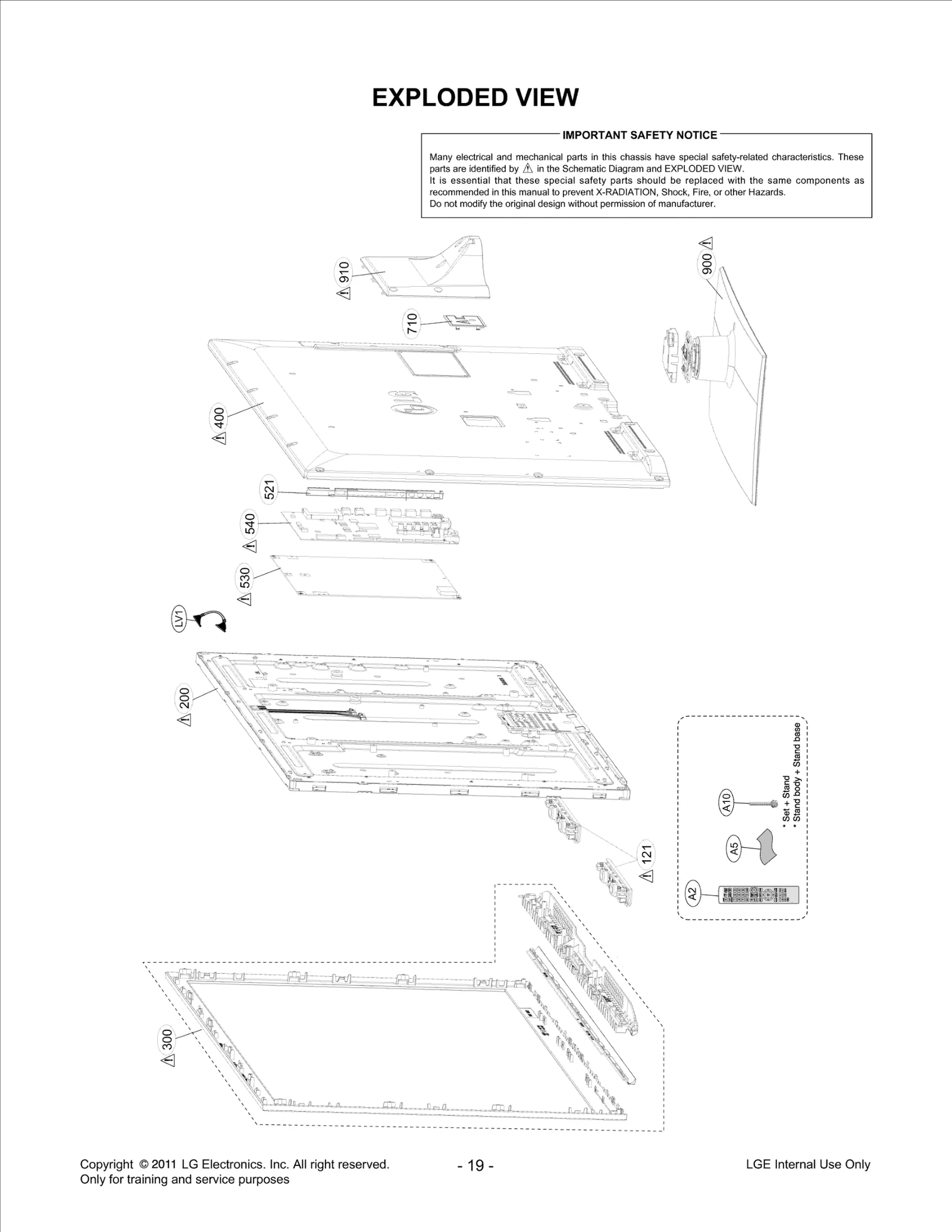

Diagram 0
Diagram 1
Common parts from model LG 42LV3700
121
Speaker,Full Range LGE EAB62088401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61753601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73228716 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83111817 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671401 Contact Us For Availability
511
Bracket LGE MAZ62827902 Contact Us For Availability
530
Power Supply Assembly LGE EAY62171601 Contact Us For Availability
540
PCB Assembly LGE EBR73142601 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
810
Supporter LGE MJH62198004 Contact Us For Availability
900
Base Assembly LGE AAN73430406 Contact Us For Availability
A1
Manual,Owners LGE MFL62882756 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915240 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A7
Module,WLAN LGE EAT60713301 Contact Us For Availability
A7
AN-WF100---Wi-Fi dongle LGE EAT60713302 Contact Us For Availability
A7
Module,WLAN LGE EAT60713304 Contact Us For Availability
A21
Cover,Rear LGE MCK62976001 Contact Us For Availability
AR403
Resistor,Array LGE EBC39283301 Contact Us For Availability
C106
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C206
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C291
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C407
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C410
Filter,LCR LGE EAM62070601 Contact Us For Availability
C417
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C442
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C501
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C511
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C512
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C538
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C539
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1002
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1121
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C1208
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1219
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1231
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C3808
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3819
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3830
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C4923
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C4932
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C5111
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C5118
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C5121
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
CA2
Harness,Single LGE EAD60820505 Contact Us For Availability
CA13
Harness,Single LGE EAD57675119 Contact Us For Availability
CA14
Harness,Single LGE EAD61646208 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077701 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61077702 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273102 Contact Us For Availability
D1108
Diode,TVS LGE EAH39491701 Contact Us For Availability
D3713
Diode,Schottky LGE EAH61113201 Contact Us For Availability
D3716
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3906
Diode,TVS LGE EAH60667401 Contact Us For Availability
HG
Band LGE 347-649A Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61573001 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000102 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000101 Contact Us For Availability
IC103
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC402
IC,DDR3 SDRAM LGE EAN61667501 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61849201 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC506
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC507
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC508
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC602
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1203
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3701
IC,Analog Switch LGE EAN61859001 Contact Us For Availability
IC3802
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC3804
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC4901
IC,Audio Amplifier LGE EAN61850701 Contact Us For Availability
IC5103
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
JK1001
Connector,I/O LGE EAG61008301 Contact Us For Availability
JK1102
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK3701
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK3802
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L513
Filter,Bead LGE EAM58113401 Contact Us For Availability
L3805
Filter,Bead LGE EAM38769501 Contact Us For Availability
L3806
Filter,Bead LGE EAM54407902 Contact Us For Availability
L5102
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61668621 Contact Us For Availability
M6
Gasket LGE MDS62110209 Contact Us For Availability
M23
Gasket LGE MDS62110213 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P601
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P901
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P1501
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P1601
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P3801
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P4901
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q503
FET LGE EBK61492001 Contact Us For Availability
Q505
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q508
FET LGE EBK61491901 Contact Us For Availability
Q1002
FET LGE EBK60752501 Contact Us For Availability
Q5101
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R210
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R213
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R303
Resistor,Chip LGE EBC60972201 Contact Us For Availability
R325
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R427
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R517
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R545
Resistor,Chip LGE EBC32920101 Contact Us For Availability
R546
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R571
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R578
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R647
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1110
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1118
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1134
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1204
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R1205
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R1206
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3707
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R3708
Resistor,Chip LGE EBC61495701 Contact Us For Availability
R3725
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3734
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R3807
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3816
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R3901
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R4908
Wire Pad LGE EBC40167001 Contact Us For Availability
R4916
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R4917
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R4925
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5115
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R5117
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
X602
Crystal LGE EAW58239602 Contact Us For Availability
ZD1110
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
