Model LG 42LV355C – Common Parts & Diagrams

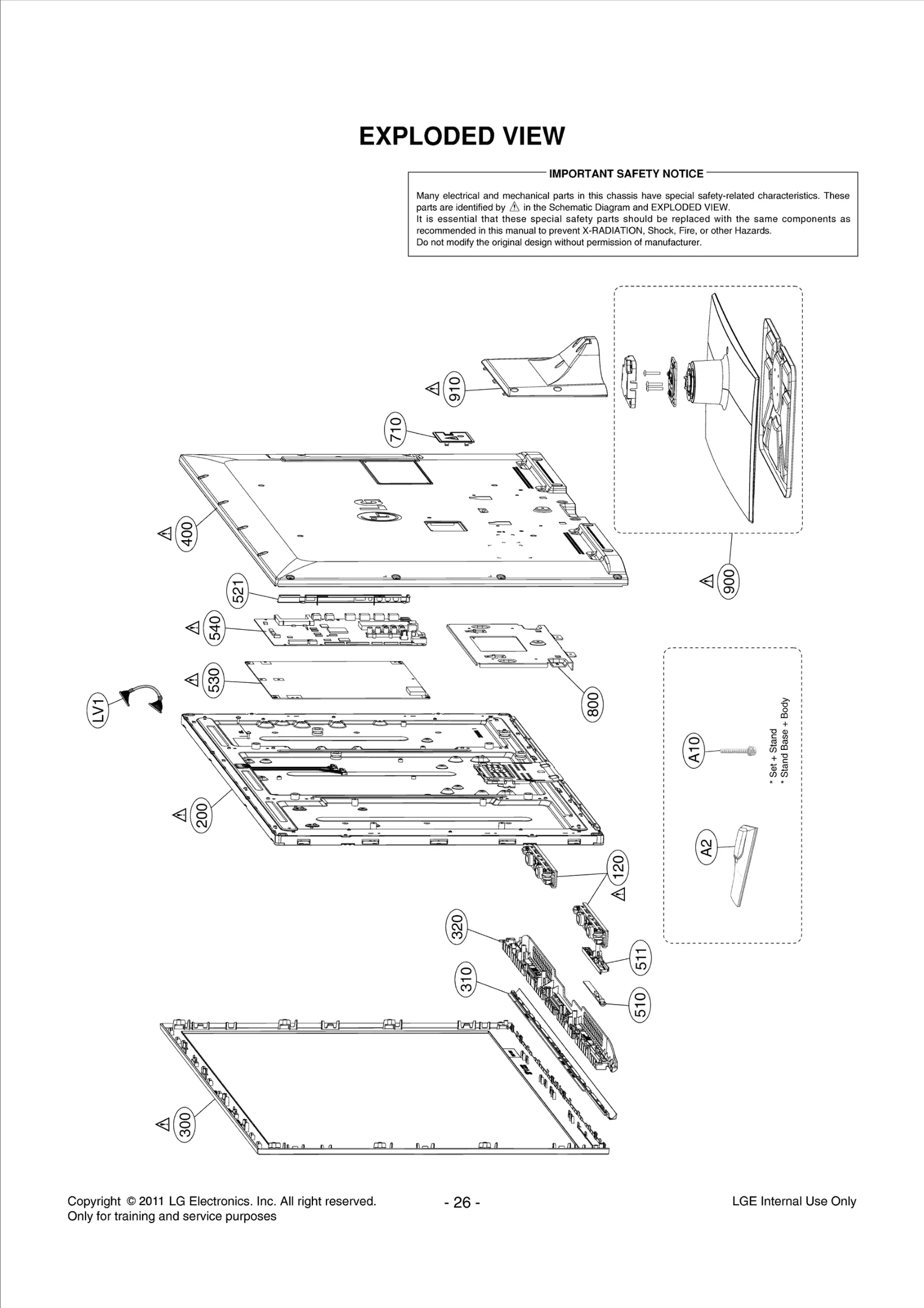

Diagram 0
Diagram 1
Common parts from model LG 42LV355C
200
LCD,Module-TFT LGE EAJ61751701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61948601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73228771 Contact Us For Availability
310
Decor LGE MCR63870205 Contact Us For Availability
320
Bracket LGE MAZ62727302 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83111873 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671401 Contact Us For Availability
511
Bracket LGE MAZ62827902 Contact Us For Availability
521
Plate LGE MGJ62683329 Contact Us For Availability
530
Power Supply Assembly LGE EAY62171601 Contact Us For Availability
540
PCB Assembly LGE EBR74259001 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
800
Supporter LGE MJH62198004 Contact Us For Availability
900
Base Assembly LGE AAN73430410 Contact Us For Availability
A1
Manual,Owners LGE MFL62882741 Contact Us For Availability
A1
Manual,Owners LGE MFL62194621 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915266 Contact Us For Availability
ADSW
Damper LGE 327-058N Contact Us For Availability
AR1203
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR1207
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
ASDASD
Damper LGE MCQ66005514 Contact Us For Availability
C111
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C120
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C233
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C248
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C538
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C1101
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1216
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1451
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C1662
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1910
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C1914
Capacitor,AL,Chip LGE JCE8106J691 Contact Us For Availability
C1918
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C3713
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4018
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C9907
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
CA2
Harness,Single LGE EAD61646203 Contact Us For Availability
CA3
Harness,Single LGE EAD57675119 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077701 Contact Us For Availability
D825
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D903
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1625
Diode,TVS LGE EAH39491701 Contact Us For Availability
GAS2
Gasket LGE MDS62110205 Contact Us For Availability
GAS5
Gasket LGE MDS62110209 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61855201 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC409
IC,Reset LGE EAN60670101 Contact Us For Availability
IC410
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61570701 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1900
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC1901
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1603
Jack,RCA LGE EAG60968201 Contact Us For Availability
JK9901
Jack,Phone LGE EAG61030002 Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L424
Filter,Bead LGE EAM58113401 Contact Us For Availability
L508
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L10056
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
LV1
Cable,FFC LGE EAD61668629 Contact Us For Availability
LV35
Screw,Taptite LGE FAB30013213 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P1001
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P2100
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P3904
Connector,Wafer LGE 6602T12004B Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q805
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q3100
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R133
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R138
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R166
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R248
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R416
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R447
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R841
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R882
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R892
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R1047
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1225
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1451
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R1621
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1901
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1908
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1910
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1980
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3752
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R3766
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R3768
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
WZDC
Tape,Polyester LGE RAB33015603 Contact Us For Availability
X1002
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
