Model LG 42LS3400 – Common Parts & Diagrams

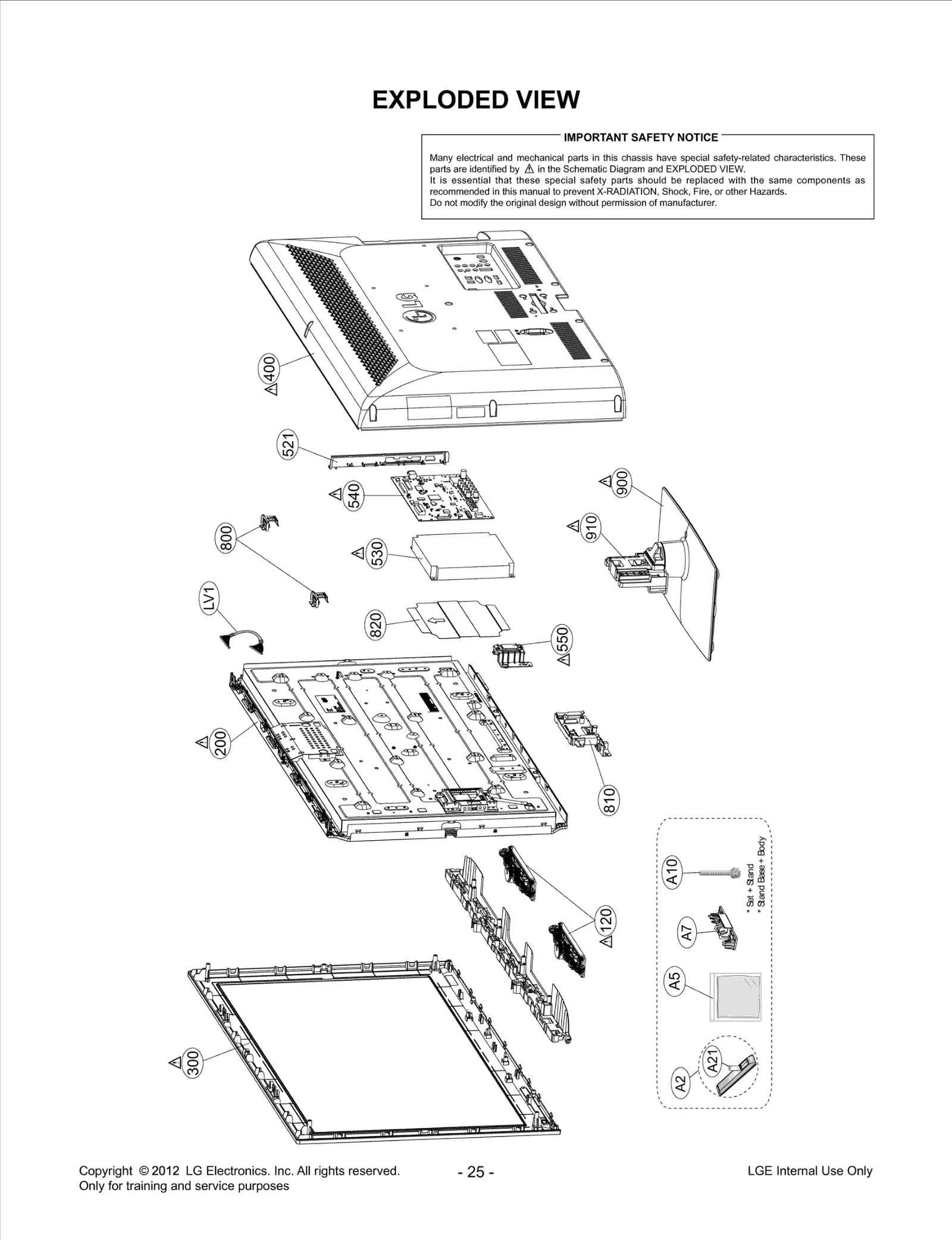

Diagram 0
Diagram 1
Common parts from model LG 42LS3400
200
LCD,Module-TFT LGE EAJ62130601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73748607 Contact Us For Availability
400
LGE ACQ85980603 LGE ACQ85980603 Contact Us For Availability
521
Bracket LGE MAZ63311307 Contact Us For Availability
530
SMPS,AC/DC LGE EAY62769501 Contact Us For Availability
540
BPR Total Assembly LGE EBU61759403 Contact Us For Availability
550
PCB Assembly LGE EBR75274201 Contact Us For Availability
800
Supporter LGE MJH61879413 Contact Us For Availability
810
Supporter LGE MJH61879501 Contact Us For Availability
820
LGE MCR64733501 LGE MCR64733501 Contact Us For Availability
900
Base Assembly LGE AAN72945007 Contact Us For Availability
910
Supporter LGE MJH62618903 Contact Us For Availability
A1
LGE MFL67468113 LGE MFL67468113 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover LGE MCK36759201 Contact Us For Availability
C221
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C243
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C411
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C437
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C438
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C488
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C494
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C522
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C534
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1000
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1218
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C1624
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3707
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C3713
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4001
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4075
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
CA2
Harness,Single LGE 6631T20029J Contact Us For Availability
CA2
Harness,Single LGE EAD61646224 Contact Us For Availability
CA3
Harness,Single LGE EAD60678815 Contact Us For Availability
D200
Diode,Switching LGE EAH41961301 Contact Us For Availability
D821
Diode,Switching LGE EAH61714301 Contact Us For Availability
D1617
Varistor LGE EAF61530101 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62325801 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC104
IC,EEPROM LGE EAN43349004 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC408
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3703
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
JK1001
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1602
Jack,RCA LGE EAG60968202 Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L401
Filter,Bead LGE EAM58113401 Contact Us For Availability
L407
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L415
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD62046908 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q402
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q403
FET LGE EBK60752501 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R403
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R416
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R510
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R888
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1205
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1236
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1451
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R1620
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1626
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2426
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3735
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3740
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
TU3700
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
× ![]()
