Model LG 42LN5200 – Common Parts & Diagrams

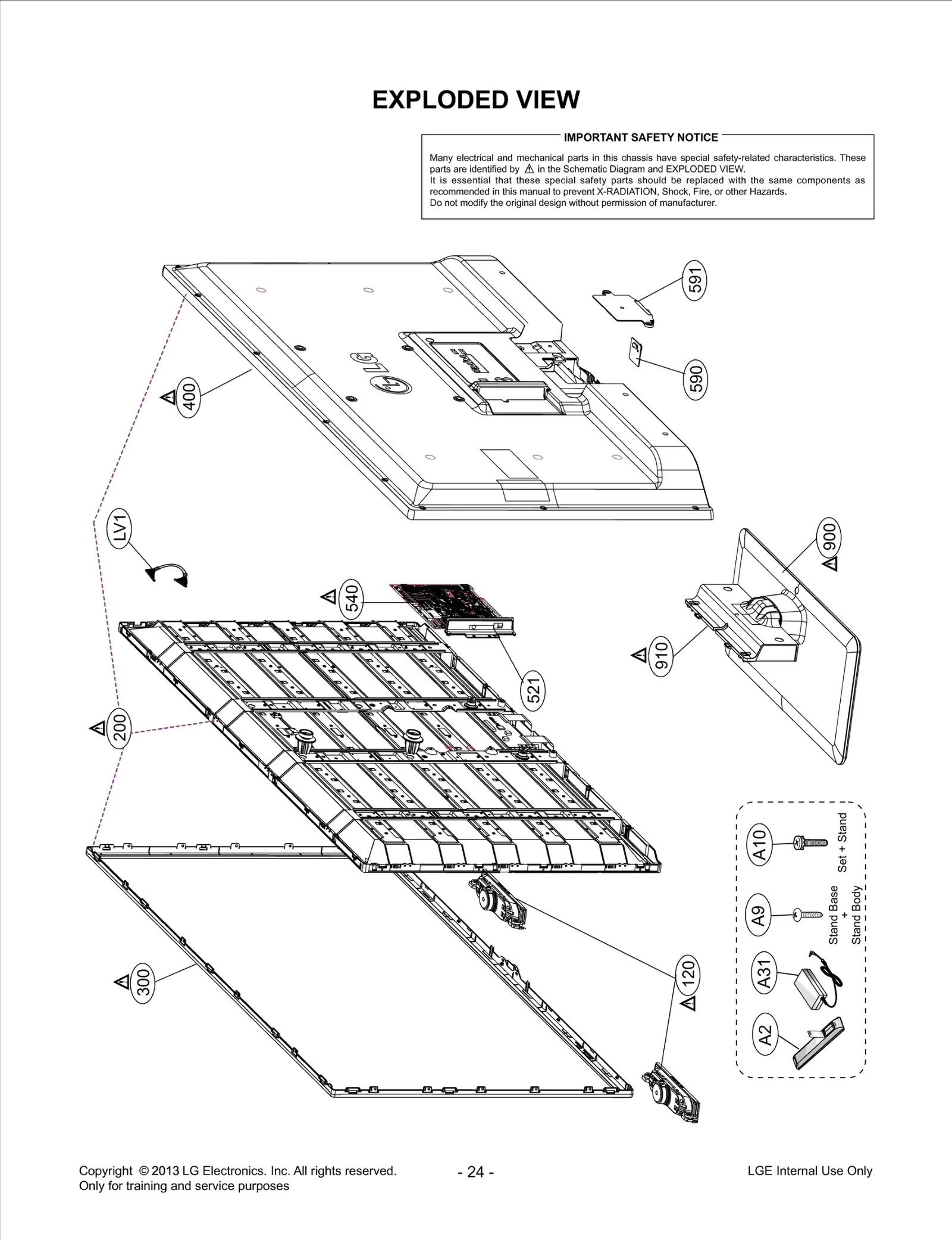

Diagram 0
Diagram 1
Common parts from model LG 42LN5200
300
Cabinet Assembly LGE ABJ74088105 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86552405 Contact Us For Availability
540
Chassis Assembly LGE EBT62640102 Contact Us For Availability
590
PCB Assembly,Sub LGE EBR77489002 Contact Us For Availability
591
Cover LGE MCK67626002 Contact Us For Availability
900
Base Assembly LGE AAN74409702 Contact Us For Availability
910
Bracket Assembly LGE ABA74569202 Contact Us For Availability
A2
Package Assembly LGE AGF76692601 Contact Us For Availability
A31
Adapters LGE EAY63070001 Contact Us For Availability
AM
Manual Assembly LGE AFN75854507 Contact Us For Availability
C200
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C243
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C252
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C277
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C279
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C284
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C285
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C400
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C414
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C418
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C432
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C433
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C442
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C443
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C447
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C700
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C3411
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C3414
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C3415
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C3418
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C3713
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3715
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C3737
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C6900
Capacitor,AL,Radial LGE EAE63063803 Contact Us For Availability
C6902
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C6905
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C6906
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C6924
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
CA1
Harness,Single LGE EAD61646229 Contact Us For Availability
CA2
Harness,Single LGE EAD60678819 Contact Us For Availability
D400
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D822
Diode,Switching LGE EAH61714301 Contact Us For Availability
D1704
Varistor LGE EAF61530101 Contact Us For Availability
D6902
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D6903
Diode,Rectifier LGE EAH61733701 Contact Us For Availability
IC2
IC,Ambient Light Sensor LGE EAN62389201 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62651201 Contact Us For Availability
IC104
IC,EEPROM LGE EAN43349003 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62574801 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN62673301 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC404
IC,DC,DC Converter LGE EAN62653501 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC408
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN62527401 Contact Us For Availability
IC3401
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC3703
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC6900
IC,LED Driver LGE EAN62455001 Contact Us For Availability
JK700
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1702
Jack,RCA LGE EAG60968213 Contact Us For Availability
JK5301
Jack,Phone LGE EAG61030002 Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L401
Filter,Bead LGE EAM62091201 Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L407
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L412
Filter,Bead LGE EAM38769505 Contact Us For Availability
L415
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L3405
Inductor,Wire Wound,Chip LGE EAP61747301 Contact Us For Availability
L6901
Filter,Bead LGE EAM62792301 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858752 Contact Us For Availability
P1100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P3401
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P3900
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
P6900
Connector,Wafer LGE EAG63412601 Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q6900
TR,Bipolar LGE EBK61591501 Contact Us For Availability
Q6901
FET LGE EBK62132201 Contact Us For Availability
Q6902
FET LGE EBK61493101 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R7
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R9
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R10
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R148
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R409
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R414
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R420
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R452
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R453
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R496
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R610
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R831
Resistor,Chip LGE ERHZ0000461 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1204
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1704
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1707
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3406
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3766
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R6901
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R6904
Resistor,Chip LGE 0RJ4303C477 Contact Us For Availability
R6905
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R6911
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R6915
Resistor,Chip LGE 0RJ7502C477 Contact Us For Availability
R6916
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R6917
Resistor,Chip LGE 0RJ7502D677 Contact Us For Availability
R6923
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R6924
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R6926
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R6930
Resistor,Chip LGE 0RJ0391E472 Contact Us For Availability
R6933
Resistor,Chip LGE EBC62377801 Contact Us For Availability
R6944
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
T6900
Coil,Choke LGE EAP62349002 Contact Us For Availability
× ![]()
