Model LG 42LH90 – Common Parts & Diagrams

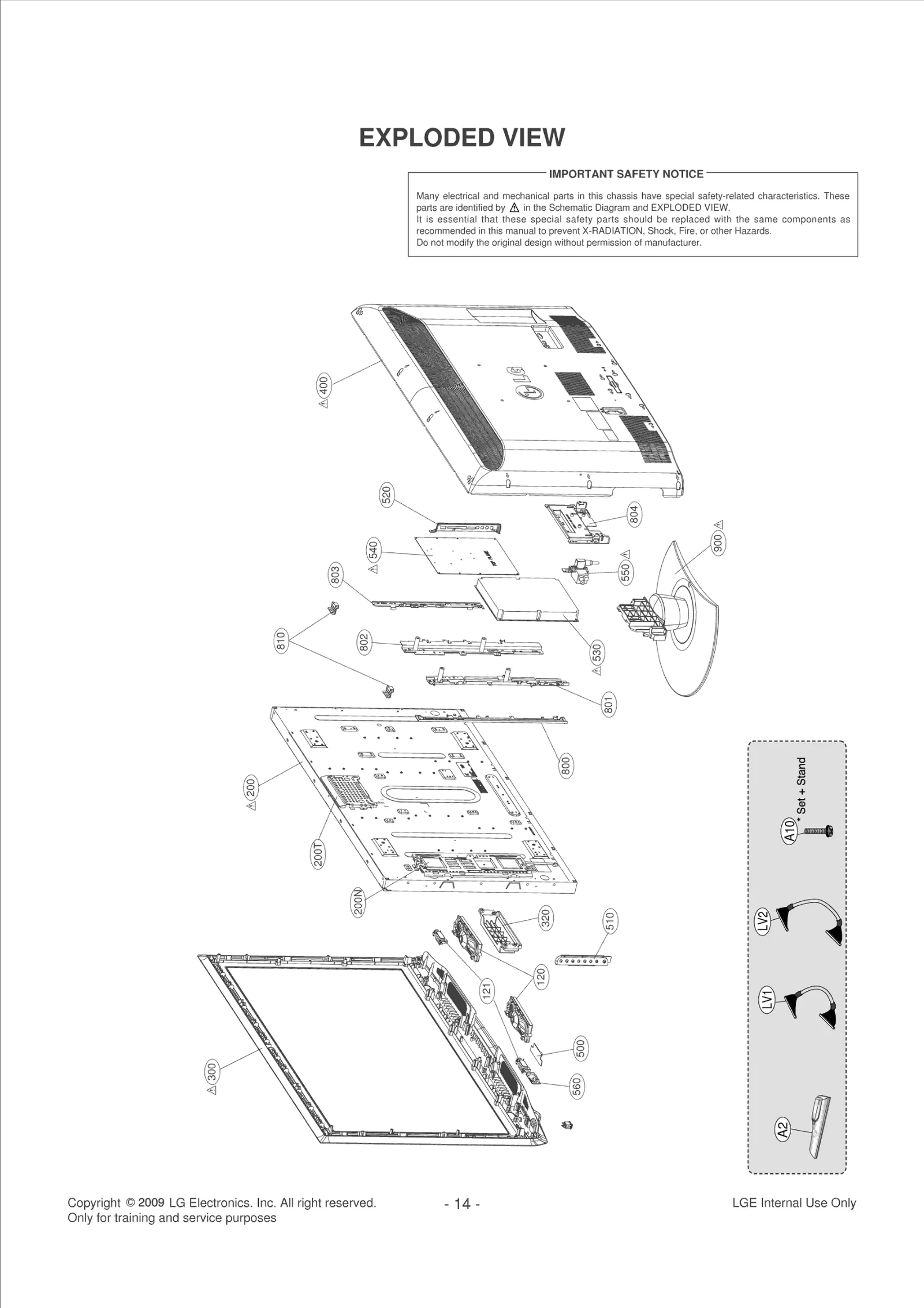

Diagram 0
Diagram 1
Common parts from model LG 42LH90
120
Speaker,Full Range LGE EAB58534501 Contact Us For Availability
121
Speaker,Tweeter LGE EAB58536001 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60694101 Contact Us For Availability
200N
Inverter Assembly LGE EAY60702001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ70510206 Contact Us For Availability
320
Bracket LGE MAZ61867702 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ73272104 Contact Us For Availability
500
PCB Assembly,Front LGE EBR61674001 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR62127501 Contact Us For Availability
540
BPR Total Assembly LGE EBU60695201 Contact Us For Availability
550
Filter,AC Line LGE EAM60352204 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR62128101 Contact Us For Availability
800
Supporter LGE MJH55272703 Contact Us For Availability
802
Supporter LGE MJH55273206 Contact Us For Availability
803
Supporter LGE MJH55273301 Contact Us For Availability
804
Supporter LGE MJH57700602 Contact Us For Availability
810
Supporter LGE MJH41408301 Contact Us For Availability
A2
Remote Controller LGE MKJ61841701 Contact Us For Availability
AR911
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR914
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR1070
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR3508
Resistor,Array LGE EBC32260501 Contact Us For Availability
C30
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C100
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C119
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C137
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C163
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C186
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C212
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C213
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C600
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C607
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C640
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C722
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C726
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C748
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C756
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C770
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C774
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C786
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C935
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1001
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1002
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1004
CAPACITOR,FIXED CERA LGE 0CC820CK41A Contact Us For Availability
C1005
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1013
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C1036
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1038
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1045
CAPACITOR,FIXED CERA LGE 0CC360CK41A Contact Us For Availability
C1072
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1073
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1207
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1209
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C1222
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1232
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1235
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1242
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C3521
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
CA1
Harness,Single LGE 6631900049P Contact Us For Availability
CA2
Harness,Single LGE EAD39295766 Contact Us For Availability
CA3
Harness,Single LGE EAD52821206 Contact Us For Availability
CA4
Harness,Single LGE EAD56480808 Contact Us For Availability
CA5
Harness,Single LGE EAD60673304 Contact Us For Availability
CA6
Harness,Single LGE EAD60676308 Contact Us For Availability
CA7
Harness,Single LGE EAD60679102 Contact Us For Availability
D101
Diode,TVS LGE EAH33945901 Contact Us For Availability
D500
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1202
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1231
Diode,TVS LGE EAH39491701 Contact Us For Availability
GAS8
Gasket LGE MDS61887701 Contact Us For Availability
IC1
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC2
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351701 Contact Us For Availability
IC102
Sensor,Ambient Light LGE EBD60010901 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC107
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
TRANSISTOR,FETS LGE 0TFTH80001A Contact Us For Availability
IC502
IC,Analog Switch LGE EAN60540901 Contact Us For Availability
IC703
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC707
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC708
IC,LDO Voltage Regulator LGE EAN57770801 Contact Us For Availability
IC800
IC,Serial Flash Memory LGE EAN50547501 Contact Us For Availability
IC801
IC,Video Processors LGE EAN60659201 Contact Us For Availability
IC1000
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC1001
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC1002
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC1003
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1200
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1202
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC1203
IC,CMOS LGE EAN42650901 Contact Us For Availability
IC3500
IC,LDO Voltage Regulator LGE EAN39682501 Contact Us For Availability
IC3502
IC,Video Processors LGE EAN60696101 Contact Us For Availability
IC3503
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC3504
IC,EEPROM LGE 0IMMR00023A Contact Us For Availability
IC3505
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
JK501
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1201
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK1205
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK1206
Jack,Complex LGE EAG59952001 Contact Us For Availability
L611
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L718
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1001
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L1002
Inductor,Multilayer,Chip LGE EAP57674101 Contact Us For Availability
L1004
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L1010
Filter,Bead LGE EAM42641602 Contact Us For Availability
L1012
Inductor,Multilayer,Chip LGE EAP39314711 Contact Us For Availability
L1206
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Harness,Single LGE EAD60679364 Contact Us For Availability
LV2
Harness,Single LGE EAD60679428 Contact Us For Availability
P100
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P101
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P600
WAFER LGE 6602T25009C Contact Us For Availability
P700
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P3500
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P3501
Connector,Wafer LGE EAG58732904 Contact Us For Availability
P3502
Connector,FFC/FPC/PIC LGE EAG60692002 Contact Us For Availability
Q101
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q600
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R9
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R36
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R44
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R107
Resistor,Chip LGE 0RH1004D422 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R619
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R626
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R723
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R735
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R750
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R751
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R755
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R762
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R766
Resistor,Chip LGE 0RJ3903E472 Contact Us For Availability
R767
Resistor,Chip LGE 0RJ3003E472 Contact Us For Availability
R770
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R771
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R826
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1002
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R1011
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1014
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1015
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R1020
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R1061
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1078
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1207
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1215
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1217
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R1218
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R1243
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1254
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1273
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1290
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1302
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1508
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R2196
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R2201
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R2202
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R3527
RESISTOR,METAL GLAZE LGE 0RJ0662D477 Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW105
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
TU1001
Tuner,Analog/Digital LGE EBL60152901 Contact Us For Availability
VR508
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
X3500
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
Login and Registration Form
