Model LG 42LH300C-UA – Common Parts & Diagrams
Diagram 0

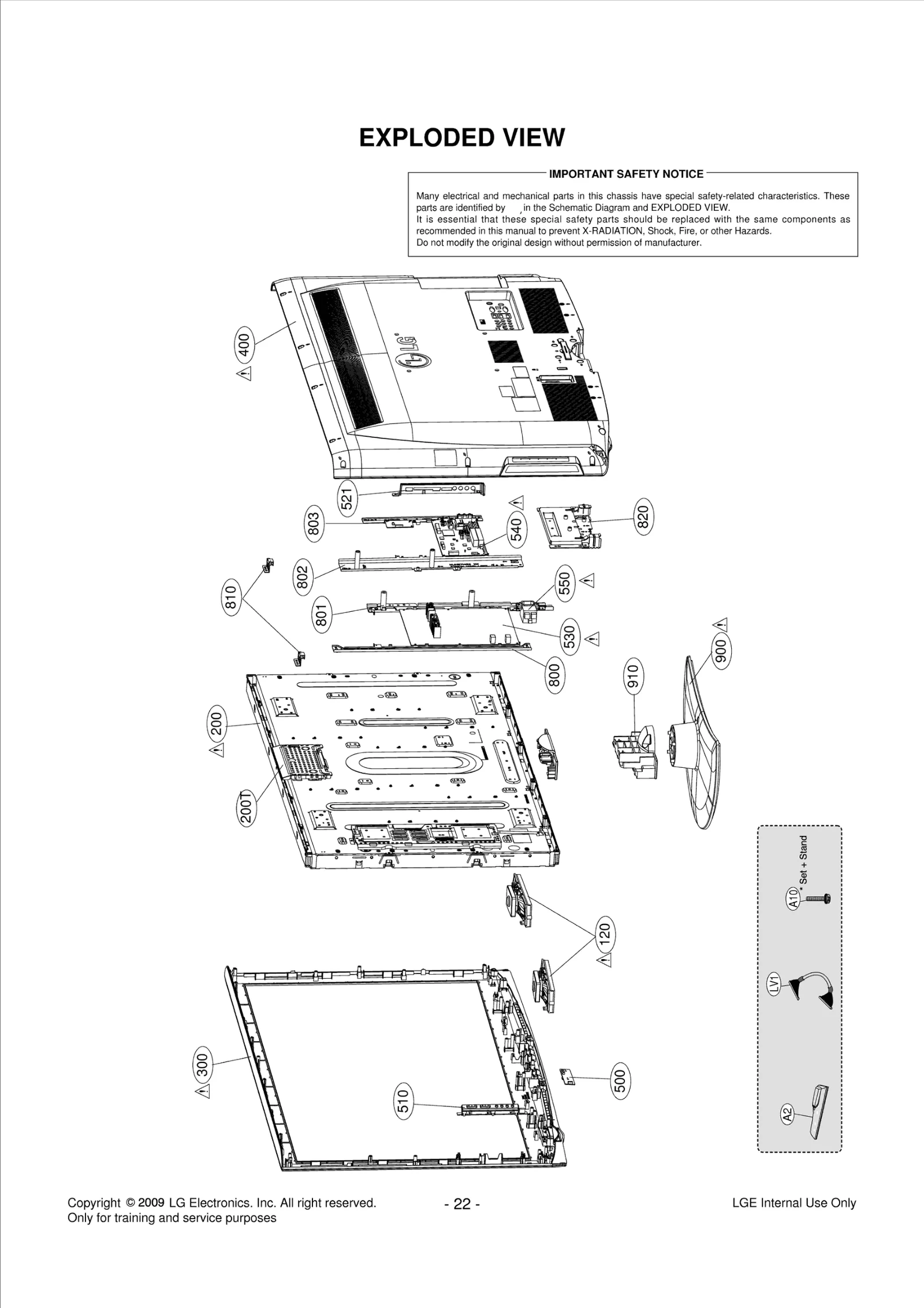

Diagram 1
Common parts from model LG 42LH300C-UA
120
Speaker,Full Range LGE EAB58534502 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ59914701 Contact Us For Availability
200T
Time Control LGE EAT60663601 Contact Us For Availability
310
Bracket LGE MAZ55012404 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59217502 Contact Us For Availability
510
PCB Assembly LGE EBR62979801 Contact Us For Availability
520
Bracket LGE MAZ56832301 Contact Us For Availability
521
Bracket Assembly LGE ABA69568719 Contact Us For Availability
530
Power Supply Assembly LGE EAY57681301 Contact Us For Availability
550
Filter,AC Line LGE EAM60352206 Contact Us For Availability
800
Supporter LGE MJH55272703 Contact Us For Availability
801
Supporter LGE MJH55273001 Contact Us For Availability
802
Supporter LGE MJH55273201 Contact Us For Availability
803
Supporter LGE MJH55273301 Contact Us For Availability
810
Supporter LGE MJH41408301 Contact Us For Availability
820
Supporter LGE MJH55273401 Contact Us For Availability
910
Supporter LGE MJH54589202 Contact Us For Availability
A1
Manual,Owners LGE MFL62194604 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB69680401 Contact Us For Availability
A5
Cover LGE MCK57046202 Contact Us For Availability
AR3
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR102
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR109
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1079
Resistor,Array LGE EBC32260601 Contact Us For Availability
C30
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C123
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C142
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C181
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C186
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C600
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C611
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C631
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C640
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C686
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C689
CAPACITOR,FIXED ELEC LGE 0CE226WJ6DC Contact Us For Availability
C690
Capacitor,AL,Chip LGE JCE8106J691 Contact Us For Availability
C692
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C696
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C722
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C728
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C746
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C748
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C786
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C788
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C789
Capacitor,Ceramic,Ch LGE EAE36882801 Contact Us For Availability
C800
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1012
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C1013
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C1018
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1023
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1036
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1072
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1077
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1207
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1208
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C1223
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1229
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1232
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1235
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C1243
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
D500
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1000
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D1220
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC2
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC103
IC,Reset LGE EAN43244901 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC107
IC,Reset LGE EAN60670101 Contact Us For Availability
IC500
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC503
TRANSISTOR,FETS LGE 0TFTH80001A Contact Us For Availability
IC602
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC705
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC1000
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC1002
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC1003
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC1200
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1202
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC1203
IC,CMOS LGE EAN42650901 Contact Us For Availability
JK500
Jack,DIN LGE EAG39789402 Contact Us For Availability
JK502
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK602
Jack,RCA LGE 6612J10002B Contact Us For Availability
JK1200
Jack,Complex LGE EAG59952301 Contact Us For Availability
JK1204
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK1205
JACK,PHONE LGE 6612F00099A Contact Us For Availability
L611
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L612
Filter,Bead LGE EAM58042501 Contact Us For Availability
L710
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L728
Filter,Bead LGE EAM38769506 Contact Us For Availability
L1002
Inductor,Multilayer,Chip LGE EAP39314714 Contact Us For Availability
L1004
Inductor,Multilayer,Chip LGE EAP39314706 Contact Us For Availability
L1010
Filter,Bead LGE EAM42641602 Contact Us For Availability
L1204
Filter,Bead LGE EAM38769501 Contact Us For Availability
LV1
Harness,Single LGE EAD60679314 Contact Us For Availability
P600
WAFER LGE 6602T25009C Contact Us For Availability
P800
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P1204
Connector,Wafer LGE EAG58732902 Contact Us For Availability
Q504
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R9
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R11
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R47
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R181
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R266
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ3902D677 Contact Us For Availability
R558
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R564
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R623
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R625
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ0222D477 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R719
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R723
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R735
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R770
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R1011
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1062
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1201
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1210
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1212
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1215
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1218
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R1224
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1234
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1245
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1273
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1299
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R2118
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2217
Resistor,Chip LGE 0RJ5111D477 Contact Us For Availability
R3007
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3008
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
SW3002
SWITCH TACT LGE 140-313B Contact Us For Availability
TU1001
Tuner,Analog/Digital LGE EBL60152902 Contact Us For Availability
VR509
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1005
Crystal LGE 6212AB2015C Contact Us For Availability
ZD500
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD1220
Diode,Zener LGE EAH37908001 Contact Us For Availability
× ![]()
Login and Registration Form
