Model LG 42LH20-UA – Common Parts & Diagrams

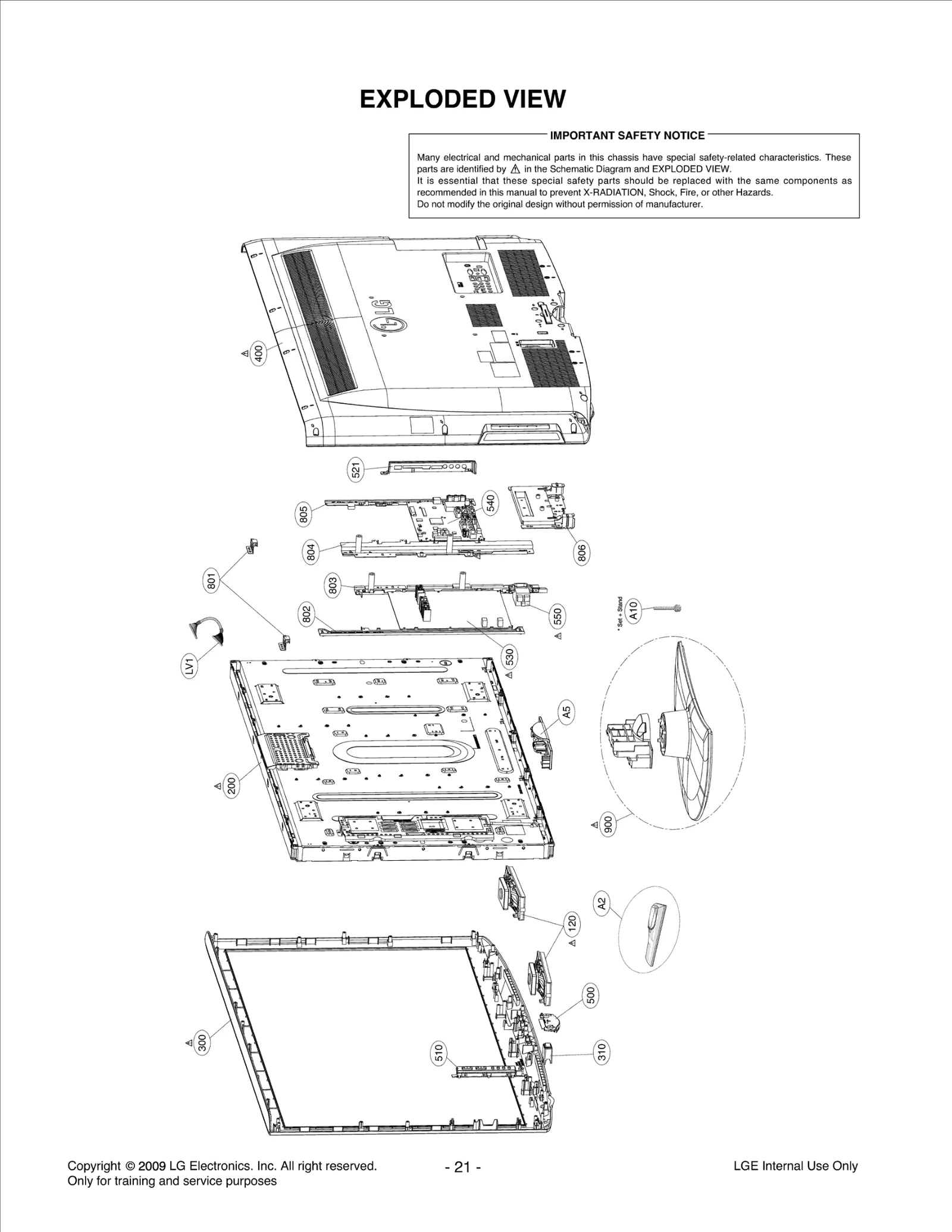

Diagram 0
Diagram 1
Common parts from model LG 42LH20-UA
120
Speaker,Full Range LGE EAB58534502 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60664501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ65528410 Contact Us For Availability
310
Bracket LGE MAZ55012403 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ65528512 Contact Us For Availability
500
PCB Assembly,Front LGE EBR59217402 Contact Us For Availability
510
PCB Assembly LGE EBR60148105 Contact Us For Availability
521
Bracket LGE MAZ57320502 Contact Us For Availability
530
Power Supply Assembly LGE EAY57681305 Contact Us For Availability
540
BPR Total Assembly LGE EBU60689103 Contact Us For Availability
550
Filter,AC Line LGE EAM60352206 Contact Us For Availability
801
Supporter LGE MJH41408308 Contact Us For Availability
802
Supporter LGE MJH55272703 Contact Us For Availability
803
Supporter LGE MJH55273001 Contact Us For Availability
804
Supporter LGE MJH55273201 Contact Us For Availability
805
Supporter LGE MJH55273301 Contact Us For Availability
806
Supporter LGE MJH55273401 Contact Us For Availability
900
Base Assembly LGE AAN67805609 Contact Us For Availability
A1
Manual,Owners LGE MFL58558501 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB69680401 Contact Us For Availability
A5
Cover LGE MCK57046202 Contact Us For Availability
AR8
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR103
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR109
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1071
Resistor,Array LGE EBC32260601 Contact Us For Availability
C101
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C129
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C146
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C161
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C600
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C606
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C617
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C619
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C722
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C726
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C748
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C786
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C800
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1006
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C1035
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1044
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1069
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1207
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1208
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C1223
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1234
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
D1220
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC1
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351601 Contact Us For Availability
IC105
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC107
IC,Reset LGE EAN60670101 Contact Us For Availability
IC701
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC705
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC1004
IC,Receiver LGE EAN58270401 Contact Us For Availability
JK501
Jack,DIN LGE 6612B00015D Contact Us For Availability
JK601
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1200
Jack,Complex LGE EAG59952301 Contact Us For Availability
JK1204
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK1205
JACK,PHONE LGE 6612F00099A Contact Us For Availability
L611
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L701
Filter,Bead LGE EAM38769506 Contact Us For Availability
L726
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1002
Inductor,Multilayer,Chip LGE EAP57674101 Contact Us For Availability
L1202
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD1000
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Harness,Single LGE EAD60690901 Contact Us For Availability
P600
WAFER LGE 6602T25009C Contact Us For Availability
P801
Connector,FFC/FPC/PIC LGE EAG60692101 Contact Us For Availability
P1204
Connector,Wafer LGE EAG58732902 Contact Us For Availability
Q701
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q1001
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R8
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R19
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R103
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R182
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R267
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R540
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R732
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R1011
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1061
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R1201
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1227
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1229
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1240
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1272
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1298
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1302
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1304
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R2109
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R2112
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R2115
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R3003
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3004
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
SW100
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW3003
SWITCH TACT LGE 140-313B Contact Us For Availability
TU1001
Tuner,Analog/Digital LGE EBL60152901 Contact Us For Availability
X1005
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
