Model LG 42LG500H – Common Parts & Diagrams

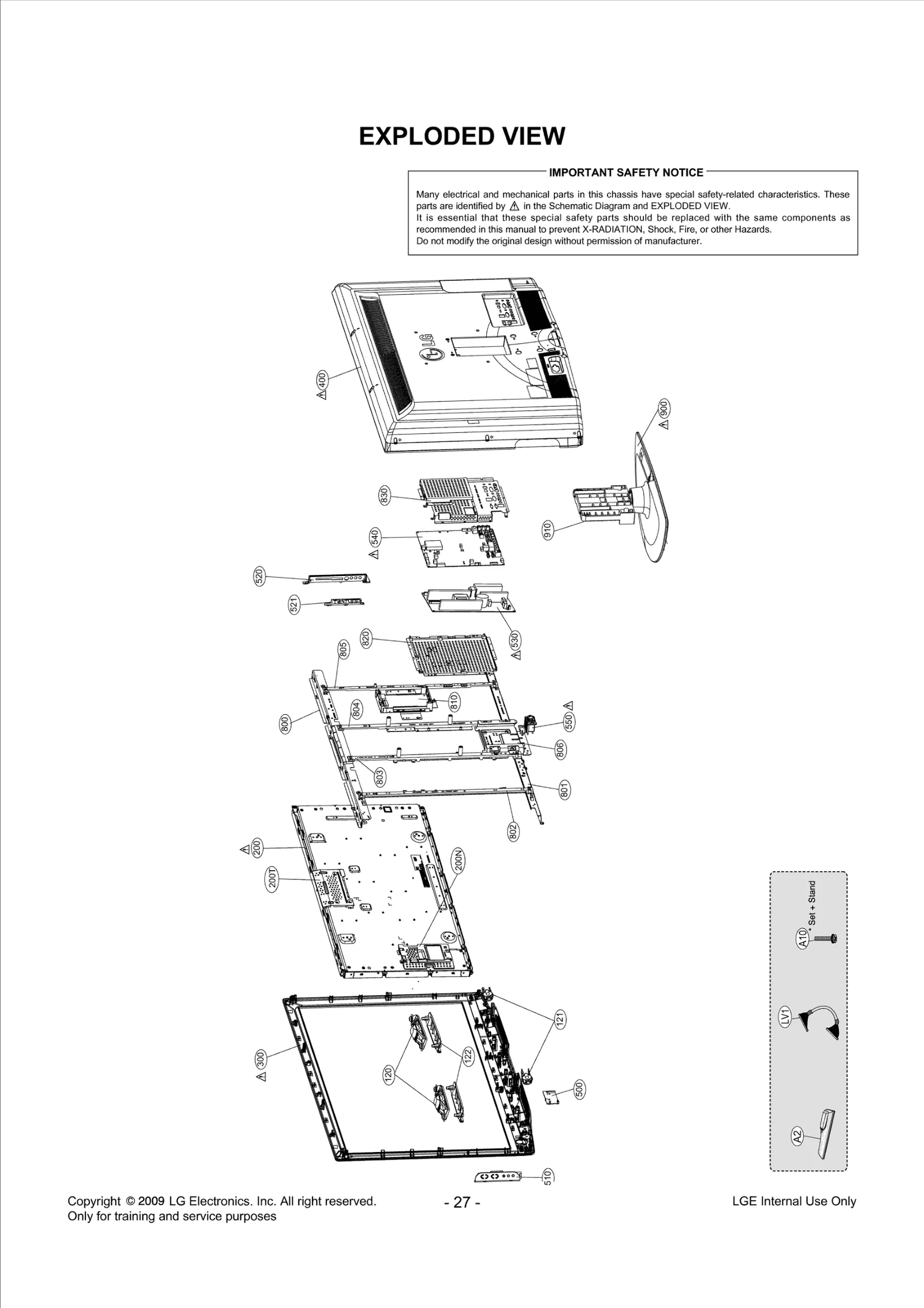

Diagram 0
Common parts from model LG 42LG500H
120
Speaker,Full Range LGE EAB41280401 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284402 Contact Us For Availability
122
Bracket Assembly LGE ABA35890405 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ57858701 Contact Us For Availability
200N
Inverter Assembly LGE EAY60700701 Contact Us For Availability
200T
Time Control LGE EAT60663001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ34779542 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ73094105 Contact Us For Availability
500
Package Assembly LGE AGF73030402 Contact Us For Availability
510
Package Assembly LGE AGF72942502 Contact Us For Availability
520
Bracket Assembly LGE ABA35157203 Contact Us For Availability
521
Plate,Shield LGE MGJ42801302 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505202 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505201 Contact Us For Availability
540
Package Assembly LGE AGF72942302 Contact Us For Availability
550
Filter,AC Line LGE EAM36140904 Contact Us For Availability
800
Supporter LGE MJH40608801 Contact Us For Availability
801
Supporter LGE MJH40609005 Contact Us For Availability
802
Plate LGE MGJ40313501 Contact Us For Availability
803
Plate LGE MGJ40313601 Contact Us For Availability
804
Plate LGE MGJ40313701 Contact Us For Availability
805
Plate,Metal LGE MGJ40340501 Contact Us For Availability
806
Plate,Metal LGE MGJ40313901 Contact Us For Availability
810
Package Assembly LGE AGF73030602 Contact Us For Availability
820
Plate LGE MGJ40620602 Contact Us For Availability
830
Plate,Shield LGE MGJ47307104 Contact Us For Availability
900
Base Assembly LGE AAN34784115 Contact Us For Availability
910
Supporter LGE MJH40310802 Contact Us For Availability
A10
Screw,Taptite LGE FAB30018303 Contact Us For Availability
LV1
Harness,Single LGE EAD43289503 Contact Us For Availability
× ![]()
