Model LG 42LG2000 – Common Parts & Diagrams
Diagram 0

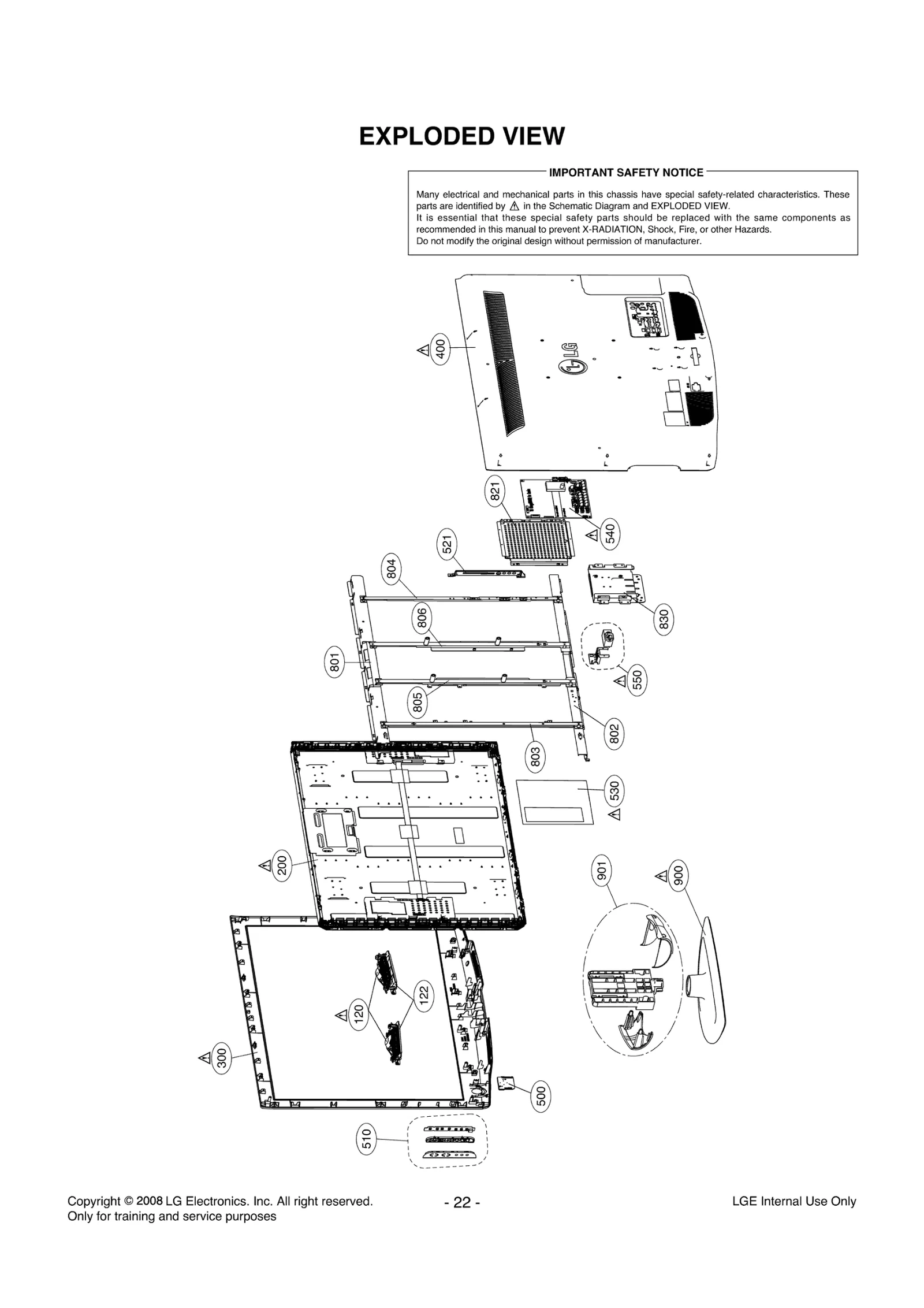

Diagram 1
Common parts from model LG 42LG2000
120
Speaker,Full Range LGE EAB42609901 Contact Us For Availability
122
Bracket Assembly LGE ABA35890404 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ57858701 Contact Us For Availability
200N
Inverter Assembly LGE EAY60700701 Contact Us For Availability
200T
Time Control LGE EAT60663001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35730701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35730820 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR49001101 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR43932007 Contact Us For Availability
521
Bracket Assembly LGE ABA35569920 Contact Us For Availability
530
Package Assembly LGE AGF34784004 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505202 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505201 Contact Us For Availability
540
Main Total Assembly LGE EBU54743202 Contact Us For Availability
550
Chassis Assembly LGE EBT42906301 Contact Us For Availability
801
Supporter LGE MJH40608801 Contact Us For Availability
802
Supporter LGE MJH40609005 Contact Us For Availability
803
Plate LGE MGJ40313501 Contact Us For Availability
804
Plate,Metal LGE MGJ40340501 Contact Us For Availability
805
Plate LGE MGJ40313601 Contact Us For Availability
806
Plate LGE MGJ40313701 Contact Us For Availability
821
Plate LGE MGJ40315501 Contact Us For Availability
830
Plate,Metal LGE MGJ40313901 Contact Us For Availability
900
Base Assembly LGE AAN34784102 Contact Us For Availability
901
Supporter LGE MJH55509601 Contact Us For Availability
A1
Manual,Owners LGE MFL34441635 Contact Us For Availability
A2
Remote Controller LGE MKJ40653802 Contact Us For Availability
A3
Power Cord LGE EAD36223101 Contact Us For Availability
A3
Power Cord LGE EAD36223201 Contact Us For Availability
A4
Title LGE SAC30033628 Contact Us For Availability
A5
Cover LGE MCK40307701 Contact Us For Availability
A6
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A8
Screw,Tapping LGE FAB30021301 Contact Us For Availability
A9
Screw,Taptite LGE FAB30018303 Contact Us For Availability
AR311
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C110
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C112
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C125
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C138
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C139
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C141
Capacitor,Ceramic,Chip LGE 0CH3224K946 Contact Us For Availability
C157
Capacitor,Ceramic,Ch LGE 0CK563CK56A Contact Us For Availability
C312
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C412
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C519
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C602
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C634
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C635
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C720
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C741
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C911
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1014
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1022
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C1057
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C1100
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C1104
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C1112
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C1115
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1117
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C1133
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C1138
Capacitor,AL,Chip LGE 0CE337WF6DC Contact Us For Availability
C1154
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C1157
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C1186
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
D709
Diode,TVS LGE EAH33945901 Contact Us For Availability
D905
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1006
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
IC100
REMOTE CONTROLLER RE LGE 6712SCA232A Contact Us For Availability
IC100
IC,Video Processors LGE EAN43340101 Contact Us For Availability
IC104
IC,Voltage Detector LGE 0IMCRKE004A Contact Us For Availability
IC301
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC800
IC,CMOS LGE 0ISTLPH003B Contact Us For Availability
IC801
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC802
IC,CMOS LGE EAN40055001 Contact Us For Availability
IC900
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC902
IC,Analog Switch LGE EAN41347201 Contact Us For Availability
IC1000
IC,Audio Amplifier LGE EAN41584001 Contact Us For Availability
IC1001
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC1100
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC1102
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC1103
IC,LDO Voltage Regulator LGE EAN39682501 Contact Us For Availability
IC1107
IC,LDO Voltage Regulator LGE EAN39681901 Contact Us For Availability
IC1108
IC,LDO Voltage Regulator LGE EAN38066801 Contact Us For Availability
JK601
Jack,Scart LGE 6612M00010A Contact Us For Availability
JK702
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK703
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK900
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK900
Jack,DIN LGE EAG39789401 Contact Us For Availability
JK1000
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
L100
Filter,Bead LGE EAM38769505 Contact Us For Availability
L501
Inductor,Wire Wound,Chip LGE 0LCTA00003A Contact Us For Availability
L602
Filter,Bead LGE EAM38769501 Contact Us For Availability
L1014
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1105
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L1130
Filter,Bead LGE EAM30764101 Contact Us For Availability
LD100
LED,Chip LGE EAV44273501 Contact Us For Availability
LV1
Harness,Single LGE EAD43289501 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P101
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P404
Connector,Wafer LGE 6602T12004G Contact Us For Availability
P406
Connector,Wafer LGE EAG39798202 Contact Us For Availability
P800
Socket,PCI LGE EAG41860103 Contact Us For Availability
P1001
WAFER LGE 6602T25009C Contact Us For Availability
P1101
Connector,Wafer LGE EAG39798201 Contact Us For Availability
Q101
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
Q801
FET LGE EBK38029201 Contact Us For Availability
Q900
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1101
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R103
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R104
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R156
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R183
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R187
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R189
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R213
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R261
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R294
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R300
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R309
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R434
Resistor,Chip LGE 0RH1301D622 Contact Us For Availability
R519
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R556
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R560
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R564
RESISTOR,METAL GLAZE LGE 0RJ5603D677 Contact Us For Availability
R568
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R607
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R609
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R612
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R626
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R641
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R645
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R646
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R651
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R662
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R669
Resistor,Chip LGE 0RJ2402D677 Contact Us For Availability
R718
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R741
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R900
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R925
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R935
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R939
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R1016
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R1020
Resistor,Chip LGE 0RJ6803D677 Contact Us For Availability
R1031
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1115
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R1252
Resistor,Chip LGE 0RJ0222D477 Contact Us For Availability
S1
Harness,Single LGE EAD35788001 Contact Us For Availability
S2
Harness,Single LGE EAD39295739 Contact Us For Availability
S3
Harness,Single LGE EAD52821202 Contact Us For Availability
S4
Supporter Assembly LGE AJJ69527803 Contact Us For Availability
S5
Harness,Single LGE EAD42065904 Contact Us For Availability
S6
Harness,Single LGE 6631900049N Contact Us For Availability
SW100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW100
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW104
SWITCH TACT LGE 140-313B Contact Us For Availability
TU500
Tuner,Analog/Digital LGE EBL42367001 Contact Us For Availability
ZD406
Diode,TVS LGE EAH39491701 Contact Us For Availability
× ![]()
Login and Registration Form
