Model LG 42LE5350 – Common Parts & Diagrams
Diagram 0

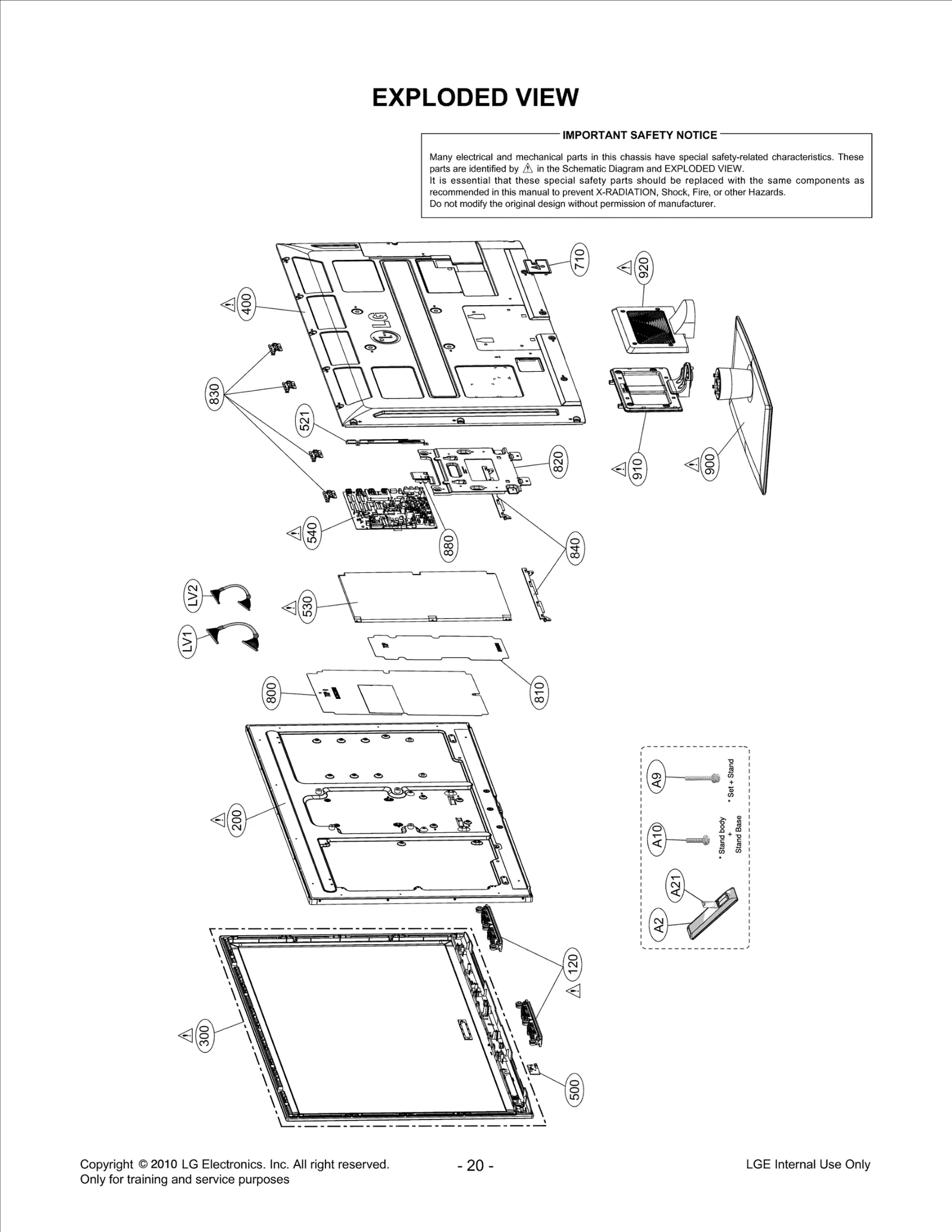

Diagram 1
Common parts from model LG 42LE5350
120
Speaker,Full Range LGE EAB60961501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60871201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72967445 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75452144 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64966201 Contact Us For Availability
521
Plate,Metal LGE MGJ62006009 Contact Us For Availability
530
SMPS,AC/DC LGE EAY60803101 Contact Us For Availability
540
BPR Total Assembly LGE EBU60934504 Contact Us For Availability
800
Plate Assembly LGE AGU72968602 Contact Us For Availability
810
Decor LGE MCR62199804 Contact Us For Availability
820
Supporter LGE MJH61880908 Contact Us For Availability
830
Supporter LGE MJH61881002 Contact Us For Availability
840
Supporter LGE MJH61890701 Contact Us For Availability
900
Base Assembly LGE AAN72950007 Contact Us For Availability
910
Supporter LGE MJH61884702 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72914207 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976101 Contact Us For Availability
AR614
Resistor,Array LGE EBC37094001 Contact Us For Availability
AR8908
Resistor,Array LGE EBC32260404 Contact Us For Availability
C116
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C172
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C178
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C308
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C309
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C316
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C629
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C673
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C717
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C720
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C954
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C963
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C967
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C1007
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1008
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1064
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1077
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C7402
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C7409
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C8002
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C8013
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C8039
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C8200
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C8217
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C8405
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C8821
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C8834
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C8837
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C8931
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C8936
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C8937
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C9100
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C9101
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C9107
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C9114
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C9141
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C9153
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
CA1
Harness,Single LGE EAD61052402 Contact Us For Availability
CA9
Harness,Single LGE EAD60676308 Contact Us For Availability
CA10
Harness,Single LGE EAD60958520 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077701 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61077702 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273102 Contact Us For Availability
D116
Diode,TVS LGE EAH60667401 Contact Us For Availability
D8203
Diode,TVS LGE EAH33945901 Contact Us For Availability
D8606
Diode,TVS LGE EAH39491701 Contact Us For Availability
D9102
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D9106
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D9107
Diode,Switching LGE 0DSON00218A Contact Us For Availability
GAS6
Gasket LGE MDS62110204 Contact Us For Availability
IC300
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC302
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC601
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC605
IC,DDR2 SDRAM LGE EAN61129701 Contact Us For Availability
IC700
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC900
Display SOC,Digital TV LGE EAN60345904 Contact Us For Availability
IC8000
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC8001
IC,DC,DC Converter LGE EAN60911601 Contact Us For Availability
IC8002
IC,DC,DC Converter LGE EAN60991601 Contact Us For Availability
IC8004
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC8005
IC,DC,DC Converter LGE EAN60660601 Contact Us For Availability
IC8007
IC,Reset LGE EAN60670101 Contact Us For Availability
IC8100
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC8101
IC,Microcontrollers LGE EAN59750501 Contact Us For Availability
IC8300
IC,Analog Switch LGE EAN60992401 Contact Us For Availability
IC8800
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC8801
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC8801
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC8900
IC,DDR3 SDRAM LGE EAN60774101 Contact Us For Availability
IC8900
IC,DDR3 SDRAM LGE EAN60968001 Contact Us For Availability
IC9000
IC,Serial Flash Memory LGE EAN61009401 Contact Us For Availability
IC9001
IC,Video Processors LGE EAN60659103 Contact Us For Availability
JK100
Jack,RCA LGE EAG61007801 Contact Us For Availability
JK300
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK8200
Jack,Modular LGE EAG35781003 Contact Us For Availability
JK8201
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK8302
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK8303
Jack,DIN LGE EAG42025501 Contact Us For Availability
JK8400
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK8402
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK8601
Jack,Phone LGE EAG61030002 Contact Us For Availability
L302
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L303
Filter,Bead LGE EAM38769501 Contact Us For Availability
L600
Filter,Bead LGE EAM42641612 Contact Us For Availability
L1009
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L8015
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L8803
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L9004
Filter,Bead LGE EAM58113401 Contact Us For Availability
L9100
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
LV1
Cable,FFC LGE EAD60974181 Contact Us For Availability
LV1
Cable,FFC LGE EAD60974141 Contact Us For Availability
LV2
Cable,FFC LGE EAD60974140 Contact Us For Availability
LV2
Cable,FFC LGE EAD60974180 Contact Us For Availability
P1000
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P7401
Connector,FFC/FPC/PIC LGE EAG61008601 Contact Us For Availability
P8100
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P8200
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P8800
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P9000
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
Q200
FET LGE EBK60752601 Contact Us For Availability
Q8200
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R123
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R125
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R400
RESISTOR,METAL GLAZE LGE 0RJ0822D477 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ0822C478 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R657
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R659
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R911
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R927
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R928
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R930
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R934
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R981
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R992
Resistor,Chip LGE EBC35172101 Contact Us For Availability
R998
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1001
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1003
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R1010
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R8011
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R8016
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R8040
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R8046
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R8048
Resistor,Chip LGE 0RJ9103C478 Contact Us For Availability
R8053
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R8056
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R8061
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R8062
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R8071
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R8072
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R8106
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R8409
Filter,Bead LGE EAM38769502 Contact Us For Availability
R8601
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R8819
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R8919
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R8921
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R8925
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R8926
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R8929
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R8930
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R8931
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R8933
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R8934
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R9027
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R9029
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R9100
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R9109
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R9112
Resistor,Chip LGE 0RJ0102E472 Contact Us For Availability
R9119
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R9120
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R9131
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R9144
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R9145
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R9157
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R9163
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R9166
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R9169
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R9170
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R9172
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R9193
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
SW8100
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH9100
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
TU700
Tuner,Analog/Digital LGE EBL60720402 Contact Us For Availability
X1001
Crystal LGE 6212AA2600E Contact Us For Availability
X8101
Crystal LGE EAW58239602 Contact Us For Availability
X9000
Crystal LGE EAW42540303 Contact Us For Availability
adh
Adhesive LGE 7254000057B Contact Us For Availability
× ![]()
Login and Registration Form
