Model LG 42LE530C – Common Parts & Diagrams

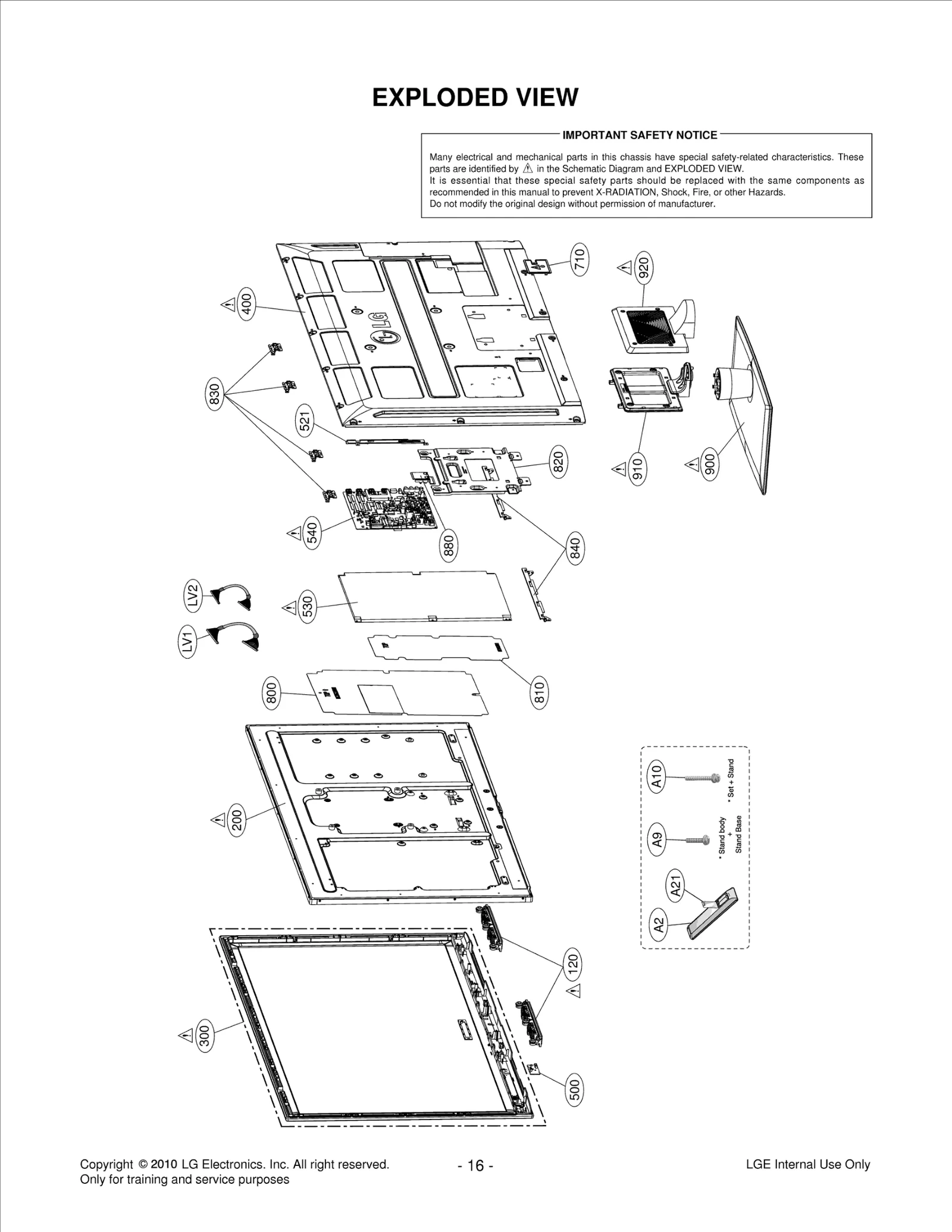

Diagram 0
Diagram 1
Common parts from model LG 42LE530C
120
Speaker,Full Range LGE EAB60961501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60871201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72967446 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ75452154 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR64966201 Contact Us For Availability
530
SMPS,AC/DC LGE EAY60803101 Contact Us For Availability
540
PCB Assembly LGE EBR72538301 Contact Us For Availability
800
Plate Assembly LGE AGU72968602 Contact Us For Availability
810
LGE MGJ62909103 LGE MGJ62909103 Contact Us For Availability
820
Supporter LGE MJH61880908 Contact Us For Availability
830
Supporter LGE MJH61881002 Contact Us For Availability
840
Supporter LGE MJH61890701 Contact Us For Availability
880
Bracket LGE MAZ61991610 Contact Us For Availability
900
Base Assembly LGE AAN72950007 Contact Us For Availability
910
Supporter LGE MJH61884702 Contact Us For Availability
A1
Manual,Owners LGE MFL62194608 Contact Us For Availability
A1
Manual,Owners LGE MFL62882730 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1219
Resistor,Array LGE EBC32260404 Contact Us For Availability
C230
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C268
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C401
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C458
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C465
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C469
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C611
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C621
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C633
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C638
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C641
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C654
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C703
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C704
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C711
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1101
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C1102
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1225
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C4059
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C4065
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C5013
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C5019
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C5031
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
CA8
Harness,Single LGE EAD60676316 Contact Us For Availability
CA10
Harness,Single LGE EAD60958539 Contact Us For Availability
CA11
Harness,Single LGE EAD61052401 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077701 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273102 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61077702 Contact Us For Availability
D603
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D605
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D609
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D825
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1107
Diode,TVS LGE EAH33945901 Contact Us For Availability
D9902
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60762401 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669102 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC301
IC,DDR3 SDRAM LGE EAN60968001 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC409
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC600
IC,DC,DC Converter LGE EAN60985901 Contact Us For Availability
IC601
IC,PMIC LGE EAN60985801 Contact Us For Availability
IC603
IC,PMIC LGE EAN60924401 Contact Us For Availability
IC801
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1001
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN59750501 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC5001
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK3301
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK9902
Jack,Phone LGE EAG61030002 Contact Us For Availability
L203
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L413
Filter,Bead LGE EAM58113401 Contact Us For Availability
L423
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L600
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
L1201
Filter,Bead LGE EAM32500903 Contact Us For Availability
LV1
Cable,FFC LGE EAD60974196 Contact Us For Availability
LV2
Cable,FFC LGE EAD60974197 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P702
Connector,FFC/FPC/PIC LGE EAG61008601 Contact Us For Availability
Q408
FET LGE EBK60752601 Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q804
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q806
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1102
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R117
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R258
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R403
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R448
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R467
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R607
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ5103C478 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R612
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ0102E472 Contact Us For Availability
R619
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R630
Resistor,Chip LGE EBC32271301 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R637
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R644
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R647
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R656
Resistor,Chip LGE 0RJ3600D477 Contact Us For Availability
R658
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R854
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R859
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R887
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1072
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1089
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1226
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1451
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2433
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R5016
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R5020
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R9809
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R9818
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R9901
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R9910
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
SW1001
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH700
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
X1002
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
Login and Registration Form
