Model LG 42LD340H – Common Parts & Diagrams

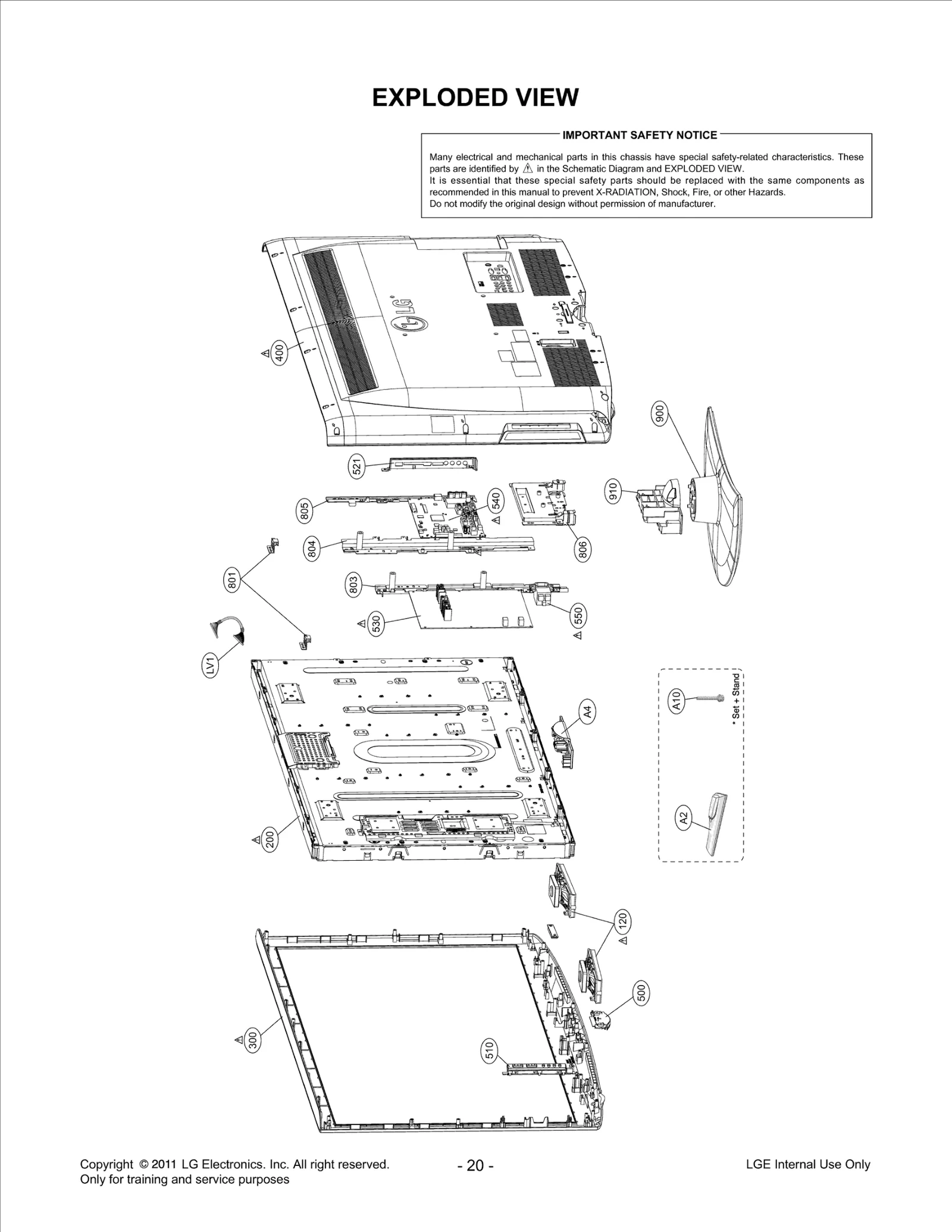

Diagram 0
Diagram 1
Common parts from model LG 42LD340H
120
Speaker,Full Range LGE EAB58534502 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61750401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ65528410 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ77091633 Contact Us For Availability
500
Package Assembly LGE AGF73983704 Contact Us For Availability
510
Package Assembly LGE AGF73983608 Contact Us For Availability
521
Bracket Assembly LGE ABA73131909 Contact Us For Availability
530
SMPS,AC/DC LGE EAY61209501 Contact Us For Availability
540
BPR Total Assembly LGE EBU61490102 Contact Us For Availability
801
Supporter LGE MJH41408301 Contact Us For Availability
803
Supporter LGE MJH55273001 Contact Us For Availability
806
Supporter LGE MJH55273401 Contact Us For Availability
900
Base Assembly LGE AAN73211204 Contact Us For Availability
910
Bracket Assembly LGE ABA73831202 Contact Us For Availability
A1
Manual,Owners LGE MFL62194612 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915231 Contact Us For Availability
A3
Power Cord LGE 6410VUH005F Contact Us For Availability
A4
Cover LGE MCK57046202 Contact Us For Availability
A13
Plate LGE 49509K0178G Contact Us For Availability
A14
Plate LGE 49509K0179E Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1216
Resistor,Array LGE EBC32260404 Contact Us For Availability
C216
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C218
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C236
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C460
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C467
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C531
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C1004
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1006
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1011
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1127
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1131
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C1135
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1233
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1246
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1412
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C1481
CAPACITOR,FIXED ELEC LGE 0CE476VH6DC Contact Us For Availability
C1482
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C1483
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1510
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1601
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C1618
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C1620
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1625
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1626
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C2001
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C2002
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C2189
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2255
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C5020
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C6004
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
CA2
Harness,Single LGE EAD35983005 Contact Us For Availability
CA3
Harness,Single LGE EAD39295756 Contact Us For Availability
CA4
Harness,Single LGE EAD60676304 Contact Us For Availability
CA11
Harness,Single LGE EAD35908414 Contact Us For Availability
CA12
CONNECTOR ASSEMBLY LGE 6631T20020Q Contact Us For Availability
D802
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1007
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D1501
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1602
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60660501 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC1209
DTV A/V SoC 1 LGE EAN38068401 Contact Us For Availability
IC1600
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC1601
IC,DC,DC Converter LGE EAN60660801 Contact Us For Availability
IC1607
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC1608
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
IC2000
Receiver Module LGE EAV59155102 Contact Us For Availability
JK501
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1401
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK6000
Jack,Modular LGE 6612E00043A Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L420
Filter,Bead LGE EAM58113401 Contact Us For Availability
L422
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1231
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1601
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L2000
Filter,Bead LGE EAM38769505 Contact Us For Availability
L6103
Filter,Bead LGE EAM38769501 Contact Us For Availability
LD501
LED LGE 0DL233309AC Contact Us For Availability
LD503
LED,Chip LGE 0DL210009GC Contact Us For Availability
LED2000
LED,Chip LGE EAV44273501 Contact Us For Availability
LV1
Cable,FFC LGE EAD61807808 Contact Us For Availability
P502
WAFER LGE 6602T25009C Contact Us For Availability
P700
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P1000
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P1103
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P1200
Connector,BtoB LGE EAG61233701 Contact Us For Availability
P2003
Connector,Wafer LGE EAG58732902 Contact Us For Availability
Q407
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1115
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1603
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1612
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q2000
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R112
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R257
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R292
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R461
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R492
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1203
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1302
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1432
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1473
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R1488
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R1601
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1609
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R1612
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R1617
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1620
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1629
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1707
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R1726
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1739
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1740
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R2002
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R3005
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R3006
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R3008
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R3118
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R5018
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R5033
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R6008
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R6010
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
SW3009
SWITCH TACT LGE 140-313B Contact Us For Availability
TU5001
Tuner,Analog/Digital LGE EBL60720402 Contact Us For Availability
WDS
Solder Soldering LGE RAC31704101 Contact Us For Availability
X1600
Crystal LGE EAW30067102 Contact Us For Availability
ZD6009
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
