Model LG 42CS570 – Common Parts & Diagrams

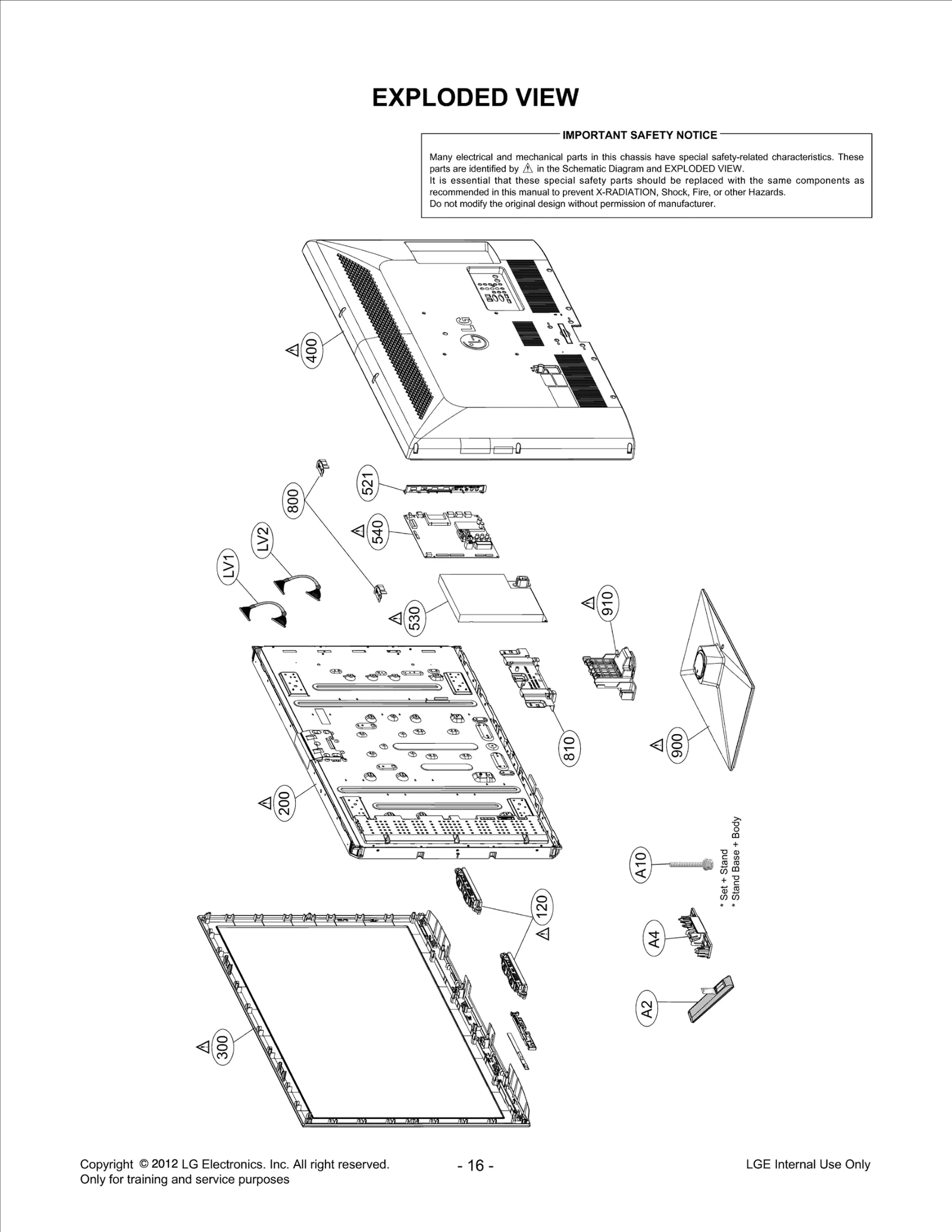

Diagram 0
Diagram 1
Common parts from model LG 42CS570
120
Speaker,Full Range LGE EAB60961401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61751001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73328252 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ84672519 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671301 Contact Us For Availability
530
Power Supply Assembly LGE EAY60869407 Contact Us For Availability
530
Power Supply Assembly LGE EAY62770801 Contact Us For Availability
540
BPR Total Assembly LGE EBU61748403 Contact Us For Availability
810
Supporter LGE MJH61879501 Contact Us For Availability
A1
Manual,Owners LGE MFL67468141 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976101 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1208
Resistor,Array LGE EBC39283301 Contact Us For Availability
C226
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C242
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C268
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C464
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C531
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C536
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C805
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1009
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C1101
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1118
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1451
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C1612
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1643
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3707
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C3711
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4061
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA12
Harness,Single LGE EAD60673306 Contact Us For Availability
CA12
Harness,Single LGE EAD35908416 Contact Us For Availability
CA13
Harness,Single LGE EAD57675126 Contact Us For Availability
CA14
Harness,Single LGE EAD60958508 Contact Us For Availability
D825
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D903
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1609
Diode,TVS LGE EAH39491701 Contact Us For Availability
GAS4
Gasket LGE MDS62110209 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61832801 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669102 Contact Us For Availability
IC103
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC103
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC104
IC,EEPROM LGE EAN61086701 Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC406
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC407
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC411
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC1001
IC,EEPROM LGE EAN61146201 Contact Us For Availability
IC1001
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC1002
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1105
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC1105
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC1105
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61857201 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3703
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1101
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1102
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1601
Jack,RCA LGE EAG60841301 Contact Us For Availability
JK1603
Jack,RCA LGE EAG60968201 Contact Us For Availability
JK3301
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK9903
Jack,RCA LGE EAG61007601 Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L205
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L407
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L416
Filter,Bead LGE EAM58113401 Contact Us For Availability
L421
Inductor,Wire Wound,Chip LGE EAP61206101 Contact Us For Availability
L421
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L507
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD61668628 Contact Us For Availability
LV2
Cable,FFC LGE EAD61652510 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P704
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P2402
Connector,Wafer LGE 6630V90141D Contact Us For Availability
Q402
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q405
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q408
FET LGE EBK60752601 Contact Us For Availability
Q409
FET LGE EBK61011501 Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
Q806
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1104
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q3703
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R304
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R405
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R416
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R460
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R465
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R488
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R854
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R882
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R891
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1015
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1074
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1129
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1212
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1213
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1672
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2413
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3751
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R3768
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R9907
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
X1002
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
