Model Kenmore 41792052101 DRYER – Common Parts & Diagrams

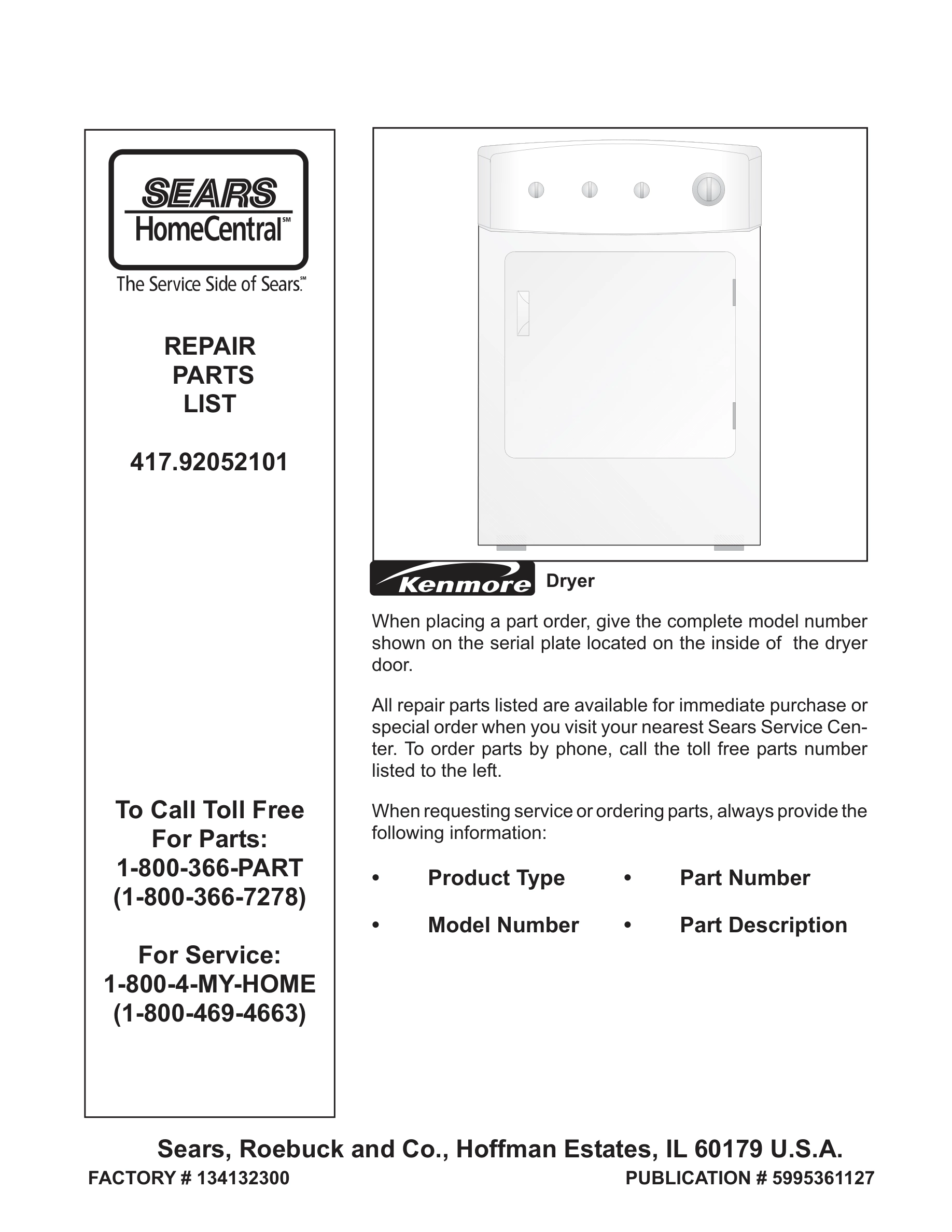

01 - COVER

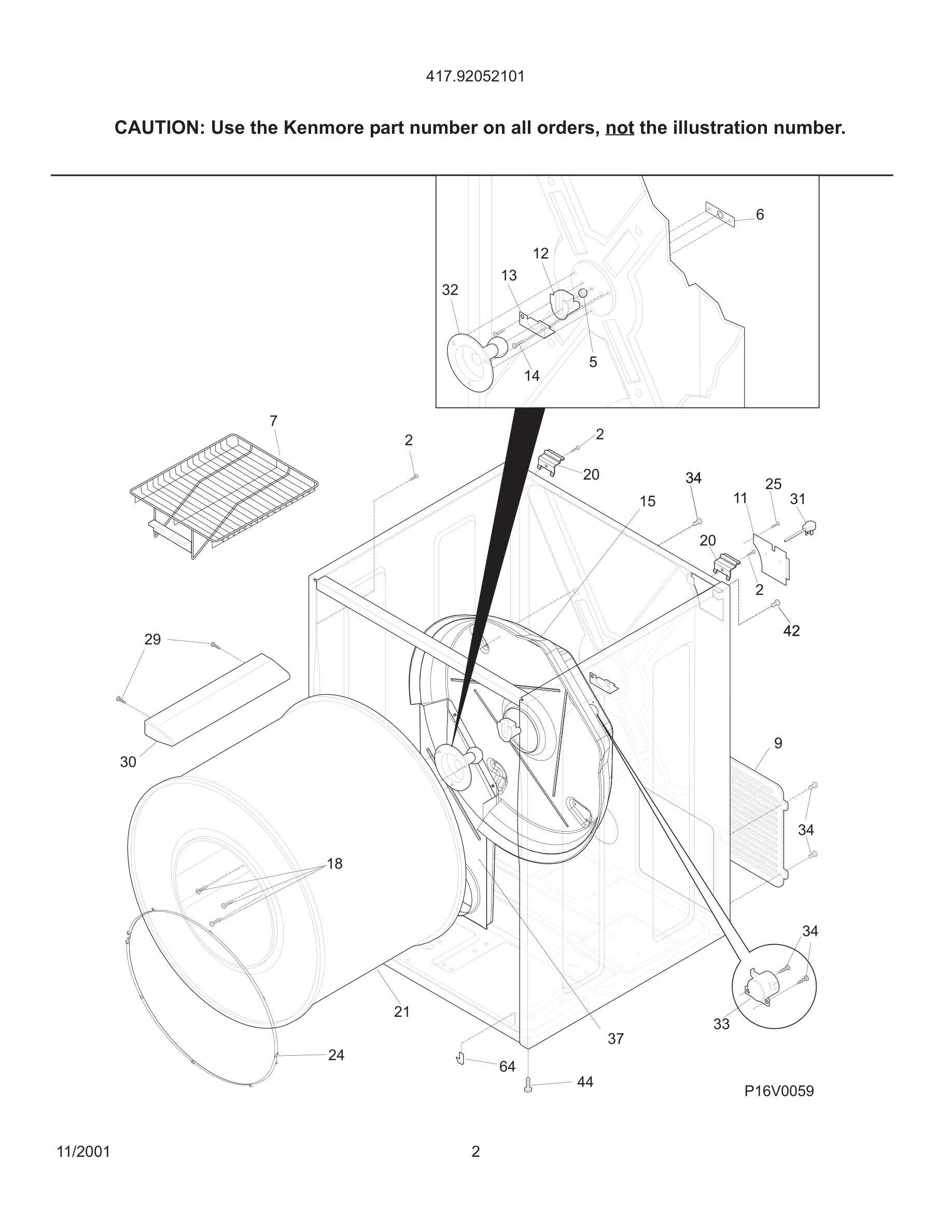

03 - DIAGRAM 3
05 - DIAGRAM 5
07 - DIAGRAM 7
09 - DIAGRAM 9
11 - DIAGRAM 11
Common parts from model Kenmore 41792052101 DRYER
*
Tube Assy, exhaust WCI 131456800 Contact Us For Availability
*
Insulation WCI 131474700 Contact Us For Availability
1#
Timer-dryer J-elec/gas MS WCI 131965900 Contact Us For Availability
5
Closure-front-wht "Z" cons WCI 134019900 Contact Us For Availability
7
Tube-exhaust WCI 131451600 Contact Us For Availability
8#
Sensor-moisture, assy w/harness WCI 131845800 Contact Us For Availability
16
Clip-wiring WCI 131063700 Contact Us For Availability
20
Bracket-hinge WCI 131469100 Contact Us For Availability
21
Knob-timer-wht/gray ind-Sears WCI 131788700 Contact Us For Availability
27
Clip-control panel WCI 131197000 Contact Us For Availability
27
Clamp-motor WCI 131419800 Contact Us For Availability
28
Clip-guide (3) WCI 5303281074 Contact Us For Availability
28#
Motor-main, w/pulley WCI 131560100 No Longer Available
30
Vane, straight, gray WCI 5304405283 Contact Us For Availability
38#
Buzzer-adjustable WCI 134087000 Contact Us For Availability
47
Seal-exhaust tube WCI 131633300 Contact Us For Availability
47
Panel-inner door, white WCI 131844104 Contact Us For Availability
48
Door-outer, white WCI 131789303 Contact Us For Availability
55#
Harness-gas valve WCI 131827100 Contact Us For Availability
61
Bracket-burner WCI 131418701 Contact Us For Availability
64
Clip WCI 131704600 Contact Us For Availability
64
Pipe WCI 5303286873 Contact Us For Availability
66
Elbow-coupler WCI 131512000 Contact Us For Availability
68
Tail piece, brass WCI 5362791200 Contact Us For Availability
69
Nut-union, hex WCI 08015194 Contact Us For Availability
77#
Assy-burner WCI 131762900 Contact Us For Availability
80#
Asmy-burner tube/sensor WCI 131904600 Contact Us For Availability
× ![]()
