Model Kenmore 41782052100 DRYER – Common Parts & Diagrams

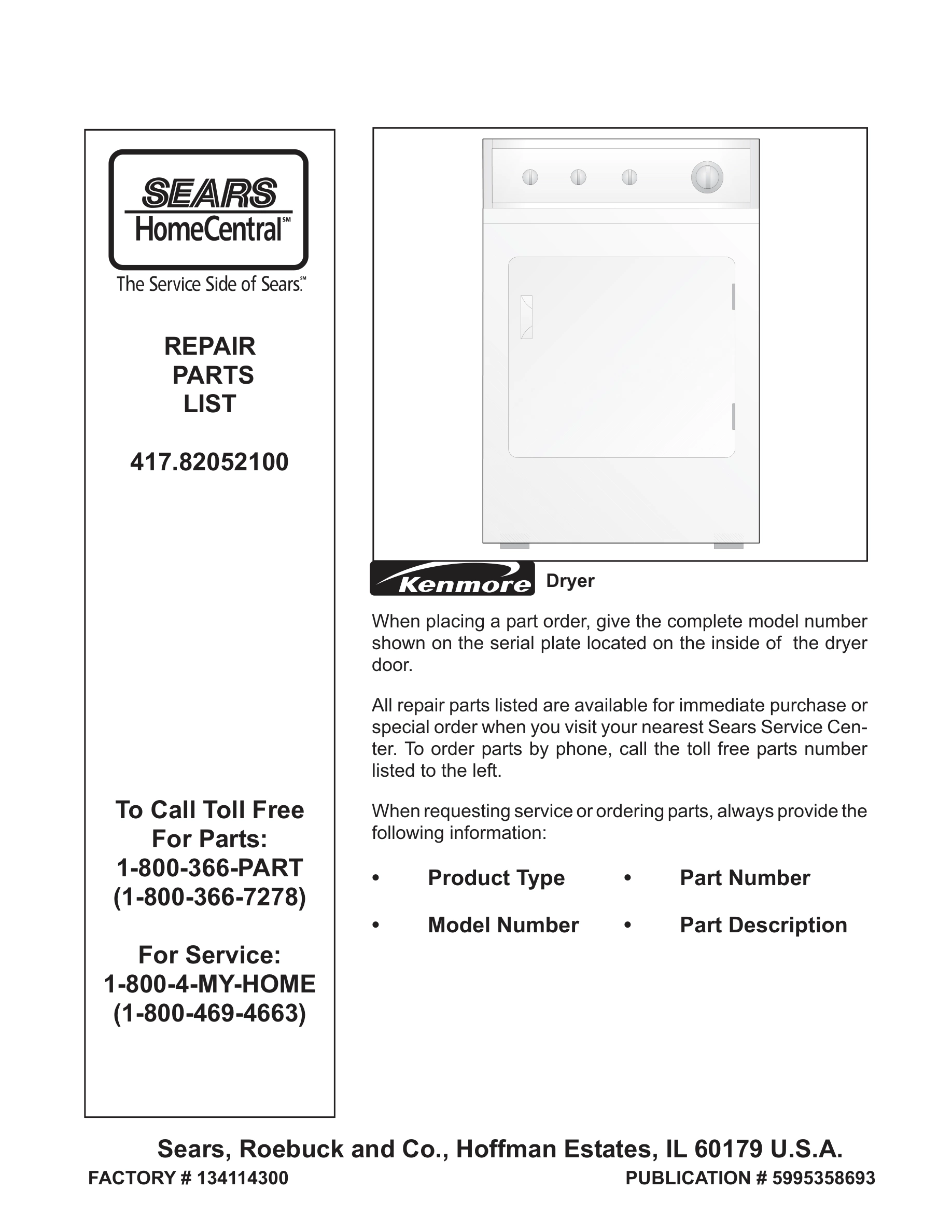

01 - COVER

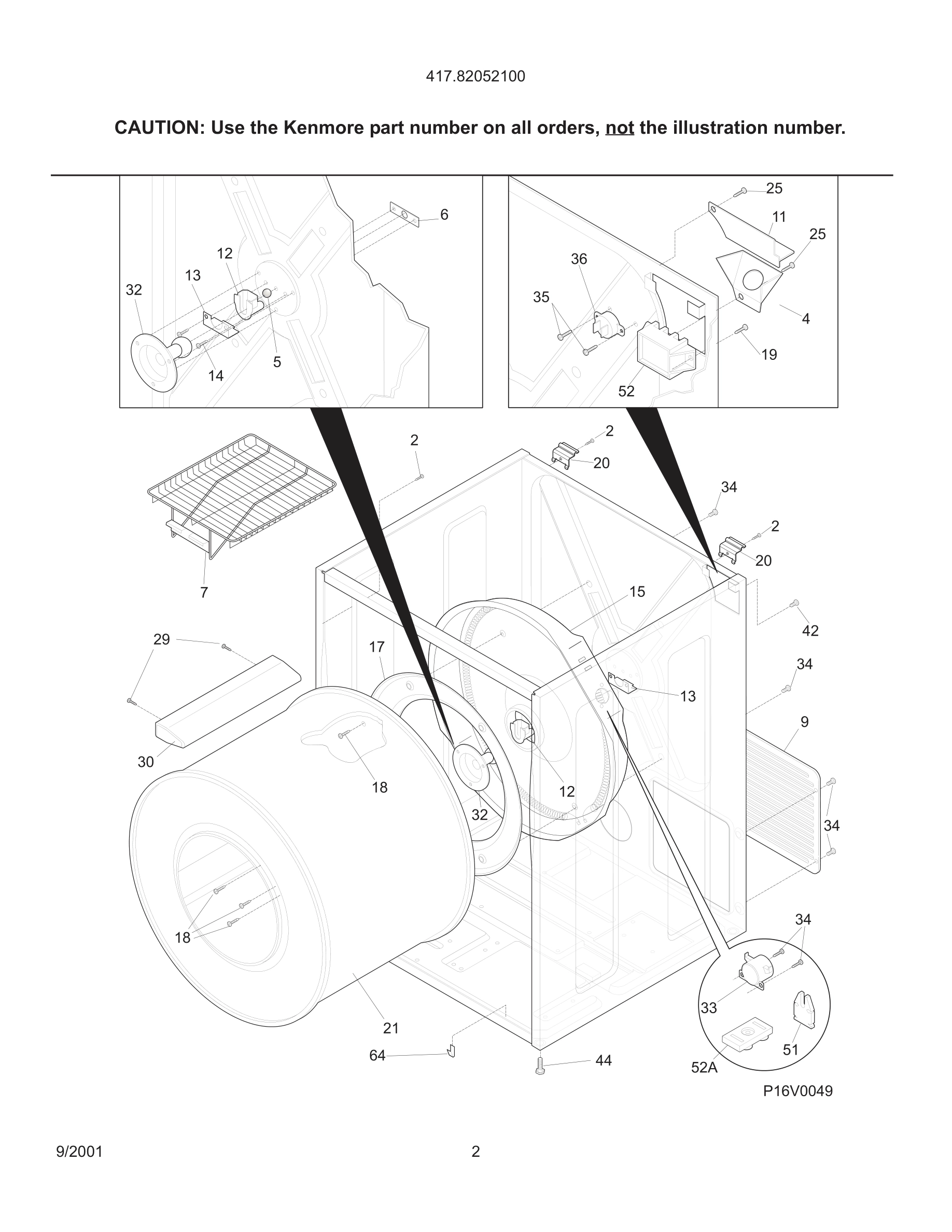

03 - DIAGRAM 3

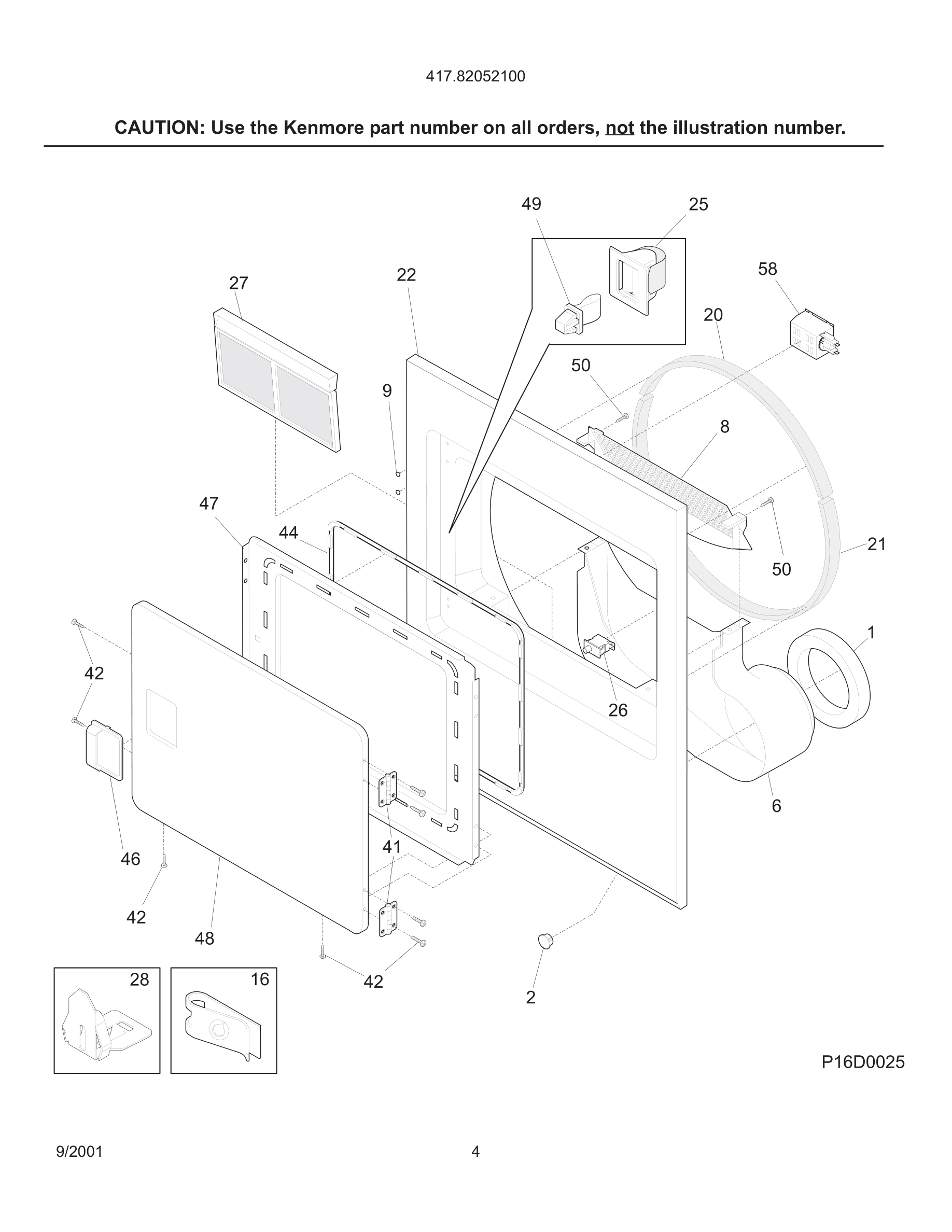

05 - DIAGRAM 5

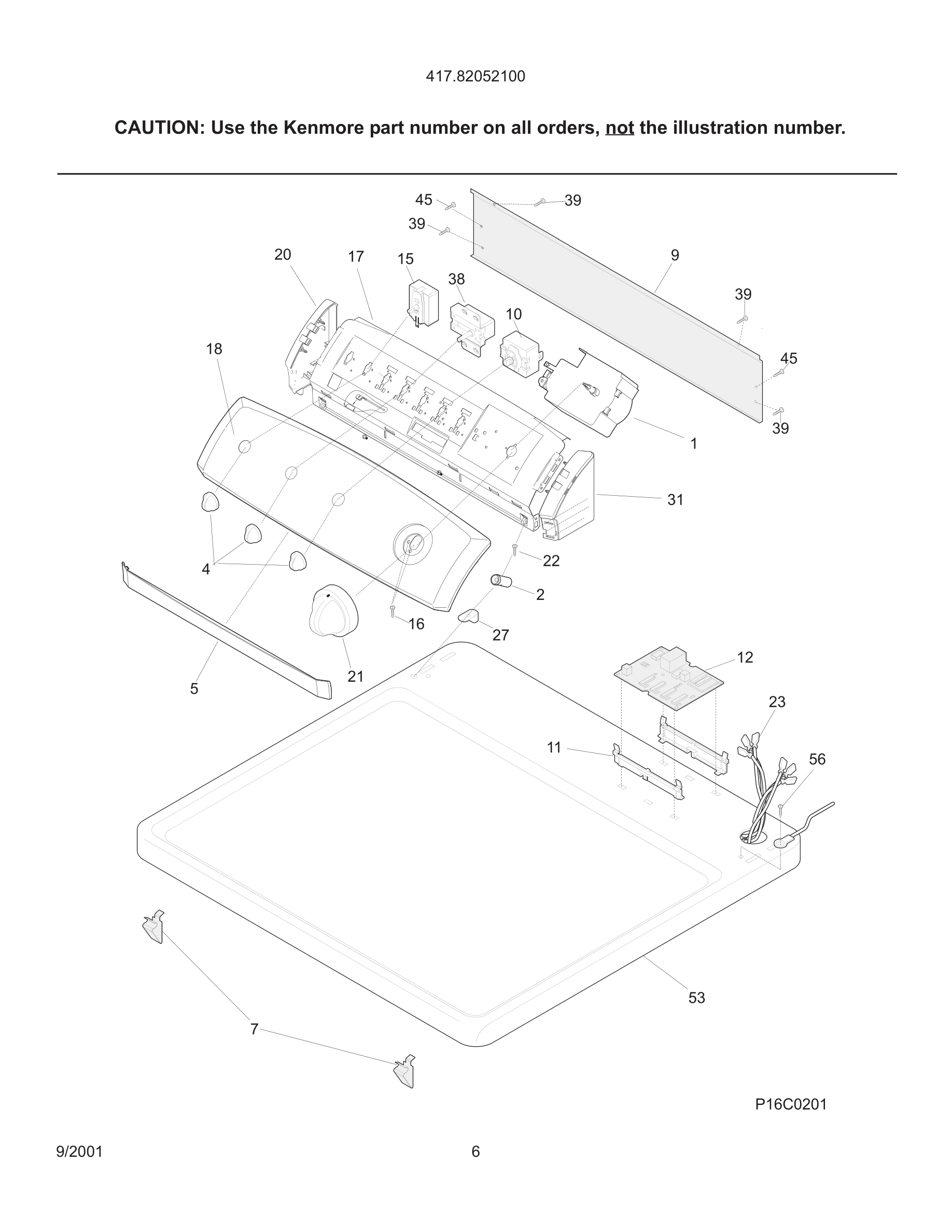

07 - DIAGRAM 7

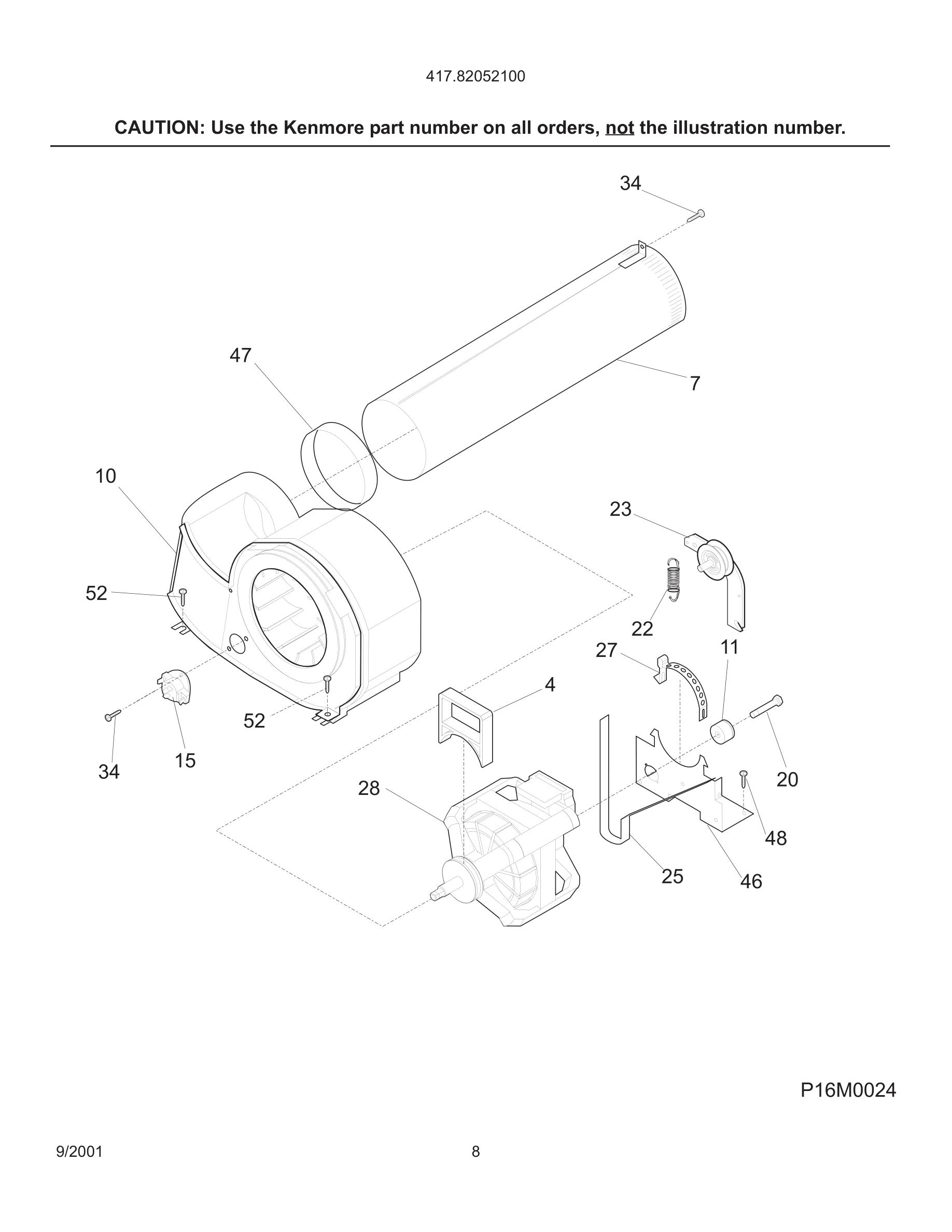

09 - DIAGRAM 9
Common parts from model Kenmore 41782052100 DRYER
*
Screw-term blk (3) WCI 5303208586 No Longer Available
*
Tube Assy, exhaust WCI 131456800 Contact Us For Availability
*
Insulation WCI 131474700 Contact Us For Availability
1
Timer-dryer J-elec/gas MS WCI 131965900 Contact Us For Availability
4
Bracket-cord WCI 131785200 Contact Us For Availability
5
Closure-front-wht"Z"cons WCI 134019900 Contact Us For Availability
7
Tube-exhaust WCI 131451600 Contact Us For Availability
8
Sensor-moisture, assy w/harness WCI 131845800 Contact Us For Availability
11
Cover-term block WCI 5303211428 No Longer Available
16
Clip-wiring WCI 131063700 Contact Us For Availability
20
Glide-drum WCI 5303937139 Contact Us For Availability
20
Bracket-hinge WCI 131469100 Contact Us For Availability
21
Seal-basket lower WCI 5303283286 No Longer Available
21
Knob-timer-wht/gray ind-Sears WCI 131788700 Contact Us For Availability
27
Clip-control panel WCI 131197000 Contact Us For Availability
27
Clamp-motor WCI 131419800 Contact Us For Availability
28
Motor-main, w/pulley WCI 131560100 No Longer Available
28
Clip-guide (3) WCI 5303281074 Contact Us For Availability
30
Vane, straight, gray WCI 5304405283 Contact Us For Availability
47
Seal-exhaust tube WCI 131633300 Contact Us For Availability
47
Panel-inner door, white WCI 131844104 Contact Us For Availability
48
Door-outer, white WCI 131789303 Contact Us For Availability
64
Clip WCI 131704600 Contact Us For Availability
× ![]()
