Model Electrolux 417.99985830 Laundry Center (Kenmore 41799985830) – Common Parts & Diagrams
DRYER, CABINET, DRUM, HEATER
WASHER-CABINET, TOP PANEL, BASE
All Parts

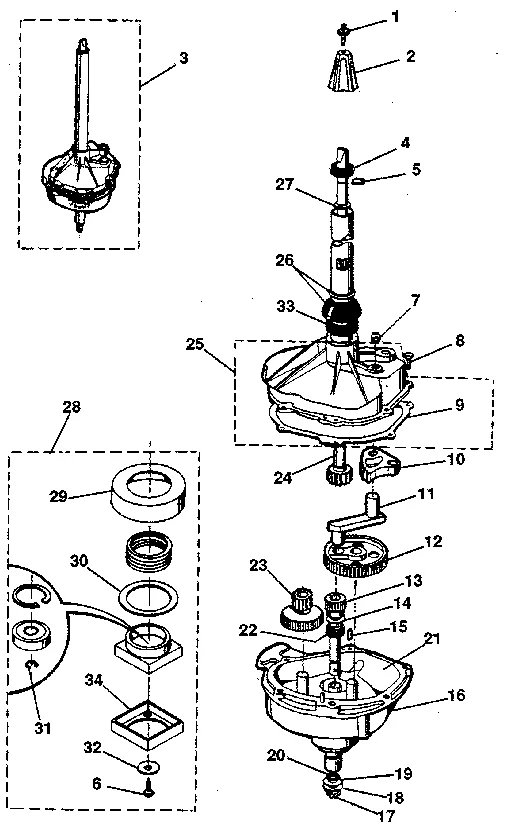

TRANSMISSION

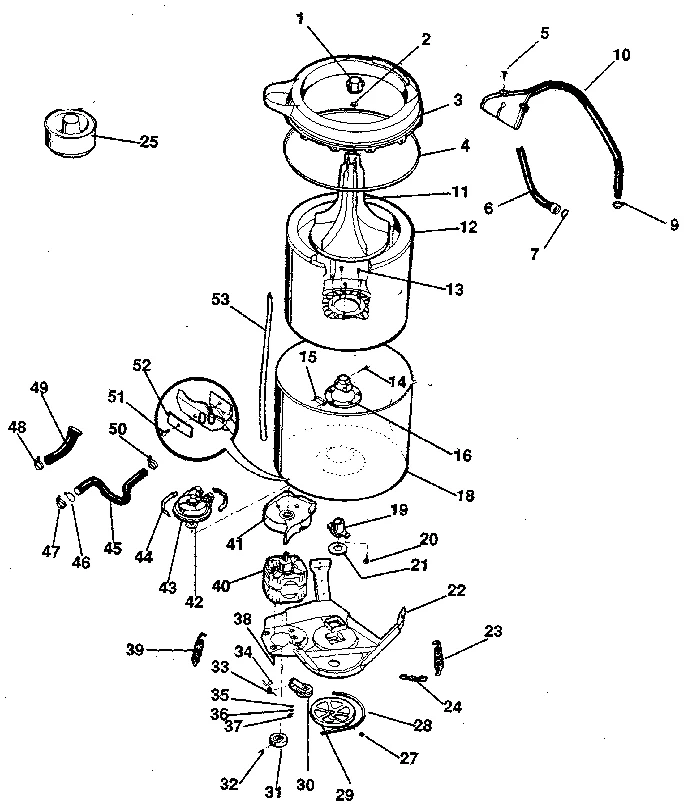

WASHER-TUBS, HOSES, MOTOR

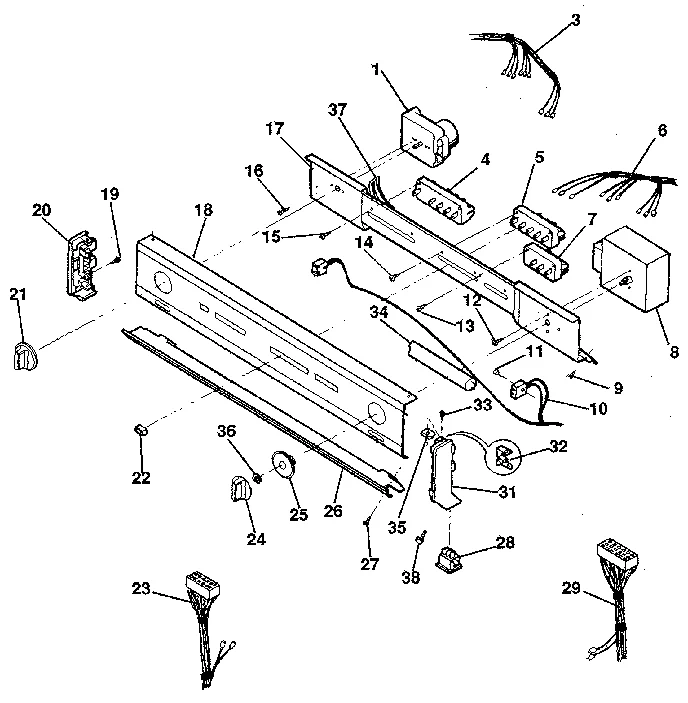

CONSOLE & CONTROLS

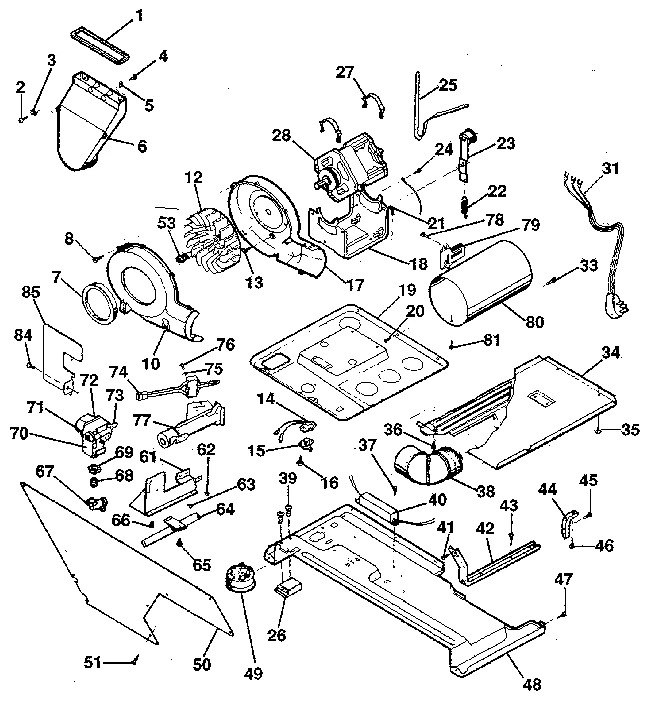

DRYER, MOTOR, BLOWER, BELT
Common parts from model Electrolux 417.99985830 Laundry Center (Kenmore 41799985830)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Screw WCI 5303211089 Contact Us For Availability
1
Timer WCI 5303209665 Contact Us For Availability
1
Washer Seal WCI 3204298 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
3
Transmission WCI 3205526 Contact Us For Availability
3
Harness WCI 5303209667 Contact Us For Availability
3
Nut WCI 08014350 Contact Us For Availability
4
Temperature Switch WCI 3204332 Contact Us For Availability
5
Grommet Hinge WCI 3204362 Contact Us For Availability
5
Ring WCI 3161223 Contact Us For Availability
5
Washer Temperature Switch WCI 3204333 Contact Us For Availability
6
Washer WCI 08027582 Contact Us For Availability
6
Harness WCI 5303209668 Contact Us For Availability
6B
Lid (Almond) WCI 5303212873 Contact Us For Availability
7
Switch WCI 3204335 Contact Us For Availability
7
Plug WCI 3161224 Contact Us For Availability
8
Screw WCI 3205245 Contact Us For Availability
8
Screw WCI 08002804 Contact Us For Availability
8
Timer WCI 5303209669 Contact Us For Availability
9
Gasket WCI 08015778 Contact Us For Availability
9
Clamp WCI 3012110 Contact Us For Availability
10
Washer WCI 08002408 Contact Us For Availability
10
Gear WCI 08011268 Contact Us For Availability
10
Hose WCI 3204400 Contact Us For Availability
10
Harness WCI 5303212890 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Rod WCI 3161169 Contact Us For Availability
12
Gear WCI 08015496 Contact Us For Availability
12
Spin Tube WCI 3204402 Contact Us For Availability
12
Screw WCI 3161188 Contact Us For Availability
13
Shaft WCI 08014905 Contact Us For Availability
13
Screw WCI 08027519 Contact Us For Availability
13
Screw WCI 08011280 Contact Us For Availability
14
Spacer WCI 3161226 Contact Us For Availability
14
Thermostat WCI 5303207400 Contact Us For Availability
15
Dryer Heat Duct and Drum Housing WCI 5303207394 Contact Us For Availability
15
Pin WCI 3161227 Contact Us For Availability
15
Thermostat WCI 5303210275 Contact Us For Availability
16
Gear Case WCI 140586-000 Contact Us For Availability
16
Support WCI 08014908 Contact Us For Availability
17
Bracket WCI 3204341 Contact Us For Availability
17
Housing WCI 5303271179 Contact Us For Availability
18
Locating Pin WCI 3204373 Contact Us For Availability
18
Washer WCI 08002475 Contact Us For Availability
18
Tub WCI 3204404 Contact Us For Availability
18
Control Panel WCI 3204342 Contact Us For Availability
19
Screw WCI 5308057419 Contact Us For Availability
19
Cradle Pan WCI 3204311 Contact Us For Availability
20
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
20
End Cap WCI 5303209671 Contact Us For Availability
21
Laundry Center Control Knob WCI 3204344 Contact Us For Availability
21
Dryer Drum Felt Seal WCI 3204260 Contact Us For Availability
21
Capacitor WCI 08014903 Contact Us For Availability
21
Oil WCI 5303208460 Contact Us For Availability
21
Screw WCI 3281077 Contact Us For Availability
22
Bracket WCI 3161252 Contact Us For Availability
22
Spring WCI 3161174 Contact Us For Availability
22
Dome WCI 3204408 Contact Us For Availability
22
Push Button WCI 3204345 Contact Us For Availability
23
Laundry Center Dryer Idler Arm WCI 3205242 Contact Us For Availability
23
Hose WCI 3205414 Contact Us For Availability
23
Gear WCI 3161175 Contact Us For Availability
23
Harness WCI 5303271180 Contact Us For Availability
24
Knob WCI 3204347 Contact Us For Availability
24
Retainer WCI 3204987 Contact Us For Availability
24
Shaft WCI 3205151 Contact Us For Availability
24
Spring WCI 5303208859 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
25
Housing WCI 3205527 Contact Us For Availability
25
Washer Fabric Softener Dispenser Cup WCI 3205405 Contact Us For Availability
25
Indicator WCI 3204348 Contact Us For Availability
25
Belt WCI 3204314 Contact Us For Availability
26
Clamp WCI 064154-013 Contact Us For Availability
26
Seal Kit WCI 08950197 Contact Us For Availability
26
Lens WCI 5303209673 Contact Us For Availability
26
Support Block WCI 5303212870 Contact Us For Availability
27
Washer Screw WCI 5303270023 Contact Us For Availability
27
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
27
Washer WCI 3161232 Contact Us For Availability
27A
Laundry Center Dryer Lint Screen Cover (White WCI 3204263 Contact Us For Availability
28
Dryer Motor Assembly WCI 5303209662 Contact Us For Availability
28
Coupler WCI 3204376 Contact Us For Availability
28
Housing WCI 08950058 Contact Us For Availability
28
Switch WCI 5303209123 Contact Us For Availability
29
Sleeve WCI 3161182 Contact Us For Availability
29
Pulley WCI 3204420 Contact Us For Availability
29
Harness WCI 5303209674 Contact Us For Availability
30
Screw WCI 3010202 Contact Us For Availability
30
Washer WCI 08057430 Contact Us For Availability
30
Idler Arm WCI 3204422 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
Ring WCI 08015536 Contact Us For Availability
31
End Cap WCI 5303209675 Contact Us For Availability
31
Cord WCI 5303207402 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Bracket WCI 3204378 Contact Us For Availability
32
Spacer WCI 5303207426 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Slinger WCI 3161231 Contact Us For Availability
33
Screw WCI 08010789 Contact Us For Availability
34
Cushion WCI 077009-100 Contact Us For Availability
34
Sleeve WCI 3204426 Contact Us For Availability
34
Laundry Center Lamp WCI 3204358 Contact Us For Availability
34
Shield WCI 5303207403 Contact Us For Availability
35
Snubber WCI 130789-000 Contact Us For Availability
36
Laundry Center Washer Timer Knob Spacer WCI 3205248 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
36
Lid WCI 3161031 Contact Us For Availability
37
Screw WCI 3204381 Contact Us For Availability
37
Screw WCI 08001578 Contact Us For Availability
37
Gasket WCI 3205249 Contact Us For Availability
38
Base WCI 3204382 Contact Us For Availability
38
Hex Nut WCI 5303209678 Contact Us For Availability
38
Screw WCI 3205253 Contact Us For Availability
38
Elbow WCI 3204320 Contact Us For Availability
39
Foot WCI 3937004 Contact Us For Availability
40
Pad WCI 5303207419 Contact Us For Availability
40
Motor WCI 3204449 Contact Us For Availability
40
Ballast WCI 3204323 Contact Us For Availability
41
Motor Shield WCI 3204450 Contact Us For Availability
42
Slinger WCI 3204451 Contact Us For Availability
42
Bracket WCI 3204324 Contact Us For Availability
42A
Panel (White) WCI 5303209676 Contact Us For Availability
42B
Panel (Almond) WCI 5303209677 Contact Us For Availability
43
Lint Filter WCI 3204278 Contact Us For Availability
43
Pump WCI 3204452 Contact Us For Availability
43
Screw WCI 3204325 Contact Us For Availability
44
Gasket WCI 5303208613 Contact Us For Availability
44
Clip WCI 3204453 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
45
Flint-filter WCI 3204280 Contact Us For Availability
46
Clip WCI 3204455 Contact Us For Availability
46A
Door Handle (White) WCI 3204281 Contact Us For Availability
46A
Cabinet (White) WCI 3204387 Contact Us For Availability
46B
Door Handle (Almond) WCI 3204282 Contact Us For Availability
46B
Cabinet (Almond) WCI 3204388 Contact Us For Availability
47
Bracket WCI 3204389 Contact Us For Availability
47
Clamp WCI 3204456 Contact Us For Availability
47A
Door (White) WCI 3204283 Contact Us For Availability
47B
Door (Almond) WCI 5303207398 Contact Us For Availability
48A
Outer Door (White) WCI 3204284 Contact Us For Availability
48B
Outer Door (Almond) WCI 3204285 Contact Us For Availability
49
Washer Tub-to-Pump Hose WCI 3204458 Contact Us For Availability
49
Screw WCI 5303206864 Contact Us For Availability
49
Switch WCI 3204328 Contact Us For Availability
50
Switch WCI 3205646 Contact Us For Availability
50
Safety Cover WCI 3204329 Contact Us For Availability
51
Receptacle WCI 5303212867 Contact Us For Availability
51
Bracket WCI 3204391 Contact Us For Availability
51
Screw WCI 3204459 Contact Us For Availability
52
Rivet WCI 08002420 Contact Us For Availability
52
Plate WCI 3204460 Contact Us For Availability
53
Washer Cover WCI 3204288 Contact Us For Availability
53A
Panel (White) WCI 5303212874 Contact Us For Availability
53B
Panel (Almond) WCI 5303212875 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Harness WCI 5303212869 Contact Us For Availability
55
Dryer Rack WCI 3204290 Contact Us For Availability
56
Handle WCI 3204291 Contact Us For Availability
57
Trim WCI 5303208614 Contact Us For Availability
58
Trim Cap WCI 3204293 Contact Us For Availability
59
Adhesive WCI 3204294 Contact Us For Availability
60
Hanger Rod WCI 3204296 Contact Us For Availability
61
Washer Block WCI 3204295 Contact Us For Availability
61
Bracket WCI 5303207404 Contact Us For Availability
62
Spring Pin WCI 3205240 Contact Us For Availability
64
Pipe WCI 5303207405 Contact Us For Availability
67
Valve WCI 5303207407 Contact Us For Availability
68
Tube WCI 062791-200 Contact Us For Availability
69
Hex Nut WCI 08015194 Contact Us For Availability
71
Coil WCI 000622602 Contact Us For Availability
76
Screw WCI 3281150 Contact Us For Availability
77
Burner WCI 5303207412 Contact Us For Availability
85
Shield WCI 5303212889 Contact Us For Availability
NI
Adhesive WCI 064709-100 Contact Us For Availability
NI
Label WCI 078028-000 Contact Us For Availability
NI
SYPHON BREAK WCI 078880-000 Contact Us For Availability
NI
Compound WCI 08006576 Contact Us For Availability
NI
Label WCI 139789-000 Contact Us For Availability
NI
Label WCI 140093-000 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3204465 Contact Us For Availability
NI
Bearing WCI 3204473 Contact Us For Availability
NI
Spray Paint (Almond) WCI 3204476 Contact Us For Availability
NI
Shim WCI 5303161222 Contact Us For Availability
NI
Label WCI 5303207429 Contact Us For Availability
NI
Label WCI 5303207430 Contact Us For Availability
NI
Label WCI 5303207431 Contact Us For Availability
NI
Clamp WCI 5303208616 Contact Us For Availability
NI
Operating Instructions WCI 5303209679 Contact Us For Availability
NI
Technical Sheet WCI 5303209681 Contact Us For Availability
NI
Label WCI 5303212878 Contact Us For Availability
NI
Use and Care Guide WCI 5303212881 Contact Us For Availability
NI
Installation Instructions WCI 5303212892 Contact Us For Availability
NI
Orifice WCI 5303937054 Contact Us For Availability
NI
Parts List WCI 5995202099 Contact Us For Availability
× ![]()
Login and Registration Form
