Model Electrolux 417.99985800 Washer/Dryer (Kenmore 41799985800) – Common Parts & Diagrams
WASHER-TUBS, HOSES, MOTOR
DRYER, MOTOR, BLOWER, BELT

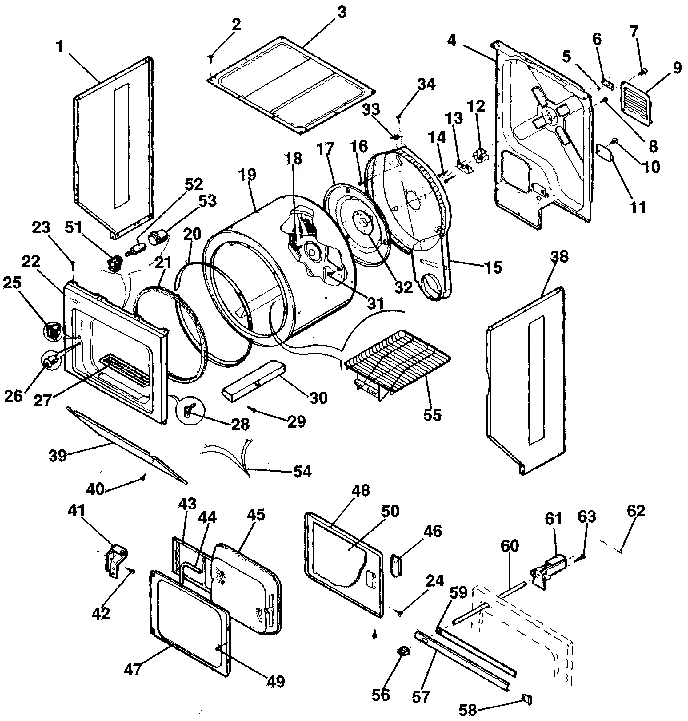

DRYER, CABINET, DRUM, HEATER

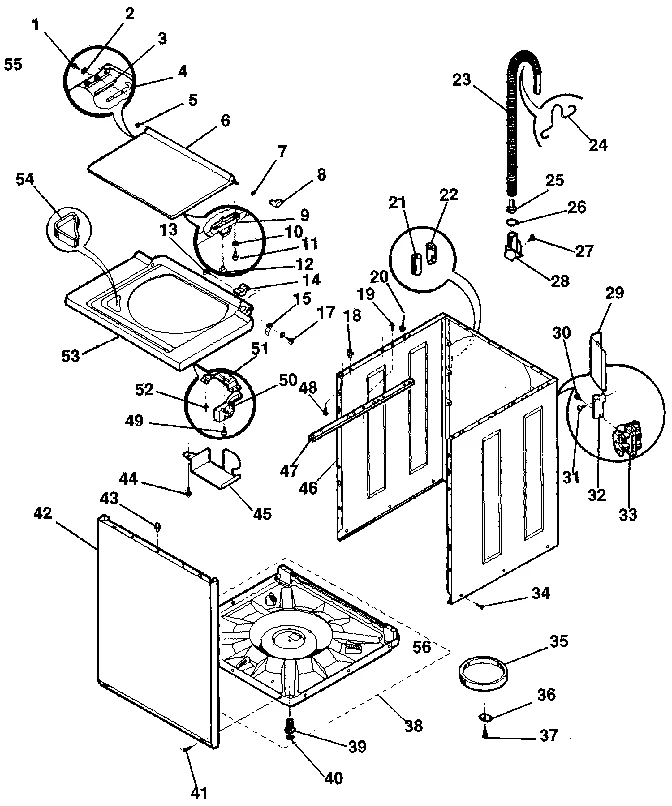

WASHER-CABINET, TOP PANEL, BASE

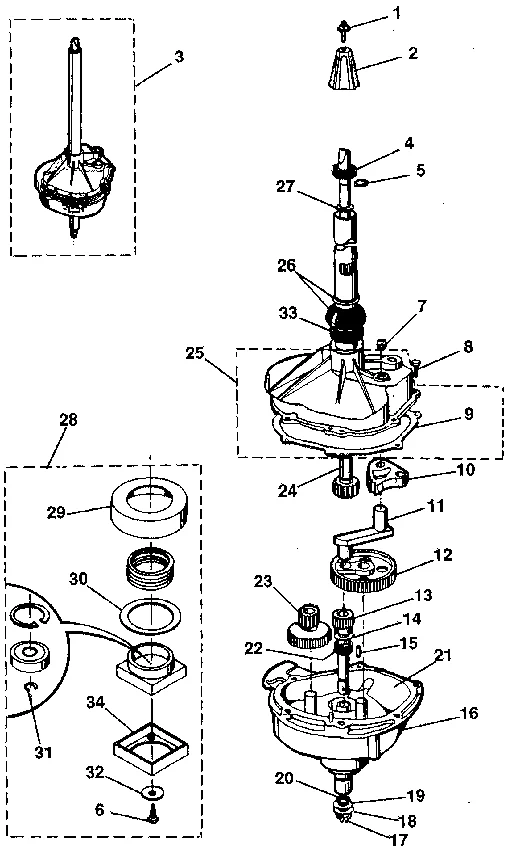

TRANSMISSION

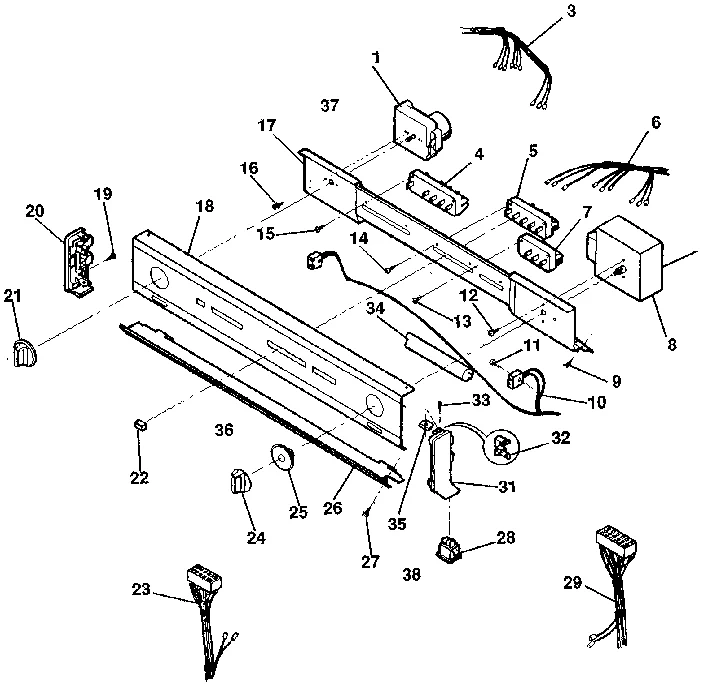

CONSOLE & CONTROLS
All Parts
Common parts from model Electrolux 417.99985800 Washer/Dryer (Kenmore 41799985800)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Washer Seal WCI 3204298 Contact Us For Availability
1
Screw WCI 3204359 Contact Us For Availability
1
Dryer Timer WCI 3204330 Contact Us For Availability
1A
White WCI 3294245 Contact Us For Availability
1B
Panel (Almond) WCI 3204246 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
2
Screw WCI 08011280 Contact Us For Availability
2
Washer WCI 08002408 Contact Us For Availability
3
Gasket WCI 3204360 Contact Us For Availability
3
Transmission WCI 3205526 Contact Us For Availability
3
Harness WCI 5303207414 Contact Us For Availability
4
Panel WCI 3204248 Contact Us For Availability
4
Temperature Switch WCI 3204332 Contact Us For Availability
5
Grommet Hinge WCI 3204362 Contact Us For Availability
5
Ring WCI 3161223 Contact Us For Availability
5
Washer Temperature Switch WCI 3204333 Contact Us For Availability
6
Washer WCI 08027582 Contact Us For Availability
6
Harness WCI 5303207415 Contact Us For Availability
6A
Lid (White) WCI 3204363 Contact Us For Availability
6B
Lid (Almond) WCI 3204364 Contact Us For Availability
7
Switch WCI 3204335 Contact Us For Availability
7
Grommet WCI 3204365 Contact Us For Availability
7
Plug WCI 3161224 Contact Us For Availability
8
Cam WCI 3204366 Contact Us For Availability
8
Screw WCI 08002804 Contact Us For Availability
8
Washer Timer WCI 3204336 Contact Us For Availability
9
Access Panel WCI 3204249 Contact Us For Availability
9
Gasket WCI 08015778 Contact Us For Availability
10
Front WCI 3204301 Contact Us For Availability
10
Gear WCI 08011268 Contact Us For Availability
10
Harness WCI 3204337 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Screw WCI 3205245 Contact Us For Availability
11
Cover WCI 5303207395 Contact Us For Availability
11
Rod WCI 3161169 Contact Us For Availability
12
Laundry Center Blower Wheel WCI 3205233 Contact Us For Availability
12
Gear WCI 08015496 Contact Us For Availability
12
Screw WCI 3161188 Contact Us For Availability
13
Shaft WCI 08014905 Contact Us For Availability
14
Thermostat WCI 5303207400 Contact Us For Availability
14
Block WCI 3204370 Contact Us For Availability
14
Spacer WCI 3161226 Contact Us For Availability
15
Dryer Heat Duct and Drum Housing WCI 5303207394 Contact Us For Availability
15
Thermostat WCI 5303207401 Contact Us For Availability
15
Spring WCI 3204371 Contact Us For Availability
15
Pin WCI 3161227 Contact Us For Availability
16
Gear Case WCI 140586-000 Contact Us For Availability
17
Housing WCI 3204309 Contact Us For Availability
17
Screw WCI 000131686 Contact Us For Availability
17
Bracket WCI 3204341 Contact Us For Availability
18
Screw WCI 3205255 Contact Us For Availability
18
Locating Pin WCI 3204373 Contact Us For Availability
18
Washer WCI 08002475 Contact Us For Availability
18
Control Panel WCI 3204342 Contact Us For Availability
19
Cradle Pan WCI 3204311 Contact Us For Availability
20
Ring Bearing WCI 3204259 Contact Us For Availability
20
End Cap WCI 3204343 Contact Us For Availability
21
Laundry Center Control Knob WCI 3204344 Contact Us For Availability
21
Dryer Drum Felt Seal WCI 3204260 Contact Us For Availability
21
Screw WCI 3281077 Contact Us For Availability
21
Capacitor WCI 08014903 Contact Us For Availability
21
Oil WCI 5303208460 Contact Us For Availability
22
Bracket WCI 3161252 Contact Us For Availability
22
Spring WCI 3161174 Contact Us For Availability
22
Push Button WCI 3204345 Contact Us For Availability
22A
Panel (White) WCI 3204261 Contact Us For Availability
22B
Panel (Almond) WCI 3204262 Contact Us For Availability
23
Laundry Center Dryer Idler Arm WCI 3205242 Contact Us For Availability
23
Hose WCI 3205414 Contact Us For Availability
23
Gear WCI 3161175 Contact Us For Availability
23
Harness WCI 5303207416 Contact Us For Availability
24
Knob WCI 3204347 Contact Us For Availability
24
Screw WCI 3281176 Contact Us For Availability
24
Retainer WCI 3204987 Contact Us For Availability
24
Shaft WCI 3205151 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
25
Belt WCI 3204314 Contact Us For Availability
25
Housing WCI 3205527 Contact Us For Availability
25
Indicator WCI 3204348 Contact Us For Availability
26
Motor WCI 3201237 Contact Us For Availability
26
Switch WCI 08006623 Contact Us For Availability
26
Clamp WCI 064154-013 Contact Us For Availability
26
Seal Kit WCI 08950197 Contact Us For Availability
26
Lens WCI 3204349 Contact Us For Availability
27
Clamp WCI 3204315 Contact Us For Availability
27
Washer WCI 3161232 Contact Us For Availability
27A
Laundry Center Dryer Lint Screen Cover (White WCI 3204263 Contact Us For Availability
27B
Air Grill WCI 3204264 Contact Us For Availability
28
Motor Pulley WCI 3204316 Contact Us For Availability
28
Clip WCI 3281074 Contact Us For Availability
28
Coupler WCI 3204376 Contact Us For Availability
28
Housing WCI 08950058 Contact Us For Availability
28
Lamp Switch WCI 3204350 Contact Us For Availability
29
Shield WCI 3204377 Contact Us For Availability
29
Sleeve WCI 3161182 Contact Us For Availability
29
Harness WCI 5303207417 Contact Us For Availability
30
Screw WCI 3010202 Contact Us For Availability
30
Washer WCI 08057430 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
Cord WCI 5303207402 Contact Us For Availability
31
Screw WCI 5303207393 Contact Us For Availability
31
Ring WCI 08015536 Contact Us For Availability
31
End Cap WCI 3204353 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Stran Relief WCI 3204317 Contact Us For Availability
32
Bracket WCI 3204378 Contact Us For Availability
32
Spacer WCI 5303207426 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Dryer Thermostat WCI 5303207396 Contact Us For Availability
33
Slinger WCI 3161231 Contact Us For Availability
33
Screw WCI 08010789 Contact Us For Availability
34
Shield WCI 5303207403 Contact Us For Availability
34
Cushion WCI 077009-100 Contact Us For Availability
34
Laundry Center Lamp WCI 3204358 Contact Us For Availability
35
Nut WCI 08014350 Contact Us For Availability
35
Snubber WCI 130789-000 Contact Us For Availability
36
Laundry Center Washer Timer Knob Spacer WCI 3205248 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
37
Screw WCI 3204381 Contact Us For Availability
37
Gasket WCI 3205249 Contact Us For Availability
38
Elbow WCI 3204320 Contact Us For Availability
38
Base WCI 3204382 Contact Us For Availability
38
Screw WCI 3205253 Contact Us For Availability
38A
Panel (White) WCI 3204271 Contact Us For Availability
38B
Panel (Almond) WCI 3204272 Contact Us For Availability
39
Exhaust Tube WCI 3204322 Contact Us For Availability
39
Foot WCI 3937004 Contact Us For Availability
39A
Access Panel (White) WCI 3204273 Contact Us For Availability
39B
Access Panel (Almond) WCI 3204274 Contact Us For Availability
40
Ballast WCI 3204323 Contact Us For Availability
40
Screw WCI 5303207397 Contact Us For Availability
40
Pad WCI 5303207419 Contact Us For Availability
41A
Dryer Door Upper Hinge WCI 3204275 Contact Us For Availability
41B
Lower Hinge WCI 3204276 Contact Us For Availability
42
Bracket WCI 3204324 Contact Us For Availability
42A
Panel (White) WCI 3204384 Contact Us For Availability
42B
Panel (Almond) WCI 3204385 Contact Us For Availability
43
Screw WCI 3204325 Contact Us For Availability
43
Lint Filter WCI 3204278 Contact Us For Availability
44
Gasket WCI 5303208613 Contact Us For Availability
44
Screw WCI 5303206864 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
45
Flint-filter WCI 3204280 Contact Us For Availability
45
Shield WCI 3204386 Contact Us For Availability
46A
Door Handle (White) WCI 3204281 Contact Us For Availability
46A
Cabinet (White) WCI 3204387 Contact Us For Availability
46B
Door Handle (Almond) WCI 3204282 Contact Us For Availability
46B
Cabinet (Almond) WCI 3204388 Contact Us For Availability
47
Bracket WCI 3204389 Contact Us For Availability
47A
Door (White) WCI 3204283 Contact Us For Availability
47B
Door (Almond) WCI 5303207398 Contact Us For Availability
48
Screw WCI 08001578 Contact Us For Availability
48
Pan WCI 3204327 Contact Us For Availability
48A
Outer Door (White) WCI 3204284 Contact Us For Availability
48B
Outer Door (Almond) WCI 3204285 Contact Us For Availability
49
Washer Tub-to-Pump Hose WCI 3204458 Contact Us For Availability
49
Switch WCI 3204328 Contact Us For Availability
50
Safety Cover WCI 3204329 Contact Us For Availability
50
Lid Lock WCI 3204390 Contact Us For Availability
51
Screw WCI 3204459 Contact Us For Availability
51
Receptacle WCI 3204287 Contact Us For Availability
51
Bracket WCI 3204391 Contact Us For Availability
52
Plate WCI 3204460 Contact Us For Availability
52
Screw WCI 3205238 Contact Us For Availability
52
Lamp WCI 08027430 Contact Us For Availability
52
Rivet WCI 08002420 Contact Us For Availability
53
Clamp WCI 3205236 Contact Us For Availability
53
Washer Cover WCI 3204288 Contact Us For Availability
53A
Panel (White) WCI 3204392 Contact Us For Availability
53B
Panel (Almond) WCI 3204393 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Clamp WCI 3205237 Contact Us For Availability
54
Harness WCI 3204289 Contact Us For Availability
55
Dryer Rack WCI 3204290 Contact Us For Availability
55
Spring WCI 3205251 Contact Us For Availability
56
Handle WCI 3204291 Contact Us For Availability
57
Trim WCI 5303208614 Contact Us For Availability
58
Trim Cap WCI 3204293 Contact Us For Availability
59
Adhesive WCI 3204294 Contact Us For Availability
60
Hanger Rod WCI 3204296 Contact Us For Availability
61
Bracket WCI 5303207404 Contact Us For Availability
61
Washer Block WCI 3204295 Contact Us For Availability
62
Spring Pin WCI 3205240 Contact Us For Availability
64
Pipe WCI 5303207405 Contact Us For Availability
67
Valve WCI 5303207407 Contact Us For Availability
68
Tube WCI 062791-200 Contact Us For Availability
69
Hex Nut WCI 08015194 Contact Us For Availability
71
Coil WCI 000622602 Contact Us For Availability
76
Screw WCI 3281150 Contact Us For Availability
77
Burner WCI 5303207412 Contact Us For Availability
NI
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
NI
Adhesive WCI 064709-100 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Label WCI 078028-000 Contact Us For Availability
NI
Compound WCI 08006576 Contact Us For Availability
NI
Label WCI 139789-000 Contact Us For Availability
NI
Label WCI 140093-000 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3204465 Contact Us For Availability
NI
Energy Guide WCI 3204467 Contact Us For Availability
NI
Bearing WCI 3204473 Contact Us For Availability
NI
Spray Paint (Almond) WCI 3204476 Contact Us For Availability
NI
Label WCI 5303207429 Contact Us For Availability
NI
Label WCI 5303207430 Contact Us For Availability
NI
Label WCI 5303207431 Contact Us For Availability
NI
Owner's Manual WCI 5303207432 Contact Us For Availability
NI
Installation Instructions WCI 5303207434 Contact Us For Availability
NI
Owner's Manual WCI 5303207435 Contact Us For Availability
NI
Technical Sheet WCI 5303207436 Contact Us For Availability
NI
Orifice WCI 5303207438 Contact Us For Availability
NI
Clamp WCI 5303208616 Contact Us For Availability
NI
Parts List WCI 5303208617 Contact Us For Availability
× ![]()
Login and Registration Form
