Model Electrolux 417.99980140 Laundry Center (Kenmore 41799980140) – Common Parts & Diagrams
DRYER-MOTOR, BLOWER, BELT
WASHER-TUBS, HOSES, MOTOR

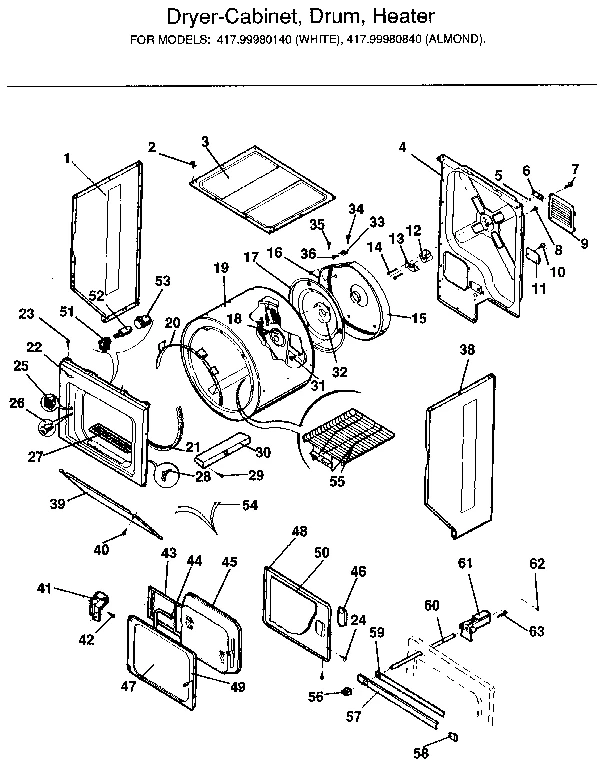

DRYER-CABINET, DRUM, HEATER
All Parts

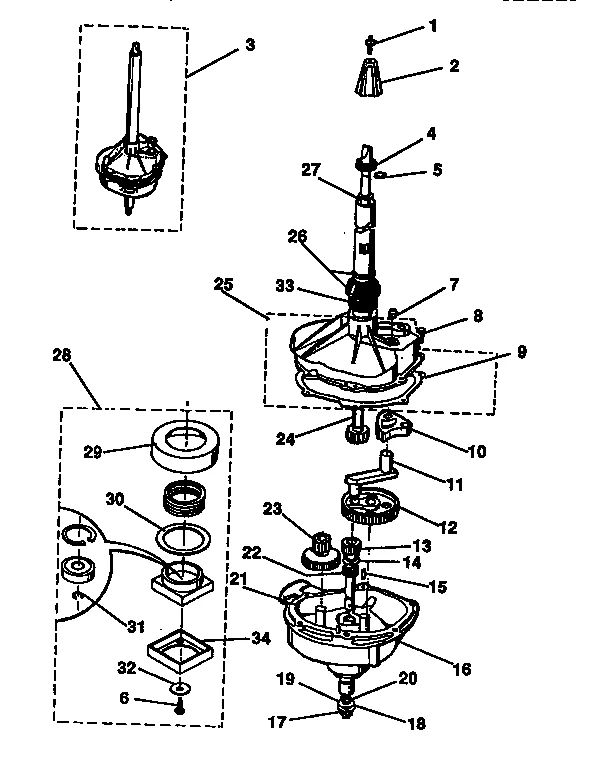

TRANSMISSION

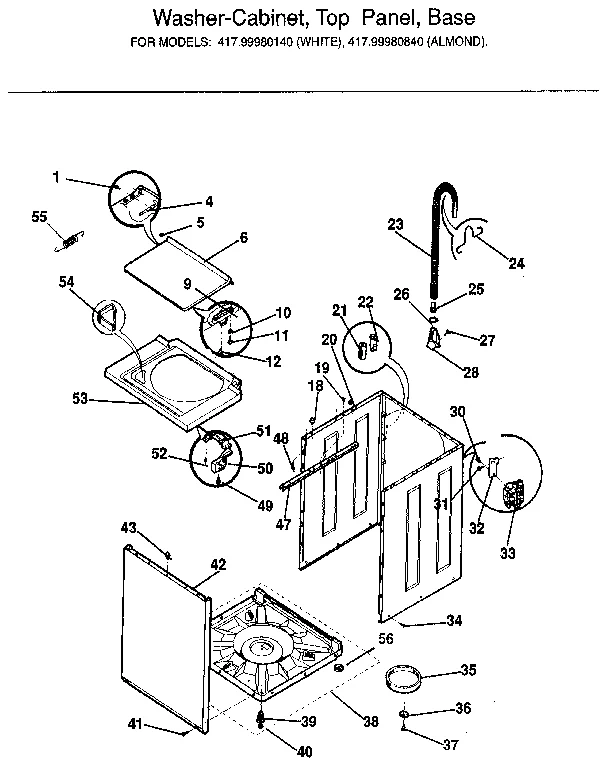

WASHER-CABINET, TOP PANEL, BASE

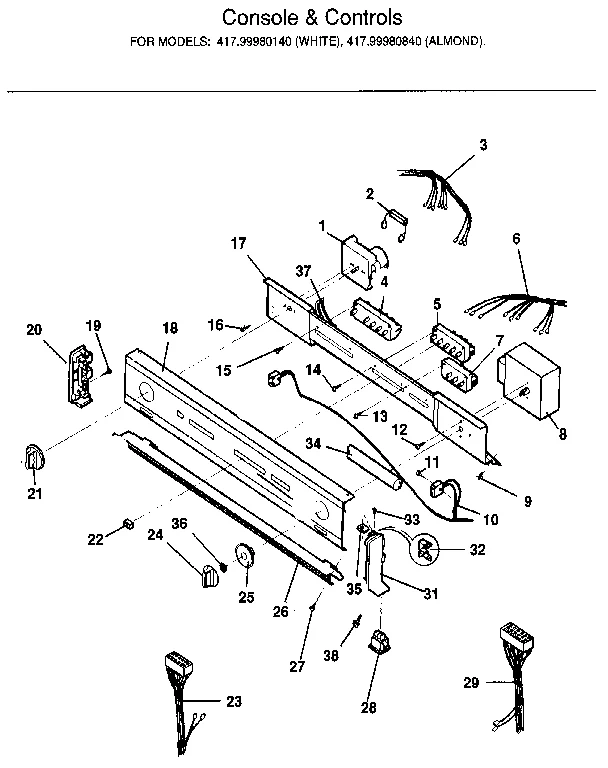

CONSOLE & CONTROLS
Common parts from model Electrolux 417.99980140 Laundry Center (Kenmore 41799980140)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Screw WCI 5303211089 Contact Us For Availability
1
Timer WCI 5303209909 Contact Us For Availability
1A
Panel (White) WCI 3204245 Contact Us For Availability
1B
Panel (Almond) WCI 3204246 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
2
Screw WCI 08011280 Contact Us For Availability
2
Resistor WCI 3205243 Contact Us For Availability
3
Harness WCI 5303209910 Contact Us For Availability
4
Panel WCI 5303283283 Contact Us For Availability
4
Temperature Switch WCI 3204332 Contact Us For Availability
5
Ring WCI 3161223 Contact Us For Availability
5
Grommet Hinge WCI 3204362 Contact Us For Availability
5
Washer Temperature Switch WCI 3204333 Contact Us For Availability
6
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
6
Washer WCI 08027582 Contact Us For Availability
6
Harness WCI 5303209668 Contact Us For Availability
6B
Lid (Almond) WCI 5303212873 Contact Us For Availability
7
Switch WCI 3204335 Contact Us For Availability
7
Plug WCI 3161224 Contact Us For Availability
8
Screw WCI 08002804 Contact Us For Availability
8
Timer WCI 5303271777 Contact Us For Availability
9
Access Panel WCI 3204249 Contact Us For Availability
9
Gasket WCI 08015778 Contact Us For Availability
10
Gear WCI 08011268 Contact Us For Availability
10
Washer WCI 5308002408 Contact Us For Availability
10
Harness WCI 5303209670 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Screw WCI 3205245 Contact Us For Availability
11
Washer Cover WCI 3204250 Contact Us For Availability
11
Rod WCI 3161169 Contact Us For Availability
12
Gear WCI 08015496 Contact Us For Availability
12
Screw WCI 3161188 Contact Us For Availability
13
Shaft WCI 08014905 Contact Us For Availability
14
Spacer WCI 3161226 Contact Us For Availability
15
Pin WCI 3161227 Contact Us For Availability
16
Housing WCI 5303912535 Contact Us For Availability
17
Bracket WCI 3204341 Contact Us For Availability
18
Screw WCI 5303205255 Contact Us For Availability
18
Washer WCI 08002475 Contact Us For Availability
18
Locating Pin WCI 3204373 Contact Us For Availability
18
Control Panel WCI 3204342 Contact Us For Availability
19
Screw WCI 5308057419 Contact Us For Availability
20
End Cap WCI 5303209671 Contact Us For Availability
21
Laundry Center Control Knob WCI 3204344 Contact Us For Availability
21
Oil WCI 5303208460 Contact Us For Availability
21
Capacitor WCI 5308014903 Contact Us For Availability
22
Spring WCI 3161174 Contact Us For Availability
22
Bracket WCI 5303161252 Contact Us For Availability
22
Push Button WCI 3204345 Contact Us For Availability
22A
Panel (White) WCI 3204261 Contact Us For Availability
22B
Panel (Almond) WCI 3204262 Contact Us For Availability
23
Laundry Center Dryer Idler Arm WCI 3205242 Contact Us For Availability
23
Gear WCI 3161175 Contact Us For Availability
23
Hose WCI 3205414 Contact Us For Availability
23
Harness WCI 5303209911 Contact Us For Availability
24
Retainer WCI 5303204987 Contact Us For Availability
24
Knob WCI 3204347 Contact Us For Availability
24
Screw WCI 3281176 Contact Us For Availability
24
Shaft WCI 3204463 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
25
Housing WCI 5303205527 Contact Us For Availability
25
Indicator WCI 3204348 Contact Us For Availability
26
Switch WCI 08006623 Contact Us For Availability
26
Tub Seal WCI 3204464 Contact Us For Availability
26
Clamp WCI 5364154013 Contact Us For Availability
26
Lens WCI 5303283458 Contact Us For Availability
27
Washer Screw WCI 5303270023 Contact Us For Availability
27
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
27
Washer WCI 3161232 Contact Us For Availability
27A
Laundry Center Dryer Lint Screen Cover (White WCI 3204263 Contact Us For Availability
27B
Air Grill WCI 3204264 Contact Us For Availability
28
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
28
Dryer Drive Motor WCI 5303283288 Contact Us For Availability
28
Housing WCI 08950058 Contact Us For Availability
28
Coupler WCI 3204376 Contact Us For Availability
28
Switch WCI 5303283459 Contact Us For Availability
29
Sleeve WCI 3161182 Contact Us For Availability
29
Harness WCI 5303209674 Contact Us For Availability
30
Washer WCI 08057430 Contact Us For Availability
30
Screw WCI 5303010202 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
Screw WCI 5303207393 Contact Us For Availability
31
Ring WCI 08015536 Contact Us For Availability
31
End Cap WCI 5303209675 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Spacer WCI 5303207426 Contact Us For Availability
32
Bracket WCI 3204378 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Thermostat WCI 5303272046 Contact Us For Availability
33
Slinger WCI 3161231 Contact Us For Availability
33
Screw WCI 08010789 Contact Us For Availability
34
Cushion WCI 5377009100 Contact Us For Availability
34
Laundry Center Lamp WCI 3204358 Contact Us For Availability
35
Washer Snubber Ring WCI 5308002385 Contact Us For Availability
35
Screw WCI 08010804 Contact Us For Availability
35
Nut WCI 5308014350 Contact Us For Availability
36
Laundry Center Washer WCI 5303261031 Contact Us For Availability
36
Laundry Center Washer Timer Knob Spacer WCI 3205248 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
37
Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability
37
Screw WCI 3204381 Contact Us For Availability
37
Gasket WCI 3205249 Contact Us For Availability
38
Hex Nut WCI 5303209678 Contact Us For Availability
38
Base WCI 3204382 Contact Us For Availability
38
Screw WCI 3205253 Contact Us For Availability
38A
Panel (White) WCI 3204271 Contact Us For Availability
38B
Panel (Almond) WCI 3204272 Contact Us For Availability
39A
Access Panel (White) WCI 3204273 Contact Us For Availability
39B
Access Panel (Almond) WCI 3204274 Contact Us For Availability
40
Motor WCI 5303272071 Contact Us For Availability
40
Screw WCI 5303207397 Contact Us For Availability
41
Motor Shield WCI 3204450 Contact Us For Availability
41A
Dryer Door Upper Hinge WCI 3204275 Contact Us For Availability
41B
Lower Hinge WCI 3204276 Contact Us For Availability
42
Slinger WCI 3204451 Contact Us For Availability
42A
Panel (White) WCI 5303209676 Contact Us For Availability
42B
Panel (Almond) WCI 5303209677 Contact Us For Availability
43
Pump WCI 5303272432 Contact Us For Availability
43
Lint Filter WCI 3204278 Contact Us For Availability
44
Clip WCI 3204453 Contact Us For Availability
44
Gasket WCI 5303208613 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
45
Flint-filter WCI 3204280 Contact Us For Availability
46
Clip WCI 3204455 Contact Us For Availability
46A
Door Handle (White) WCI 3204281 Contact Us For Availability
46B
Door Handle (Almond) WCI 3204282 Contact Us For Availability
47
Clamp WCI 3204456 Contact Us For Availability
47
Bracket WCI 3204389 Contact Us For Availability
47A
Door (White) WCI 3204283 Contact Us For Availability
47B
Door (Almond) WCI 5303207398 Contact Us For Availability
48
Screw WCI 08001578 Contact Us For Availability
48A
Outer Door (White) WCI 3204284 Contact Us For Availability
48B
Outer Door (Almond) WCI 3204285 Contact Us For Availability
49
Screw WCI 5303206864 Contact Us For Availability
50
Switch WCI 3205646 Contact Us For Availability
51
Screw WCI 3204459 Contact Us For Availability
51
Receptacle WCI 5303212867 Contact Us For Availability
51
Bracket WCI 3204391 Contact Us For Availability
52
Plate WCI 3204460 Contact Us For Availability
52
Rivet WCI 08002420 Contact Us For Availability
53
Tube WCI 5303272072 Contact Us For Availability
53
Washer Cover WCI 3204288 Contact Us For Availability
53A
Panel (White) WCI 5303212874 Contact Us For Availability
53B
Panel (Almond) WCI 5303212875 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Harness WCI 5303212869 Contact Us For Availability
55
Dryer Rack WCI 3204290 Contact Us For Availability
56
Leg Pad WCI 5303201463 Contact Us For Availability
57
Trim WCI 5303208614 Contact Us For Availability
58
Trim Cap WCI 3204293 Contact Us For Availability
59
Adhesive WCI 5303211062 Contact Us For Availability
60
Hanger Rod WCI 3204296 Contact Us For Availability
61
Washer Block WCI 3204295 Contact Us For Availability
62
Spring Pin WCI 3205240 Contact Us For Availability
NI
Electrolux Washer Tub Seal Assembly WCI 5303279394 Contact Us For Availability
NI
Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability
NI
Snap Ring WCI 5303161223 Contact Us For Availability
NI
Spring WCI 5303161174 Contact Us For Availability
NI
Washer WCI 5303161226 Contact Us For Availability
NI
Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Oil WCI 3005242 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3204465 Contact Us For Availability
NI
Bearing WCI 3204473 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Rod WCI 5303161169 Contact Us For Availability
NI
Gear WCI 5303161175 Contact Us For Availability
NI
Sleeve WCI 5303161182 Contact Us For Availability
NI
Shim WCI 5303161222 Contact Us For Availability
NI
Plug WCI 5303161224 Contact Us For Availability
NI
Pin WCI 5303161227 Contact Us For Availability
NI
Washer WCI 5303161232 Contact Us For Availability
NI
Label WCI 5303207431 Contact Us For Availability
NI
Clamp WCI 5303208616 Contact Us For Availability
NI
Label WCI 5303209401 Contact Us For Availability
NI
Label WCI 5303209436 Contact Us For Availability
NI
Label WCI 5303209437 Contact Us For Availability
NI
Operating Instructions WCI 5303209679 Contact Us For Availability
NI
Installation Instructions WCI 5303212880 Contact Us For Availability
NI
Use and Care Guide WCI 5303212881 Contact Us For Availability
NI
Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability
NI
Label WCI 5303272074 Contact Us For Availability
NI
Label WCI 5303283695 Contact Us For Availability
NI
Diagram WCI 5303283696 Contact Us For Availability
NI
Washer WCI 5308002475 Contact Us For Availability
NI
Compound WCI 5308006576 Contact Us For Availability
NI
Gear WCI 5308011268 Contact Us For Availability
NI
Shaft WCI 5308014905 Contact Us For Availability
NI
Gear WCI 5308015496 Contact Us For Availability
NI
Shaft WCI 5308015507 Contact Us For Availability
NI
Ring WCI 5308015536 Contact Us For Availability
NI
Screw WCI 5308027582 Contact Us For Availability
NI
Washer WCI 5308057430 Contact Us For Availability
NI
Gearcase Mec WCI 5308057580 Contact Us For Availability
NI
Housing WCI 5308950058 Contact Us For Availability
NI
Parts List WCI 5995216123 Contact Us For Availability
× ![]()
Login and Registration Form
