Model Electrolux 417.99970810 Laundry Center (Kenmore 41799970810) – Common Parts & Diagrams

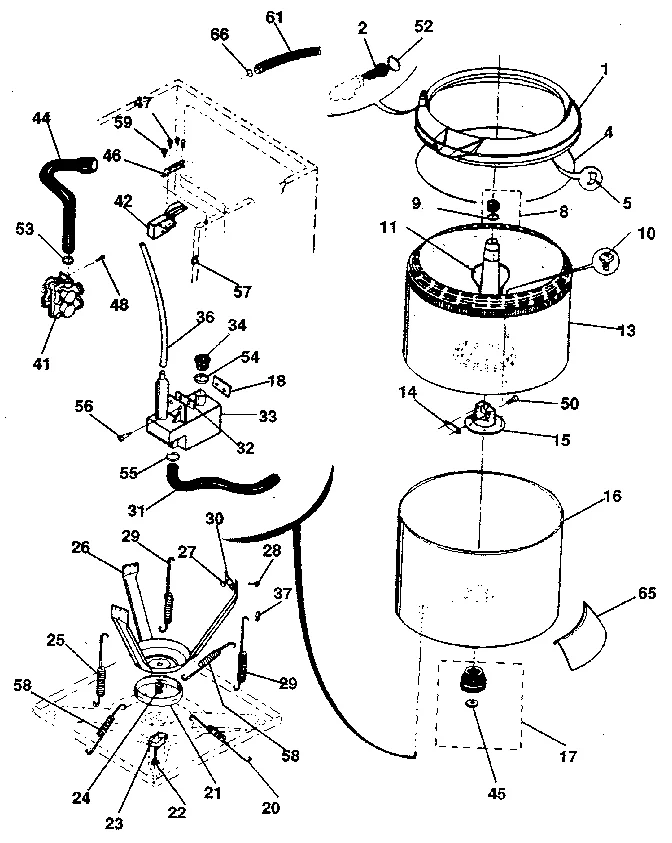

TUBS, WATER, VALVE, LID SWITCH

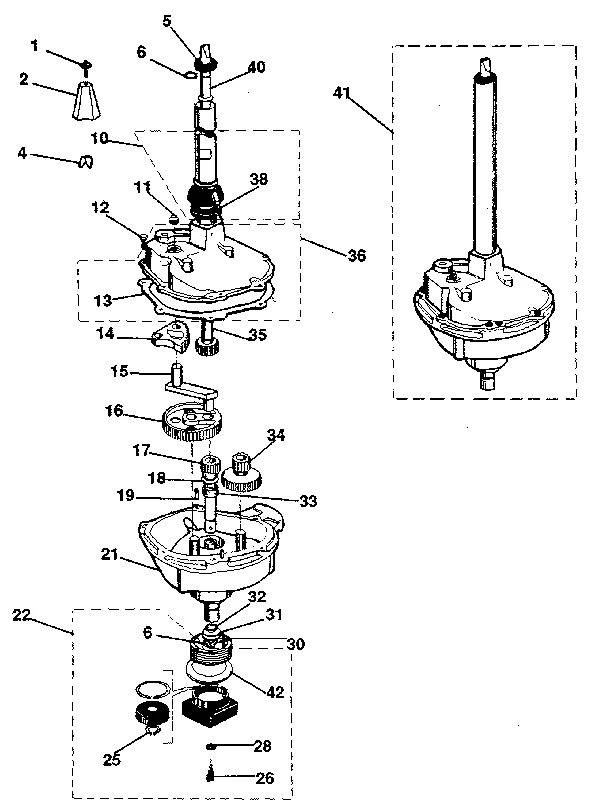

TRANSMISSION, WATER SEAL, LOWER BEARING ASSY
All Parts

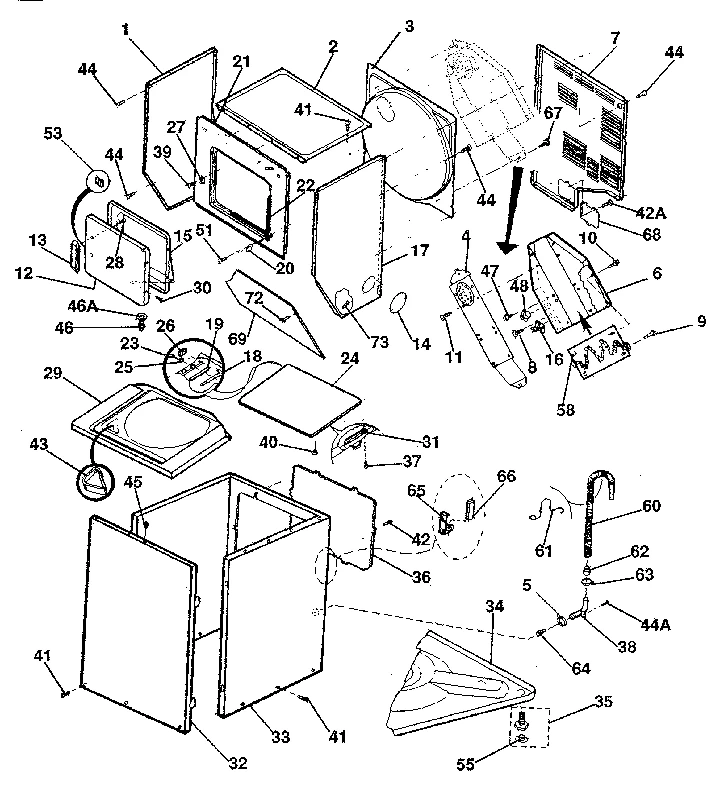

CABINET PARTS & HEATER

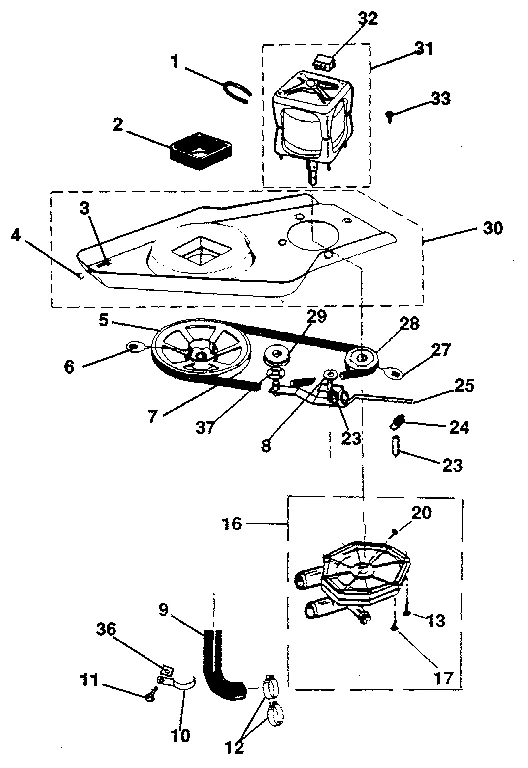

WASHER DRIVE SYSTEM, PUMP

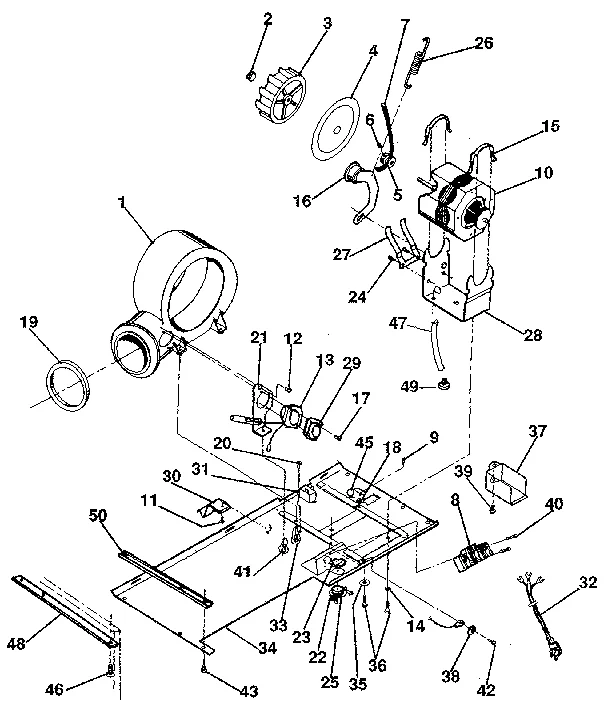

DRYER MOTOR, BLOWER, BELT

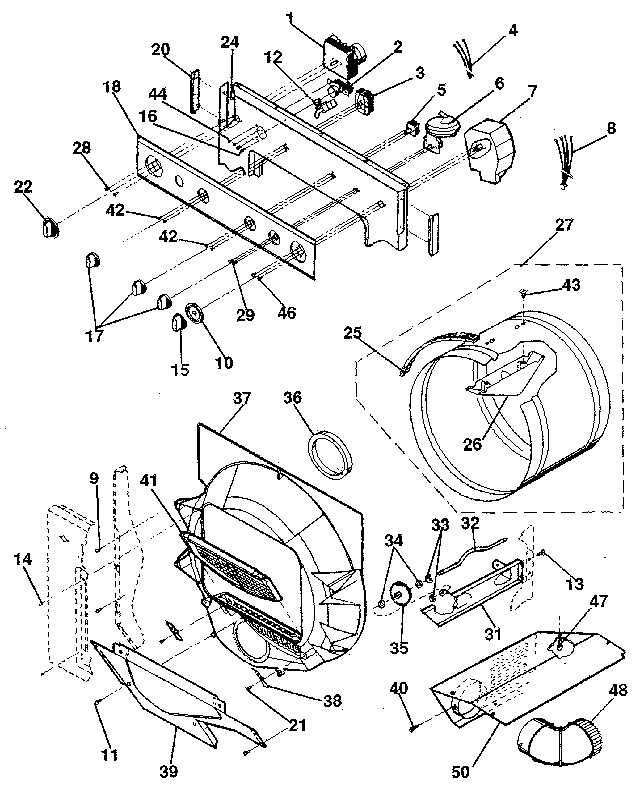

CONSOLE CONTROLS, DRUM
Common parts from model Electrolux 417.99970810 Laundry Center (Kenmore 41799970810)
1
Screw WCI 3161221 Contact Us For Availability
1
Housing WCI 5303209767 Contact Us For Availability
1
Timer WCI 5303212526 Contact Us For Availability
1A
Panel (White) WCI 5303209761 Contact Us For Availability
1B
Panel (Almond) WCI 5303209762 Contact Us For Availability
2
Block WCI 08014904 Contact Us For Availability
2
Cushion WCI 077009-100 Contact Us For Availability
2
Switch WCI 5303209765 Contact Us For Availability
2A
Panel (White) WCI 3204948 Contact Us For Availability
2B
Panel (Almond) WCI 3204949 Contact Us For Availability
3
Laundry Center Dryer Blower Wheel WCI 5303209769 Contact Us For Availability
3
Panel WCI 3204950 Contact Us For Availability
3
Screw WCI 3161211 Contact Us For Availability
3
Switch WCI 3204994 Contact Us For Availability
4
Shim WCI 3161222 Contact Us For Availability
4
Front Duct WCI 08015820 Contact Us For Availability
4
Nut WCI 3161212 Contact Us For Availability
4
Plate WCI 5303209770 Contact Us For Availability
4
Harness WCI 5303209777 Contact Us For Availability
5
Washer Water-Level Pressure Switch WCI 3204996 Contact Us For Availability
5
Clamp WCI 064154-013 Contact Us For Availability
5
Shaft WCI 08011273 Contact Us For Availability
5
Pulley WCI 3937008 Contact Us For Availability
5
Pulley WCI 5303211473 Contact Us For Availability
6
Ring WCI 3161223 Contact Us For Availability
6
Duct WCI 3204951 Contact Us For Availability
6
Screw WCI 08027520 Contact Us For Availability
6
Switch WCI 5303208634 Contact Us For Availability
7
Laundry Center Washer Timer WCI 3016451 Contact Us For Availability
7
Panel WCI 3016426 Contact Us For Availability
7
Belt WCI 3161099 Contact Us For Availability
8
Bushing WCI 08027535 Contact Us For Availability
8
Block WCI 3205019 Contact Us For Availability
8
Harness WCI 3204998 Contact Us For Availability
9
Screw WCI 3161234 Contact Us For Availability
9
Hose WCI 141127-000 Contact Us For Availability
10
Seal Kit WCI 08950197 Contact Us For Availability
10
Clamp WCI 3161301 Contact Us For Availability
10
Motor WCI 5303209771 Contact Us For Availability
10
Dial WCI 3204999 Contact Us For Availability
11
Plug WCI 3161224 Contact Us For Availability
11
Screw WCI 3205020 Contact Us For Availability
12
Screw WCI 08002804 Contact Us For Availability
12
Clamp WCI 08014914 Contact Us For Availability
12
Switch WCI 3205000 Contact Us For Availability
12A
Outer Door (White) WCI 3016427 Contact Us For Availability
12B
Outer Door (Almond) WCI 3016429 Contact Us For Availability
13
Screw WCI 136029-000 Contact Us For Availability
13
Gasket WCI 08015778 Contact Us For Availability
13
Screw WCI 08002390 Contact Us For Availability
13
Heater WCI 136777-000 Contact Us For Availability
13A
Door Handle (White) WCI 3016430 Contact Us For Availability
13B
Door Handle (Almond) WCI 3016432 Contact Us For Availability
14
Gear WCI 08011268 Contact Us For Availability
14
Screw WCI 3161243 Contact Us For Availability
14
Lock Washer WCI 063602-000 Contact Us For Availability
14A
Cover (White) WCI 3204952 Contact Us For Availability
14B
Cover (Almond) WCI 3204953 Contact Us For Availability
15
Support WCI 08014908 Contact Us For Availability
15
Rod WCI 3161169 Contact Us For Availability
15
Motor Clip WCI 08002293 Contact Us For Availability
15
Knob WCI 3205001 Contact Us For Availability
15A
Door (White) WCI 3016433 Contact Us For Availability
15B
Door (Almond) WCI 3016435 Contact Us For Availability
16
Tub WCI 3161127 Contact Us For Availability
16
Gear WCI 08015496 Contact Us For Availability
16
Thermostat WCI 141947-000 Contact Us For Availability
16
Pump WCI 08015864 Contact Us For Availability
16
Wheel Arm WCI 140582-000 Contact Us For Availability
16
Screw WCI 135022000 Contact Us For Availability
17
Laundry Center Control Knob WCI 3205004 Contact Us For Availability
17
Bearing WCI 08027536 Contact Us For Availability
17
Shaft WCI 08014905 Contact Us For Availability
17A
Panel (White) WCI 5303209763 Contact Us For Availability
17B
Panel (Almond) WCI 5303209764 Contact Us For Availability
18
Nut WCI 3161283 Contact Us For Availability
18
Spacer WCI 3161226 Contact Us For Availability
18
Terminal WCI 079171-000 Contact Us For Availability
18
Panel WCI 3205005 Contact Us For Availability
18A
Bar WCI 3204956 Contact Us For Availability
19
Pin WCI 3161227 Contact Us For Availability
19
Gasket-hinge WCI 3204957 Contact Us For Availability
19
Gasket WCI 3205021 Contact Us For Availability
20
Spring WCI 08006564 Contact Us For Availability
20
Hinge WCI 3204959 Contact Us For Availability
20
Screw WCI 3161217 Contact Us For Availability
20
Trim WCI 3205006 Contact Us For Availability
21
Snubber WCI 08002385 Contact Us For Availability
21
Gear Case WCI 140586-000 Contact Us For Availability
21
Bracket WCI 3016464 Contact Us For Availability
21A
Panel (White) WCI 3204961 Contact Us For Availability
21B
Panel (Almond) WCI 3204963 Contact Us For Availability
22
Screw WCI 3161284 Contact Us For Availability
22
Housing WCI 08950058 Contact Us For Availability
22
Seal WCI 3204964 Contact Us For Availability
22
BODY ASSY-STRAIN RELIEF WCI 3916472 Contact Us For Availability
22
Knob WCI 3205007 Contact Us For Availability
23
Block WCI 3161202 Contact Us For Availability
23
Screw WCI 3204359 Contact Us For Availability
23
Spacer WCI 3161303 Contact Us For Availability
23
Nut WCI 3016473 Contact Us For Availability
24
Nut WCI 3161203 Contact Us For Availability
24
Spring WCI 08002456 Contact Us For Availability
24
Screw WCI 3161268 Contact Us For Availability
24
Nut WCI 3205008 Contact Us For Availability
24A
Lid (White) WCI 3204965 Contact Us For Availability
24B
Lid (Almond) WCI 3204966 Contact Us For Availability
25
Spring WCI 3161131 Contact Us For Availability
25
Ring WCI 08015536 Contact Us For Availability
25
Washer WCI 078259-000 Contact Us For Availability
25
Arm WCI 3937001 Contact Us For Availability
25
Screw WCI 3016474 Contact Us For Availability
25
Seal WCI 3205009 Contact Us For Availability
26
Support WCI 3161132 Contact Us For Availability
26
Grommet Hinge WCI 3204362 Contact Us For Availability
26
Spring WCI 08015828 Contact Us For Availability
26
Baffle WCI 3161076 Contact Us For Availability
27
Nut WCI 3161204 Contact Us For Availability
27
Latch Spring WCI 3016439 Contact Us For Availability
27
Screw WCI 132861-000 Contact Us For Availability
27
Retainer WCI 136941-000 Contact Us For Availability
27
Drum WCI 3205010 Contact Us For Availability
28
Screw WCI 3161205 Contact Us For Availability
28
Spacer WCI 5303207426 Contact Us For Availability
28
Pulley WCI 08006686 Contact Us For Availability
28
Cradle WCI 3016466 Contact Us For Availability
29
Spring WCI 3161133 Contact Us For Availability
29
Thermostat WCI 08015847 Contact Us For Availability
29A
Panel (White) WCI 5303207099 Contact Us For Availability
29B
Panel (Almond) WCI 5303207100 Contact Us For Availability
30
Plate WCI 3161134 Contact Us For Availability
30
Spacer Washer WCI 3351064 Contact Us For Availability
30
Screw WCI 3161187 Contact Us For Availability
30
Support Plate WCI 079494-300 Contact Us For Availability
30
Clip WCI 3205023 Contact Us For Availability
31
Hose WCI 08008997 Contact Us For Availability
31
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
31
Motor WCI 08014901 Contact Us For Availability
31
Buzzer WCI 133242-000 Contact Us For Availability
31A
Bracket WCI 3161080 Contact Us For Availability
31B
Bracket WCI 3161081 Contact Us For Availability
32
Shim WCI 3161285 Contact Us For Availability
32
Switch WCI 08014888 Contact Us For Availability
32
SHAFT, DRUM ROLLER (2) WCI 136073000 Contact Us For Availability
32A
Panel (White) WCI 3204973 Contact Us For Availability
32B
Panel (Almond) WCI 3204975 Contact Us For Availability
33
Trap WCI 5303206795 Contact Us For Availability
33
Spring WCI 3161174 Contact Us For Availability
33
Screw WCI 132144-000 Contact Us For Availability
33
Retaining Ring WCI 3161255 Contact Us For Availability
33A
Body (White) WCI 3204978 Contact Us For Availability
33B
Body (Almond) WCI 3204979 Contact Us For Availability
34
Grommet WCI 3161286 Contact Us For Availability
34
Gear WCI 3161175 Contact Us For Availability
34
Base WCI 136137-026 Contact Us For Availability
34
Base WCI 3205024 Contact Us For Availability
34
Washer WCI 136074-000 Contact Us For Availability
35
Washer WCI 08027582 Contact Us For Availability
35
Foot WCI 3937004 Contact Us For Availability
35
Roller WCI 08004077 Contact Us For Availability
36
Housing WCI 140588-000 Contact Us For Availability
36
Panel WCI 3204980 Contact Us For Availability
36
Speed Nut WCI 08004096 Contact Us For Availability
36
Seal WCI 3205011 Contact Us For Availability
37
Shield WCI 3205025 Contact Us For Availability
37
Housing WCI 3205012 Contact Us For Availability
38
Coupling WCI 3161452 Contact Us For Availability
38
Slinger WCI 3161231 Contact Us For Availability
38
Washer WCI 3161194 Contact Us For Availability
38
Guide WCI 3205013 Contact Us For Availability
39
Rivet WCI 3161237 Contact Us For Availability
39
Cover WCI 3205014 Contact Us For Availability
40
Screw WCI 3161274 Contact Us For Availability
40
Washer WCI 3161232 Contact Us For Availability
40
Bumper WCI 3204981 Contact Us For Availability
40
Screw WCI 3161240 Contact Us For Availability
41
Laundry Center Dryer Lint Screen WCI 3205015 Contact Us For Availability
41
Mechanism WCI 5303208459 Contact Us For Availability
41
Screw WCI 08001578 Contact Us For Availability
42
Switch WCI 3205033 Contact Us For Availability
42
Washer WCI 08057430 Contact Us For Availability
42
Screw WCI 5303208454 Contact Us For Availability
43
Dispenser WCI 3204983 Contact Us For Availability
44
Hose WCI 3205034 Contact Us For Availability
44
Screw WCI 08010804 Contact Us For Availability
44A
Screw WCI 144005-000 Contact Us For Availability
45
Locating Pin WCI 3204373 Contact Us For Availability
45
Wire Ring WCI 136345-000 Contact Us For Availability
46
Bracket WCI 3205035 Contact Us For Availability
46
Hinge Pin WCI 3016440 Contact Us For Availability
46A
Washer WCI 5303208633 Contact Us For Availability
47
Screw WCI 3204269 Contact Us For Availability
47
Screw WCI 3205016 Contact Us For Availability
48
Screw WCI 3010202 Contact Us For Availability
48
Fustat WCI 5303208450 Contact Us For Availability
48
Lower Brace WCI 3016468 Contact Us For Availability
48
Elbow WCI 3205017 Contact Us For Availability
49
Connector WCI 08006559 Contact Us For Availability
50
Plate WCI 3016469 Contact Us For Availability
50
Shield WCI 3205018 Contact Us For Availability
53
Clamp WCI 3161207 Contact Us For Availability
53
Strike Plate WCI 3016442 Contact Us For Availability
54
Clamp WCI 064154-020 Contact Us For Availability
55
Clamp WCI 140887-027 Contact Us For Availability
55
Cushion WCI 3004083 Contact Us For Availability
57
Clip WCI 3161287 Contact Us For Availability
57
Screw WCI 3161185 Contact Us For Availability
58
Spring WCI 08006573 Contact Us For Availability
58
Heater WCI 141683-000 Contact Us For Availability
60
Hose WCI 3205936 Contact Us For Availability
61
Inlet Hose WCI 140162-000 Contact Us For Availability
61
Retainer WCI 3204987 Contact Us For Availability
62
Bushing WCI 132251-000 Contact Us For Availability
63
Clamp WCI 064154-015 Contact Us For Availability
64
Valve WCI 08014555 Contact Us For Availability
65
Shield WCI 139128000 Contact Us For Availability
65
Bracket WCI 3161252 Contact Us For Availability
66
Capacitor WCI 08014903 Contact Us For Availability
68
Terminal Cover WCI 136939-126 Contact Us For Availability
69A
Panel (White) WCI 3204991 Contact Us For Availability
69B
Panel (Almond) WCI 3204992 Contact Us For Availability
72
Screw WCI 08011318 Contact Us For Availability
NI
Washer Timer Shaft Spacer WCI 5308015493 Contact Us For Availability
NI
Adhesive WCI 064709-100 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Label WCI 078028-000 Contact Us For Availability
NI
INSULATION, REAR & VENT PNL WCI 078202-300 Contact Us For Availability
NI
Compound WCI 08006576 Contact Us For Availability
NI
Clip WCI 08008454 Contact Us For Availability
NI
Bearing WCI 08950214 Contact Us For Availability
NI
Adhesive WCI 133016-000 Contact Us For Availability
NI
Clip WCI 136886-000 Contact Us For Availability
NI
Clip WCI 136886-001 Contact Us For Availability
NI
Label WCI 139789-000 Contact Us For Availability
NI
Label WCI 140093-000 Contact Us For Availability
NI
Dispenser WCI 141410-000 Contact Us For Availability
NI
Resistor WCI 141720-000 Contact Us For Availability
NI
Label WCI 3017115 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3017123 Contact Us For Availability
NI
Label WCI 3017124 Contact Us For Availability
NI
Lubricant WCI 3161117 Contact Us For Availability
NI
Sleeve WCI 3161182 Contact Us For Availability
NI
Strap WCI 3161250 Contact Us For Availability
NI
Spray Paint (Almond) WCI 3204476 Contact Us For Availability
NI
Screw WCI 3204984 Contact Us For Availability
NI
Installation Instructions WCI 3205038 Contact Us For Availability
NI
Owner's Manual WCI 3205039 Contact Us For Availability
NI
Owner's Manual WCI 3205040 Contact Us For Availability
NI
Label WCI 3205042 Contact Us For Availability
NI
Resistor WCI 3281110 Contact Us For Availability
NI
Channel WCI 5303208455 Contact Us For Availability
NI
Oil WCI 5303208460 Contact Us For Availability
NI
Installation Instructions WCI 5303209784 Contact Us For Availability
NI
Cantilever Parts WCI 5303212525 Contact Us For Availability
× ![]()
Login and Registration Form
