Model Electrolux 417.99570120 Laundry Center (Kenmore 41799570120) – Common Parts & Diagrams

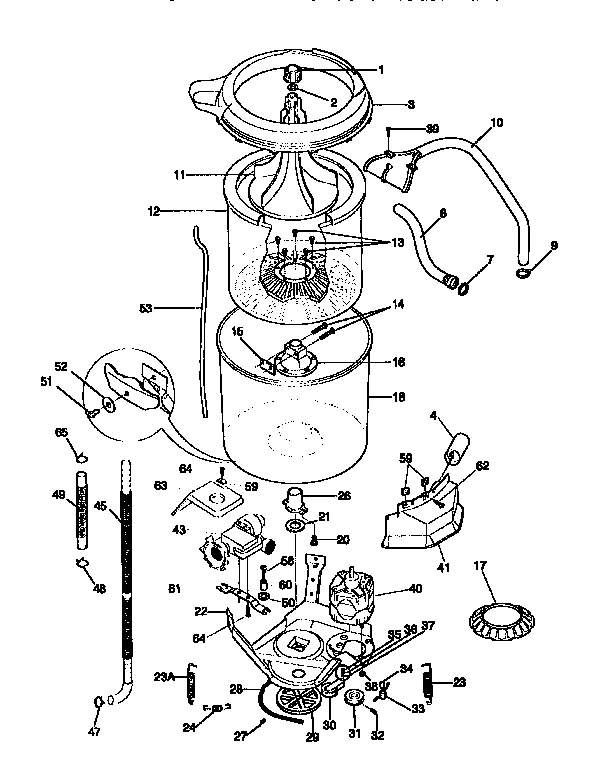

TUB, BASKET, AND AGITATOR

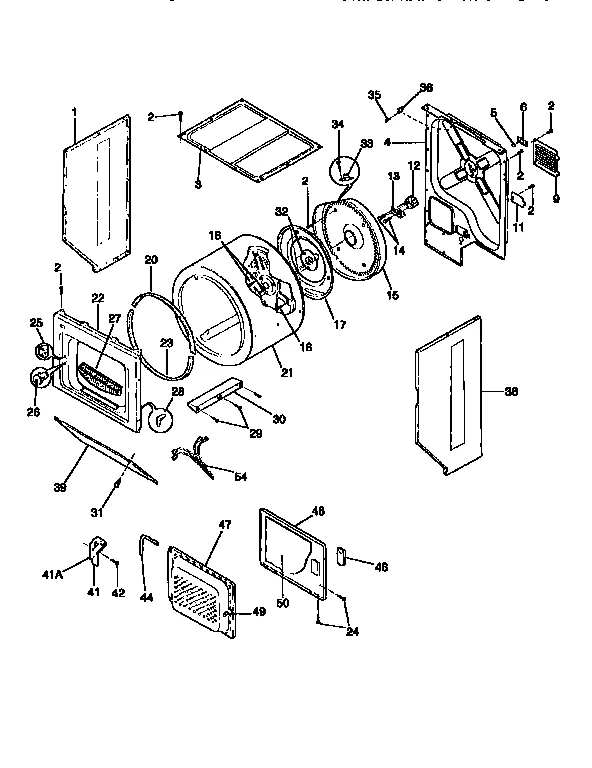

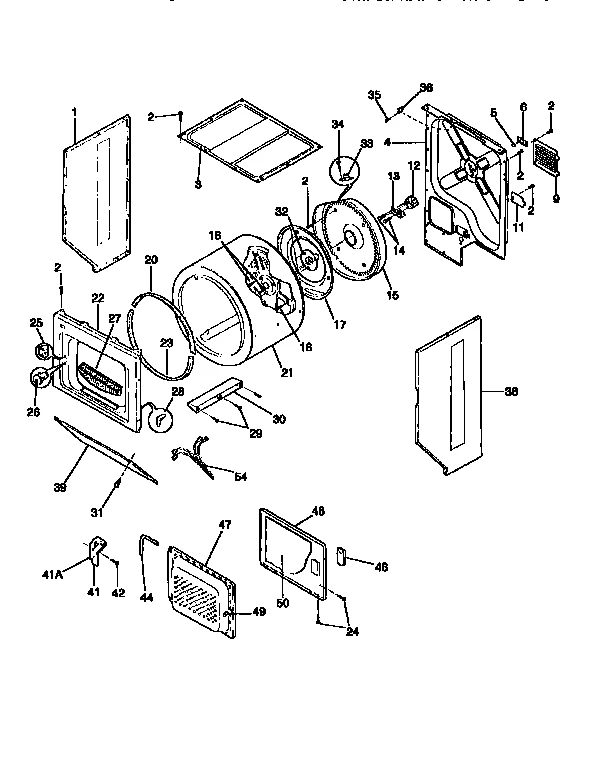

DRUM
BLOWER AND BASE
GEARCASE/TRANSMISSION
All Parts
CONTROL PANEL
TOP AND CABINET
Common parts from model Electrolux 417.99570120 Laundry Center (Kenmore 41799570120)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Agitator Bolt WCI 131206800 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
3
Laundry Center Wire Harness WCI 131484100 Contact Us For Availability
5
Snap Ring WCI 5303161223 Contact Us For Availability
5
Switch WCI 5303209894 Contact Us For Availability
5
Grommet Hinge WCI 3204362 Contact Us For Availability
6
Washer Harness WCI 131592700 Contact Us For Availability
8
Screw WCI 3205245 Contact Us For Availability
9
Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
13
Dryer Timer Resistor WCI 3205877 Contact Us For Availability
14
Washer WCI 5303161226 Contact Us For Availability
14
Resistor WCI 3205243 Contact Us For Availability
15
Temperature Switch WCI 131620800 Contact Us For Availability
16
Electrolux Laundry Center Washer Trunnion WCI 131545101 Contact Us For Availability
17
Washer Lint Filter WCI 131076600 Contact Us For Availability
17
Control Bracket WCI 131621702 Contact Us For Availability
18
Washer Outer Tub WCI 131557201 Contact Us For Availability
18
Control Panel WCI 131636500 Contact Us For Availability
20
End Cap-lh WCI 131288100 Contact Us For Availability
21A
Knob WCI 5303210341 Contact Us For Availability
22
Laundry Center Washer Leg and Dome Assembly WCI 131373610 Contact Us For Availability
22
Screw WCI 3161259 Contact Us For Availability
23
Gear WCI 5303161175 Contact Us For Availability
23
Dryer Harness WCI 131512600 Contact Us For Availability
24
Laundry Center Washer Horizontal Spring WCI 131373900 Contact Us For Availability
24
Shaft WCI 5308015507 Contact Us For Availability
25
Housing W/o WCI 131586700 Contact Us For Availability
25
Dial WCI 5303209901 Contact Us For Availability
26
Electrolux Washer Tub Seal Assembly WCI 5303279394 Contact Us For Availability
26
Laundry Center Washer Timer Knob Spacer WCI 3205248 Contact Us For Availability
27
Dryer Motor Clamp WCI 131419800 Contact Us For Availability
27
Screw WCI 3205253 Contact Us For Availability
28
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
29
Washer Harness WCI 131520800 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
End Cap-rh WCI 131288210 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
35
Washer Snubber Ring WCI 5308002385 Contact Us For Availability
35
Nut WCI 5308014350 Contact Us For Availability
36
Laundry Center Washer WCI 5303261031 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
37
Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability
37
Screw WCI 131102900 Contact Us For Availability
38
Nut Washer WCI 5303318708 Contact Us For Availability
38
Laundry Center Dryer Buzzer WCI 5303286537 Contact Us For Availability
38
Washer Base WCI 5303311213 Contact Us For Availability
41
Shield WCI 131513300 Contact Us For Availability
42
Washer Front Panel (White) WCI 131104303 Contact Us For Availability
43
Washer Drain Pump WCI 131268401 Contact Us For Availability
43
Laundry Center Leveling Leg Pad, Front WCI 131422100 Contact Us For Availability
45
Washer Drain Hose WCI 131461200 Contact Us For Availability
45
Washer Cabinet Panel Guide Pin WCI 131346400 Contact Us For Availability
46
Panel WCI 131593500 Contact Us For Availability
47
Bracket-r.h. WCI 131106701 Contact Us For Availability
47A
Bracket-l.h. WCI 131091001 Contact Us For Availability
50
Lid Lock WCI 131595100 Contact Us For Availability
51
Bracket WCI 5303306138 Contact Us For Availability
52
Rivet WCI 08002420 Contact Us For Availability
53
Panel-top Wh WCI 131452510 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Laundry Center Dryer Door Switch Wire Harness WCI 131498900 Contact Us For Availability
64
Screw Shield WCI 5303283072 Contact Us For Availability
NI
Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability
NI
Caution Label WCI 131381400 Contact Us For Availability
NI
Energy Label WCI 131489200 Contact Us For Availability
NI
Use&care Mnl WCI 131494400 Contact Us For Availability
NI
Dryer Label WCI 131506200 Contact Us For Availability
NI
Installation Instructions WCI 131531700 Contact Us For Availability
NI
Warming Label WCI 131558300 Contact Us For Availability
NI
Warming Label WCI 131558400 Contact Us For Availability
NI
Remove Label WCI 131581900 Contact Us For Availability
NI
Dryer Owner's Manual WCI 131594500 Contact Us For Availability
NI
Operating WCI 131640000 Contact Us For Availability
NI
Operating WCI 131640100 Contact Us For Availability
NI
Label WCI 5303300287 Contact Us For Availability
NI
Repair Parts List WCI 5995289237 Contact Us For Availability
× ![]()
