Model Electrolux 417.99463110 Laundry Center (Kenmore 41799463110) – Common Parts & Diagrams
TRANSMISSION
WASHER-TUBS, HOSES, MOTOR

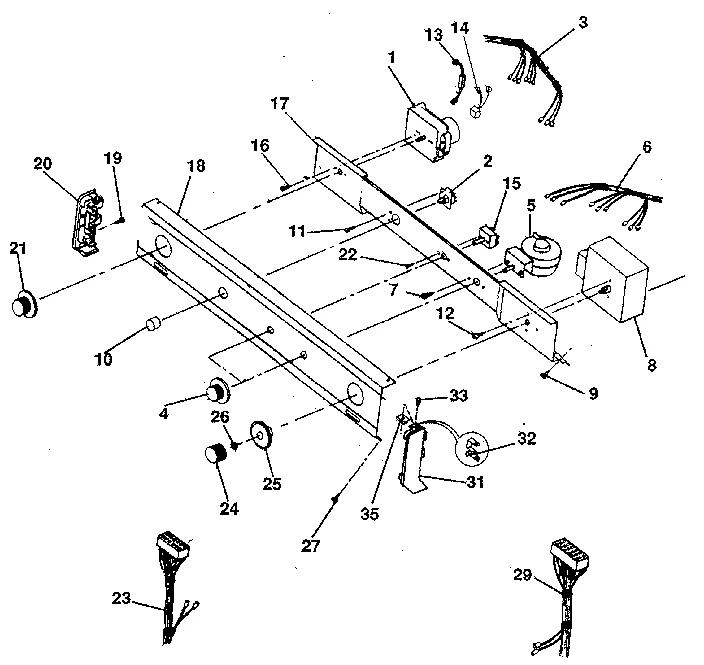

CONSOLE AND CONTROLS

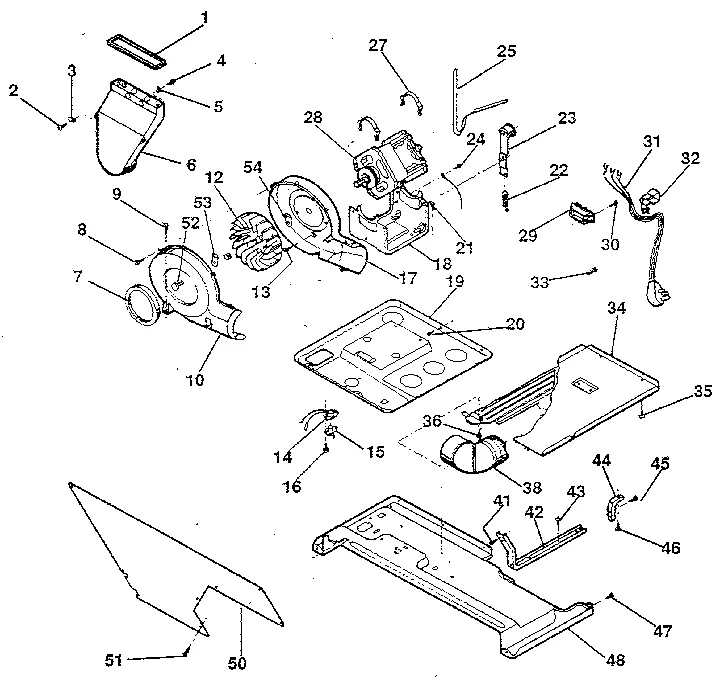

DRYER-MOTOR, BLOWER, BELT

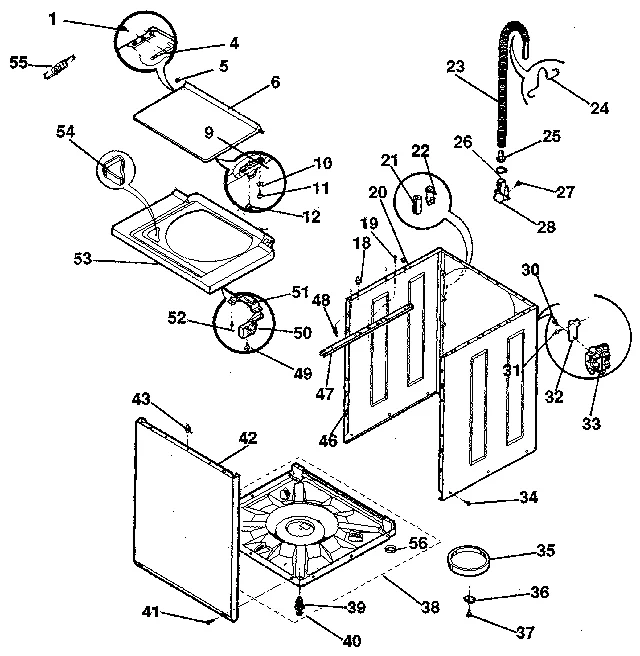

WASHER-CABINET, TOP PANEL, BASE
All Parts

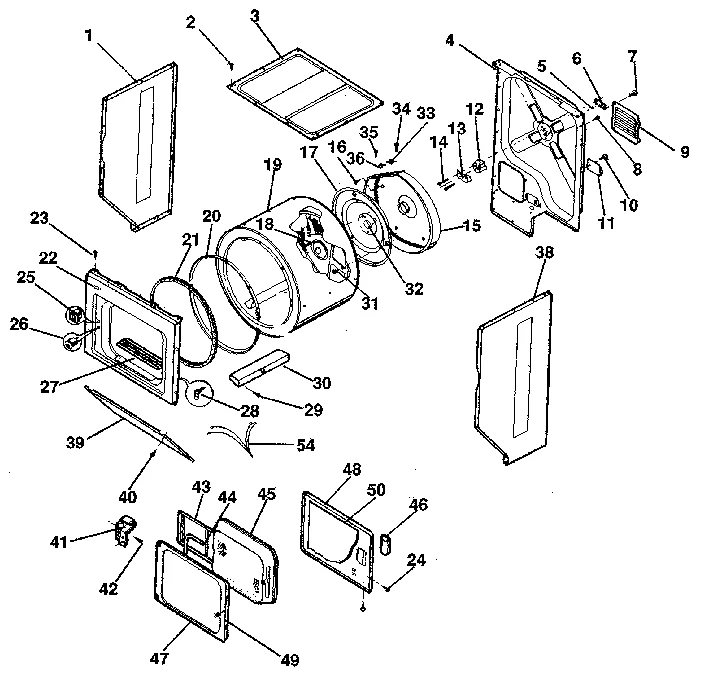

DRYER-CABINET, DRUM, HEATER
Common parts from model Electrolux 417.99463110 Laundry Center (Kenmore 41799463110)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Timer WCI 5303212897 Contact Us For Availability
1
Washer Seal WCI 3204298 Contact Us For Availability
1
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
1
Screw WCI 5303211089 Contact Us For Availability
1A
Panel (White) WCI 3204245 Contact Us For Availability
1B
Panel (Almond) WCI 3204246 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
2
Laundry Center Dryer Push-to-Start Switch WCI 5303209890 Contact Us For Availability
2
Screw WCI 136029-000 Contact Us For Availability
3
Harness WCI 5303209918 Contact Us For Availability
3
Clip WCI 140666-000 Contact Us For Availability
4
Knob WCI 5303209892 Contact Us For Availability
4
Panel WCI 3204248 Contact Us For Availability
5
Switch WCI 5303209894 Contact Us For Availability
5
Grommet Hinge WCI 3204362 Contact Us For Availability
6
Inlet Hose WCI 140162-000 Contact Us For Availability
6
Harness WCI 5303209895 Contact Us For Availability
6B
Lid (Almond) WCI 5303212873 Contact Us For Availability
8
Screw WCI 3205245 Contact Us For Availability
8
Timer WCI 5303209896 Contact Us For Availability
9
Clamp WCI 064154-004 Contact Us For Availability
9
Access Panel WCI 3204249 Contact Us For Availability
10
Hose WCI 3204400 Contact Us For Availability
10
Switch WCI 3205638 Contact Us For Availability
10
Front WCI 3204301 Contact Us For Availability
10
Washer WCI 078259-000 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Screw WCI 08001544 Contact Us For Availability
11
Washer Cover WCI 3204250 Contact Us For Availability
12
Spin Tube WCI 3204402 Contact Us For Availability
12
Screw WCI 3161188 Contact Us For Availability
13
Dryer Timer Resistor WCI 3205877 Contact Us For Availability
13
Screw WCI 08027519 Contact Us For Availability
14
Resistor WCI 3205243 Contact Us For Availability
14
Heater WCI 136777-000 Contact Us For Availability
15
Switch WCI 5308014346 Contact Us For Availability
16
Support WCI 08014908 Contact Us For Availability
17
Bracket WCI 3205639 Contact Us For Availability
17
Housing WCI 3204309 Contact Us For Availability
18
Tub WCI 3204404 Contact Us For Availability
18
Panel WCI 5303209897 Contact Us For Availability
18
Locating Pin WCI 3204373 Contact Us For Availability
18
Screw WCI 5303205255 Contact Us For Availability
19
Cradle Pan WCI 3204311 Contact Us For Availability
19
Screw WCI 5308057419 Contact Us For Availability
20
End Cap WCI 5303209671 Contact Us For Availability
20
Ring Bearing WCI 3204259 Contact Us For Availability
21
Dryer Drum Felt Seal WCI 3204260 Contact Us For Availability
21
Screw WCI 3281077 Contact Us For Availability
21
Capacitor WCI 08014903 Contact Us For Availability
22
Screw WCI 3161259 Contact Us For Availability
22
Dome WCI 3204408 Contact Us For Availability
22
Bracket WCI 3161252 Contact Us For Availability
22A
Panel (White) WCI 3205629 Contact Us For Availability
22B
Panel (Almond) WCI 3205630 Contact Us For Availability
23
Harness WCI 5303209919 Contact Us For Availability
23
Idler Arm WCI 3204313 Contact Us For Availability
23
Hose WCI 3161454 Contact Us For Availability
24
Laundry Center Washer Timer Knob WCI 5303209900 Contact Us For Availability
24
Spring WCI 5303208859 Contact Us For Availability
24
Retainer WCI 08002362 Contact Us For Availability
24
Screw WCI 3281176 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
25
Dial WCI 5303209901 Contact Us For Availability
25
Belt WCI 3204314 Contact Us For Availability
26
Laundry Center Washer Timer Knob Spacer WCI 3205248 Contact Us For Availability
26
Support Block WCI 5303212870 Contact Us For Availability
26
Clamp WCI 064154-015 Contact Us For Availability
26
Dryer Door Switch WCI 5308001614 Contact Us For Availability
27
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
27
Screw WCI 3205253 Contact Us For Availability
27A
Laundry Center Dryer Lint Screen Cover (White WCI 3204263 Contact Us For Availability
27B
Air Grill WCI 3204264 Contact Us For Availability
28
Dryer Motor Assembly WCI 5303209662 Contact Us For Availability
28
Coupler WCI 3204376 Contact Us For Availability
28
Clip WCI 3281074 Contact Us For Availability
29
Pulley WCI 3204420 Contact Us For Availability
29
Harness WCI 3205645 Contact Us For Availability
30
Idler Arm WCI 3204422 Contact Us For Availability
30
Screw WCI 3281024 Contact Us For Availability
30
Screw WCI 3010202 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
End Cap WCI 5303210650 Contact Us For Availability
31
Screw WCI 5303207393 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
32
Stran Relief WCI 3204317 Contact Us For Availability
32
Bracket WCI 3204378 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Screw WCI 08010789 Contact Us For Availability
34
Sleeve WCI 3204426 Contact Us For Availability
34
Shield WCI 3204319 Contact Us For Availability
34
Screw WCI 066234-000 Contact Us For Availability
35
Nut WCI 5308014350 Contact Us For Availability
35
Snubber WCI 130789-000 Contact Us For Availability
35
Screw WCI 3204269 Contact Us For Availability
36
Washer WCI 3204429 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
36
Thermostat Fuse WCI 3204270 Contact Us For Availability
37
Screw WCI 3204381 Contact Us For Availability
38
Clip WCI 5308001875 Contact Us For Availability
38
Elbow WCI 3204320 Contact Us For Availability
38
Base WCI 3204382 Contact Us For Availability
38A
Panel (White) WCI 3204271 Contact Us For Availability
38B
Panel (Almond) WCI 3204272 Contact Us For Availability
39
Foot WCI 3937004 Contact Us For Availability
39A
Access Panel (White) WCI 3204273 Contact Us For Availability
39B
Access Panel (Almond) WCI 3204274 Contact Us For Availability
40
Motor WCI 3205647 Contact Us For Availability
40
Pad WCI 5303207419 Contact Us For Availability
40
Screw WCI 5303207397 Contact Us For Availability
41
Motor Shield WCI 3204450 Contact Us For Availability
41
Screw WCI 08011318 Contact Us For Availability
41A
Dryer Door Upper Hinge WCI 3204275 Contact Us For Availability
41B
Lower Hinge WCI 3204276 Contact Us For Availability
42
Slinger WCI 3204451 Contact Us For Availability
42
Bracket WCI 3204324 Contact Us For Availability
42A
Panel (White) WCI 5303209676 Contact Us For Availability
42B
Panel (Almond) WCI 5303209677 Contact Us For Availability
43
Pump WCI 3204452 Contact Us For Availability
43
Screw WCI 3204325 Contact Us For Availability
43
Locating Pin WCI 145392-000 Contact Us For Availability
43
Lint Filter WCI 3204278 Contact Us For Availability
44
Clip WCI 3204453 Contact Us For Availability
44
Gasket WCI 5303208613 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
45
Screw WCI 08011280 Contact Us For Availability
45
Flint-filter WCI 3204280 Contact Us For Availability
46
Clip WCI 3204455 Contact Us For Availability
46A
Cabinet (White) WCI 3204387 Contact Us For Availability
46A
Door Handle (White) WCI 3204281 Contact Us For Availability
46B
Cabinet (Almond) WCI 3204388 Contact Us For Availability
46B
Door Handle (Almond) WCI 3204282 Contact Us For Availability
47
Clamp WCI 3204456 Contact Us For Availability
47
Bracket WCI 3204389 Contact Us For Availability
47A
Door (White) WCI 3204283 Contact Us For Availability
47B
Almond (Almond) WCI 5303207389 Contact Us For Availability
48
Screw WCI 08001578 Contact Us For Availability
48A
Outer Door (White) WCI 3204284 Contact Us For Availability
48B
Outer Door (Almond) WCI 3204285 Contact Us For Availability
49
Washer Tub-to-Pump Hose WCI 3204458 Contact Us For Availability
49
Screw WCI 3018964 Contact Us For Availability
50
Safety Cover WCI 3204329 Contact Us For Availability
50
Switch WCI 3205646 Contact Us For Availability
51
Screw WCI 3204459 Contact Us For Availability
51
Bracket WCI 3204391 Contact Us For Availability
52
Plate WCI 3204460 Contact Us For Availability
52
Rivet WCI 08057422 Contact Us For Availability
53A
Panel (White) WCI 5303212874 Contact Us For Availability
53B
Panel (Almond) WCI 5303212875 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Harness WCI 3205631 Contact Us For Availability
56
Pad WCI 3204383 Contact Us For Availability
NI
Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability
NI
Adhesive WCI 064709-100 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Label WCI 078028-000 Contact Us For Availability
NI
Compound WCI 08006576 Contact Us For Availability
NI
Label WCI 139789-000 Contact Us For Availability
NI
Label WCI 140093-000 Contact Us For Availability
NI
Label WCI 3017115 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3204465 Contact Us For Availability
NI
Label WCI 3204466 Contact Us For Availability
NI
Bearing WCI 3204473 Contact Us For Availability
NI
Spray Paint (Almond) WCI 3204476 Contact Us For Availability
NI
Shim WCI 5303161222 Contact Us For Availability
NI
Plug WCI 5303209889 Contact Us For Availability
NI
Label WCI 5303209904 Contact Us For Availability
NI
Operating Instructions WCI 5303209906 Contact Us For Availability
NI
Use and Care Guide WCI 5303209907 Contact Us For Availability
NI
Pad WCI 5303210651 Contact Us For Availability
NI
Installation Instructions WCI 5303212880 Contact Us For Availability
NI
Parts List WCI 5303212896 Contact Us For Availability
NI
Technical Sheet WCI 5303212898 Contact Us For Availability
× ![]()
