Model Electrolux 417.99395800 Laundry Center (Kenmore 41799395800) – Common Parts & Diagrams
CONTROL PANEL

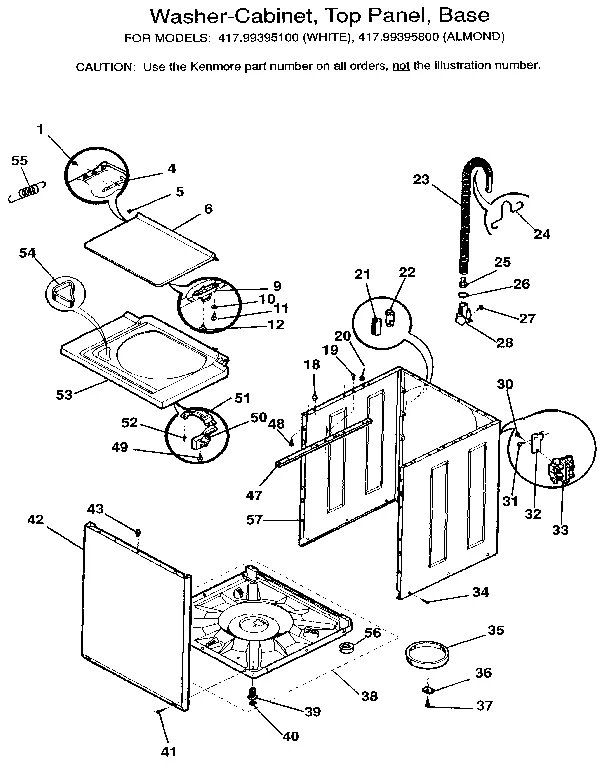

TOP AND CABINET
All Parts
TUB, BASKET, AND AGITATOR
DRUM AND HEATER
GEARCASE/TRANSMISSION
MOTOR AND BLOWER
Common parts from model Electrolux 417.99395800 Laundry Center (Kenmore 41799395800)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Washer Seal WCI 131151200 Contact Us For Availability
1A
Panel-side L WCI 131084700 Contact Us For Availability
1B
Panel-side L WCI 131084701 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
2
Jumper Wire WCI 131062205 Contact Us For Availability
3
Gearcase Mec WCI 5308057580 Contact Us For Availability
4
Screw WCI 131088600 Contact Us For Availability
4
Panel WCI 5303283283 Contact Us For Availability
5
Snap Ring WCI 5303161223 Contact Us For Availability
6
Screw WCI 5308027582 Contact Us For Availability
7
Plug WCI 5303161224 Contact Us For Availability
8
Screw WCI 3205245 Contact Us For Availability
8
Screw WCI 08002804 Contact Us For Availability
9
Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability
9
Clamp WCI 131122006 Contact Us For Availability
9
Access Panel WCI 3204249 Contact Us For Availability
10
Hose WCI 5303272068 Contact Us For Availability
10
Gear WCI 5308011268 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Cover WCI 5303207395 Contact Us For Availability
11
Rod WCI 5303161169 Contact Us For Availability
12
Tub Trunnion WCI 131099500 Contact Us For Availability
12
Gear WCI 5308015496 Contact Us For Availability
13
Screw WCI 08011280 Contact Us For Availability
13
Shaft WCI 5308014905 Contact Us For Availability
14
Washer WCI 5303161226 Contact Us For Availability
15
Dryer Heat Duct and Drum Housing WCI 5303207394 Contact Us For Availability
15
Pin WCI 5303161227 Contact Us For Availability
15
Control Thermostat WCI 131073400 Contact Us For Availability
16
Housing WCI 5303912535 Contact Us For Availability
17
Housing WCI 5303271179 Contact Us For Availability
18
Tub WCI 3204404 Contact Us For Availability
18
Screw WCI 5303205255 Contact Us For Availability
18
Washer WCI 5308002475 Contact Us For Availability
19
Cradle Pan WCI 3204311 Contact Us For Availability
20
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
21
Oil WCI 3005242 Contact Us For Availability
21
Screw WCI 3281077 Contact Us For Availability
22
Spring WCI 5303161174 Contact Us For Availability
22
Dome WCI 3204408 Contact Us For Availability
22A
Front Panel (White) WCI 131150702 Contact Us For Availability
22B
Panel (Almond) WCI 131150703 Contact Us For Availability
23
Gear WCI 5303161175 Contact Us For Availability
23
Idler Arm WCI 131131501 Contact Us For Availability
24
Retainer WCI 5303204987 Contact Us For Availability
24
Spring WCI 5303208859 Contact Us For Availability
24
Screw WCI 5303161187 Contact Us For Availability
24
Shaft WCI 5308015507 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
25
Washer Fabric Softener Dispenser Cup WCI 3205405 Contact Us For Availability
25
Housing WCI 5303205527 Contact Us For Availability
26
Electrolux Washer Tub Seal Assembly WCI 5303279394 Contact Us For Availability
26
Dryer Door Switch WCI 5308001614 Contact Us For Availability
26
Support Block WCI 5303212870 Contact Us For Availability
27
Washer Screw WCI 5303270023 Contact Us For Availability
27
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
27
Washer WCI 5303161232 Contact Us For Availability
28
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
28
Housing WCI 5308950058 Contact Us For Availability
28
Motor with Pulley WCI 131198500 Contact Us For Availability
29
Pulley WCI 5303272070 Contact Us For Availability
29
Sleeve WCI 5303161182 Contact Us For Availability
30
Idler Arm WCI 3204422 Contact Us For Availability
30
Washer WCI 5308057430 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
Screw WCI 5303207393 Contact Us For Availability
31
Ring WCI 5308015536 Contact Us For Availability
31
Cord WCI 5303207402 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Spacer WCI 5303207426 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Thermostat WCI 5303272046 Contact Us For Availability
33
Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability
34
Sleeve WCI 3204426 Contact Us For Availability
34
Cushion WCI 5377009100 Contact Us For Availability
34
Shield WCI 131112011 Contact Us For Availability
35
Washer Snubber Ring WCI 5308002385 Contact Us For Availability
36
Laundry Center Washer WCI 5303261031 Contact Us For Availability
37
Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability
38
Hex Nut WCI 5303209678 Contact Us For Availability
38
Elbow WCI 3204320 Contact Us For Availability
38A
Panel-side W WCI 131084800 Contact Us For Availability
38B
Panel-side R WCI 131084801 Contact Us For Availability
39B
Panel-servic WCI 131084403 Contact Us For Availability
40
Motor WCI 5303272071 Contact Us For Availability
41
Control Panel WCI 5303292151 Contact Us For Availability
41A
Dryer Door Upper Hinge WCI 3204275 Contact Us For Availability
41B
Lower Hinge WCI 3204276 Contact Us For Availability
42
Slinger WCI 3204451 Contact Us For Availability
42
Bracket WCI 3204324 Contact Us For Availability
42A
Washer Front Panel (White) WCI 131104303 Contact Us For Availability
43
Washer Drain Pump WCI 131208500 Contact Us For Availability
43
Screw WCI 3204325 Contact Us For Availability
44
Clip WCI 3204453 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
46
Clip WCI 3204455 Contact Us For Availability
46A
Handle-white WCI 131063600 Contact Us For Availability
46B
Laundry Center Dryer Door Handle (Almond) WCI 131063601 Contact Us For Availability
47
Clamp WCI 3204456 Contact Us For Availability
47A
Door-inner W WCI 5303300245 Contact Us For Availability
47B
Door-inner-a WCI 5303300246 Contact Us For Availability
48A
Outer Door (White) WCI 3204284 Contact Us For Availability
48B
Outer Door (Almond) WCI 3204285 Contact Us For Availability
49
Washer Water-Level Pressure Switch WCI 5303293375 Contact Us For Availability
50
Safety Cover WCI 3204329 Contact Us For Availability
51
Screw WCI 3204459 Contact Us For Availability
52
Plate WCI 3204460 Contact Us For Availability
53
Pressure Tub WCI 5303294291 Contact Us For Availability
53A
Panel (White) WCI 5303212874 Contact Us For Availability
53B
Panel (Almond) WCI 5303212875 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Electronic Harness WCI 131218800 Contact Us For Availability
55
Dryer Drying Rack WCI 131155200 Contact Us For Availability
56
Leg Pad WCI 5303201463 Contact Us For Availability
57A
Body-whte WCI 131062110 Contact Us For Availability
57B
Body-almond WCI 131062112 Contact Us For Availability
61
Bracket WCI 5303207404 Contact Us For Availability
64
Pipe WCI 5303207405 Contact Us For Availability
65
Screw WCI 08010804 Contact Us For Availability
67
Valve WCI 5303207407 Contact Us For Availability
68
Tube WCI 5362791200 Contact Us For Availability
69
Hex Nut WCI 08015194 Contact Us For Availability
76
Screw WCI 5303281150 Contact Us For Availability
77
Burner WCI 5303207412 Contact Us For Availability
79
Sensor WCI 131196900 Contact Us For Availability
84
Screw WCI 3281134 Contact Us For Availability
85
Shield WCI 5303212889 Contact Us For Availability
NI
Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Shipping Label WCI 131100900 Contact Us For Availability
NI
Warming Label WCI 131155000 Contact Us For Availability
NI
Energy Label WCI 131190800 Contact Us For Availability
NI
Operating Instructions WCI 131219200 Contact Us For Availability
NI
Use and Care Guide WCI 131219300 Contact Us For Availability
NI
Wiring Diagram WCI 131219600 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Shim WCI 5303161222 Contact Us For Availability
NI
Label WCI 5303207429 Contact Us For Availability
NI
Label WCI 5303207430 Contact Us For Availability
NI
Label WCI 5303209401 Contact Us For Availability
NI
Installation Instructions WCI 5303212892 Contact Us For Availability
NI
Receptacle WCI 5303272164 Contact Us For Availability
NI
Label WCI 5303272848 Contact Us For Availability
NI
Label WCI 5303300289 Contact Us For Availability
NI
Label WCI 5303300290 Contact Us For Availability
NI
Label WCI 5303300291 Contact Us For Availability
NI
Operating Instructions WCI 5303300362 Contact Us For Availability
NI
Orifice WCI 5303937054 Contact Us For Availability
NI
Compound WCI 5308006576 Contact Us For Availability
NI
Parts Catalog WCI 5995241295 Contact Us For Availability
NIA
Bearing WCI 3204473 Contact Us For Availability
× ![]()
