Model Electrolux 417.99195800 Laundry Center (Kenmore 41799195800) – Common Parts & Diagrams
WASHER-TUBS, HOSES, MOTOR
WASHER-CABINET, TOP PANEL, BASE

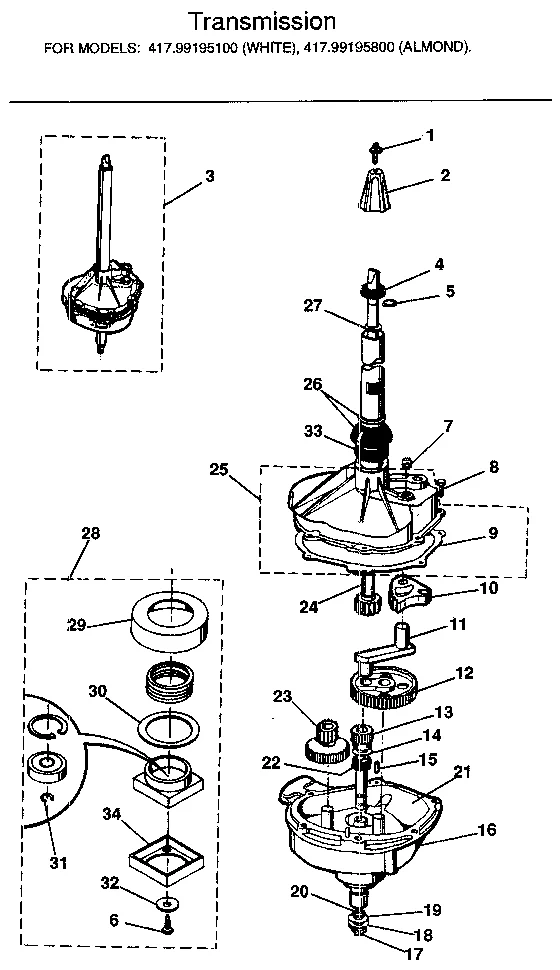

TRANSMISSION

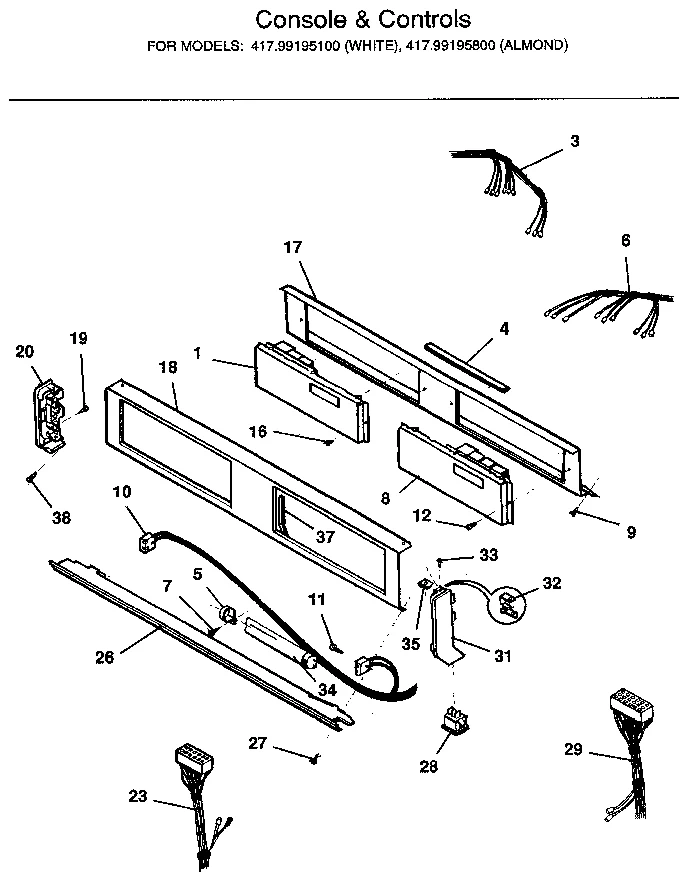

CONSOLE & CONTROLS

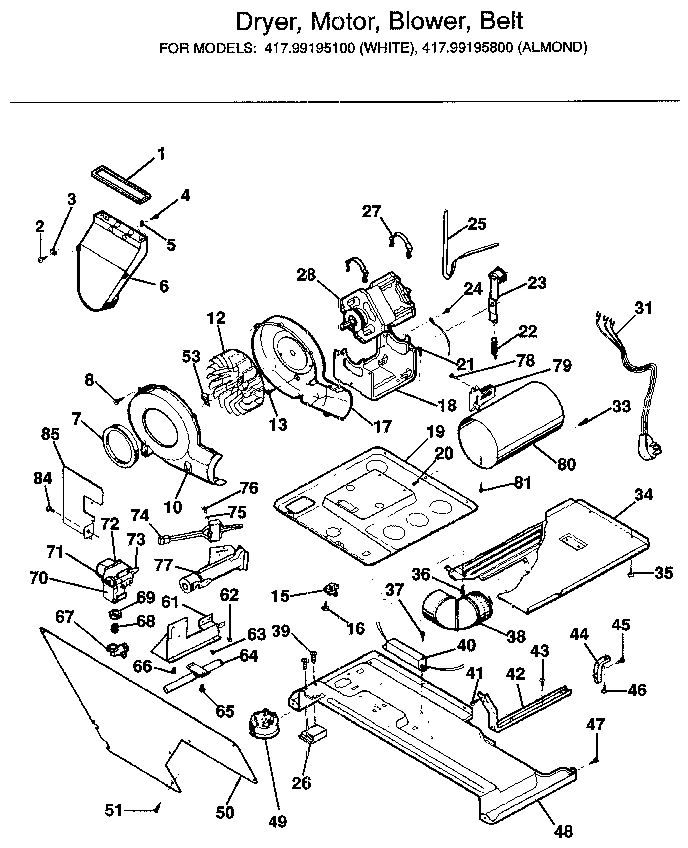

DRYER, MOTOR, BLOWER, BELT
All Parts

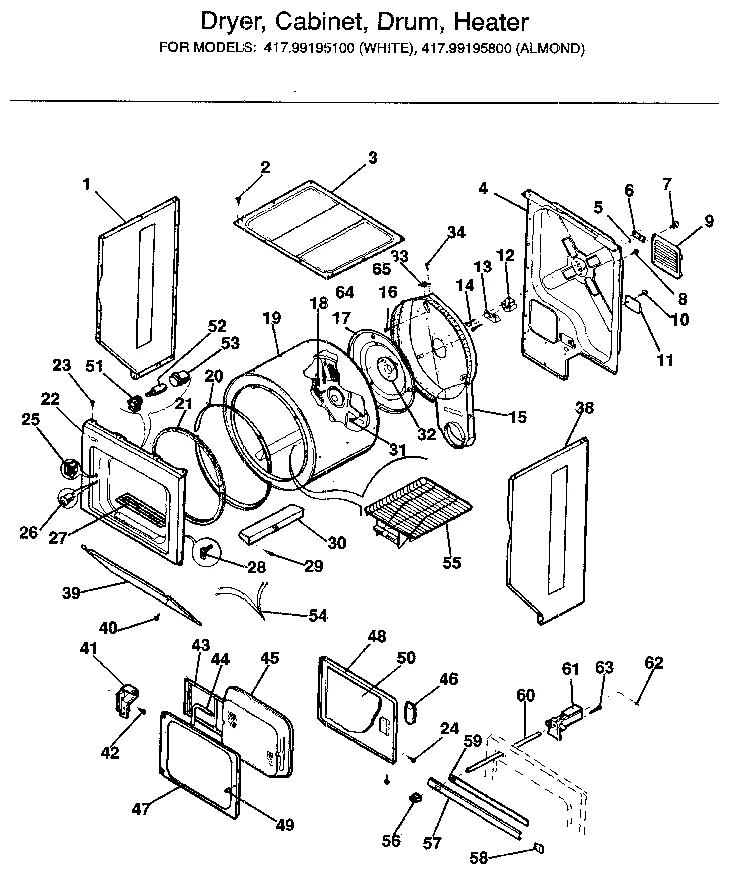

DRYER, CABINET, DRUM, HEATER
Common parts from model Electrolux 417.99195800 Laundry Center (Kenmore 41799195800)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Control WCI 5303272159 Contact Us For Availability
1
Washer Seal WCI 3204298 Contact Us For Availability
1
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
1A
White WCI 3294245 Contact Us For Availability
1B
Panel (Almond) WCI 3204246 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
2
Screw WCI 08011280 Contact Us For Availability
3
Gearcase Mec WCI 5308057580 Contact Us For Availability
3
Harness WCI 5303272160 Contact Us For Availability
3
Nut WCI 5308014350 Contact Us For Availability
4
Trim WCI 5303272056 Contact Us For Availability
4
Panel WCI 3204248 Contact Us For Availability
5
Snap Ring WCI 5303161223 Contact Us For Availability
5
Clamp WCI 5303208616 Contact Us For Availability
6
Screw WCI 5308027582 Contact Us For Availability
6
Harness WCI 5303272057 Contact Us For Availability
7
Plug WCI 5303161224 Contact Us For Availability
7
Screw WCI 5303272058 Contact Us For Availability
8
Screw WCI 3205245 Contact Us For Availability
8
Screw WCI 08002804 Contact Us For Availability
8
Control WCI 5303272059 Contact Us For Availability
9
Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability
9
Access Panel WCI 3204249 Contact Us For Availability
10
Gear WCI 5308011268 Contact Us For Availability
10
Harness WCI 5303272060 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Rod WCI 5303161169 Contact Us For Availability
11
Cover WCI 5303207395 Contact Us For Availability
12
Gear WCI 5308015496 Contact Us For Availability
13
Shaft WCI 5308014905 Contact Us For Availability
14
Washer WCI 5303161226 Contact Us For Availability
15
Pin WCI 5303161227 Contact Us For Availability
15
Thermostat WCI 5303272048 Contact Us For Availability
15
Housing WCI 5303272158 Contact Us For Availability
16
Housing WCI 5303912535 Contact Us For Availability
17
Bracket WCI 5303272061 Contact Us For Availability
17
Housing WCI 5303271179 Contact Us For Availability
18
Washer WCI 5308002475 Contact Us For Availability
18
Panel WCI 5303272062 Contact Us For Availability
18
Screw WCI 5303205255 Contact Us For Availability
19
Cradle Pan WCI 3204311 Contact Us For Availability
20
End Cap WCI 5303209671 Contact Us For Availability
20
Ring Bearing WCI 3204259 Contact Us For Availability
21
Dryer Drum Felt Seal WCI 3204260 Contact Us For Availability
21
Oil WCI 3005242 Contact Us For Availability
21
Screw WCI 3281077 Contact Us For Availability
22
Spring WCI 5303161174 Contact Us For Availability
22A
Panel (White) WCI 3204261 Contact Us For Availability
22B
Panel (Almond) WCI 3204262 Contact Us For Availability
23
Laundry Center Dryer Idler Arm WCI 3205242 Contact Us For Availability
23
Gear WCI 5303161175 Contact Us For Availability
23
Harness WCI 5303272161 Contact Us For Availability
24
Retainer WCI 5303204987 Contact Us For Availability
24
Shaft WCI 5308015507 Contact Us For Availability
24
Screw WCI 3281176 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
25
Housing WCI 5303205527 Contact Us For Availability
25
Belt WCI 3204314 Contact Us For Availability
26
Washer Tub Seal Kit WCI 5308950197 Contact Us For Availability
26
Lens WCI 5303209673 Contact Us For Availability
26
Support Block WCI 5303212870 Contact Us For Availability
26
Switch WCI 08006623 Contact Us For Availability
27
Washer Screw WCI 5303270023 Contact Us For Availability
27
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
27
Washer WCI 5303161232 Contact Us For Availability
27A
Laundry Center Dryer Lint Screen Cover (White WCI 3204263 Contact Us For Availability
27B
Air Grill WCI 3204264 Contact Us For Availability
28
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
28
Dryer Motor Assembly WCI 5303209662 Contact Us For Availability
28
Housing WCI 5308950058 Contact Us For Availability
28
Switch WCI 5303212533 Contact Us For Availability
29
Sleeve WCI 5303161182 Contact Us For Availability
29
Harness WCI 5303272064 Contact Us For Availability
30
Screw WCI 5303010202 Contact Us For Availability
30
Washer WCI 5308057430 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
Ring WCI 5308015536 Contact Us For Availability
31
End Cap WCI 5303209675 Contact Us For Availability
31
Cord WCI 5303207402 Contact Us For Availability
31
SCREW (3) WCI 5303270393 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Bracket WCI 3204378 Contact Us For Availability
32
Spacer WCI 5303207426 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability
33
Screw WCI 08010789 Contact Us For Availability
33
Thermostat WCI 5303272046 Contact Us For Availability
34
Cushion WCI 5377009100 Contact Us For Availability
34
Laundry Center Lamp WCI 3204358 Contact Us For Availability
34
Shield WCI 5303207403 Contact Us For Availability
35
Washer Snubber Ring WCI 5308002385 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
37
Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability
37
Screw WCI 3204381 Contact Us For Availability
37
Screw WCI 08001578 Contact Us For Availability
37
Gasket WCI 530327065 Contact Us For Availability
38
Base WCI 3204382 Contact Us For Availability
38
Screw WCI 3205253 Contact Us For Availability
38
Elbow WCI 3204320 Contact Us For Availability
38A
Panel (White) WCI 3204271 Contact Us For Availability
38B
Panel (Almond) WCI 3204272 Contact Us For Availability
39A
Access Panel (White) WCI 3204273 Contact Us For Availability
39B
Access Panel (Almond) WCI 3204274 Contact Us For Availability
40
Leg Pad WCI 5303201463 Contact Us For Availability
40
Ballast WCI 5303272051 Contact Us For Availability
40
Screw WCI 5303207397 Contact Us For Availability
41A
Dryer Door Upper Hinge WCI 3204275 Contact Us For Availability
41B
Lower Hinge WCI 3204276 Contact Us For Availability
42
Bracket WCI 3204324 Contact Us For Availability
42A
Panel (White) WCI 5303209676 Contact Us For Availability
42B
Panel (Almond) WCI 5303209677 Contact Us For Availability
43
Screw WCI 3204325 Contact Us For Availability
43
Lint Filter WCI 3204278 Contact Us For Availability
44
Gasket WCI 5303208613 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
45
Flint-filter WCI 3204280 Contact Us For Availability
46A
Cabinet (White) WCI 3204387 Contact Us For Availability
46A
Door Handle (White) WCI 3204281 Contact Us For Availability
46B
Cabinet (Almond) WCI 3204388 Contact Us For Availability
46B
Door Handle (Almond) WCI 3204282 Contact Us For Availability
47
Bracket WCI 3204389 Contact Us For Availability
47A
Door (White) WCI 3204283 Contact Us For Availability
47B
Door (Almond) WCI 5303207398 Contact Us For Availability
48A
Outer Door (White) WCI 3204284 Contact Us For Availability
48B
Outer Door (Almond) WCI 3204285 Contact Us For Availability
49
Washer Tub-to-Pump Hose WCI 3204458 Contact Us For Availability
49
Switch WCI 5303272052 Contact Us For Availability
50
Switch WCI 3205646 Contact Us For Availability
50
Safety Cover WCI 3204329 Contact Us For Availability
51
Bracket WCI 3204391 Contact Us For Availability
51
Receptacle WCI 5303212867 Contact Us For Availability
52
Rivet WCI 08002420 Contact Us For Availability
53
Washer Cover WCI 3204288 Contact Us For Availability
53A
Panel (White) WCI 5303212874 Contact Us For Availability
53B
Panel (Almond) WCI 5303212875 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Harness WCI 5303212869 Contact Us For Availability
55
Dryer Rack WCI 3204290 Contact Us For Availability
56
Handle WCI 3204291 Contact Us For Availability
57
Trim WCI 5303272047 Contact Us For Availability
58
Trim Cap WCI 3204293 Contact Us For Availability
59
Adhesive WCI 5303211062 Contact Us For Availability
60
Hanger Rod WCI 3204296 Contact Us For Availability
61
Bracket WCI 5303207404 Contact Us For Availability
61
Washer Block WCI 3204295 Contact Us For Availability
62
Spring Pin WCI 3205240 Contact Us For Availability
64
Gibson Laundry Center Dryer Thermal Limiter WCI 5303211472 Contact Us For Availability
64
Pipe WCI 5303207405 Contact Us For Availability
65
Screw WCI 3204269 Contact Us For Availability
67
Valve WCI 5303207407 Contact Us For Availability
68
Tube WCI 5362791200 Contact Us For Availability
69
Hex Nut WCI 08015194 Contact Us For Availability
76
Screw WCI 5303281150 Contact Us For Availability
77
Burner WCI 5303207412 Contact Us For Availability
85
Shield WCI 5303212889 Contact Us For Availability
NI
Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability
NI
SYPHON BREAK WCI 078880-000 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3204465 Contact Us For Availability
NI
Bearing WCI 3204473 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Shim WCI 5303161222 Contact Us For Availability
NI
Label WCI 5303207429 Contact Us For Availability
NI
Label WCI 5303207430 Contact Us For Availability
NI
Label WCI 5303207431 Contact Us For Availability
NI
Label WCI 5303209401 Contact Us For Availability
NI
Label WCI 5303209436 Contact Us For Availability
NI
Label WCI 5303209437 Contact Us For Availability
NI
Installation Instructions WCI 5303212892 Contact Us For Availability
NI
Label WCI 5303272075 Contact Us For Availability
NI
Operating Instructions WCI 5303272076 Contact Us For Availability
NI
Laundry Center Owner's Manual WCI 5303272077 Contact Us For Availability
NI
Operating Instructions WCI 5303272163 Contact Us For Availability
NI
Receptacle WCI 5303272164 Contact Us For Availability
NI
Orifice WCI 5303937054 Contact Us For Availability
NI
Compound WCI 5308006576 Contact Us For Availability
NI
Parts List WCI 5995204574 Contact Us For Availability
× ![]()
