Model Electrolux 417.99190120 Laundry Center (Kenmore 41799190120) – Common Parts & Diagrams
DRYER-CABINET, DRUM, HEATER
CONSOLE & CONTROLS

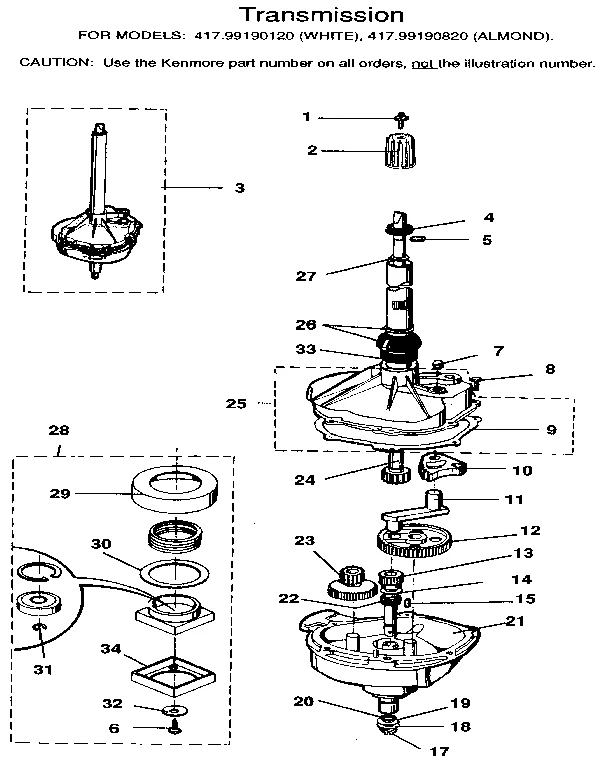

TRANSMISSION
All Parts

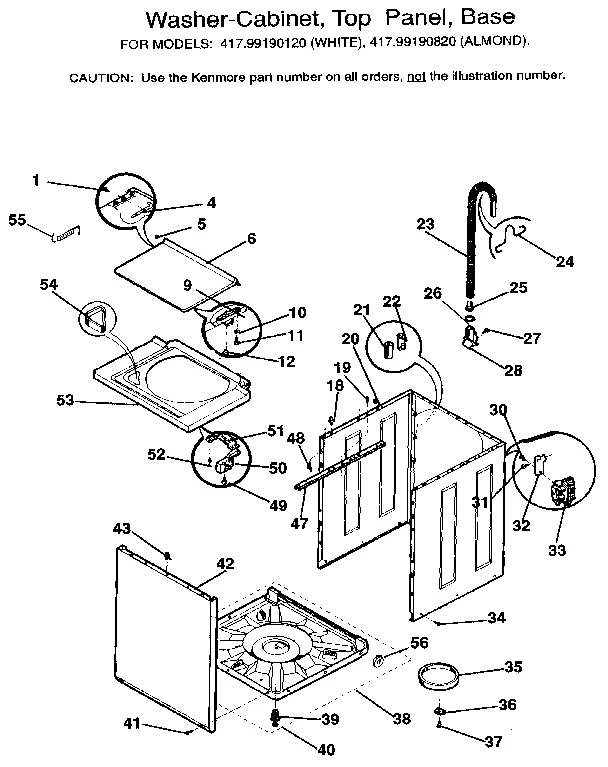

WASHER-CABINET, TOP PANEL, BASE

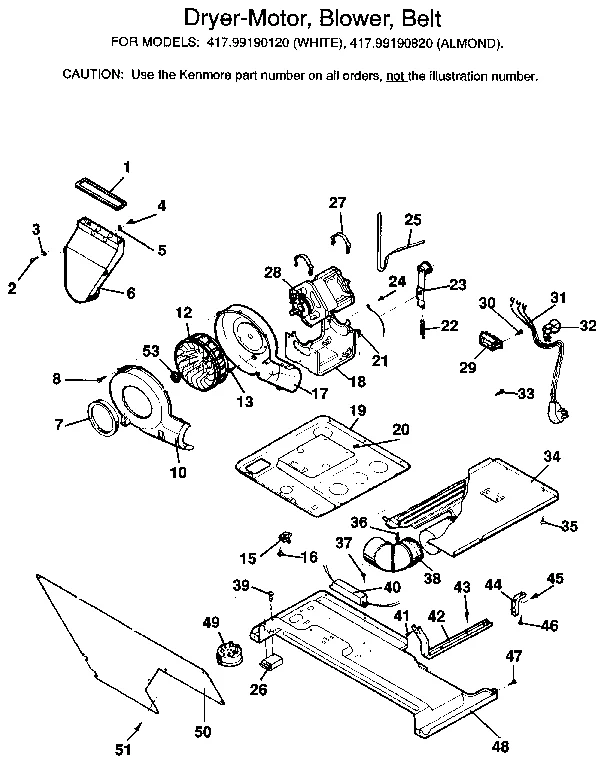

DRYER-MOTOR, BLOWER, BELT

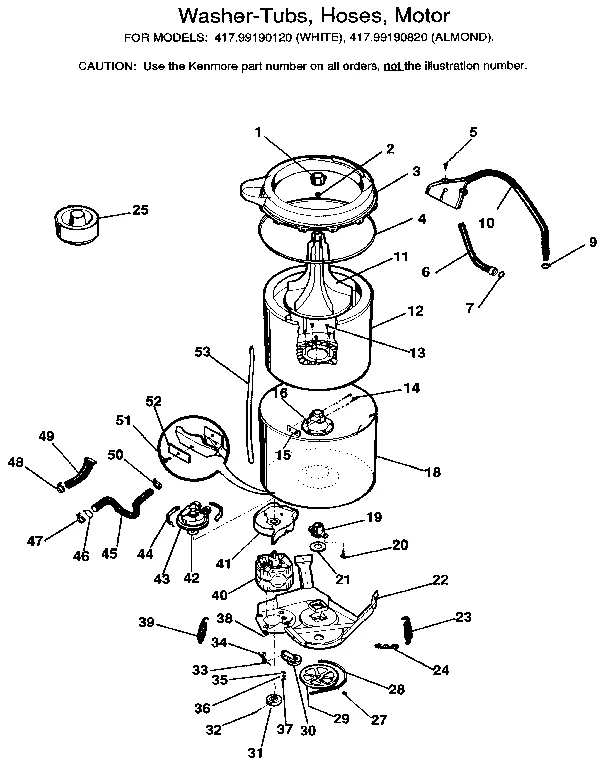

WASHER-TUBS, HOSES, MOTOR
Common parts from model Electrolux 417.99190120 Laundry Center (Kenmore 41799190120)
1
Sears Canada Laundry Center Washer Agitator C WCI 3204395 Contact Us For Availability
1
Washer Screw WCI 3204461 Contact Us For Availability
1
Screw WCI 5303211089 Contact Us For Availability
1
Washer Seal WCI 3204298 Contact Us For Availability
2
Washer Agitator Cap Seal WCI 3204396 Contact Us For Availability
3
Harness WCI 5303272055 Contact Us For Availability
3
Nut WCI 5308014350 Contact Us For Availability
3
Gearcase Mec WCI 5308057580 Contact Us For Availability
4
Trim WCI 5303272056 Contact Us For Availability
5
Snap Ring WCI 5303161223 Contact Us For Availability
5
Clamp WCI 5303208616 Contact Us For Availability
5
Grommet Hinge WCI 3204362 Contact Us For Availability
6
Harness WCI 5303272057 Contact Us For Availability
6
Screw WCI 5308027582 Contact Us For Availability
6B
Lid (Almond) WCI 5303212873 Contact Us For Availability
7
Plug WCI 5303161224 Contact Us For Availability
8
Screw WCI 3205245 Contact Us For Availability
8
Control WCI 5303272059 Contact Us For Availability
8
Screw WCI 08002804 Contact Us For Availability
9
Washer Gear Case Housing Seal WCI 5308015778 Contact Us For Availability
9
Clamp WCI 5303012110 Contact Us For Availability
10
Harness WCI 5303272060 Contact Us For Availability
10
Gear WCI 5308011268 Contact Us For Availability
10
Washer WCI 5308002408 Contact Us For Availability
10
Hose WCI 5303272068 Contact Us For Availability
11
Washer Agitator WCI 3204401 Contact Us For Availability
11
Rod WCI 5303161169 Contact Us For Availability
12
Gear WCI 5308015496 Contact Us For Availability
12
Tub Trunnion WCI 131099500 Contact Us For Availability
13
Shaft WCI 5308014905 Contact Us For Availability
13
Screw WCI 08011280 Contact Us For Availability
14
Washer WCI 5303161226 Contact Us For Availability
15
Pin WCI 5303161227 Contact Us For Availability
15
Thermostat WCI 5303272048 Contact Us For Availability
16
Housing WCI 5303912535 Contact Us For Availability
17
Bracket WCI 5303272061 Contact Us For Availability
17
Housing WCI 5303271179 Contact Us For Availability
18
Panel WCI 5303283455 Contact Us For Availability
18
Washer WCI 5308002475 Contact Us For Availability
18
Locating Pin WCI 3204373 Contact Us For Availability
18
Tub WCI 3204404 Contact Us For Availability
19
Screw WCI 5308057419 Contact Us For Availability
19
Cradle Pan WCI 3204311 Contact Us For Availability
20
End Cap WCI 5303209671 Contact Us For Availability
20
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
21
Oil WCI 3005242 Contact Us For Availability
21
Capacitor WCI 5308014903 Contact Us For Availability
21
Screw WCI 3281077 Contact Us For Availability
22
Spring WCI 5303161174 Contact Us For Availability
22
Bracket WCI 5303161252 Contact Us For Availability
22
Dome WCI 3204408 Contact Us For Availability
23
Laundry Center Dryer Idler Arm WCI 3205242 Contact Us For Availability
23
Harness WCI 5303272063 Contact Us For Availability
23
Gear WCI 5303161175 Contact Us For Availability
23
Hose WCI 3205414 Contact Us For Availability
24
Retainer WCI 5303204987 Contact Us For Availability
24
Shaft WCI 5308015507 Contact Us For Availability
24
Spring WCI 5303208859 Contact Us For Availability
25
Check Valve WCI 3204375 Contact Us For Availability
25
Housing WCI 5303205527 Contact Us For Availability
25
Washer Fabric Softener Dispenser Cup WCI 3205405 Contact Us For Availability
26
Electrolux Washer Tub Seal Assembly WCI 5303279394 Contact Us For Availability
26
Light Lens WCI 5303283453 Contact Us For Availability
26
Clamp WCI 5364154013 Contact Us For Availability
26
Support Block WCI 5303212870 Contact Us For Availability
27
Washer Screw WCI 5303270023 Contact Us For Availability
27
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
27
Washer WCI 5303161232 Contact Us For Availability
27A
Laundry Center Dryer Lint Screen Cover (White WCI 3204263 Contact Us For Availability
28
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
28
Dryer Drive Motor WCI 5303283288 Contact Us For Availability
28
Switch WCI 5303283459 Contact Us For Availability
28
Housing WCI 5308950058 Contact Us For Availability
28
Coupler WCI 3204376 Contact Us For Availability
29
Electronic Harness WCI 131070900 Contact Us For Availability
29
Sleeve WCI 5303161182 Contact Us For Availability
29
Pulley WCI 5303272070 Contact Us For Availability
30
Washer WCI 5308057430 Contact Us For Availability
30
Screw WCI 5303010202 Contact Us For Availability
30
Screw WCI 5308015309 Contact Us For Availability
30
Idler Arm WCI 3204422 Contact Us For Availability
31
Washer Drive Pulley WCI 3204423 Contact Us For Availability
31
End Cap WCI 5303210650 Contact Us For Availability
31
Ring WCI 5308015536 Contact Us For Availability
31
Cord WCI 5303212832 Contact Us For Availability
32
Laundry Center Washer Motor Pulley Pin WCI 3204424 Contact Us For Availability
32
Clip WCI 3204357 Contact Us For Availability
32
Spacer WCI 5303207426 Contact Us For Availability
32
Bracket WCI 3204378 Contact Us For Availability
32
Stran Relief WCI 3204317 Contact Us For Availability
33
Washer Idler Spring WCI 3204425 Contact Us For Availability
33
Screw WCI 08010789 Contact Us For Availability
33
Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability
34
Laundry Center Lamp WCI 3204358 Contact Us For Availability
34
Cushion WCI 5377009100 Contact Us For Availability
34
Shield WCI 3204319 Contact Us For Availability
34
Sleeve WCI 3204426 Contact Us For Availability
35
Washer Snubber Ring WCI 5308002385 Contact Us For Availability
36
Laundry Center Washer WCI 5303261031 Contact Us For Availability
36
Washer Shipping Block WCI 3204380 Contact Us For Availability
37
Electrolux Laundry Center Washer WCI 5303161306 Contact Us For Availability
37
Gasket WCI 5303272065 Contact Us For Availability
37
Screw WCI 3204381 Contact Us For Availability
37
Screw WCI 08001578 Contact Us For Availability
38
Screw WCI 3205253 Contact Us For Availability
38
Base WCI 3204382 Contact Us For Availability
38
Elbow WCI 3204320 Contact Us For Availability
38
Hex Nut WCI 5303209678 Contact Us For Availability
40
Cushion WCI 5303004083 Contact Us For Availability
40
Ballast WCI 5303272051 Contact Us For Availability
40
Motor WCI 5303272071 Contact Us For Availability
41
Shield WCI 5303211074 Contact Us For Availability
42
Bracket WCI 3204324 Contact Us For Availability
42
Slinger WCI 3204451 Contact Us For Availability
42A
Panel (White) WCI 131001803 Contact Us For Availability
42B
Panel (Almond) WCI 131001805 Contact Us For Availability
43
Screw WCI 3204325 Contact Us For Availability
43
Pump WCI 5303272432 Contact Us For Availability
44
Clip WCI 3204453 Contact Us For Availability
45
Hose WCI 3204454 Contact Us For Availability
46
Clip WCI 3204455 Contact Us For Availability
46B
Laundry Center Dryer Door Handle (Almond) WCI 131063601 Contact Us For Availability
47
Bracket WCI 3204389 Contact Us For Availability
47
Clamp WCI 3204456 Contact Us For Availability
49
Screw WCI 5303206864 Contact Us For Availability
49
Washer Water-Level Pressure Switch WCI 5303293375 Contact Us For Availability
50
Switch WCI 3205646 Contact Us For Availability
50
Safety Cover WCI 3204329 Contact Us For Availability
51
Bracket WCI 3204391 Contact Us For Availability
51
Screw WCI 3204459 Contact Us For Availability
52
Rivet WCI 08002420 Contact Us For Availability
52
Plate WCI 3204460 Contact Us For Availability
53
Washer Cover WCI 3204288 Contact Us For Availability
53A
Panel (White) WCI 5303212874 Contact Us For Availability
53B
Panel (Almond) WCI 5303212875 Contact Us For Availability
54
Washer Bleach Dispenser WCI 3204394 Contact Us For Availability
54
Harness WCI 5303293797 Contact Us For Availability
55
Dryer Rack WCI 3204290 Contact Us For Availability
56
Handle WCI 3204291 Contact Us For Availability
57
Trim WCI 5303272047 Contact Us For Availability
58
Trim Cap WCI 3204293 Contact Us For Availability
59
Adhesive WCI 5303211062 Contact Us For Availability
60
Hanger Rod WCI 3204296 Contact Us For Availability
61
Washer Block WCI 3204295 Contact Us For Availability
62
Spring Pin WCI 3205240 Contact Us For Availability
NI
Laundry Center Washer Suspension Spring Adjus WCI 5303212877 Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Wiring Diagram WCI 131010900 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3204465 Contact Us For Availability
NI
Bearing WCI 3204473 Contact Us For Availability
NI
Label WCI 3205252 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Shim WCI 5303161222 Contact Us For Availability
NI
Label WCI 5303207431 Contact Us For Availability
NI
Label WCI 5303209401 Contact Us For Availability
NI
Label WCI 5303209436 Contact Us For Availability
NI
Label WCI 5303209437 Contact Us For Availability
NI
Motor Switch WCI 5303293588 Contact Us For Availability
NI
Label WCI 5303293752 Contact Us For Availability
NI
Laundry Center Video WCI 5303293803 Contact Us For Availability
NI
Compound WCI 5308006576 Contact Us For Availability
NI
Parts Catalog WCI 5995230686 Contact Us For Availability
× ![]()
